NCP131L-AHMVKK (2011)
Toyota Yaris (Jpp)
Production
Aug 2011
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

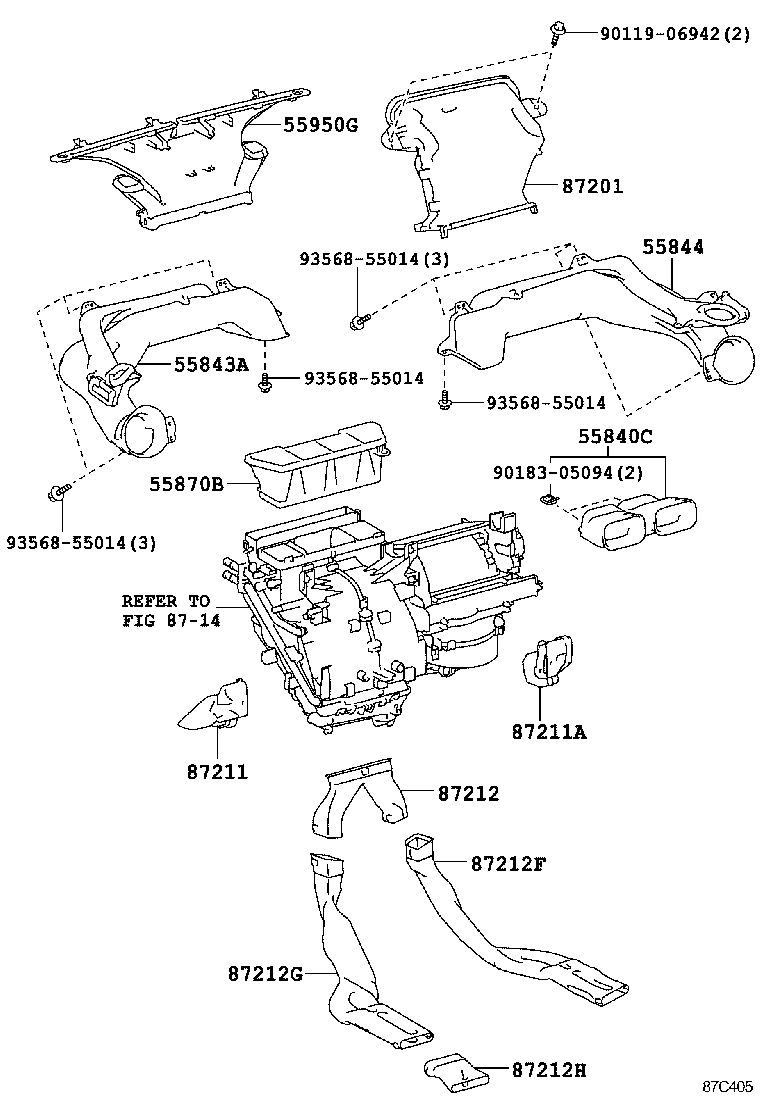

ILLUST NO. 2 OF 3(1108- )CND
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55840-52090 |
NCP131 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52340 |
NCP131 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-52250 |
NCP131 |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-52040 |
NCP131 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52170 |
NCP131 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-52150 |
NCP131 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52060 |
NCP131 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-52070 |
NCP131 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-52050 |
NCP131..CND |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87212-52100 |
NCP131..CND |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-52070 |
NCP131..CND |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87216-52040 |
NCP131..CND |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90183-05094 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

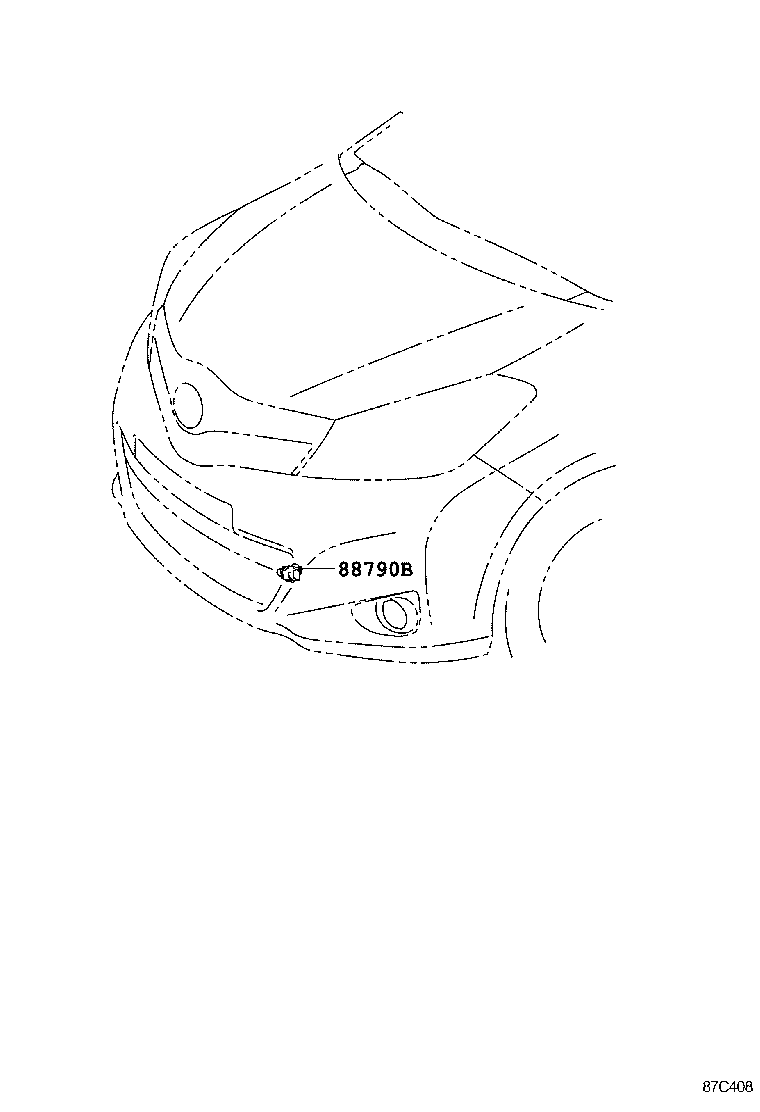

ILLUST NO. 3 OF 3(1108- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NCP131 |
1 | ||

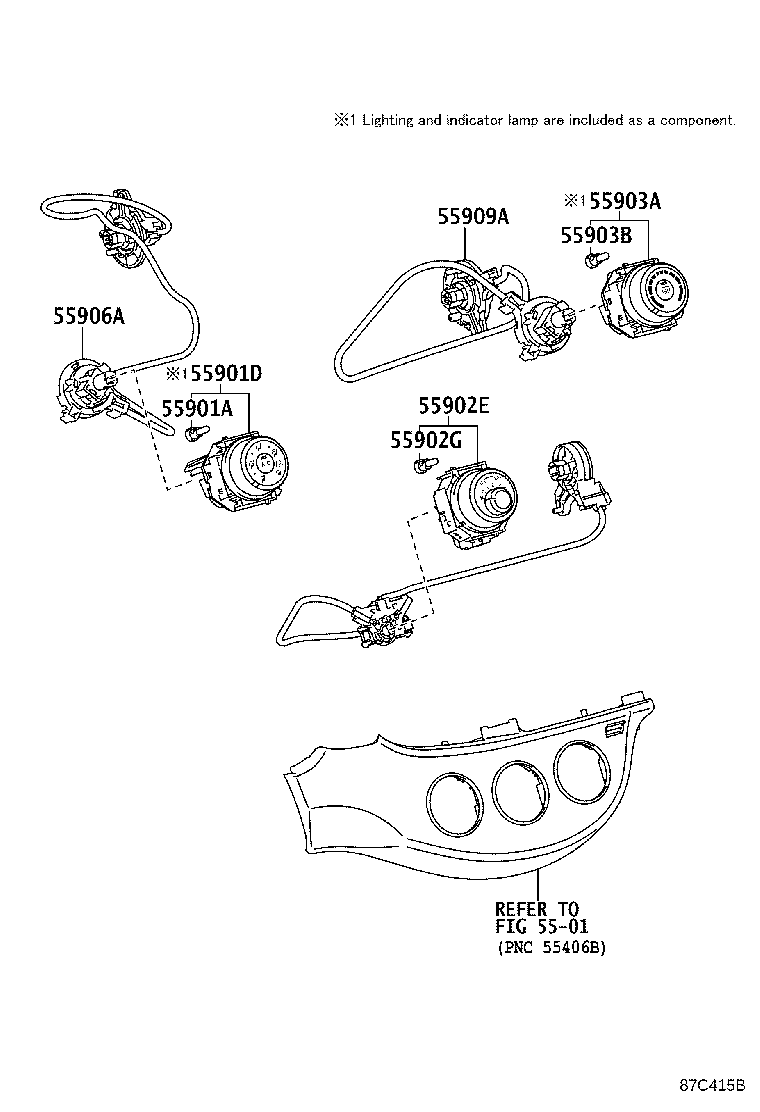

ILLUST NO. 1 OF 3(1108- )
Click highlighted areas on diagram
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1 | ||||
| 90010-01145 |
NCP131 |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-52400 |
NCP131 |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-52220 |
NCP131..CND |
1 | ||
| 55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2 | ||||
| 90010-01145 |
NCP131 |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-52650 |
NCP131..CND |
1 | ||
| 55903-52650 |
NCP131..CND FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 55903-52680 |
NCP131..CND FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)) |
1 | ||
| 55903-52680 |
NCP131..CND FRONT AIR CONDITIONER-DEALER OPTION,W/O(AIR CONDITIONER) |
1 | ||
| 55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3 | ||||
| 90010-01145 |
NCP131 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52132 |
NCP131 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52120 |
NCP131 |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
