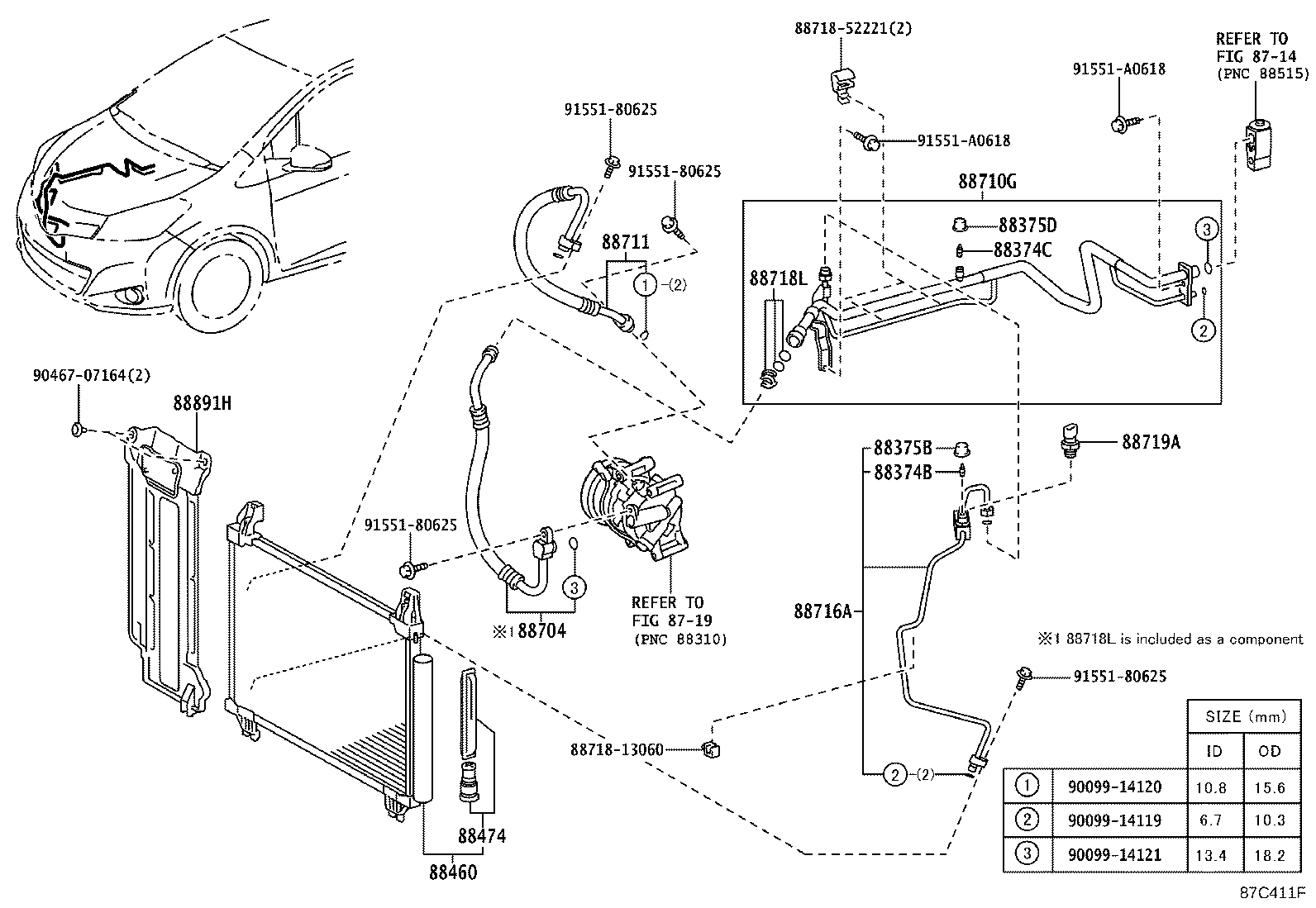

Toyota Yaris (jpp) NCP131 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88374-30010	NCP131	08/2011 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88374-30010	NCP131	08/2011 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88375-30280	NCP131	08/2011 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88375-30290	NCP131	08/2011 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-52130	NCP131	08/2011 - 12/2999	1
88460-52130	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88474 - DRYER, COOLER
88474-12030	NCP131	08/2011 - 07/2014	1
88474-12030	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 07/2014	1
88704 - HOSE SUB-ASSY, SUCTION
88704-52250	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88704-52250	NCP131	08/2011 - 12/2999	1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-52040	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88710-52040	NCP131	08/2011 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52380	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88711-52380	NCP131	08/2011 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52720	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88716-52720	NCP131	08/2011 - 12/2999	1
88718L - CLAMP, PIPING
88718-52260	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88718-52260	NCP131	08/2011 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	NCP131	08/2011 - 12/2999	1
88719-33020	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
88891H - COVER, COOLER, NO.1
88891-52100	NCP131	08/2011 - 12/2999	1
88891-52100	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
Common parts
88718-13060
88718-52221
90099-14119
90099-14120
90099-14121
90467-07164
91551-80625
91551-A0618
Linked diagrams
8714
8719

NCP131L-AHMRKA (2011)

(1108- )
