Toyota Yaris (jpp) NCP131 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
US
YARIS (JPP)
NCP131L-AHMRKA (2011)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

NCP131L-AHMRKA (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014

Engine 1NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

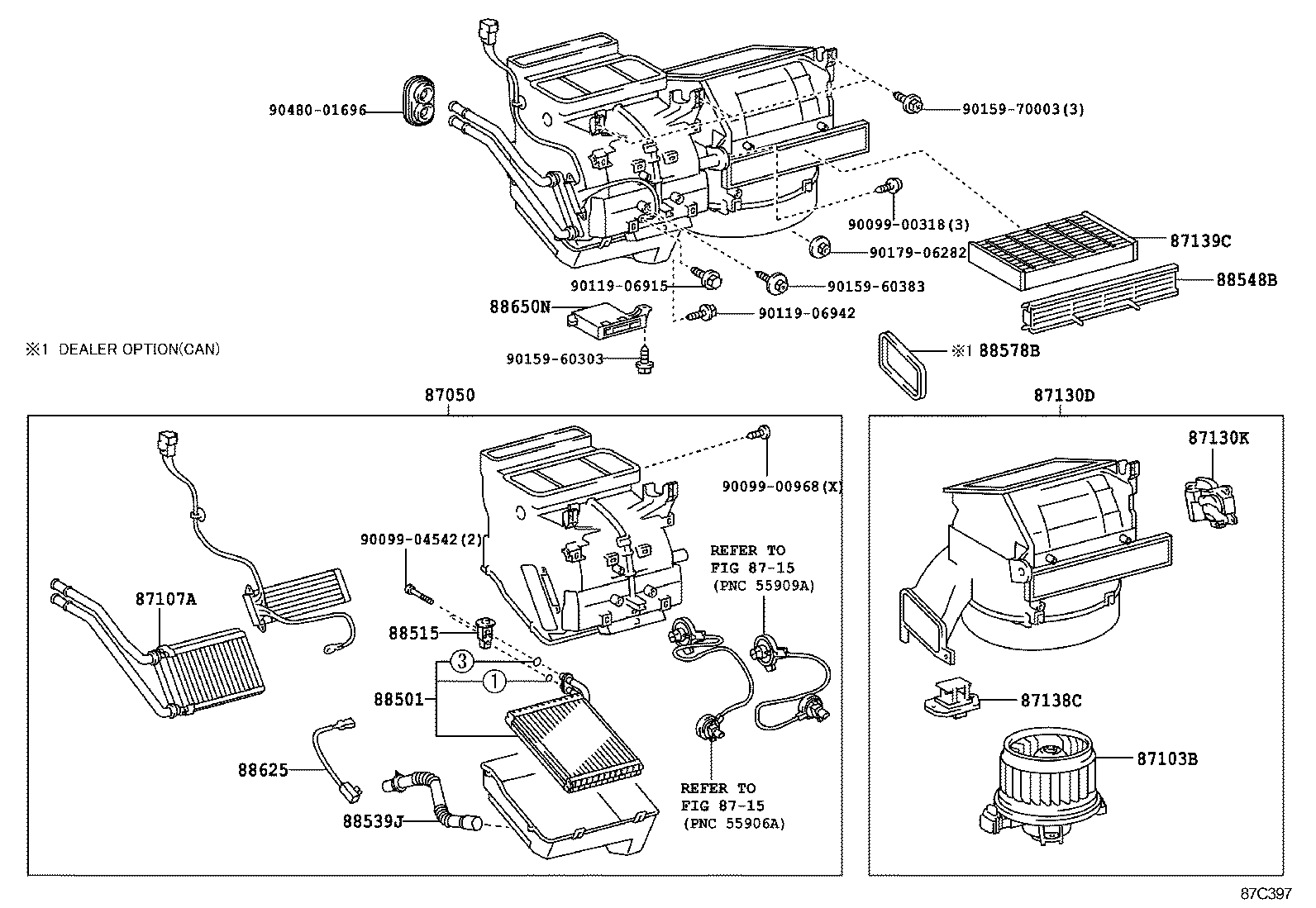

ILLUST NO. 1 OF 2(1108- )USA

Click highlighted areas on diagram

MANUAL

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52102	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
87050-52280	NCP131..USA	08/2011 - 12/2999	1
87050-52270	NCP131..USA COLD AREA SPEC	08/2011 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52180	NCP131	08/2011 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52061	NCP131	08/2011 - 12/2999	1
87130D - BLOWER ASSY
87130-52140	NCP131	08/2011 - 12/2999	1
87130-52150	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-52110	NCP131	08/2011 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-52030	NCP131	08/2011 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-52020	NCP131 MICRO DUST FILTER	08/2011 - 07/2014	1
87139-30040	NCP131 POLLEN FILTER	08/2011 - 04/2012	1
87139-50100	NCP131 *DPF	05/2012 - 07/2014	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52102	NCP131	08/2011 - 11/2011	1
88501-52103	NCP131	12/2011 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-50190	NCP131	08/2011 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-52040	NCP131	08/2011 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52040	NCP131	08/2011 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	NCP131	08/2011 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52680	NCP131..USA	08/2011 - 09/2011	1
88650-52880	NCP131..USA	10/2011 - 07/2014	1
88650-52690	NCP131..USA COLD AREA SPEC	08/2011 - 07/2014	1
88650-52680	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 09/2011	1
88650-52720	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 07/2014	1
88650-52880	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	10/2011 - 07/2014	1
Common parts
90099-00318
90099-00968
90099-04542
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

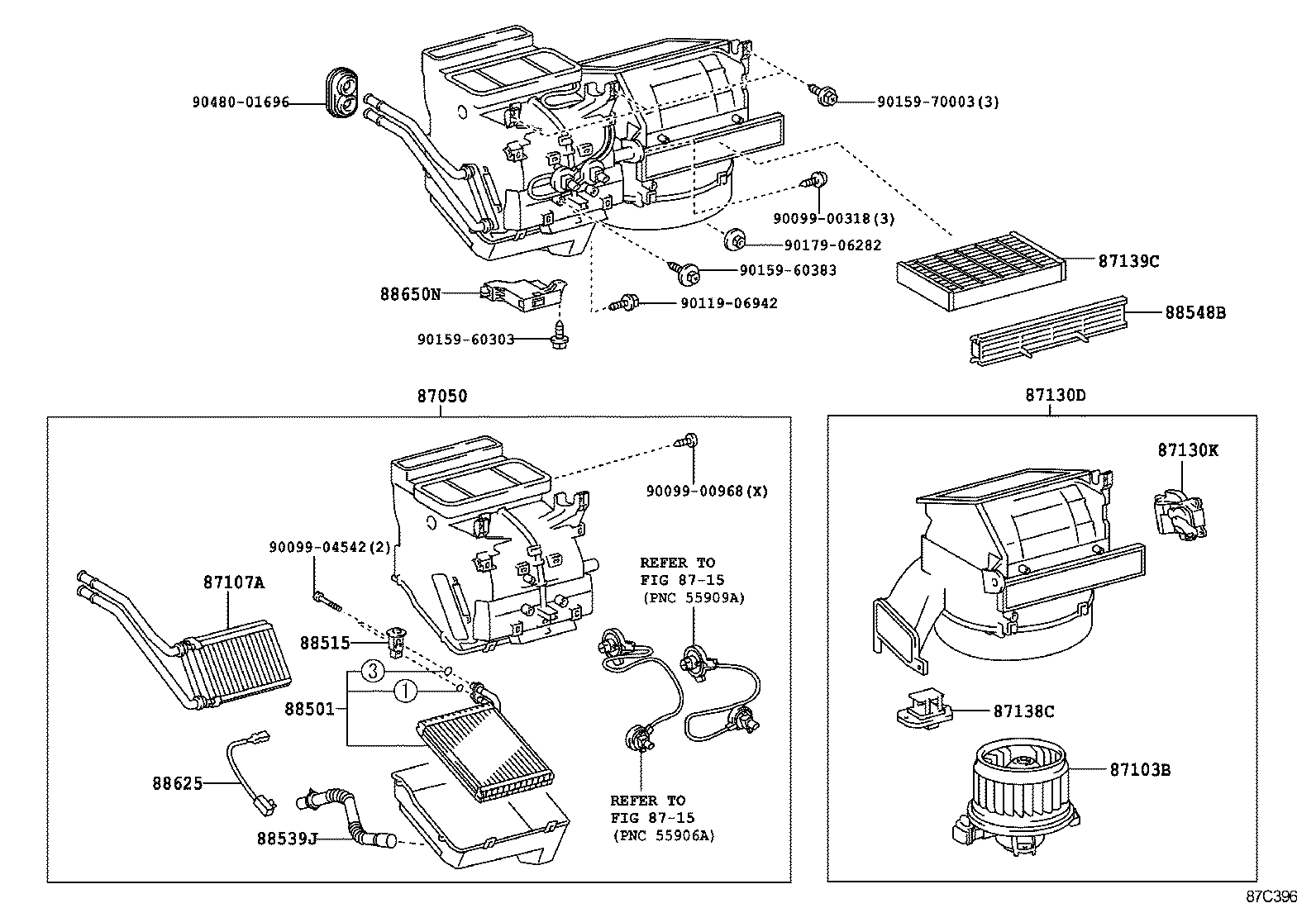

ILLUST NO. 1 OF 2(1108- )

Click highlighted areas on diagram

MANUAL & W(HEATER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52102	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
87050-52280	NCP131..USA	08/2011 - 12/2999	1
87050-52270	NCP131..USA COLD AREA SPEC	08/2011 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52180	NCP131	08/2011 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52061	NCP131	08/2011 - 12/2999	1
87130D - BLOWER ASSY
87130-52140	NCP131	08/2011 - 12/2999	1
87130-52150	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-52110	NCP131	08/2011 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-52030	NCP131	08/2011 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-52020	NCP131 MICRO DUST FILTER	08/2011 - 07/2014	1
87139-30040	NCP131 POLLEN FILTER	08/2011 - 04/2012	1
87139-50100	NCP131 *DPF	05/2012 - 07/2014	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52102	NCP131	08/2011 - 11/2011	1
88501-52103	NCP131	12/2011 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-50190	NCP131	08/2011 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-52040	NCP131	08/2011 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52040	NCP131	08/2011 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	NCP131	08/2011 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52680	NCP131..USA	08/2011 - 09/2011	1
88650-52880	NCP131..USA	10/2011 - 07/2014	1
88650-52690	NCP131..USA COLD AREA SPEC	08/2011 - 07/2014	1
88650-52680	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 09/2011	1
88650-52720	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 07/2014	1
88650-52880	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	10/2011 - 07/2014	1
Common parts
90099-00318
90099-00968
90099-04542
90119-06915
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

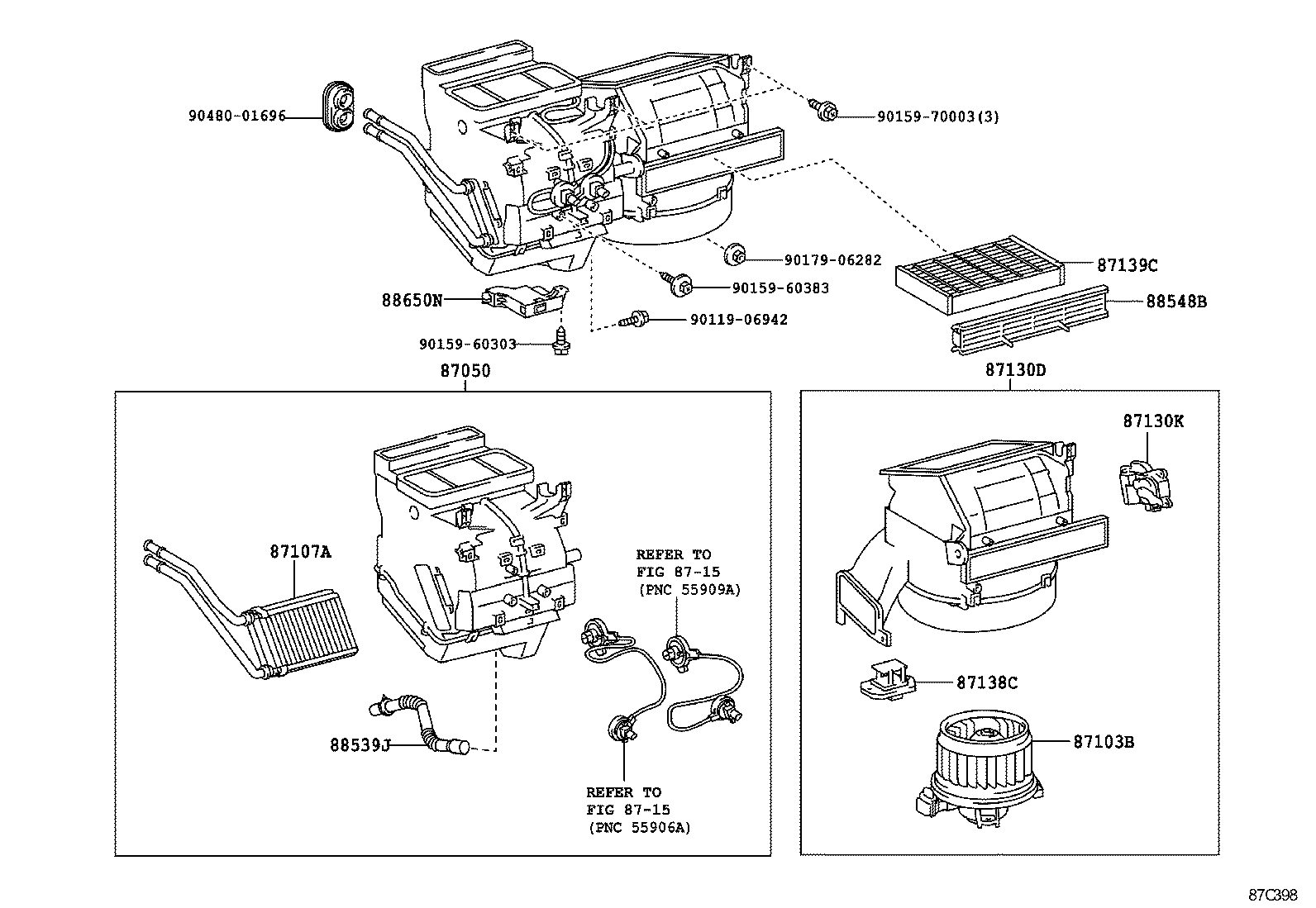

ILLUST NO. 1 OF 2(1108- )USA

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52102	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
87050-52280	NCP131..USA	08/2011 - 12/2999	1
87050-52270	NCP131..USA COLD AREA SPEC	08/2011 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52180	NCP131	08/2011 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52061	NCP131	08/2011 - 12/2999	1
87130D - BLOWER ASSY
87130-52140	NCP131	08/2011 - 12/2999	1
87130-52150	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 12/2999	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-52110	NCP131	08/2011 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-52030	NCP131	08/2011 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-52020	NCP131 MICRO DUST FILTER	08/2011 - 07/2014	1
87139-30040	NCP131 POLLEN FILTER	08/2011 - 04/2012	1
87139-50100	NCP131 *DPF	05/2012 - 07/2014	1
88539J - HOSE, DRAIN COOLER
88539-52040	NCP131	08/2011 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52040	NCP131	08/2011 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52680	NCP131..USA	08/2011 - 09/2011	1
88650-52880	NCP131..USA	10/2011 - 07/2014	1
88650-52690	NCP131..USA COLD AREA SPEC	08/2011 - 07/2014	1
88650-52680	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 09/2011	1
88650-52720	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	08/2011 - 07/2014	1
88650-52880	NCP131..USA FRONT AIR CONDITIONER-WITHOUT	10/2011 - 07/2014	1
Common parts
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

ILLUST NO. 2 OF 2(1108- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121

NCP131L-AHMRKA (2011)

ILLUST NO. 1 OF 2(1108- )USA

ILLUST NO. 1 OF 2(1108- )

ILLUST NO. 1 OF 2(1108- )USA

ILLUST NO. 2 OF 2(1108- )

Part Price Details
