NCP131L-AHMRKA (2011)
Toyota Yaris (Jpp)
Production
Aug 2011
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )5D

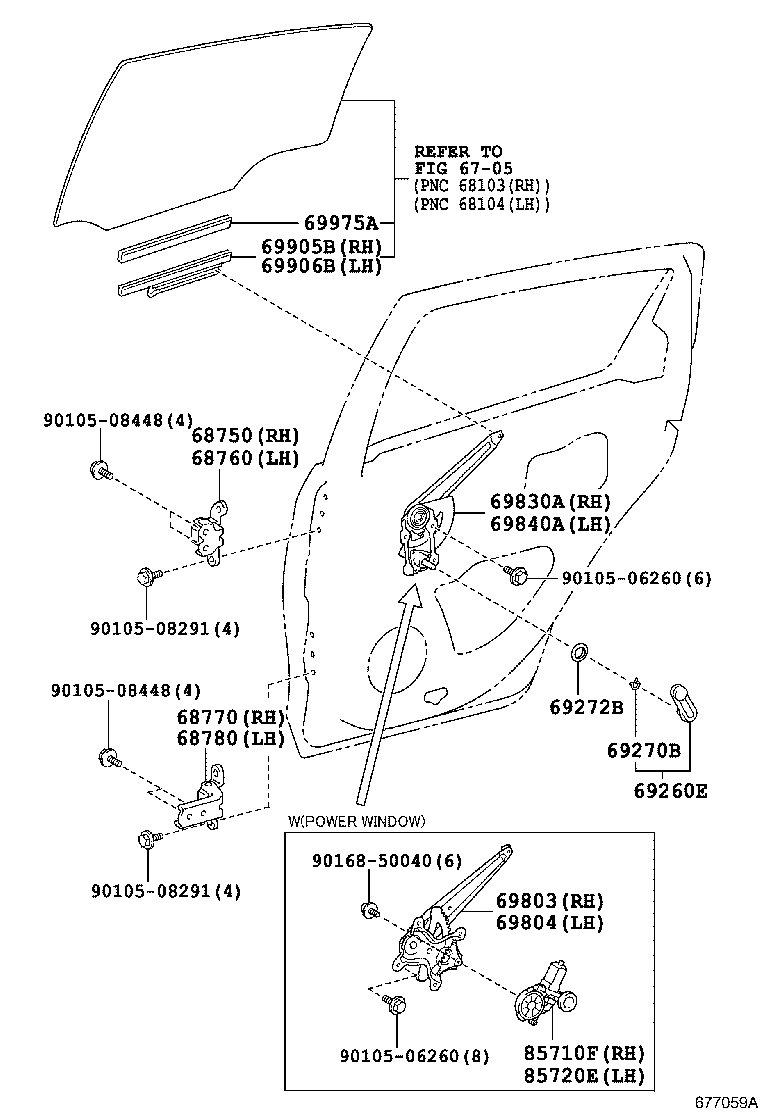

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-20121 |
NCP131..5D |
1 | ||
| 68750-20122 |
NCP131..5D |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-20122 |
NCP131..5D |
1 | ||
| 68760-20121 |
NCP131..5D |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-52031 |
NCP131..5D |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-52031 |
NCP131..5D |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-14030C0 |
NCP131..5D..STD BLACK,TRIM1# |
2 | ||
| 69260-14030C0 |
NCP131..5D..STD POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1# |
2 | ||
| 69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01274 |
NCP131..5D..STD |
2 | ||
| 90520-01274 |
NCP131..5D..STD POWER WINDOW-WITH(FRONT & REAR) |
2 | ||
| 69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE | ||||
| 69268-52010 |
NCP131..5D..STD |
2 | ||
| 69268-52010 |
NCP131..5D..STD POWER WINDOW-WITH(FRONT & REAR) |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-52090 |
NCP131..5D..STD POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-52100 |
NCP131..5D..STD POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-52260 |
NCP131..5D..STD |
1 | ||
| 69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-52260 |
NCP131..5D..STD |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-52060 |
NCP131..5D |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-52060 |
NCP131..5D |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-52010 |
NCP131..5D |
2 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-52150 |
NCP131..5D..STD POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-52160 |
NCP131..5D..STD POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08291 | ||||
| 90105-08448 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6705 | ||||
