NCP131L-AHMRKA (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

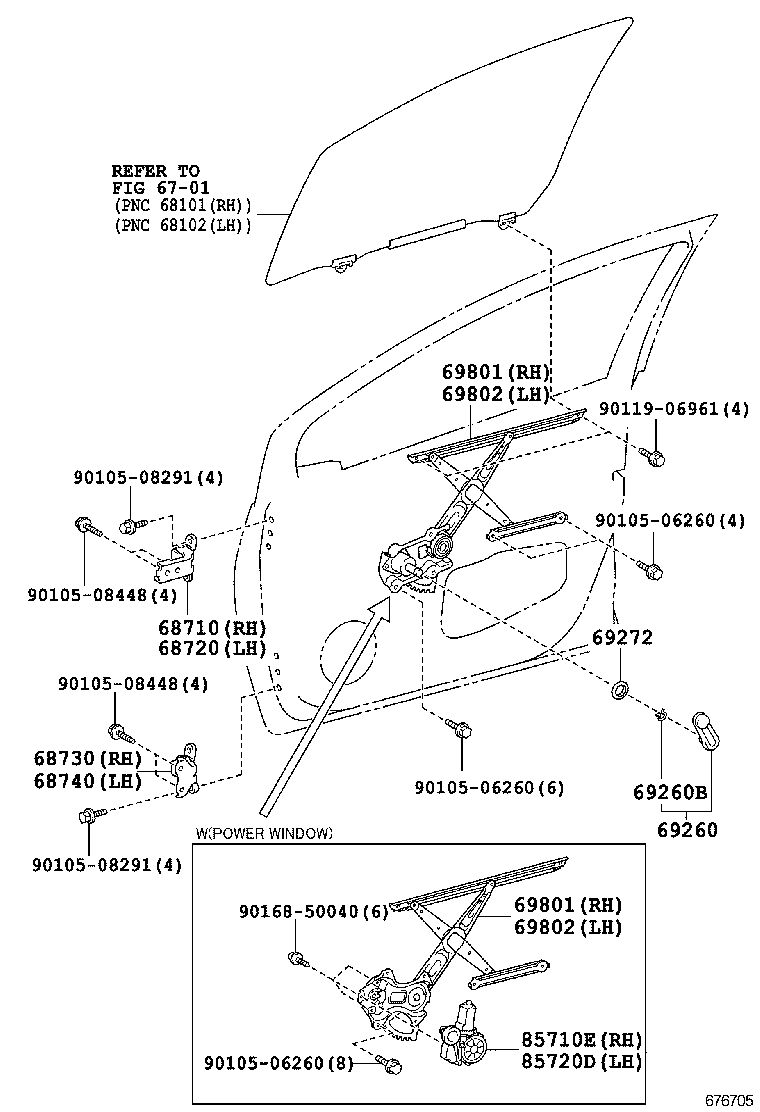

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710E 85720D 9010506260 9010506260 9010506260 9010508291 9010508291 9010508448 9010508448 9011906961 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12151

NCP131

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12151

NCP131

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12120

NCP131

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12120

NCP131

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-14030C0

NCP131..5D..STD

POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1#

 2
69260-14030C0

NCP131..STD

BLACK,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

NCP131..5D..STD

POWER WINDOW-WITH(FRONT & REAR)

 2
90520-01274

NCP131..STD

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-52010

NCP131..STD

 2
69268-52010

NCP131..5D..STD

POWER WINDOW-WITH(FRONT & REAR)

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-21020

NCP131..5D..STD

POWER WINDOW-WITH(FRONT & REAR)

 1
69810-52460

NCP131..STD

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-21020

NCP131..5D..STD

POWER WINDOW-WITH(FRONT & REAR)

 1
69810-52460

NCP131..STD

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-21010

NCP131..5D..STD

POWER WINDOW-WITH(FRONT & REAR)

 1
69820-52370

NCP131..STD

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-21010

NCP131..5D..STD

POWER WINDOW-WITH(FRONT & REAR)

 1
69820-52370

NCP131..STD

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-35180

NCP131..5D..STD

POWER WINDOW-WITH(FRONT & REAR)

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-35140

NCP131..5D..STD

POWER WINDOW-WITH(FRONT & REAR)

 1
Common parts
90105-06260
90105-08291
90105-08448
90119-06961
90168-50040
Linked diagrams
6701
