NCP131L-AHMRKA (2011)
Toyota Yaris (Jpp)
Production
Aug 2011
-
Jul 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )RS ; (1108- )USA

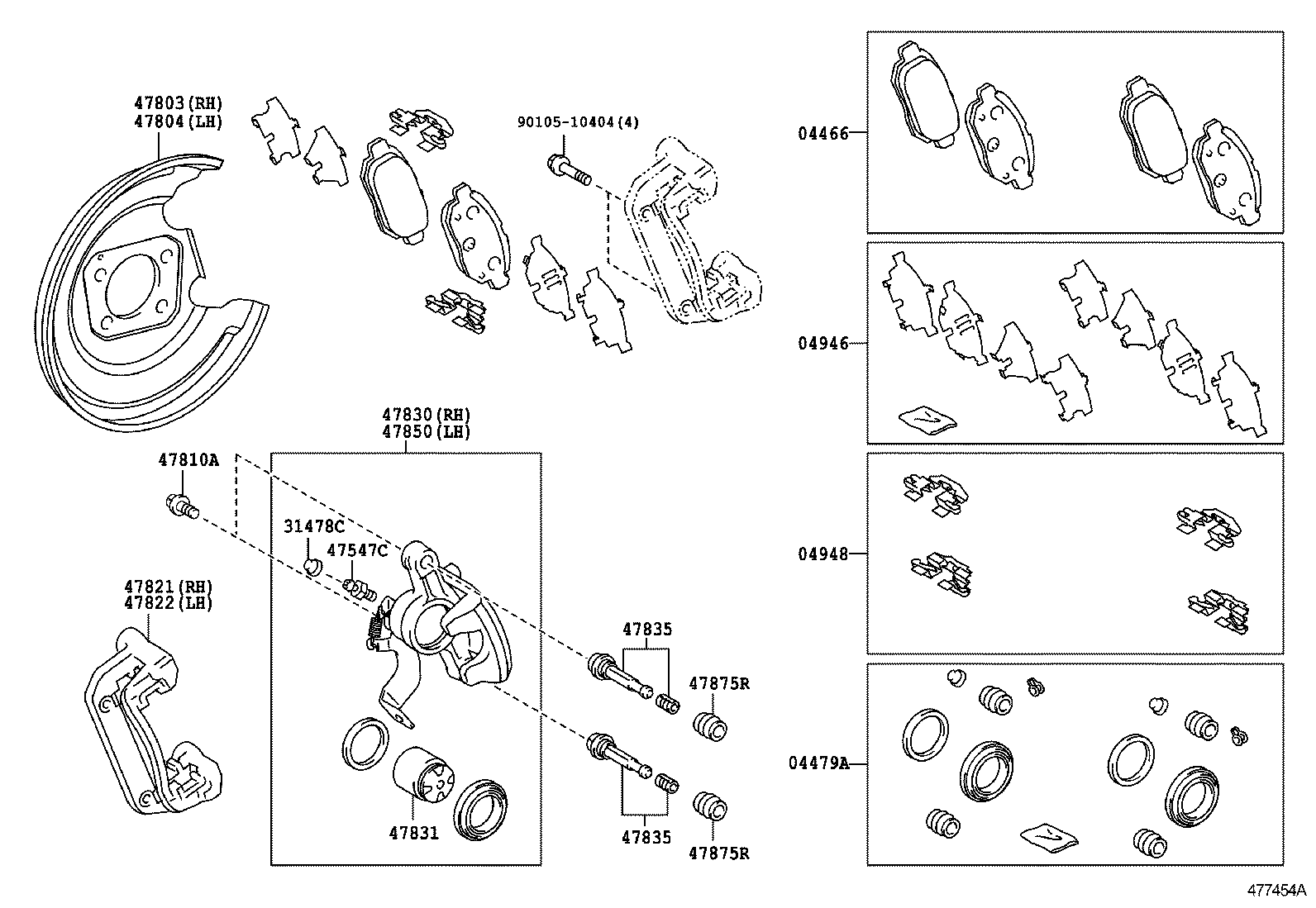

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-52141 |
NCP131..USA MARK NBK D6234,S PACKAGE |
1 | ||
| 04466-52140 |
NCP131..USA MARK NBK D6234,S PACKAGE |
1 | ||
| 04466-52170 |
NCP131..USA MARK NBK D6247,S PACKAGE |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-52170 |
NCP131..USA S PACKAGE |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-52080 |
NCP131..USA S PACKAGE |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12060 |
NCP131..USA S PACKAGE |
1 | ||
| 04948-52040 |
NCP131..USA S PACKAGE |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-52010 |
NCP131..USA S PACKAGE |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47847-52050 |
NCP131..USA S PACKAGE |
2 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-52030 |
NCP131..USA S PACKAGE |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-52030 |
NCP131..USA S PACKAGE |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90015-AA102 |
NCP131..USA S PACKAGE |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-12151 |
NCP131..USA S PACKAGE |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-12151 |
NCP131..USA S PACKAGE |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-52161 |
NCP131..USA S PACKAGE |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-52090 |
NCP131..USA S PACKAGE |
2 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
NCP131..USA S PACKAGE |
4 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
NCP131..USA S PACKAGE |
4 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-52161 |
NCP131..USA S PACKAGE |
1 | ||
| 47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
NCP131..USA S PACKAGE |
4 | ||
| 47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
NCP131..USA S PACKAGE |
4 | ||
| Common parts | ||||
| 90105-10404 | ||||
