NCP131L-AGPVKK (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

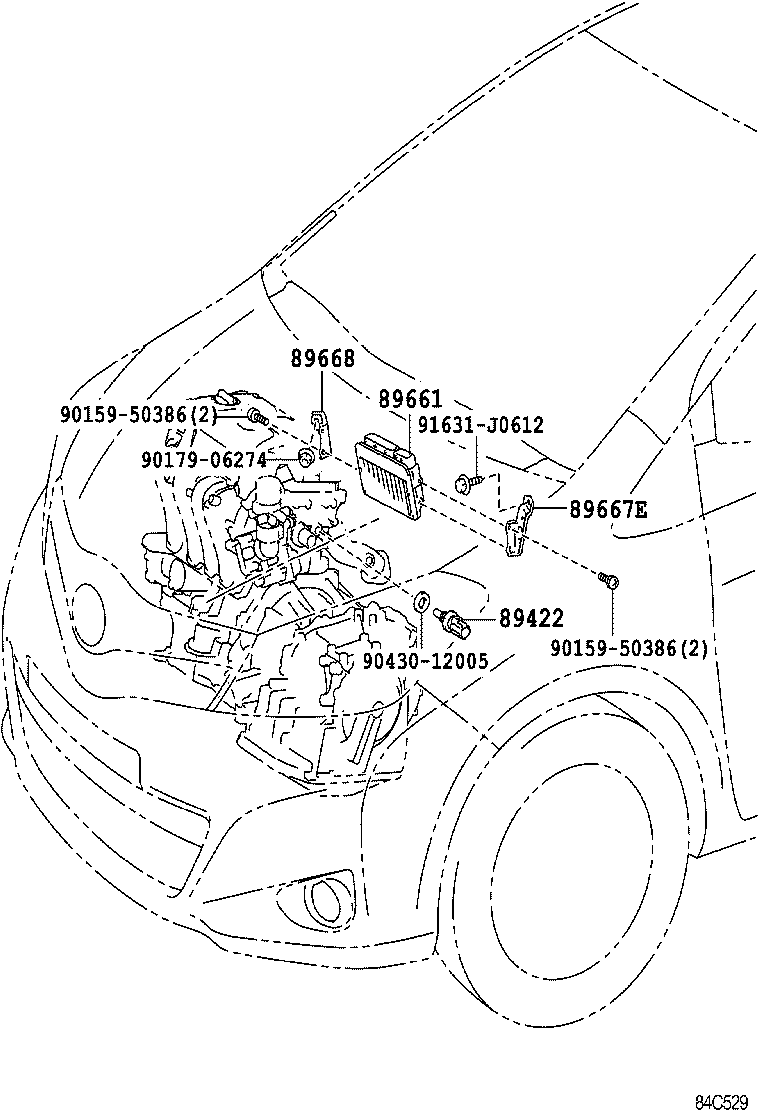

Click highlighted areas on diagram

diagram 89422 89661 89667E 89668 9015950386 9015950386 9017906274 9043012005 91631J0612
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NCP131

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52R40

NCP131..4FC

 1
89661-52R41

NCP131..4FC

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-52330

NCP131

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52340

NCP131

 1
Common parts
90159-50386
90179-06274
90430-12005
91631-J0612
