NCP131L-AGPVKK (2011)
Toyota Yaris (Jpp)
Production
Aug 2011
-
Jul 2014
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )

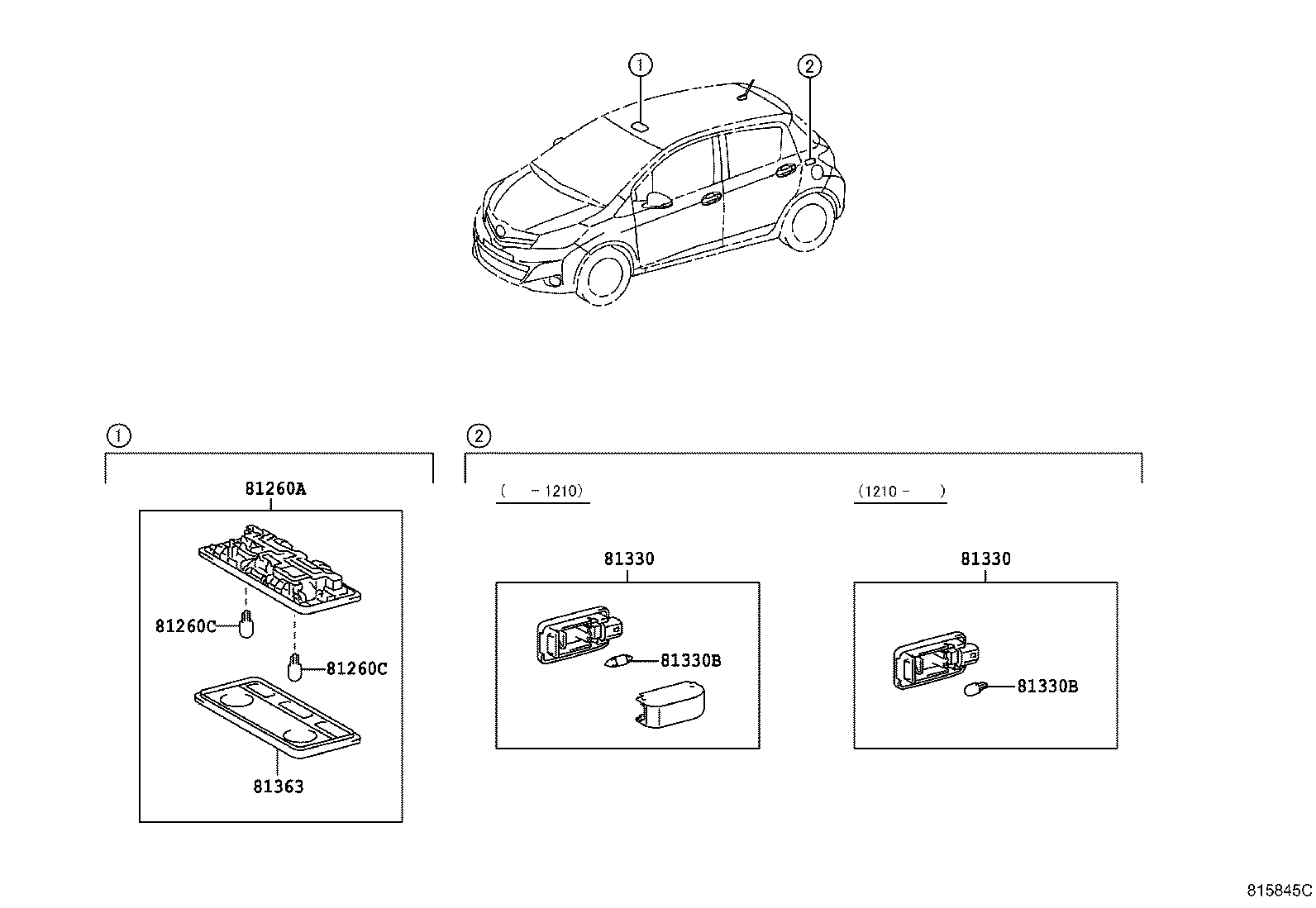

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-52120B0 |
NCP131 LT.GRAY,TRIM1# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
NCP131 12V 5W |
2 | ||
| 99132-12050 |
NCP131 12V 5W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
NCP131 12V 5W |
2 | ||
| 99132-12050 |
NCP131 12V 5W |
2 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-05050 |
NCP131 |
1 | ||
| 81330-30100 |
NCP131 |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-05050 |
NCP131 |
1 | ||
| 81330-30100 |
NCP131 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-WE003 |
NCP131 12V 5W |
1 | ||
| 99132-12050 |
NCP131 12V 5W |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-WE003 |
NCP131 12V 5W |
1 | ||
| 99132-12050 |
NCP131 12V 5W |
1 | ||
| 81363 - LENS, ROOM LAMP, OUTER | ||||
| 81363-52010 |
NCP131 |
1 | ||
| 81363-52010 |
NCP131 |
1 | ||
