NCP131L-AGPVKK (2011)
Toyota Yaris (Jpp)
(1108- )CND

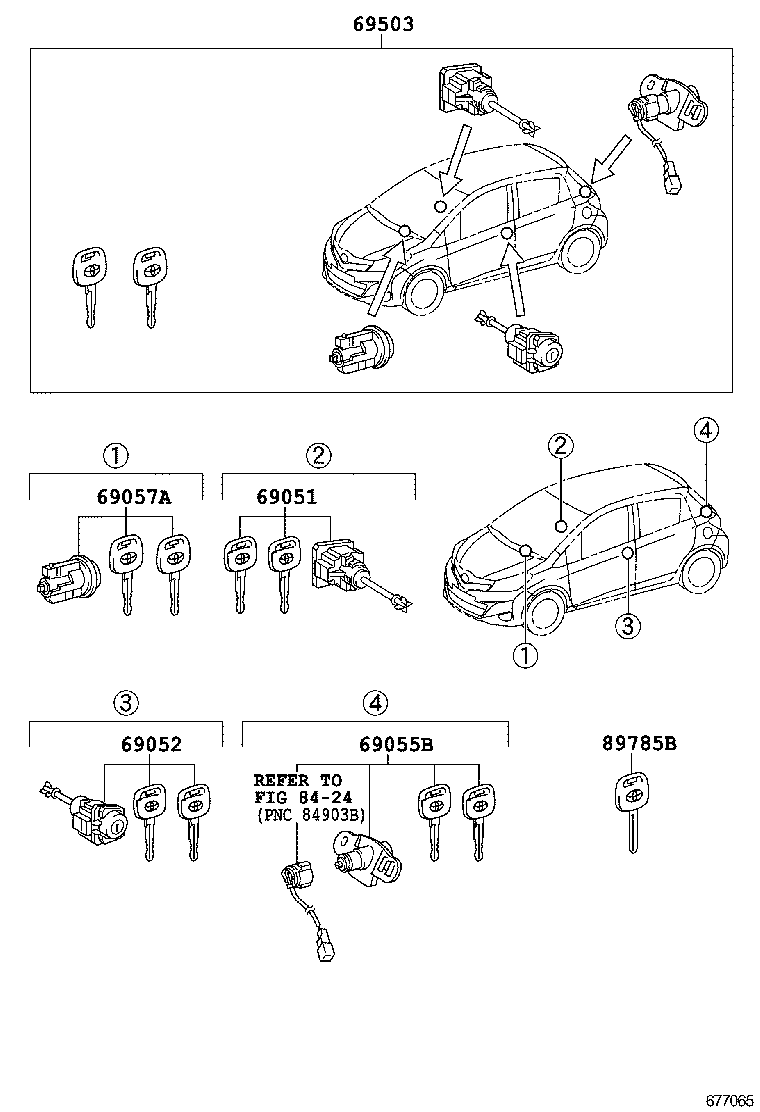

W/O(WIRELESS DOOR LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-22380 |
NCP131 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-52380 |
NCP131 |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-52500 |
NCP131 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-52B40 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 69057-60610 |
NCP131..CND |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-52K40 |
NCP131..CND |
1 | ||
| 69005-52L70 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-60210 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 89785-60210 |
NCP131..CND |
1 | ||
| Linked diagrams | ||||
| 8424 | ||||
(1108- )CND

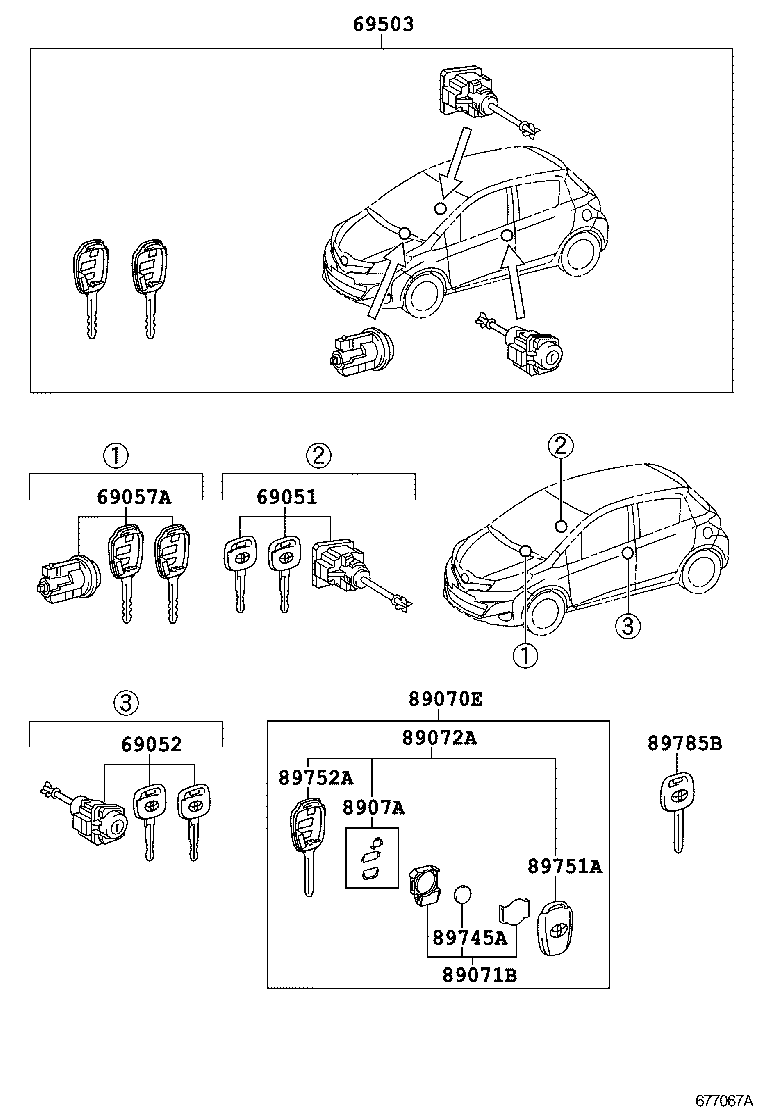

W(WIRELESS DOOR LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-22380 |
NCP131 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-52380 |
NCP131 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-52B40 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 69057-60610 |
NCP131..CND |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-52K40 |
NCP131..CND |
1 | ||
| 69005-52L70 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-52D90 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-52290 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
2 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-52620 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52020 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-71010 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-52190 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-52130 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-60210 |
NCP131..CND WIRELESS DOOR LOCK-WITH(2 TRANSMITTER) |
1 | ||
| 89785-60210 |
NCP131..CND |
1 | ||
