NCP131L-AGPVKK (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )RS

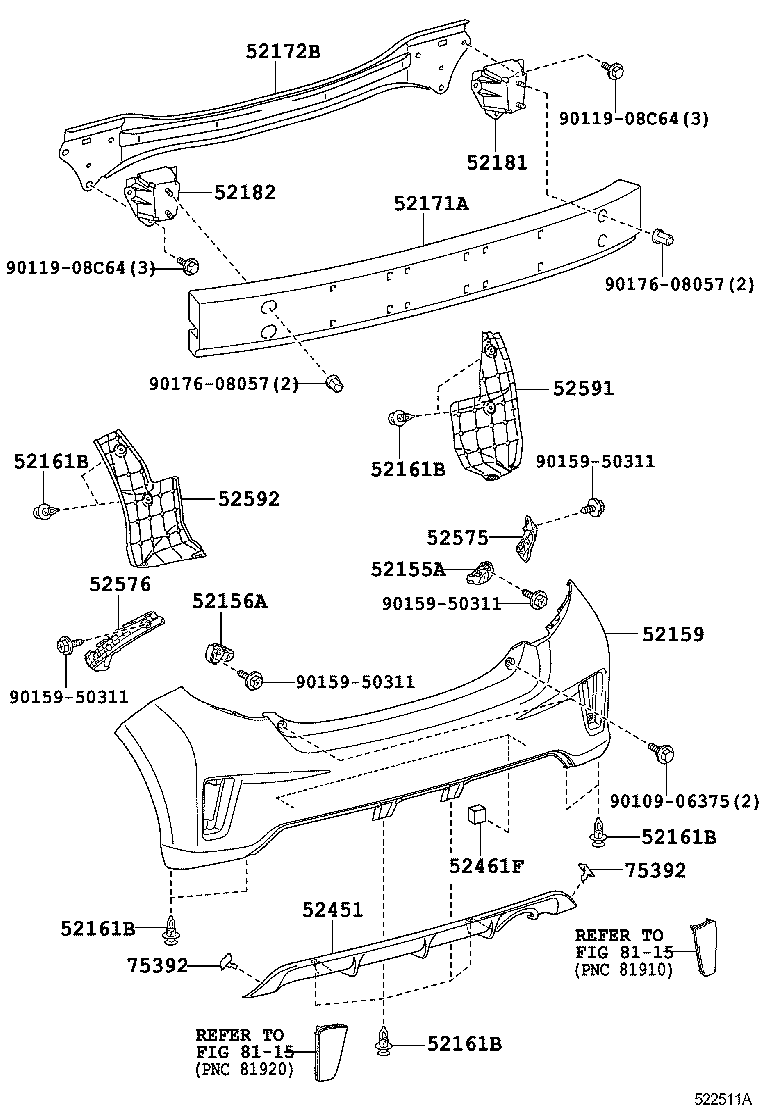

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52161B 52161B 52161B 52161B 52161B 52171A 52172B 52181 52182 52451 52461F 52575 52576 52591 52592 75392 75392 8115 8115 9010906375 9011908C64 9011908C64 9015950311 9015950311 9015950311 9015950311 9017608057 9017608057
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-52120

NCP131

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-52120

NCP131

 1
52159 - COVER, REAR BUMPER
52159-52967

NCP131..RS

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

NCP131..RS

 12
52161B - PIECE, REAR BUMPER
52161-16010

NCP131..RS

 12
52161B - PIECE, REAR BUMPER
52161-16010

NCP131..RS

 12
52161B - PIECE, REAR BUMPER
52161-16010

NCP131..RS

 12
52161B - PIECE, REAR BUMPER
52161-16010

NCP131..RS

 12
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-52090

NCP131..CND

 1
52172B - REINFORCEMENT, REAR BUMPER, NO.2
52172-52020

NCP131

 1
52181 - ARM, REAR BUMPER, RH
52181-52160

NCP131

 1
52182 - ARM, REAR BUMPER, LH
52182-52160

NCP131

 1
52451 - GUARD, REAR BUMPER
52453-52010

NCP131..RS

 1
52461F - PAD, REAR BUMPER
52462-52030

NCP131..RS

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52171

NCP131

 1
52575-52170

NCP131

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52151

NCP131

 1
52576-52150

NCP131

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52320

NCP131..RS

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52310

NCP131..RS

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

NCP131..RS

 2
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

NCP131..RS

 2
Common parts
90109-06375
90119-08C64
90159-50311
90176-08057
Linked diagrams
8115
