NCP131L-AGPVKK (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

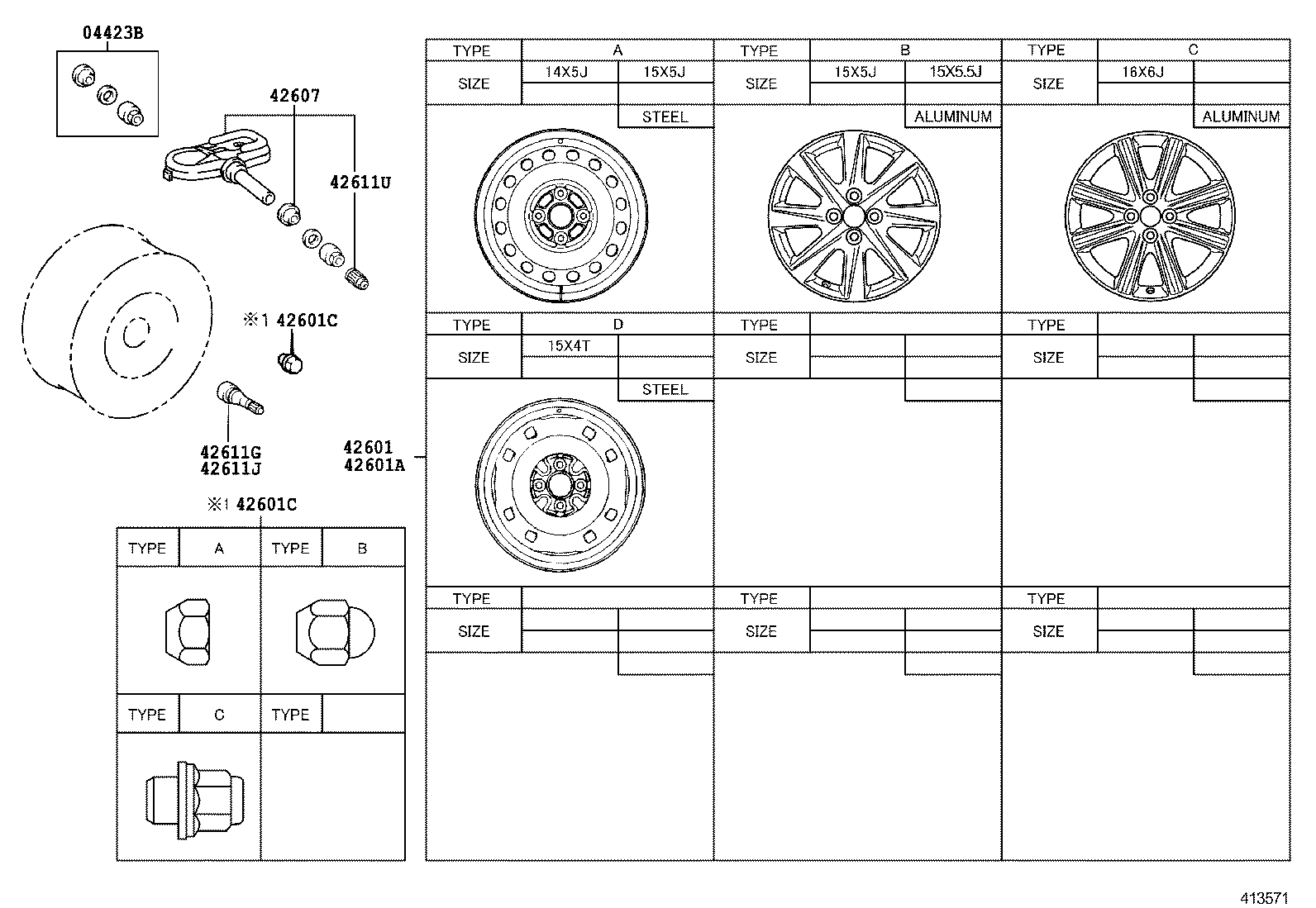

ILLUST NO. 1 OF 2(1108- )

Click highlighted areas on diagram

diagram 04423B 42601 42601A 42601C 42601C 42607 42611G 42611J 42611U
Part # Description Qty Price
42601 - WHEEL, DISC
42611-52830

NCP131..RS

16X6J, #,TYPE C:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-52400

NCP131

16X4T,TYPE E:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

NCP131..RS

TYPE C:REFER ILLUST.

 16
42601C - NUT, HUB (FOR AXLE)
90942-01033

NCP131..RS

TYPE C:REFER ILLUST.

 16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

NCP131..CND

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

NCP131

 1

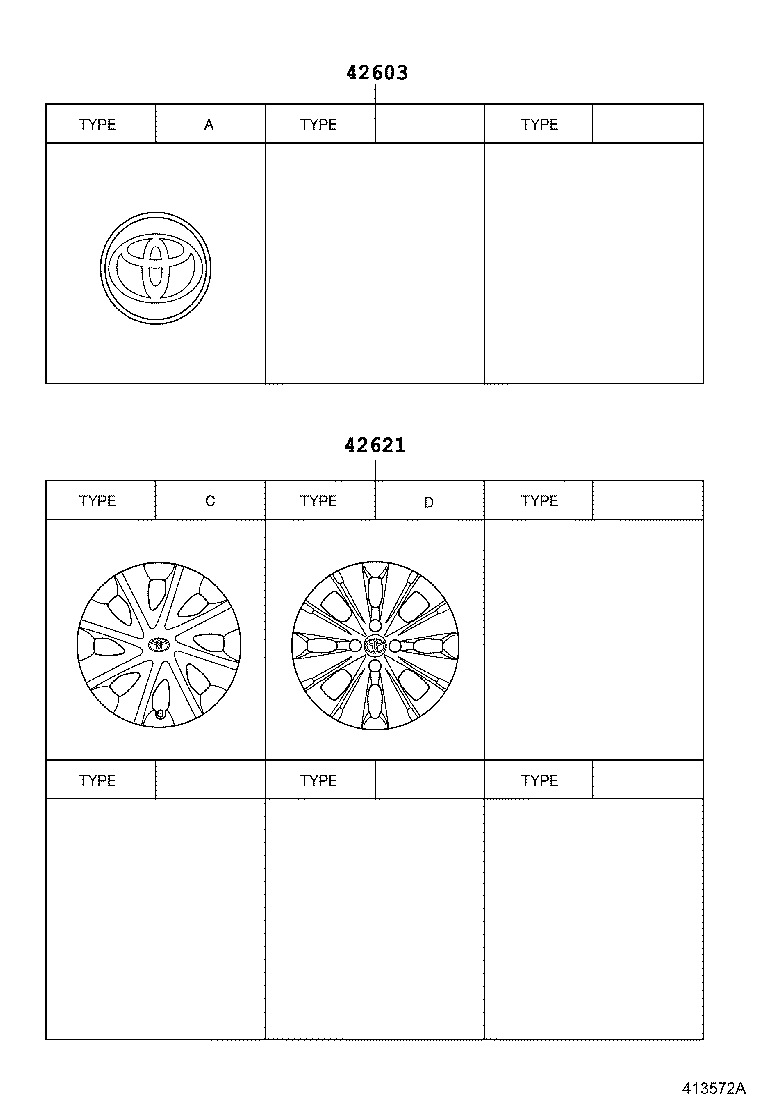

ILLUST NO. 2 OF 2(1108- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-52110

NCP131..RS

*CHR OR *ALU,TYPE A:REFER ILLUST.

 4
