Toyota Yaris (jpp) NCP131 WIRING & CLAMP

NCP131L-AGPRKA (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 7 OF 8(1108- )

Click highlighted areas on diagram

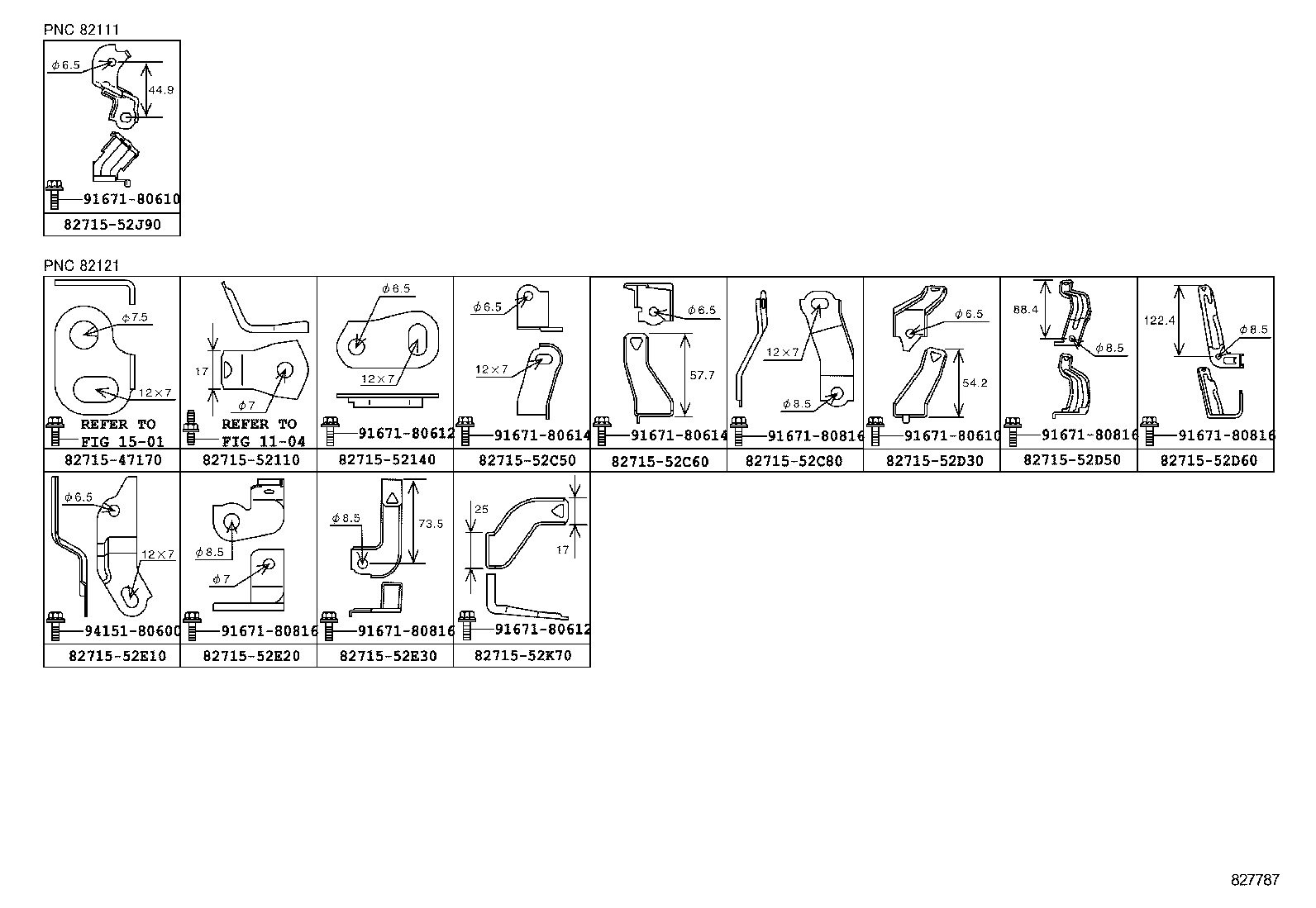

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-47170
82715-52110
82715-52140
82715-52C50
82715-52C60
82715-52C80
82715-52D30
82715-52D50
82715-52D60
82715-52E10
82715-52E20
82715-52E30
82715-52J90
82715-52K70
91671-80610
91671-80612
91671-80614
91671-80816
94151-80600
Linked diagrams
1104
1501

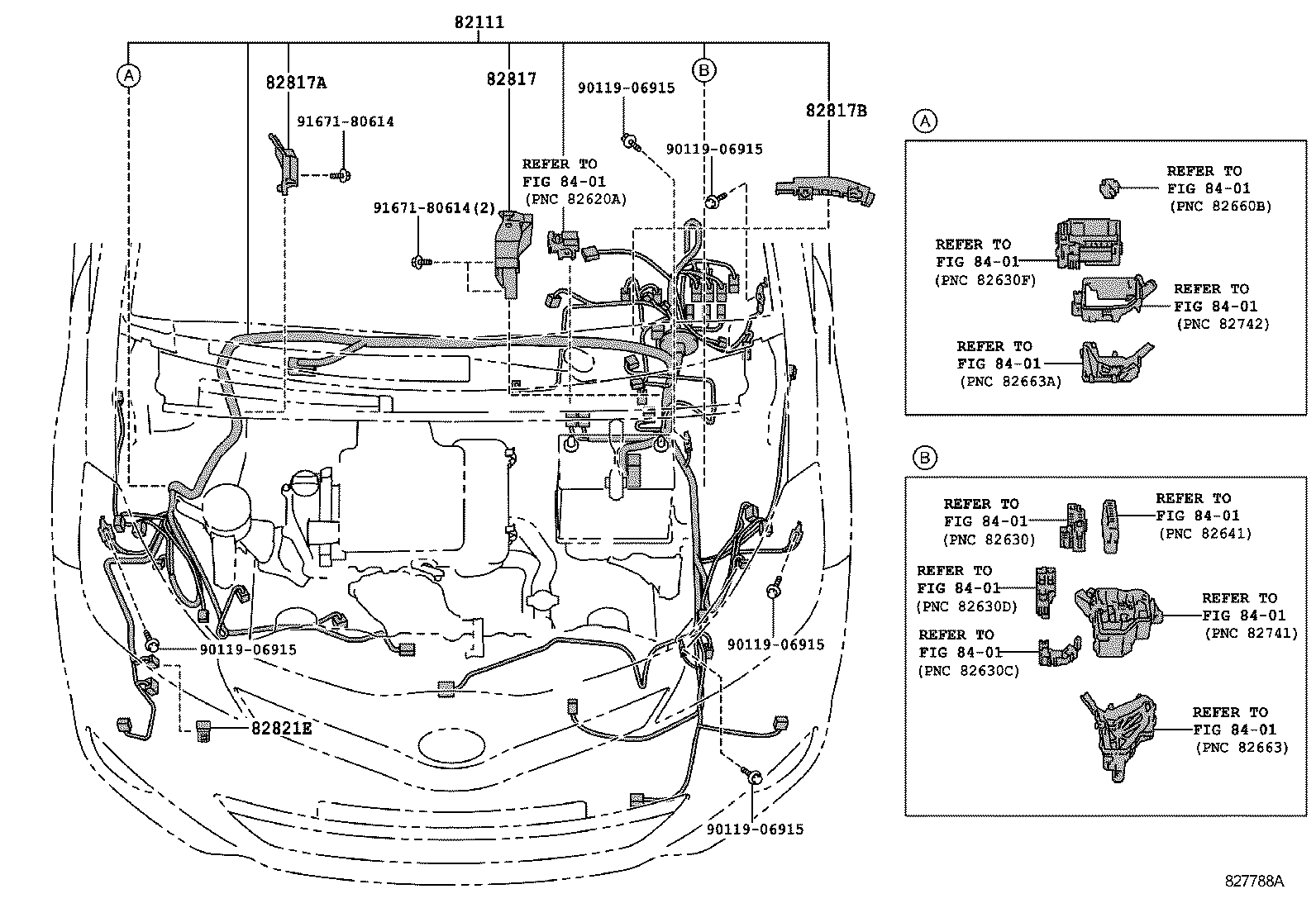

ILLUST NO. 1 OF 8(1108- )

Click highlighted areas on diagram

ENGIEN ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-5CJ90	NCP131..4FC..USA	08/2011 - 12/2999	1
82111-5CJ80	NCP131..4FC..USA MEXICO SPEC	08/2011 - 12/2999	1
82111-5CQ30	NCP131..4FC..USA PUERTO RICO SPEC	08/2011 - 12/2999	1
82111-5CK31	NCP131..4FC..USA DAYTIME RUNNING LGT.SYS.-WITH(OFF SWITCH)	06/2013 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-52A20	NCP131	08/2011 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52C00	NCP131	08/2011 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-52B70	NCP131	08/2011 - 12/2999	1
82821E - COVER, CONNECTOR
82821-35050	NCP131..USA	08/2011 - 12/2999	1
Common parts
90119-06915
91671-80614
Linked diagrams
8401

ILLUST NO. 2 OF 8(1108- )

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-52P00	NCP131..4FC	08/2011 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-52370	NCP131..4FC	08/2011 - 12/2999	1
82219A - WIRE, SENSOR
82219-52040	NCP131	08/2011 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	NCP131	08/2011 - 07/2014	1
Common parts
90119-06915
91552-81020
91671-80612
91673-80614

ILLUST NO. 3 OF 8(1108- )

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-5DU50	NCP131..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)	08/2011 - 11/2011	1
82141-5DU41	NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	08/2011 - 04/2012	1
82141-5DV02	NCP131..3D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)	11/2011 - 04/2012	1
82141-5DU81	NCP131..USA	08/2011 - 11/2011	1
82141-5DU82	NCP131..USA	11/2011 - 04/2012	1
82141-5DV01	NCP131..3D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)	08/2011 - 11/2011	1
82141-5DY50	NCP131..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(1TRANSMITTER)	08/2011 - 05/2012	1
82141-5DU34	NCP131..USA PUERTO RICO SPEC	04/2012 - 12/2999	1
82141-5DU32	NCP131..USA PUERTO RICO SPEC	11/2011 - 04/2012	1
82141-5DV04	NCP131..3D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)	04/2012 - 12/2999	1
82141-5DU84	NCP131..USA	04/2012 - 12/2999	1
82145-52V60	NCP131..3D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)&DAYTIME RUNNING LGT.SYS.-WITH(OFF SWITCH)	06/2013 - 12/2999	1
82141-5DU31	NCP131..USA PUERTO RICO SPEC	08/2011 - 11/2011	1
82145-52V50	NCP131..USA DAYTIME RUNNING LGT.SYS.-WITH(OFF SWITCH)	06/2013 - 12/2999	1
82141-5DU51	NCP131..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)	11/2011 - 05/2012	1
82141-5DU43	NCP131..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	04/2012 - 12/2999	1
82141-5DY51	NCP131..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(1TRANSMITTER)	05/2012 - 12/2999	1
82141-5DU52	NCP131..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)	05/2012 - 12/2999	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-52100	NCP131	08/2011 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-52180	NCP131	08/2011 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-52160	NCP131	08/2011 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-52170	NCP131	08/2011 - 12/2999	1
82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER
82669-52020	NCP131	08/2011 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-52310	NCP131..USA AUDIO-RADIO LESS & 6SPEAKER	08/2011 - 12/2999	2
82824-52310	NCP131..USA MEXICO SPEC	08/2011 - 12/2999	2
82824-52310	NCP131..STD	08/2011 - 12/2999	2
82824 - CONNECTOR, WIRING HARNESS
82824-52310	NCP131..USA AUDIO-RADIO LESS & 6SPEAKER	08/2011 - 12/2999	2
82824-52310	NCP131..USA MEXICO SPEC	08/2011 - 12/2999	2
82824-52310	NCP131..STD	08/2011 - 12/2999	2
Common parts
90119-06915
90159-70004
Linked diagrams
8401

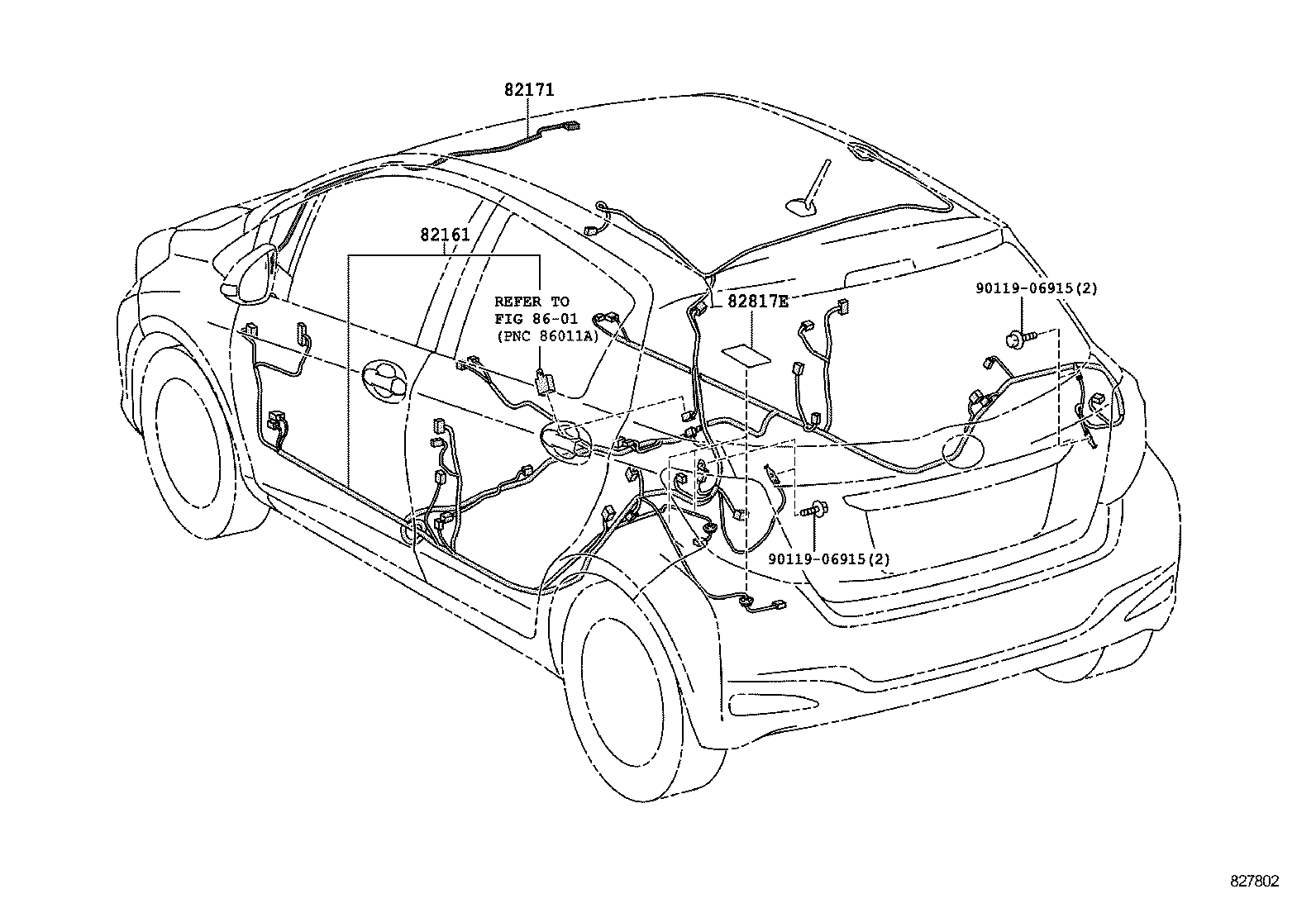

ILLUST NO. 5 OF 8(1108- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-5CF71	NCP131..3D..USA	08/2011 - 03/2012	1
82161-5CF90	NCP131..3D..4FC..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(1TRANSMITTER)	08/2011 - 12/2999	1
82161-5CF81	NCP131..3D..USA PUERTO RICO SPEC	08/2011 - 04/2012	1
82161-5CF72	NCP131..3D..USA	03/2012 - 08/2013	1
82161-5CF90	NCP131..3D..4FC..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)	08/2011 - 12/2999	1
82161-5CF82	NCP131..3D..USA PUERTO RICO SPEC	04/2012 - 08/2013	1
82161-5CF82	NCP131..3D..USA	08/2013 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-52541	NCP131	08/2011 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52710	NCP131	08/2011 - 12/2999	3
Common parts
90119-06915
Linked diagrams
8601

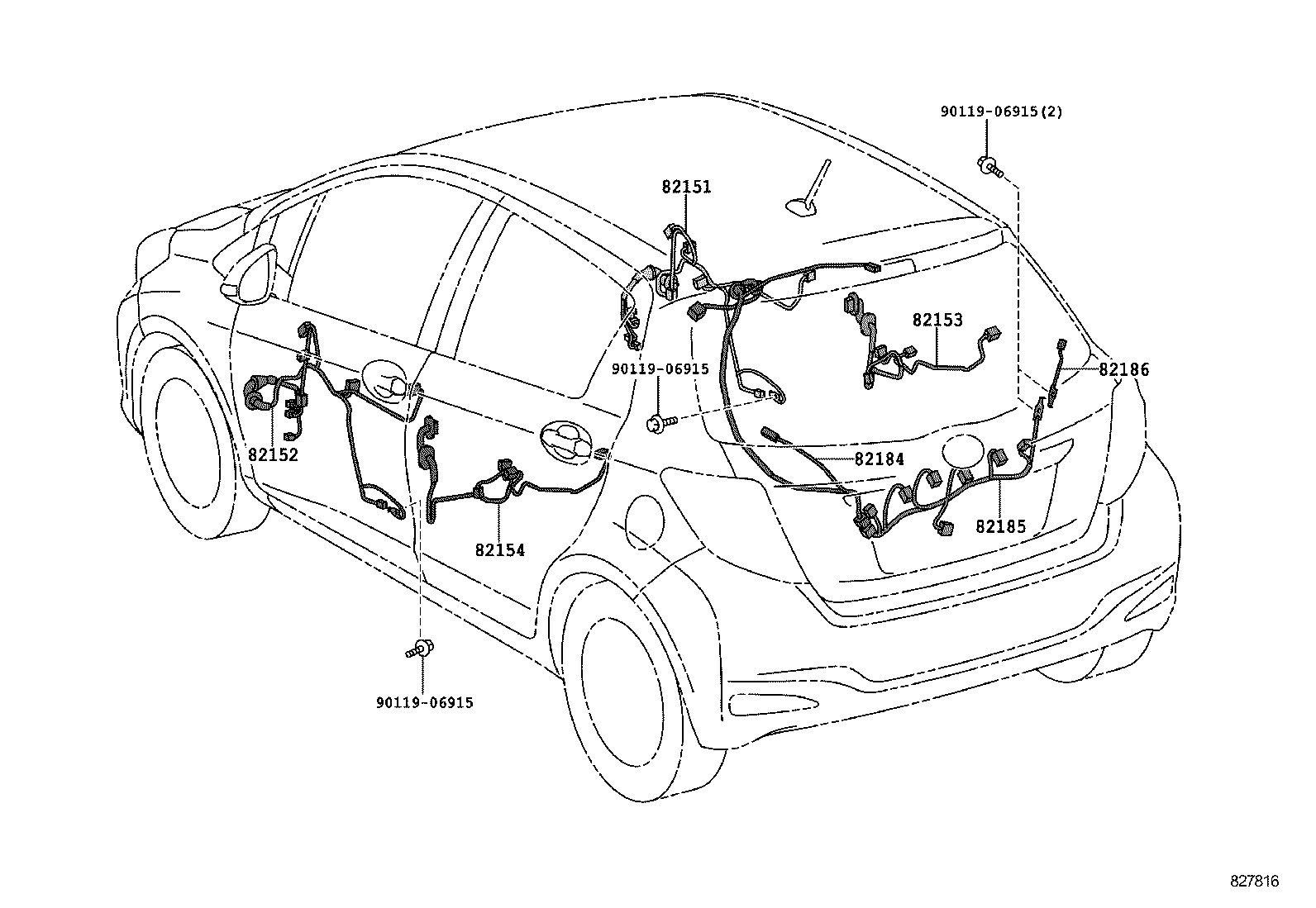

ILLUST NO. 4 OF 8(1108- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-52P50	NCP131..3D..STD	08/2011 - 12/2999	1
82151-52P70	NCP131..3D..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(1TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)	08/2011 - 12/2999	1
82151-52P40	NCP131..3D..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(1TRANSMITTER)	08/2011 - 12/2999	1
82151-52P90	NCP131..3D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)	08/2011 - 12/2999	1
82151-52P20	NCP131..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)	08/2011 - 12/2999	1
82151-52P90	NCP131..3D..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)	08/2011 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-52L50	NCP131..3D..STD	08/2011 - 07/2014	1
82152-52M00	NCP131..3D..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)	08/2011 - 07/2014	1
82152-52L90	NCP131..3D..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(1TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)	08/2011 - 07/2014	1
82152-52L20	NCP131..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)	08/2011 - 07/2014	1
82152-52L40	NCP131..3D..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(1TRANSMITTER)	08/2011 - 07/2014	1
82152-52M00	NCP131..3D..USA PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&POWER WINDOW-WITH(FRONT ONLY)	08/2011 - 07/2014	1
82184 - WIRE, BACK DOOR, NO.1
82184-52530	NCP131..USA REAR WINDOW DEFOGGER-WITH(TIMER)	08/2011 - 12/2999	1
82184-52550	NCP131..USA REAR WINDOW DEFOGGER-WITH(TIMER)&REAR WINDOW WIPER-WITHOUT	08/2011 - 12/2999	1
82184-52540	NCP131..USA	08/2011 - 12/2999	1
82185 - WIRE, BACK DOOR, NO.2
82185-52650	NCP131..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)	08/2011 - 12/2999	1
82185-52640	NCP131..USA MEXICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&REAR WINDOW WIPER-WITHOUT	08/2011 - 12/2999	1
82185-52660	NCP131..USA REAR WINDOW WIPER-WITHOUT	08/2011 - 12/2999	1
82185-52680	NCP131..STD	08/2011 - 12/2999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-52180	NCP131..USA REAR WINDOW DEFOGGER-WITH(TIMER)	08/2011 - 12/2999	1
Common parts
90119-06915

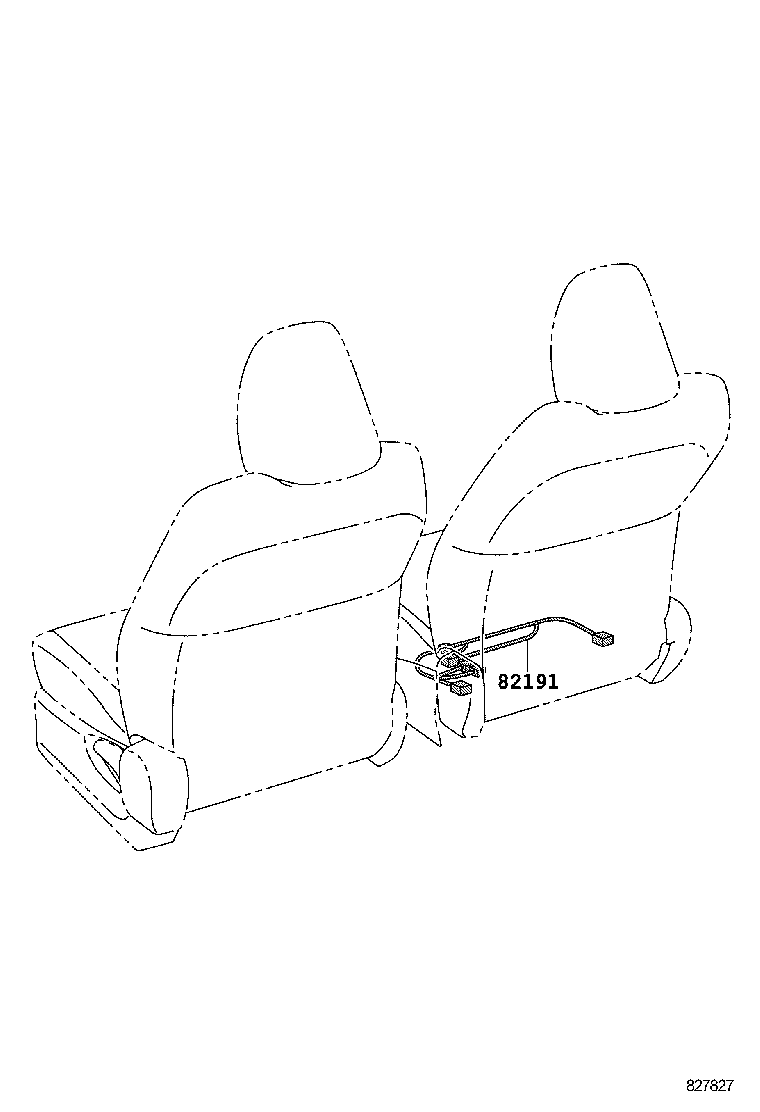

ILLUST NO. 6 OF 8(1108- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty	Price
82191 - WIRE, FRONT SEAT, RH
82191-52010	NCP131	08/2011 - 12/2999	1

Part #

Description

Qty

Price

82191 - WIRE, FRONT SEAT, RH

82191-52010

NCP131

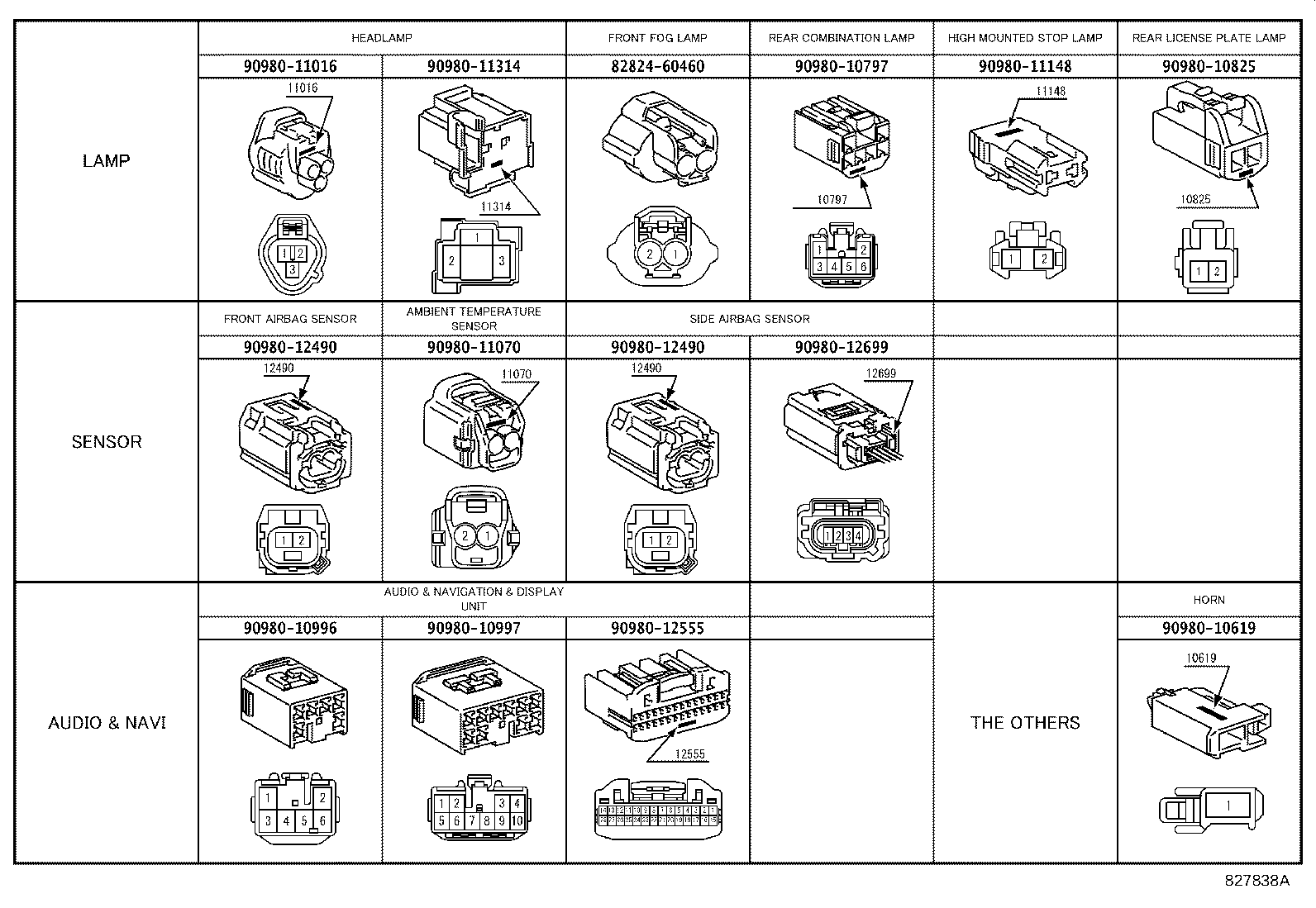

ILLUST NO. 8 OF 8(1108- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10619
90980-10797
90980-10825
90980-10996
90980-10997
90980-11016
90980-11070
90980-11148
90980-11314
90980-12490
90980-12555
90980-12699
