Toyota Yaris (jpp) NCP131 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
US
YARIS (JPP)
NCP131L-AGPRKA (2011)
5201 - FRONT BUMPER & BUMPER STAY

NCP131L-AGPRKA (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

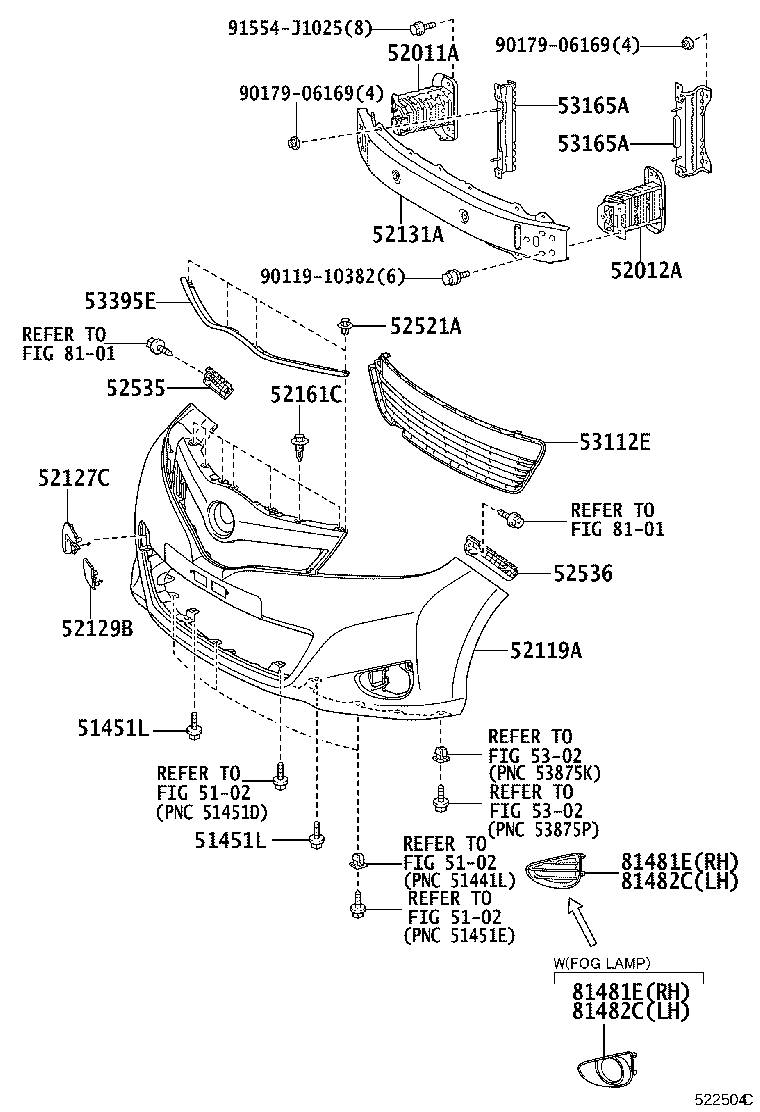

(1108- )STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
51451L - BOLT, NO.1
90119-06767	NCP131	08/2011 - 07/2014	2
51451L - BOLT, NO.1
90119-06767	NCP131	08/2011 - 07/2014	2
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-52021	NCP131	08/2012 - 12/2999	1
52011-52020	NCP131	08/2011 - 07/2012	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-52020	NCP131	08/2011 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-52965	NCP131..STD PAINT REQ.	08/2011 - 07/2014	1
52119-52976	NCP131..USA PAINT REQ.,HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 07/2014	1
52127C - COVER, FRONT BUMPER HOLE
52127-52931	NCP131..STD	08/2011 - 07/2014	1
52129B - COVER, FRONT BUMPER, LOWER
52129-52100	NCP131..USA HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
52129-52090	NCP131..STD	08/2011 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52280	NCP131..USA	08/2011 - 07/2014	1
52161C - PIECE, FRONT BUMPER
52161-16010	NCP131	08/2011 - 07/2014	7
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0	NCP131 BLACK	08/2011 - 07/2014	4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52111	NCP131	02/2012 - 07/2014	1
52535-52110	NCP131	08/2011 - 01/2012	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52080	NCP131	08/2011 - 01/2012	1
52536-52081	NCP131	02/2012 - 12/2999	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52260	NCP131..STD NO PAINT REQ.	08/2011 - 12/2999	1
53112-52300	NCP131..USA NO PAINT REQ.,HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52020	NCP131 RH	08/2011 - 12/2999	1
53165-52030	NCP131 LH	08/2011 - 12/2999	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52020	NCP131 RH	08/2011 - 12/2999	1
53165-52030	NCP131 LH	08/2011 - 12/2999	1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-52040	NCP131	08/2011 - 12/2999	1
81481E - COVER, FOG LAMP, RH
81481-52390	NCP131..USA HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81481-52360	NCP131..STD	08/2011 - 12/2999	1
81481-52380	NCP131..STD FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81481E - COVER, FOG LAMP, RH
81481-52390	NCP131..USA HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81481-52360	NCP131..STD	08/2011 - 12/2999	1
81481-52380	NCP131..STD FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81482C - COVER, FOG LAMP, LH
81482-52320	NCP131..STD FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81482-52330	NCP131..USA HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81482-52300	NCP131..STD	08/2011 - 12/2999	1
81482C - COVER, FOG LAMP, LH
81482-52320	NCP131..STD FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81482-52330	NCP131..USA HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81482-52300	NCP131..STD	08/2011 - 12/2999	1
Common parts
90119-10382
90179-06169
91554-J1025
Linked diagrams
5102
5302
8101

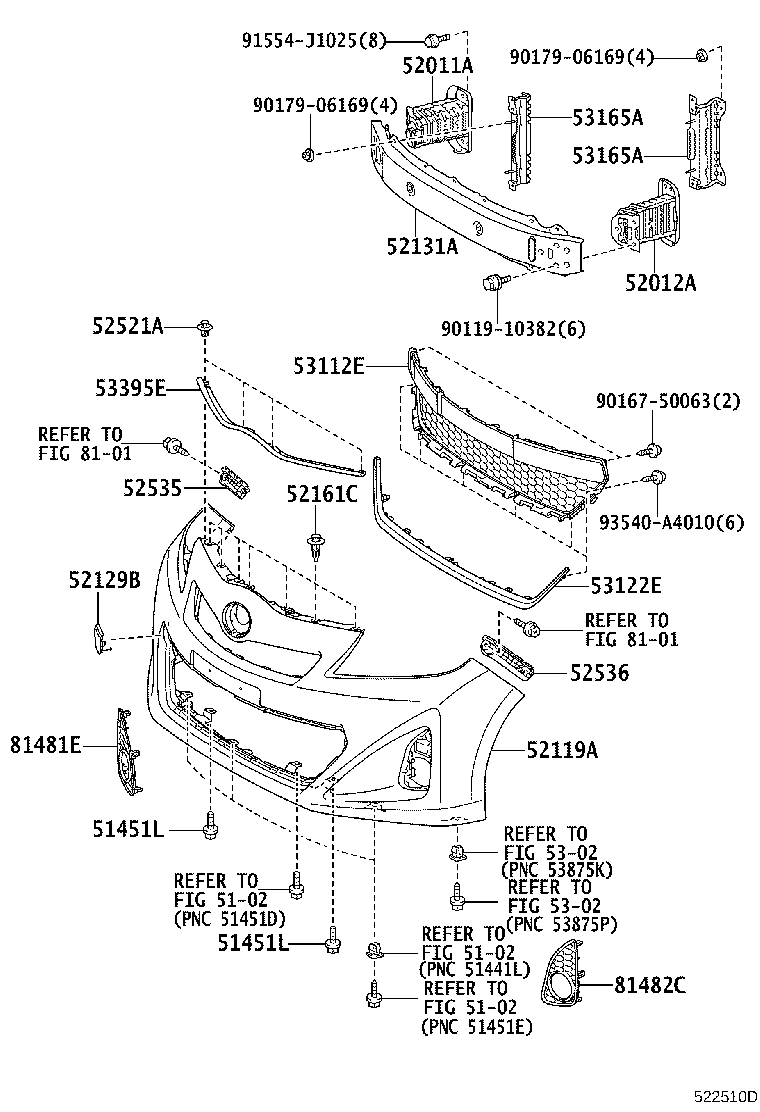

(1108- )USA

Click highlighted areas on diagram

HEADLAMP - 2BEAM HALOGEN SPORT

Part #	Description	Period	Qty
51451L - BOLT, NO.1
90119-06767	NCP131	08/2011 - 07/2014	2
51451L - BOLT, NO.1
90119-06767	NCP131	08/2011 - 07/2014	2
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-52021	NCP131	08/2012 - 12/2999	1
52011-52020	NCP131	08/2011 - 07/2012	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-52020	NCP131	08/2011 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-52965	NCP131..STD PAINT REQ.	08/2011 - 07/2014	1
52119-52976	NCP131..USA PAINT REQ.,HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 07/2014	1
52129B - COVER, FRONT BUMPER, LOWER
52129-52100	NCP131..USA HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
52129-52090	NCP131..STD	08/2011 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52280	NCP131..USA	08/2011 - 07/2014	1
52161C - PIECE, FRONT BUMPER
52161-16010	NCP131	08/2011 - 07/2014	7
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0	NCP131 BLACK	08/2011 - 07/2014	4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52111	NCP131	02/2012 - 07/2014	1
52535-52110	NCP131	08/2011 - 01/2012	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52080	NCP131	08/2011 - 01/2012	1
52536-52081	NCP131	02/2012 - 12/2999	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52260	NCP131..STD NO PAINT REQ.	08/2011 - 12/2999	1
53112-52300	NCP131..USA NO PAINT REQ.,HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
53122E - MOULDING, RADIATOR GRILLE, LOWER
53122-52030	NCP131..USA HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52020	NCP131 RH	08/2011 - 12/2999	1
53165-52030	NCP131 LH	08/2011 - 12/2999	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52020	NCP131 RH	08/2011 - 12/2999	1
53165-52030	NCP131 LH	08/2011 - 12/2999	1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-52040	NCP131	08/2011 - 12/2999	1
81481E - COVER, FOG LAMP, RH
81481-52390	NCP131..USA HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81481-52360	NCP131..STD	08/2011 - 12/2999	1
81481-52380	NCP131..STD FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81482C - COVER, FOG LAMP, LH
81482-52320	NCP131..STD FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81482-52330	NCP131..USA HEADLAMP-2BEAM HALOGEN SPORT&FRONT FOG LAMP-WITH	08/2011 - 12/2999	1
81482-52300	NCP131..STD	08/2011 - 12/2999	1
Common parts
90119-10382
90167-50063
90179-06169
91554-J1025
93540-A4010
Linked diagrams
5102
5302
8101

NCP131L-AGPRKA (2011)

(1108- )STD

(1108- )USA
