NCP131L-AGPRKA (2011)
Toyota Yaris (Jpp)
(1108- )4FC
U340E

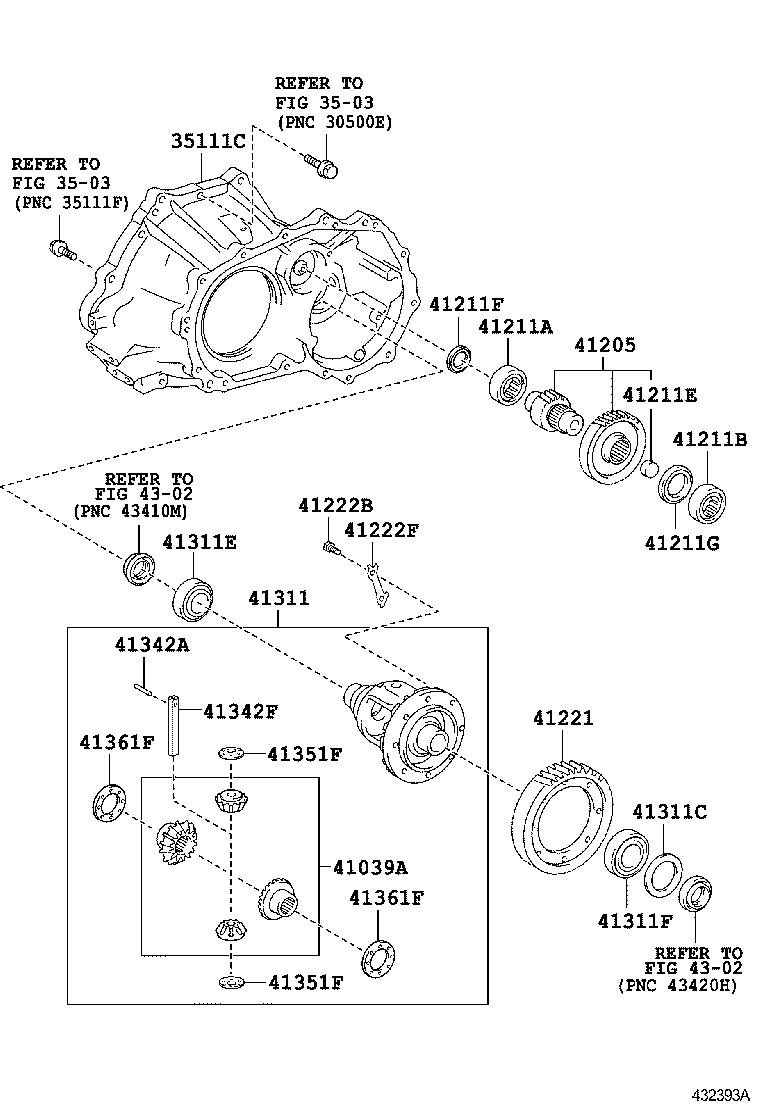

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-52071 |
NCP131..4FC |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-12010 |
NCP131..4FC |
1 | ||
| 41205 - PINION SUB-ASSY, DIFFERENTIAL DRIVE | ||||
| 41205-52021 |
NCP131..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90365-35004 |
NCP131..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90365-35003 |
NCP131..4FC |
1 | ||
| 41211E - PLUG(FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90331-17017 |
NCP131..4FC |
1 | ||
| 41211F - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH | ||||
| 90374-18005 |
NCP131..4FC |
1 | ||
| 41211G - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH | ||||
| 90374-45001 |
NCP131..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-52091 |
NCP131..4FC |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11003 |
NCP131..4FC |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-32010 |
NCP131..4FC |
4 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-52070 |
NCP131..4FC |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-49002 |
NCP131..4FC T=1.95,MARK 02 |
1 | ||
| 90564-49001 |
NCP131..4FC T=1.90,MARK 01 |
1 | ||
| 90564-49006 |
NCP131..4FC T=2.15,MARK 06 |
1 | ||
| 90564-49008 |
NCP131..4FC T=2.25,MARK 08 |
1 | ||
| 90564-49009 |
NCP131..4FC T=2.30,MARK 09 |
1 | ||
| 90564-49019 |
NCP131..4FC T=2.80,MARK 19 |
1 | ||
| 90564-49003 |
NCP131..4FC T=2.00,MARK 03 |
1 | ||
| 90564-49005 |
NCP131..4FC T=2.10,MARK 05 |
1 | ||
| 90564-49011 |
NCP131..4FC T=2.40,MARK 11 |
1 | ||
| 90564-49012 |
NCP131..4FC T=2.45,MARK 12 |
1 | ||
| 90564-49014 |
NCP131..4FC T=2.55,MARK 14 |
1 | ||
| 90564-49004 |
NCP131..4FC T=2.05,MARK 04 |
1 | ||
| 90564-49010 |
NCP131..4FC T=2.35,MARK 10 |
1 | ||
| 90564-49015 |
NCP131..4FC T=2.60,MARK 15 |
1 | ||
| 90564-49018 |
NCP131..4FC T=2.75,MARK 18 |
1 | ||
| 90564-49016 |
NCP131..4FC T=2.65,MARK 16 |
1 | ||
| 90564-49007 |
NCP131..4FC T=2.20,MARK 07 |
1 | ||
| 90564-49013 |
NCP131..4FC T=2.50,MARK 13 |
1 | ||
| 90564-49017 |
NCP131..4FC T=2.70,MARK 17 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40016 |
NCP131..4FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-44001 |
NCP131..4FC |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
NCP131 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-20090 |
NCP131..4FC |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
NCP131 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
NCP131 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17030 |
NCP131..4FC T=1.05 |
2 | ||
| 41361-17020 |
NCP131..4FC T=1.00 |
2 | ||
| 41361-17040 |
NCP131..4FC T=1.10 |
2 | ||
| 41361-17060 |
NCP131..4FC T=1.20 |
2 | ||
| 41361-17010 |
NCP131..4FC T=0.95 |
2 | ||
| 41361-17050 |
NCP131..4FC T=1.15 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17030 |
NCP131..4FC T=1.05 |
2 | ||
| 41361-17020 |
NCP131..4FC T=1.00 |
2 | ||
| 41361-17040 |
NCP131..4FC T=1.10 |
2 | ||
| 41361-17060 |
NCP131..4FC T=1.20 |
2 | ||
| 41361-17010 |
NCP131..4FC T=0.95 |
2 | ||
| 41361-17050 |
NCP131..4FC T=1.15 |
2 | ||
| Linked diagrams | ||||
| 3503 | ||||
| 4302 | ||||
