NCP131L-AGMVKK (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

Click highlighted areas on diagram

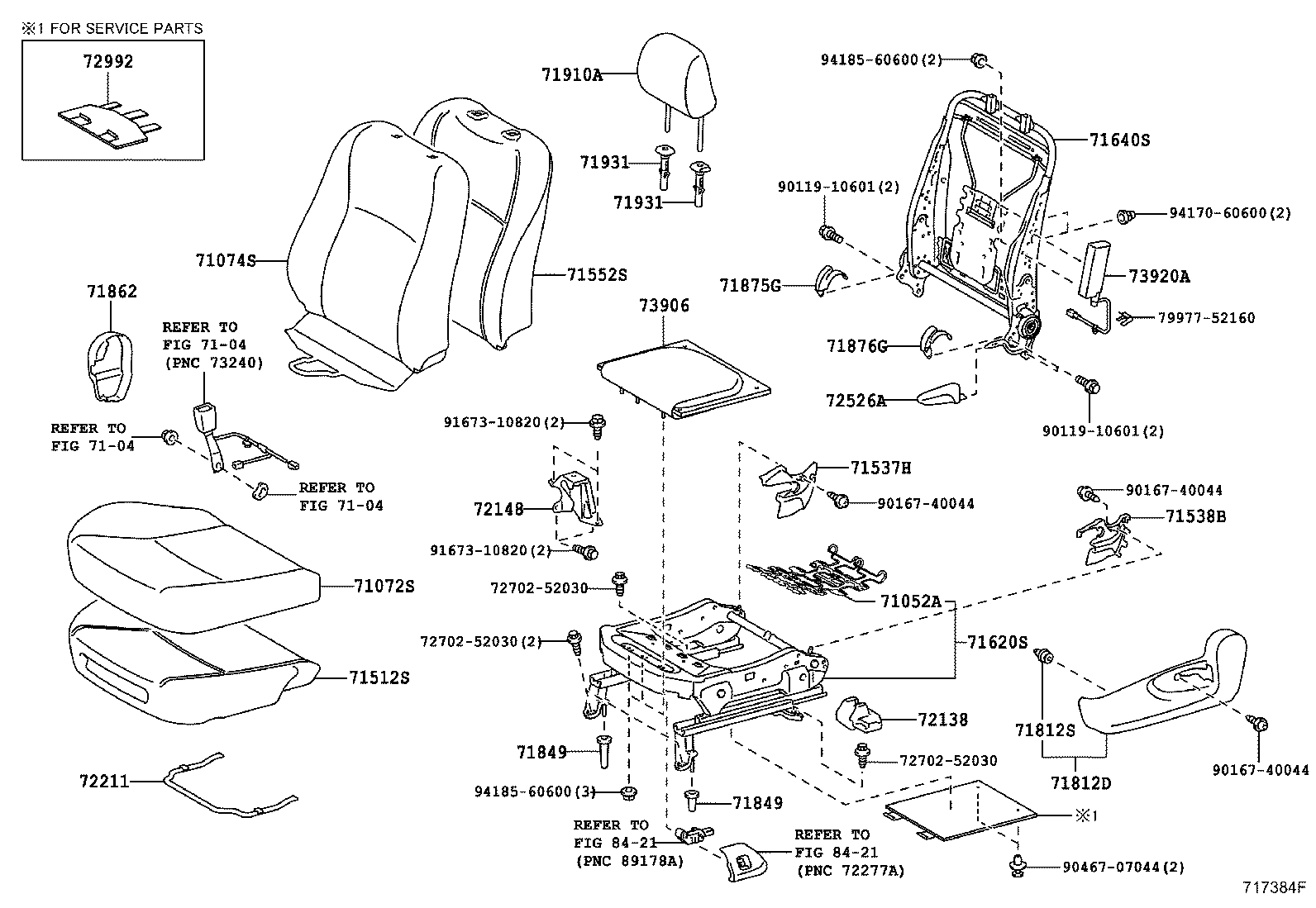

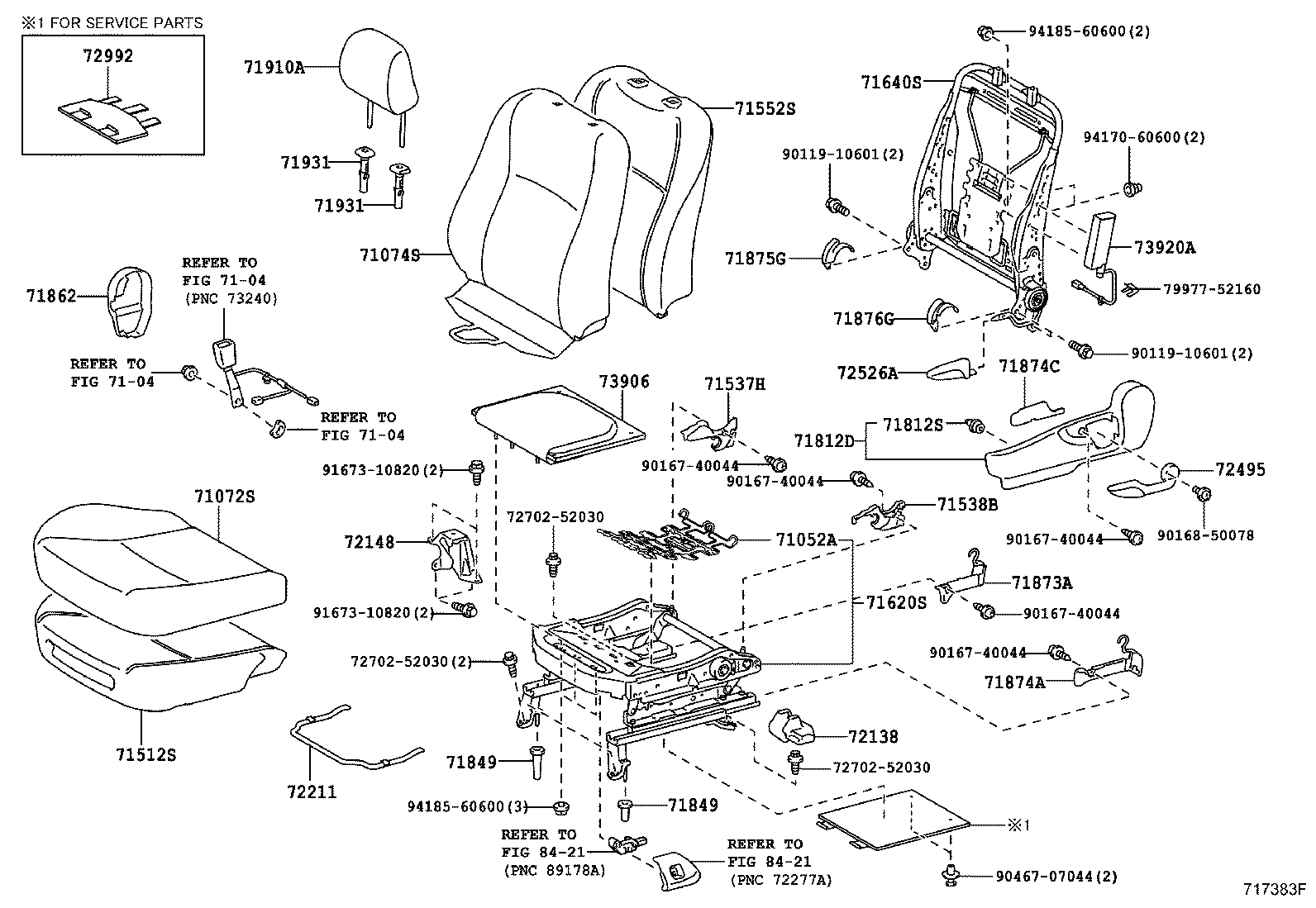

DRIVER SEAT W(*80,SIDE & *VA)

diagram 7104 7104 7104 71052A 71072S 71074S 71512S 71537H 71538B 71552S 71620S 71640S 71812D 71812S 71849 71849 71862 71873A 71874A 71874C 71875G 71876G 71910A 71931 71931 72138 72148 72211 72495 72526A 7270252030 7270252030 7270252030 72992 73906 73920A 7997752160 8421 8421 9011910601 9011910601 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9046707044 9167310820 9167310820 9417060600 9418560600 9418560600
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-47060

NCP131..RS;NCP131..USA;NCP131..3D..STD..CND

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-52N50C0

NCP131..RS

BLACK,TRIM1#

 1
71072-52N52C0

NCP131..RS

BLACK,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-52L20C1

NCP131..RS

BLACK,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-52560

NCP131..CND

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-52100C0

NCP131..CND

BLACK,TRIM1#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-52050C0

NCP131..CND

BLACK,TRIM1#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-52800

NCP131..RS

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-52220

NCP131..CND

 1
71620-52222

NCP131..CND

 1
71620-52221

NCP131..CND

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-52350

NCP131..CND

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-52320C0

NCP131..CND

BLACK,TRIM1#

 1
71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH
71769-47020

NCP131

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-52210C0

NCP131..CND

BLACK,TRIM1#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-52270

NCP131..CND

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-52290

NCP131..CND

 1
71874C - SHIELD, FRONT SEAT CUSHION, LOWER
71874-52280C0

NCP131..CND

BLACK,TRIM1#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-60260C0

NCP131

BLACK,TRIM1#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60270C0

NCP131

BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-52F00B2

NCP131..RS

DARK GRAY,TRIM1#

 2
71910-52F00B0

NCP131..RS

DARK GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-52070C0

NCP131

BLACK,TRIM1#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-52100

NCP131

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52170

NCP131..3D

RH

 1
72211-52160

NCP131

LH

 1
72495 - HANDLE, VERTICAL ADJUSTING, LH
72495-21010C0

NCP131..CND

BLACK,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-47010C0

NCP131

BLACK,TRIM1#

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-52120

NCP131

 1
73906 - AIR BAG SUB-ASSY, FRONT SEAT, LH
73905-52020

NCP131

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-52190

NCP131

 1
73920-52191

NCP131

 1
Common parts
72702-52030
79977-52160
90119-10601
90167-40044
90168-50078
90467-07044
91673-10820
94170-60600
94185-60600
Linked diagrams
7104
8421

(1108- )

Click highlighted areas on diagram

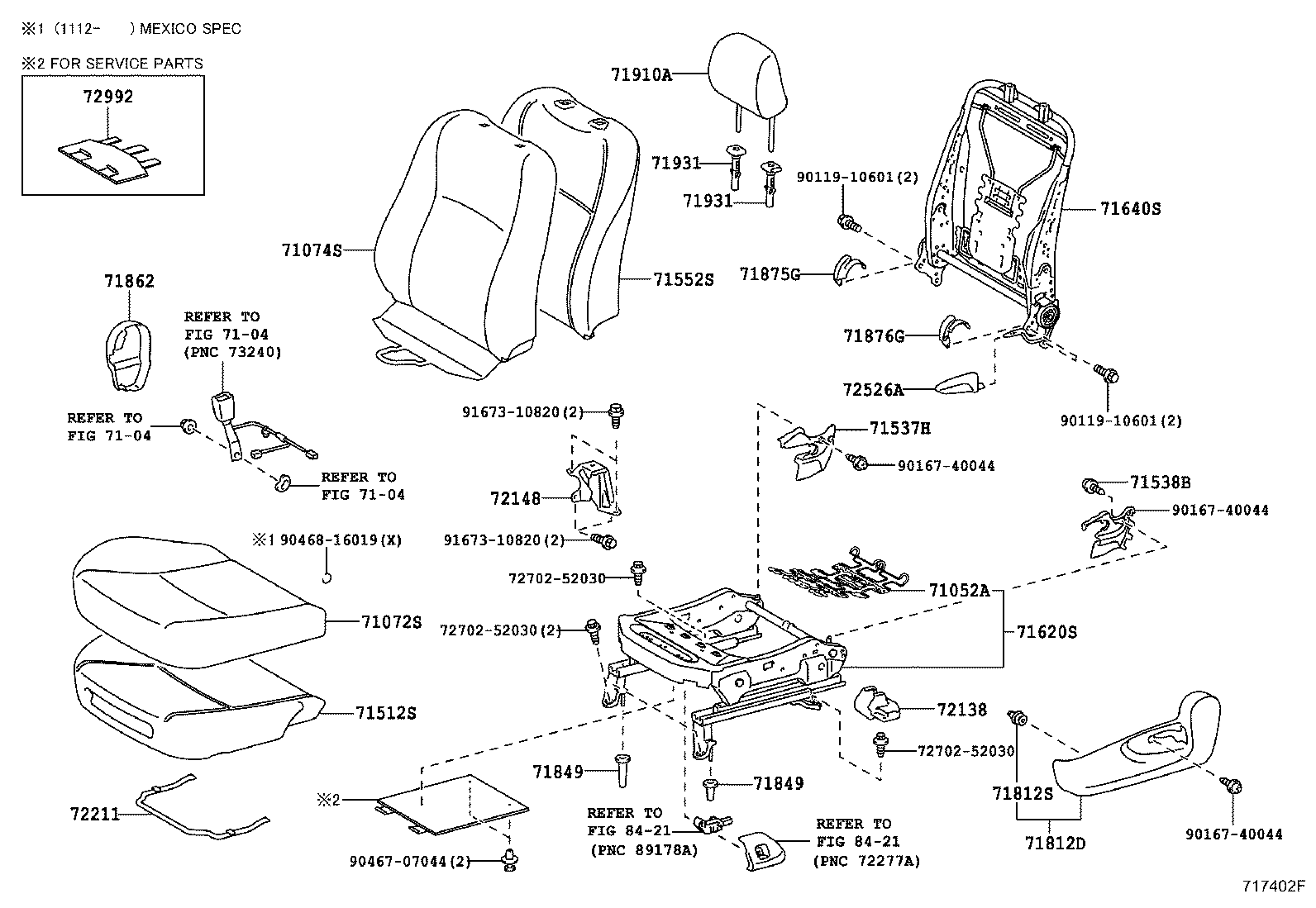

DRIVER SEAT W(*80,SIDE)

diagram 7104 7104 7104 71052A 71072S 71074S 71512S 71537H 71538B 71552S 71620S 71640S 71812D 71812S 71849 71849 71862 71875G 71876G 71910A 71931 71931 72138 72148 72211 72526A 7270252030 7270252030 7270252030 72992 73906 73920A 7997752160 8421 8421 9011910601 9011910601 9016740044 9016740044 9016740044 9046707044 9167310820 9167310820 9417060600 9418560600 9418560600
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-47060

NCP131..RS;NCP131..USA;NCP131..3D..STD..CND

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-52N50C0

NCP131..RS

BLACK,TRIM1#

 1
71072-52N52C0

NCP131..RS

BLACK,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-52L20C1

NCP131..RS

BLACK,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-52560

NCP131..CND

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-52100C0

NCP131..CND

BLACK,TRIM1#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-52050C0

NCP131..CND

BLACK,TRIM1#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-52800

NCP131..RS

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-52220

NCP131..CND

 1
71620-52222

NCP131..CND

 1
71620-52221

NCP131..CND

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-52350

NCP131..CND

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-52320C0

NCP131..CND

BLACK,TRIM1#

 1
71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH
71769-47020

NCP131

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-52210C0

NCP131..CND

BLACK,TRIM1#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-60260C0

NCP131

BLACK,TRIM1#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60270C0

NCP131

BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-52F00B2

NCP131..RS

DARK GRAY,TRIM1#

 2
71910-52F00B0

NCP131..RS

DARK GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-52070C0

NCP131

BLACK,TRIM1#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-52100

NCP131

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52170

NCP131..3D

RH

 1
72211-52160

NCP131

LH

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-47010C0

NCP131

BLACK,TRIM1#

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-52120

NCP131

 1
73906 - AIR BAG SUB-ASSY, FRONT SEAT, LH
73905-52020

NCP131

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-52190

NCP131

 1
73920-52191

NCP131

 1
Common parts
72702-52030
79977-52160
90119-10601
90167-40044
90467-07044
91673-10820
94170-60600
94185-60600
Linked diagrams
7104
8421

(1108- )3D

Click highlighted areas on diagram

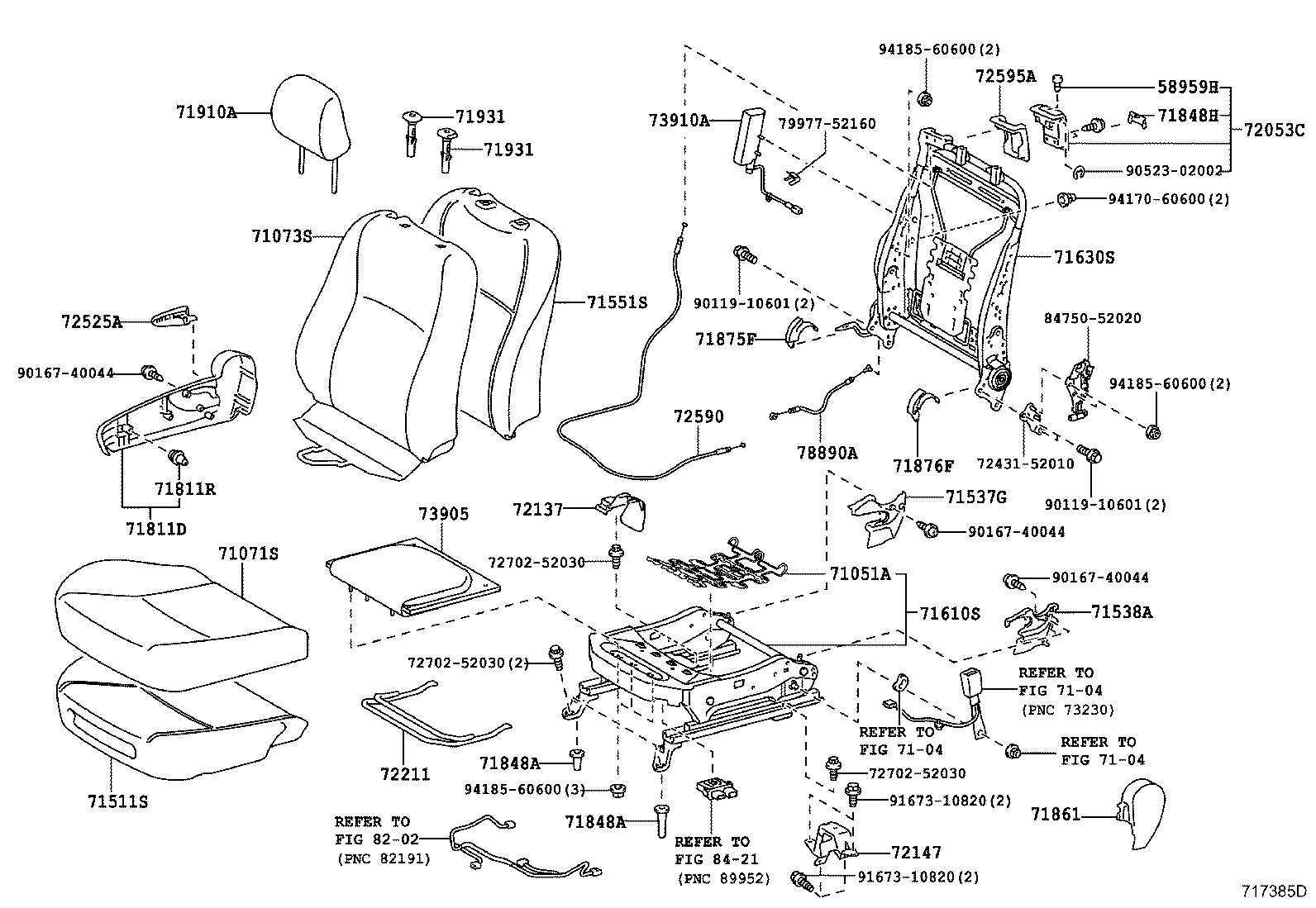

PASSENGER SEAT W(*80,SIDE)

diagram 58959H 7104 7104 7104 71051A 71071S 71073S 71511S 71537G 71538A 71551S 71610S 71630S 71811D 71811R 71848A 71848A 71848H 71861 71875F 71876F 71910A 71931 71931 72053C 72137 72147 72211 7243152010 72525A 72590 72595A 7270252030 7270252030 7270252030 73905 73910A 78890A 7997752160 8202 8421 8475052020 9011910601 9011910601 9016740044 9016740044 9016740044 9052302002 9167310820 9167310820 9417060600 9418560600 9418560600 9418560600
Part # Description Qty Price
58959H - CUSHION, RECLINING REMOTE CONTROL LEVER
58959-60060

NCP131..3D

 1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-47060

NCP131..RS;NCP131..USA;NCP131..3D..STD..CND

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-52N50C0

NCP131..3D..RS

BLACK,TRIM1#

 1
71071-52N52C0

NCP131..3D..RS

BLACK,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-52N40C1

NCP131..3D..RS

BLACK,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-52710

NCP131

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-52110C0

NCP131

BLACK,TRIM1#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-52080C0

NCP131..5D;NCP131..3D..CND

BLACK,TRIM1#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-52A00

NCP131..3D..RS

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-52091

NCP131..3D

 1
71610-52090

NCP131..3D

 1
71610-52092

NCP131..3D

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-52470

NCP131..3D

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-52340C0

NCP131

BLACK,TRIM1#

 1
71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH
71769-47020

NCP131

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71848H - CAP, RECLINING REMOTE CONTROL, RH
71848-52060C0

NCP131..3D

BLACK,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-52300C0

NCP131..CND;NCP131..3D..USA

BLACK,TRIM1#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-60260C0

NCP131

BLACK,TRIM1#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-60270C0

NCP131

BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-52F00B2

NCP131..RS

DARK GRAY,TRIM1#

 2
71910-52F00B0

NCP131..RS

DARK GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH
72053-52010C0

NCP131..3D

BLACK,TRIM1#

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-52090C0

NCP131

BLACK,TRIM1#

 1
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-52100

NCP131

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52170

NCP131..3D

RH

 1
72211-52160

NCP131

LH

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-47010C0

NCP131

BLACK,TRIM1#

 1
72590 - CABLE ASSY, SEAT BACK CONTROL
72590-52050

NCP131..3D

 1
72595A - BASE, RECLINING REMOTE CONTROL, RH
72595-52010C0

NCP131..3D

BLACK,TRIM1#

 1
73905 - AIR BAG SUB-ASSY, FRONT SEAT, RH
73905-52020

NCP131

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-52190

NCP131

 1
73910-52191

NCP131

 1
78890A - CABLE ASSY, SUB-SEAT LOCK CONTROL
78890-21010

NCP131..3D

 1
Common parts
72431-52010
72702-52030
79977-52160
84750-52020
90119-10601
90167-40044
90523-02002
91673-10820
94170-60600
94185-60600
Linked diagrams
7104
8202
8421

(1108- )

Click highlighted areas on diagram

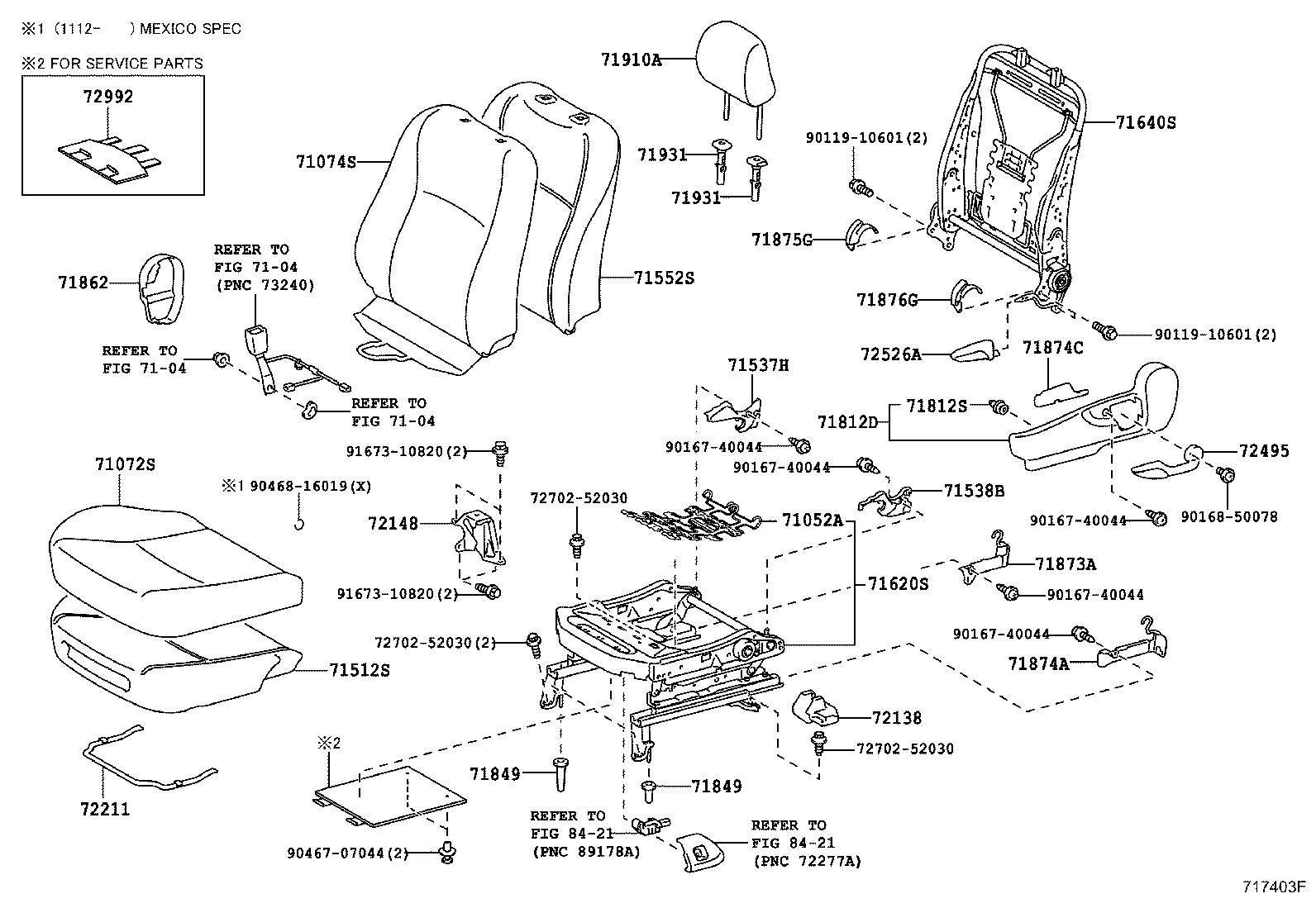

DRIVER SEAT

diagram 7104 7104 7104 71052A 71072S 71074S 71512S 71537H 71538B 71552S 71620S 71640S 71812D 71812S 71849 71849 71862 71875G 71876G 71910A 71931 71931 72138 72148 72211 72526A 7270252030 7270252030 7270252030 72992 8421 8421 9011910601 9011910601 9016740044 9016740044 9016740044 9046707044 9046816019 9167310820 9167310820
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-47060

NCP131..RS;NCP131..USA;NCP131..3D..STD..CND

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-52N50C0

NCP131..RS

BLACK,TRIM1#

 1
71072-52N52C0

NCP131..RS

BLACK,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-52L20C1

NCP131..RS

BLACK,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-52560

NCP131..CND

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-52100C0

NCP131..CND

BLACK,TRIM1#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-52050C0

NCP131..CND

BLACK,TRIM1#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-52800

NCP131..RS

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-52220

NCP131..CND

 1
71620-52222

NCP131..CND

 1
71620-52221

NCP131..CND

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-52350

NCP131..CND

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-52320C0

NCP131..CND

BLACK,TRIM1#

 1
71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH
71769-47020

NCP131

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-52210C0

NCP131..CND

BLACK,TRIM1#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-60260C0

NCP131

BLACK,TRIM1#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60270C0

NCP131

BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-52F00B2

NCP131..RS

DARK GRAY,TRIM1#

 2
71910-52F00B0

NCP131..RS

DARK GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-52070C0

NCP131

BLACK,TRIM1#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-52100

NCP131

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52170

NCP131..3D

RH

 1
72211-52160

NCP131

LH

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-47010C0

NCP131

BLACK,TRIM1#

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-52120

NCP131

 1
Common parts
72702-52030
90119-10601
90167-40044
90467-07044
90468-16019
91673-10820
Linked diagrams
7104
8421

(1108- )

Click highlighted areas on diagram

DRIVER SEAT W(*VA)

diagram 7104 7104 7104 71052A 71072S 71074S 71512S 71537H 71538B 71552S 71620S 71640S 71812D 71812S 71849 71849 71862 71873A 71874A 71874C 71875G 71876G 71910A 71931 71931 72138 72148 72211 72495 72526A 7270252030 7270252030 7270252030 72992 8421 8421 9011910601 9011910601 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9046707044 9046816019 9167310820 9167310820
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-47060

NCP131..RS;NCP131..USA;NCP131..3D..STD..CND

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-52N50C0

NCP131..RS

BLACK,TRIM1#

 1
71072-52N52C0

NCP131..RS

BLACK,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-52L20C1

NCP131..RS

BLACK,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-52560

NCP131..CND

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-52100C0

NCP131..CND

BLACK,TRIM1#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-52050C0

NCP131..CND

BLACK,TRIM1#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-52800

NCP131..RS

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-52220

NCP131..CND

 1
71620-52222

NCP131..CND

 1
71620-52221

NCP131..CND

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-52350

NCP131..CND

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-52320C0

NCP131..CND

BLACK,TRIM1#

 1
71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH
71769-47020

NCP131

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52050

NCP131

INNER

 1
71848-52040

NCP131

OUTER

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-52210C0

NCP131..CND

BLACK,TRIM1#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-52270

NCP131..CND

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-52290

NCP131..CND

 1
71874C - SHIELD, FRONT SEAT CUSHION, LOWER
71874-52280C0

NCP131..CND

BLACK,TRIM1#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-60260C0

NCP131

BLACK,TRIM1#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60270C0

NCP131

BLACK,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-52F00B2

NCP131..RS

DARK GRAY,TRIM1#

 2
71910-52F00B0

NCP131..RS

DARK GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0

NCP131

W/O(LOCK),BLACK,TRIM1#

 2
71930-47020C0

NCP131

W(LOCK),BLACK,TRIM1#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-52070C0

NCP131

BLACK,TRIM1#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-52100

NCP131

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52170

NCP131..3D

RH

 1
72211-52160

NCP131

LH

 1
72495 - HANDLE, VERTICAL ADJUSTING, LH
72495-21010C0

NCP131..CND

BLACK,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-47010C0

NCP131

BLACK,TRIM1#

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-52120

NCP131

 1
Common parts
72702-52030
90119-10601
90167-40044
90168-50078
90467-07044
90468-16019
91673-10820
Linked diagrams
7104
8421
