NCP131L-AGMVKK (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

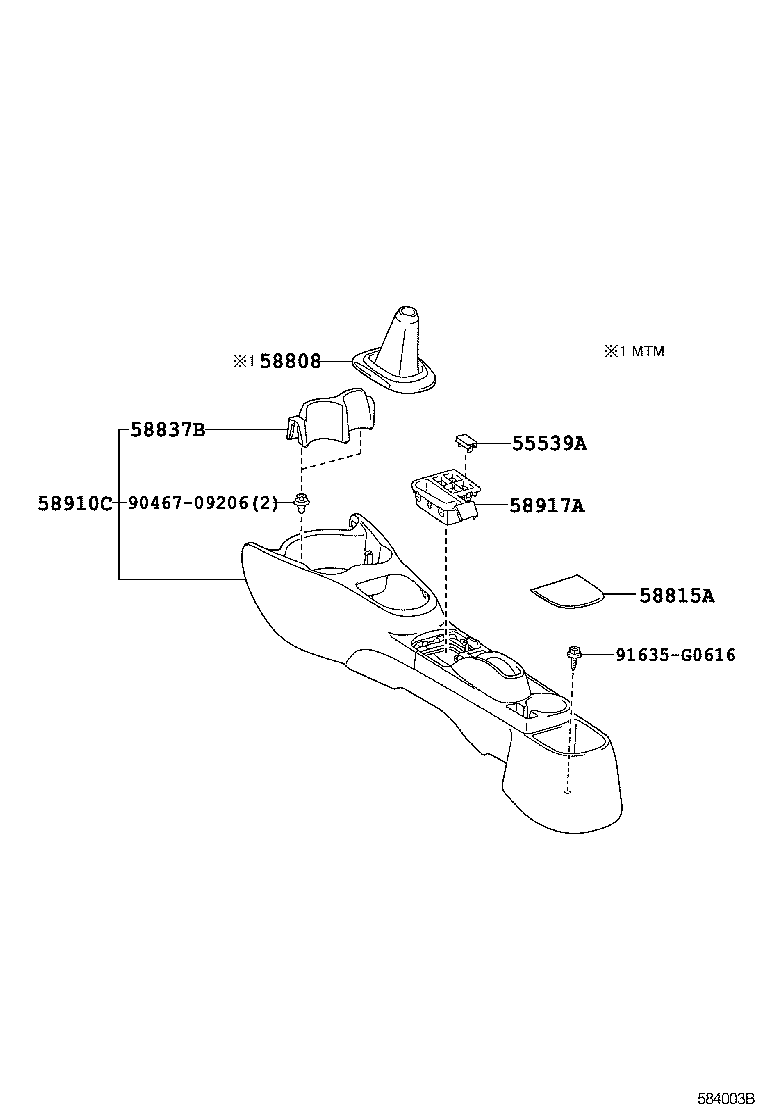

Click highlighted areas on diagram

diagram 55539A 58808 58815A 58837B 58910C 58917A 9046709206 91635G0616
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-52070C0

NCP131

BLACK,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-52160C0

NCP131..5F..RS

BLACK,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-52100

NCP131

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-52020C0

NCP131

BLACK,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-52120C0

NCP131

BLACK,TRIM1#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-52110C0

NCP131

BLACK,TRIM1#

 1
Common parts
90467-09206
91635-G0616
