NCP131L-AGMRKA (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )5F

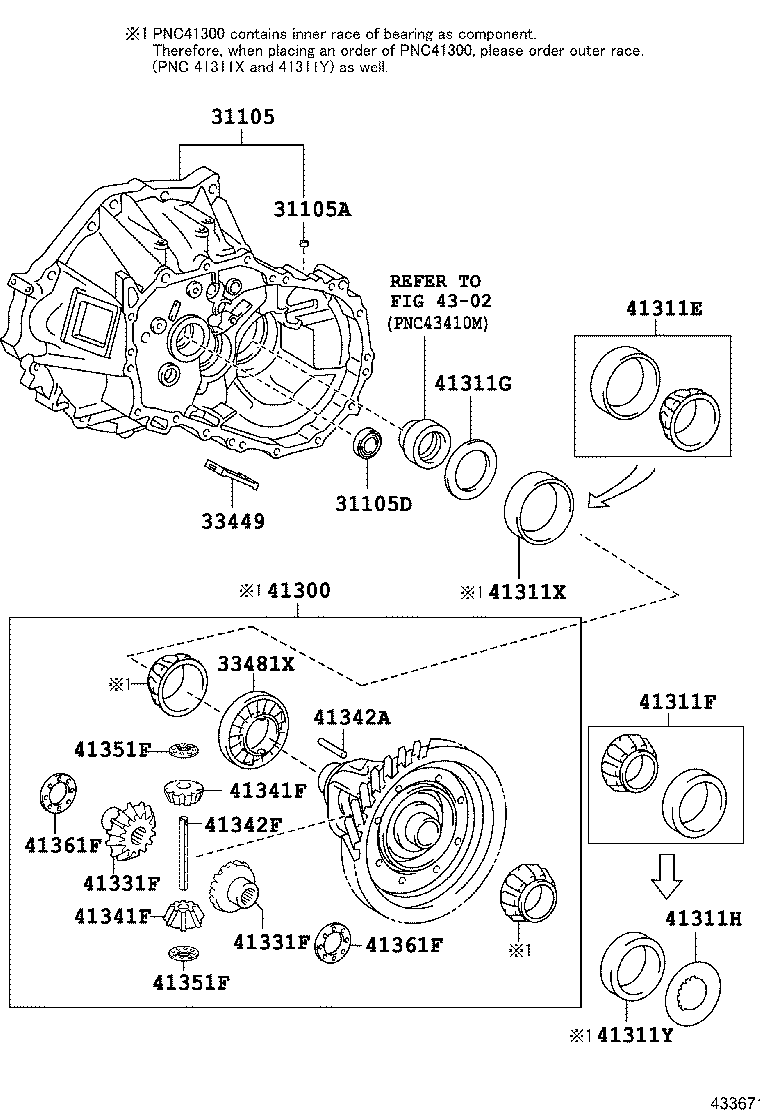

Click highlighted areas on diagram

C50

diagram 31105 31105A 31105D 33449 33481X 41300 41311E 41311F 41311G 41311H 41311X 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-52060

NCP131..5F

 1
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

NCP131..5F

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25028

NCP131..5F

 1
33449 - MAGNET, TRANSMISSION
33449-12020

NCP131..5F

 1
33481X - GEAR, SPEEDOMETER DRIVE
33481-12040

NCP131..5F

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-52140

NCP131..5F

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38004

NCP131..5F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

NCP131..5F

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

NCP131..5F

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41017

NCP131..5F

T=2.25,MARK DD

 1
90564-41016

NCP131..5F

T=2.20,MARK CC

 1
90564-41025

NCP131..5F

T=2.65,MARK MM

 1
90564-41021

NCP131..5F

T=2.45,MARK HH

 1
90564-41018

NCP131..5F

T=2.30,MARK EE

 1
90564-41019

NCP131..5F

T=2.35,MARK FF

 1
90564-41020

NCP131..5F

T=2.40,MARK GG

 1
90564-41022

NCP131..5F

T=2.50,MARK JJ

 1
90564-41026

NCP131..5F

T=2.70,MARK NN

 1
90564-41028

NCP131..5F

T=2.80,MARK QQ

 1
90564-41024

NCP131..5F

T=2.60,MARK LL

 1
90564-41031

NCP131..5F

T=2.95,MARK TT

 1
90564-41015

NCP131..5F

T=2.15,MARK BB

 1
90564-41027

NCP131..5F

T=2.75,MARK PP

 1
90564-41030

NCP131..5F

T=2.90,MARK SS

 1
90564-41032

NCP131..5F

T=3.00,MARK UU

 1
90564-41014

NCP131..5F

T=2.10,MARK AA

 1
90564-41029

NCP131..5F

T=2.85,MARK RR

 1
90564-41023

NCP131..5F

T=2.55,MARK KK

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90366-38005

NCP131..5F

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90368-38011

NCP131..5F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NCP131..5F

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NCP131..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NCP131..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NCP131..5F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NCP131

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12140

NCP131..5F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NCP131

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NCP131

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030

NCP131..5F

T=1.10,MARK 03

 2
41361-22020

NCP131..5F

T=1.00,MARK 02

 2
41361-22040

NCP131..5F

T=1.20,MARK 04

 2
41361-22160

NCP131..5F

T=1.15,MARK 16

 2
41361-22150

NCP131..5F

T=1.05,MARK 15

 2
41361-22140

NCP131..5F

T=0.95,MARK 14

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030

NCP131..5F

T=1.10,MARK 03

 2
41361-22020

NCP131..5F

T=1.00,MARK 02

 2
41361-22040

NCP131..5F

T=1.20,MARK 04

 2
41361-22160

NCP131..5F

T=1.15,MARK 16

 2
41361-22150

NCP131..5F

T=1.05,MARK 15

 2
41361-22140

NCP131..5F

T=0.95,MARK 14

 2
Linked diagrams
4302
