SCP90L-CGMRKW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 2SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)SCP90..FRP

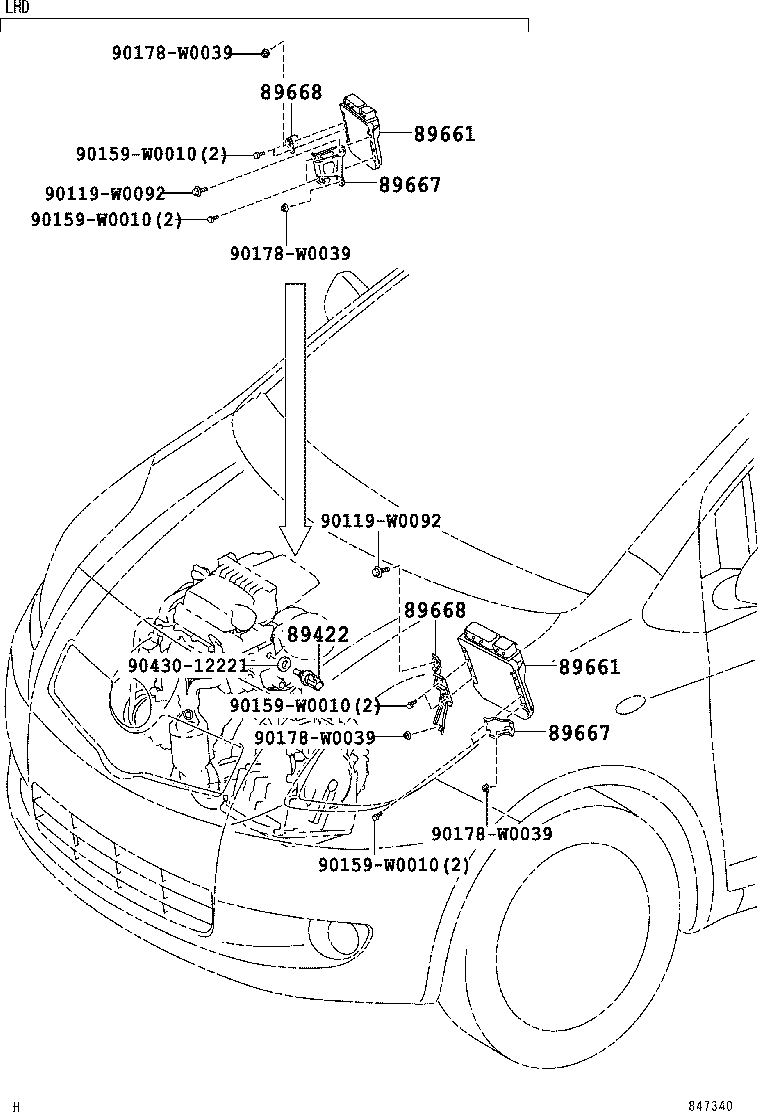

Click highlighted areas on diagram

diagram 89422 89661 89661 89667 89667 89668 89668 90119W0092 90119W0092 90159W0010 90159W0010 90159W0010 90159W0010 90178W0039 90178W0039 90178W0039 90178W0039 9043012221
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-0H010

KSP90,SCP90..FRP

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0D310

SCP90..FRP..5F

 1
89661-0D410

SCP90..FRP..5F

EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(OBD)

 1
89661-0D311

SCP90..FRP..5F

 1
89661-0D411

SCP90..FRP..5F

EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(OBD)

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0D310

SCP90..FRP..5F

 1
89661-0D410

SCP90..FRP..5F

EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(OBD)

 1
89661-0D311

SCP90..FRP..5F

 1
89661-0D411

SCP90..FRP..5F

EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(OBD)

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52200

SCP90..FRP..LHD

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52200

SCP90..FRP..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52220

SCP90..FRP..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52220

SCP90..FRP..LHD

 1
Common parts
90119-W0092
90159-W0010
90178-W0039
90430-12221
