SCP12R-CHPGKW (2002)
Toyota Yaris (Frp)
(0101-0302)FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

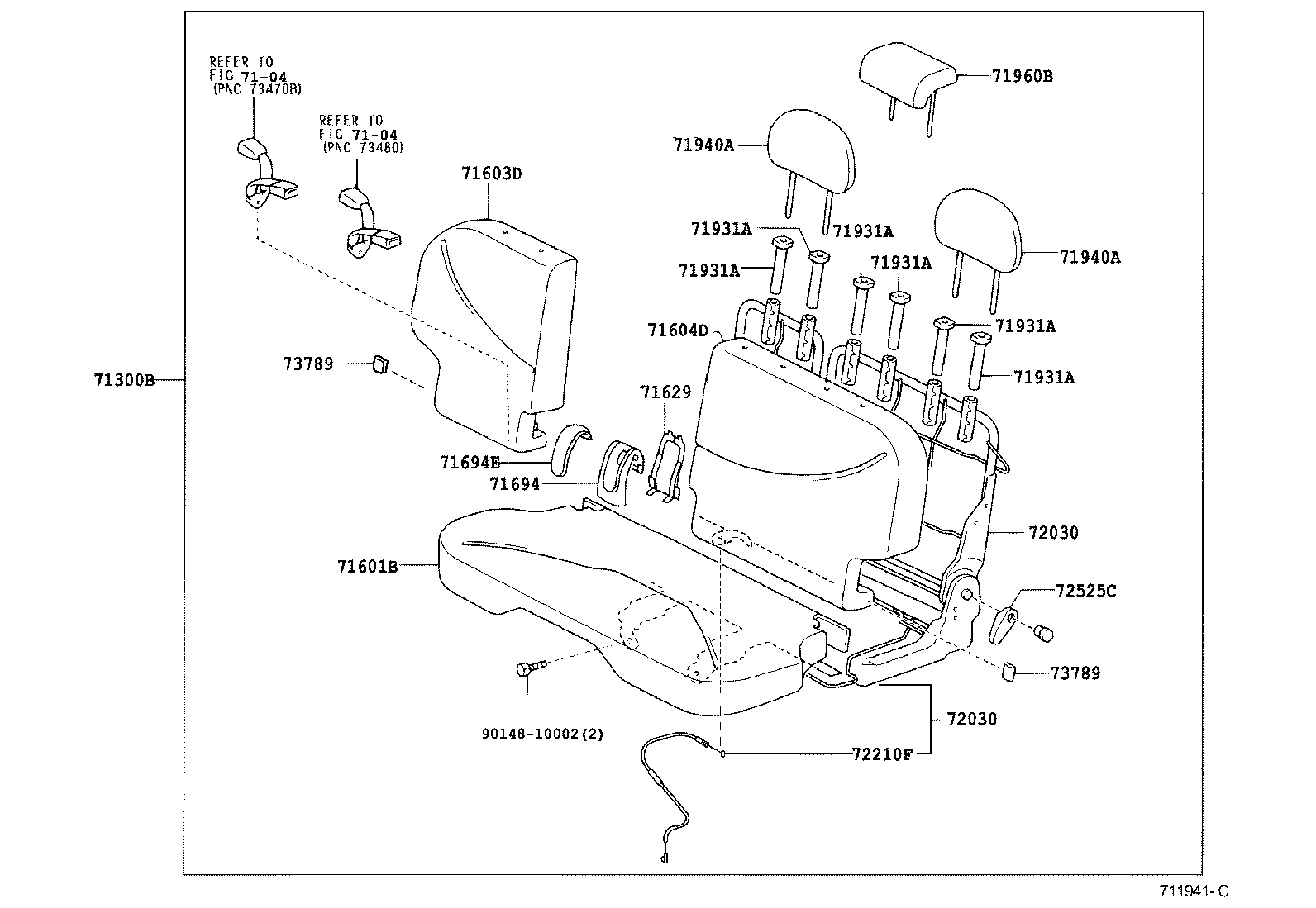

| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-0D030B0 |
SCP1#..SOL SHADOW GRAY,TRIM1# |
1 | ||
| 71601-0D050B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
1 | ||
| 71601-0D030H0 |
SCP1#..SOL FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-0D030H0 |
SCP1#..SOL FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603-0D070B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
1 | ||
| 71603-0D030B0 |
SCP1#..SOL SHADOW GRAY,TRIM1# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-0D090B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
1 | ||
| 71604-0D030H0 |
SCP1#..SOL FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71604-0D030B0 |
SCP1#..SOL SHADOW GRAY,TRIM1# |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-0D010B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 71629-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71629-0D020B0 |
NLP10,SCP1#..FRP DK.GRAY,TRIM1# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71694-0D010B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 71694-0D020B0 |
NLP10,SCP1#..FRP DK.GRAY,TRIM1# |
1 | ||
| 71694E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 72526-0D020B1 |
NLP10,SCP1#..FRP DK.GRAY,TRIM1# |
1 | ||
| 72526-0D020B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-0D020H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-0D030B0 |
SCP1#..SOL SEAT = TYPE A-*104,SHADOW GREY,TRIM1# |
2 | ||
| 71910-0D030H0 |
SCP1#..SOL SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D180B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-0D030B0 |
SCP1#..SOL SEAT = TYPE A-*104,SHADOW GREY,TRIM1# |
2 | ||
| 71910-0D030H0 |
SCP1#..SOL SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D180B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0D030H0 |
SCP1#..SOL FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71960-0D030B0 |
SCP1#..SOL SHADOW GREY,TRIM1# |
1 | ||
| 71960-0D080B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
1 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-0D020 |
SCP1# |
1 | ||
| 72030-0D070 |
SCP1#..FRP |
1 | ||
| 72030-0D030 |
SCP1# W(CENTER HEADREST) |
1 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-0D020 |
SCP1# |
1 | ||
| 72030-0D070 |
SCP1#..FRP |
1 | ||
| 72030-0D030 |
SCP1# W(CENTER HEADREST) |
1 | ||
| 72210F - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-0D010 |
SCP1# |
1 | ||
| 72210-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-0D020B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020B1 |
NLP10,SCP1#..FRP..SOL DK.GRAY,TRIM10,11 |
1 | ||
| 72525-0D020H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 73789 - LABEL, CRS INFORMATION | ||||
| 73789-52010B0 |
SCP1# MEDIUM GRAY,TRIM1#,7# |
2 | ||
| 73789 - LABEL, CRS INFORMATION | ||||
| 73789-52010B0 |
SCP1# MEDIUM GRAY,TRIM1#,7# |
2 | ||
| Common parts | ||||
| 90148-10002 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0302-0511)FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-0D030B0 |
SCP1#..SOL SHADOW GRAY,TRIM1# |
1 | ||
| 71601-0D050B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
1 | ||
| 71601-0D030H0 |
SCP1#..SOL FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-0D030H0 |
SCP1#..SOL FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603-0D070B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
1 | ||
| 71603-0D030B0 |
SCP1#..SOL SHADOW GRAY,TRIM1# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-0D090B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
1 | ||
| 71604-0D030H0 |
SCP1#..SOL FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71604-0D030B0 |
SCP1#..SOL SHADOW GRAY,TRIM1# |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-0D010B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 71629-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71629-0D020B0 |
NLP10,SCP1#..FRP DK.GRAY,TRIM1# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71694-0D010B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 71694-0D020B0 |
NLP10,SCP1#..FRP DK.GRAY,TRIM1# |
1 | ||
| 71694E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 72526-0D020B1 |
NLP10,SCP1#..FRP DK.GRAY,TRIM1# |
1 | ||
| 72526-0D020B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-0D020H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010B0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
3 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
3 | ||
| 71931-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71930-0D010B1 |
SCP1#..FRP..SOL..(4FC,5F) W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11 |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-0D030B0 |
SCP1#..SOL SEAT = TYPE A-*104,SHADOW GREY,TRIM1# |
2 | ||
| 71910-0D030H0 |
SCP1#..SOL SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D180B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-0D030B0 |
SCP1#..SOL SEAT = TYPE A-*104,SHADOW GREY,TRIM1# |
2 | ||
| 71910-0D030H0 |
SCP1#..SOL SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D180B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0D030H0 |
SCP1#..SOL FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71960-0D030B0 |
SCP1#..SOL SHADOW GREY,TRIM1# |
1 | ||
| 71960-0D080B0 |
NLP10,SCP1#..FRP..SOL DK. GRAY,TRIM10,11 |
1 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-0D020 |
SCP1# |
1 | ||
| 72030-0D070 |
SCP1#..FRP |
1 | ||
| 72030-0D030 |
SCP1# W(CENTER HEADREST) |
1 | ||
| 72210F - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-0D010 |
SCP1# |
1 | ||
| 72210-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 72241C - LEVER, OUTER SEAT TRACK LOCK, RH | ||||
| 72241-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-0D020B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020B1 |
NLP10,SCP1#..FRP..SOL DK.GRAY,TRIM10,11 |
1 | ||
| 72525-0D020H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| Common parts | ||||
| 90148-10002 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
