SCP12R-CHPGKW (2002)
Toyota Yaris (Frp)
Production
May 2002
-
Nov 2005
Engine
2SZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0205- )FRP..4FC

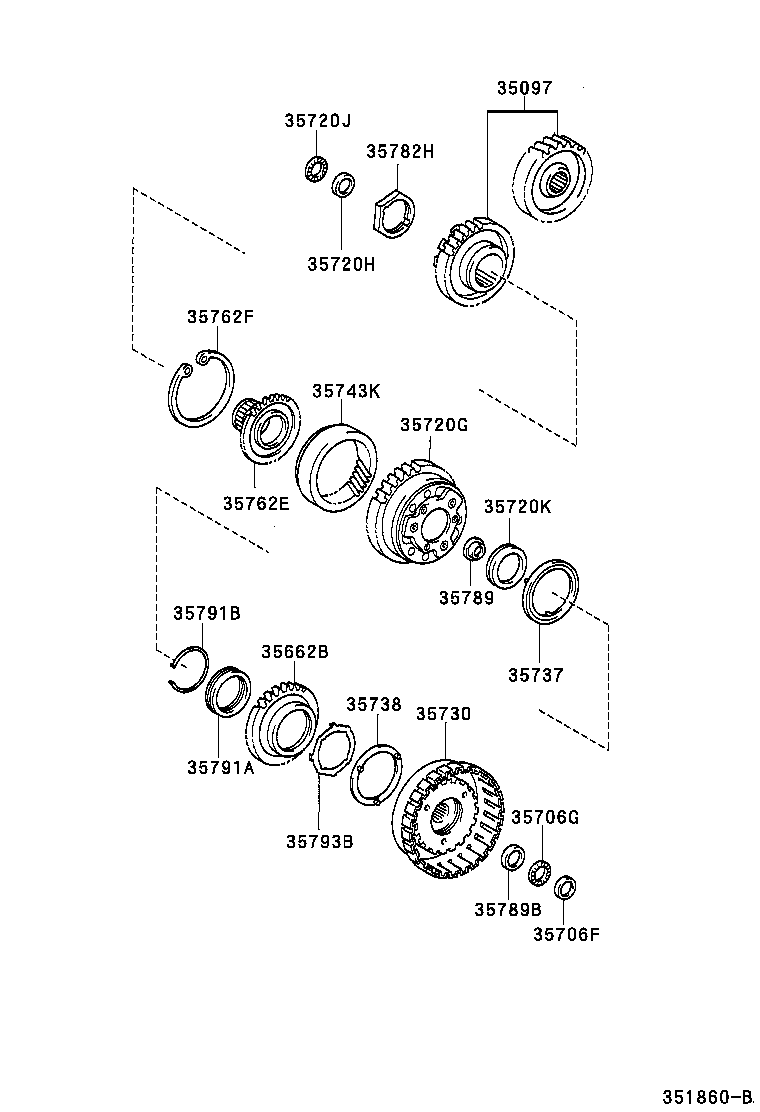

Click highlighted areas on diagram
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35097 - COUNTER GEAR KIT, AUTOMATIC TRANSAXLE | ||||
| 35097-52011 |
SCP12..4FC |
1 | ||
| 35097-52011 |
SCP12..FRP..4FC |
1 | ||
| 35662B - HUB, 2ND BRAKE | ||||
| 35662-52010 |
SCP12..4FC |
1 | ||
| 35662-52010 |
SCP12..FRP..4FC |
1 | ||
| 35706F - RACE, THRUST BEARING (FOR SUN GEAR REAR) | ||||
| 35789-52050 |
SCP12..4FC |
1 | ||
| 35789-52050 |
SCP12..FRP..4FC |
1 | ||
| 35706G - BEARING, THRUST (FOR SUN GEAR REAR) | ||||
| 90374-18004 |
SCP12..FRP..4FC |
1 | ||
| 90374-18004 |
SCP12..4FC |
1 | ||
| 35720G - GEAR ASSY, PLANETARY | ||||
| 35720-52010 |
SCP12..4FC |
1 | ||
| 35720-52010 |
SCP12..FRP..4FC |
1 | ||
| 35720H - RACE, THRUST BEARING(FOR PLANETARY GEAR) | ||||
| 35789-52010 |
SCP12..FRP..4FC |
1 | ||
| 35789-52010 |
SCP12..4FC |
1 | ||
| 35720J - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT) | ||||
| 90374-17001 |
SCP12..FRP..4FC |
1 | ||
| 90374-17001 |
SCP12..4FC |
1 | ||
| 35720K - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR) | ||||
| 90374-42006 |
SCP12..4FC |
1 | ||
| 90374-42006 |
SCP12..FRP..4FC |
1 | ||
| 35730 - GEAR ASSY, REAR PLANETARY SUN | ||||
| 35730-52010 |
SCP12..FRP..4FC |
1 | ||
| 35730-52010 |
SCP12..4FC |
1 | ||
| 35737 - WASHER, PLANETARY CARRIER THRUST | ||||
| 35737-52010 |
SCP12..4FC |
1 | ||
| 35737-52010 |
SCP12..FRP..4FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-52020 |
SCP12..FRP..4FC |
1 | ||
| 35738-52020 |
SCP12..4FC |
1 | ||
| 35743K - GEAR, PLANETARY RING | ||||
| 35743-52010 |
SCP12..4FC |
1 | ||
| 35743-52010 |
SCP12..FRP..4FC |
1 | ||
| 35762E - FLANGE, PLANETARY RING GEAR | ||||
| 35762-52010 |
SCP12..4FC |
1 | ||
| 35762-52010 |
SCP12..FRP..4FC |
1 | ||
| 35762F - RING, HOLE SNAP(FOR PLANETARY RING GEAR) | ||||
| 90520-89003 |
SCP12..4FC |
1 | ||
| 90520-89003 |
SCP12..FRP..4FC |
1 | ||
| 35782H - NUT(FOR COUNTER DRIVE GEAR) | ||||
| 90179-44001 |
SCP12..FRP..4FC |
1 | ||
| 90179-44001 |
SCP12..4FC |
1 | ||
| 35789 - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT) | ||||
| 35789-52020 |
SCP12..FRP..4FC |
1 | ||
| 35789-52020 |
SCP12..4FC |
1 | ||
| 35789B - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR) | ||||
| 35789-52040 |
SCP12..4FC |
1 | ||
| 35789-52040 |
SCP12..FRP..4FC |
1 | ||
| 35791A - CLUTCH, 1 WAY, NO.1 | ||||
| 35791-52010 |
SCP12..4FC |
1 | ||
| 35791-52010 |
SCP12..FRP..4FC |
1 | ||
| 35791B - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90520-69003 |
SCP12..4FC |
1 | ||
| 90520-69003 |
SCP12..FRP..4FC |
1 | ||
| 35793B - RETAINER, 1 WAY CLUTCH | ||||
| 35793-52010 |
SCP12..FRP..4FC |
1 | ||
| 35793-52010 |
SCP12..4FC |
1 | ||
