SCP12R-CGMNKW (2002)
Toyota Yaris (Frp)
Production
May 2002
-
Feb 2003
Engine
2SZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0205- )2SZFE..FRP

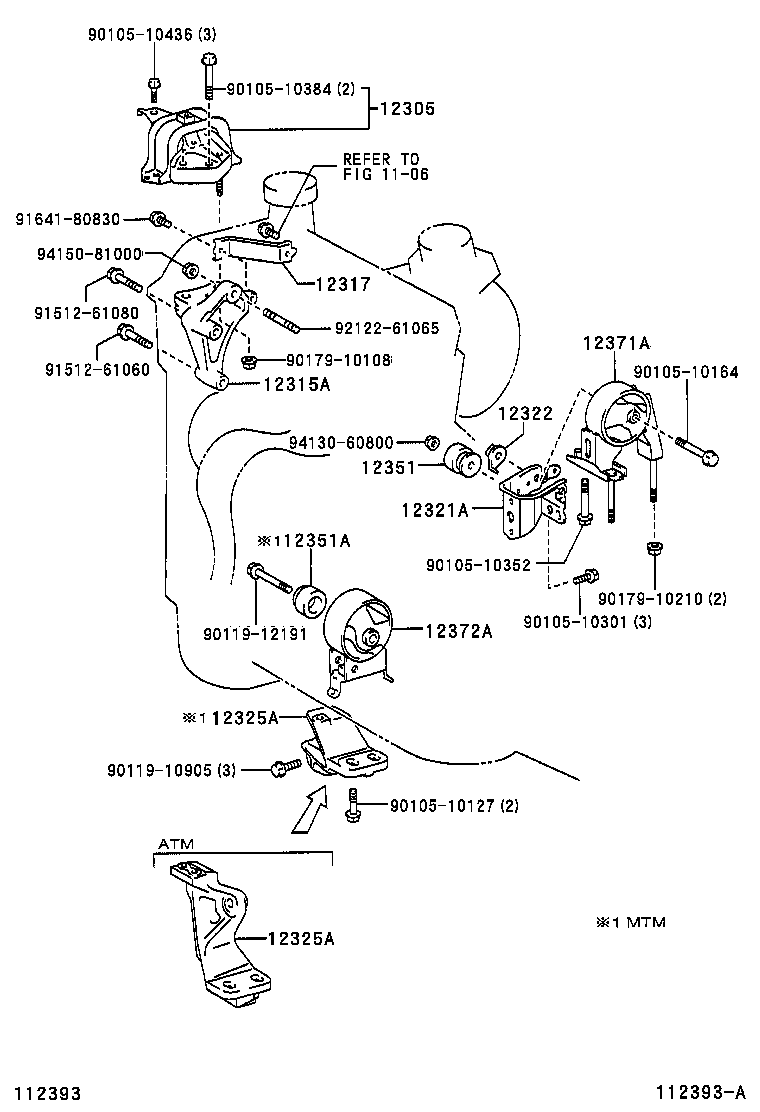

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0J020 |
2SZFE..SCP12 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-23030 |
2SZFE..SCP12 |
1 | ||
| 12317 - STAY, ENGINE MOUNTING, RH | ||||
| 12317-0J010 |
2SZFE..SCP12 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0J020 |
2SZFE..SCP12 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-23020 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-23030 |
2SZFE..SCP12..5F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-23030 |
2SZFE..SCP12..5F |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-23010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-23020 |
2SZFE..SCP12..5F |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0J010 |
1SZFE,2SZFE..SCP1#..5F |
1 | ||
| 12371-0J011 |
1SZFE,2SZFE..SCP1#..5F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0J020 |
2SZFE..SCP12..5F |
1 | ||
| Common parts | ||||
| 90105-10127 | ||||
| 90105-10164 | ||||
| 90105-10301 | ||||
| 90105-10352 | ||||
| 90105-10384 | ||||
| 90105-10436 | ||||
| 90119-10905 | ||||
| 90119-12191 | ||||
| 90179-10108 | ||||
| 90179-10210 | ||||
| 91512-61060 | ||||
| 91512-61080 | ||||
| 91641-80830 | ||||
| 92122-61065 | ||||
| 94130-60800 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1106 | ||||
