SCP12L-CHMNKW (2002)

Toyota Yaris (Frp)

Production May 2002 - Feb 2003
Engine 2SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )2SZFE..FRP

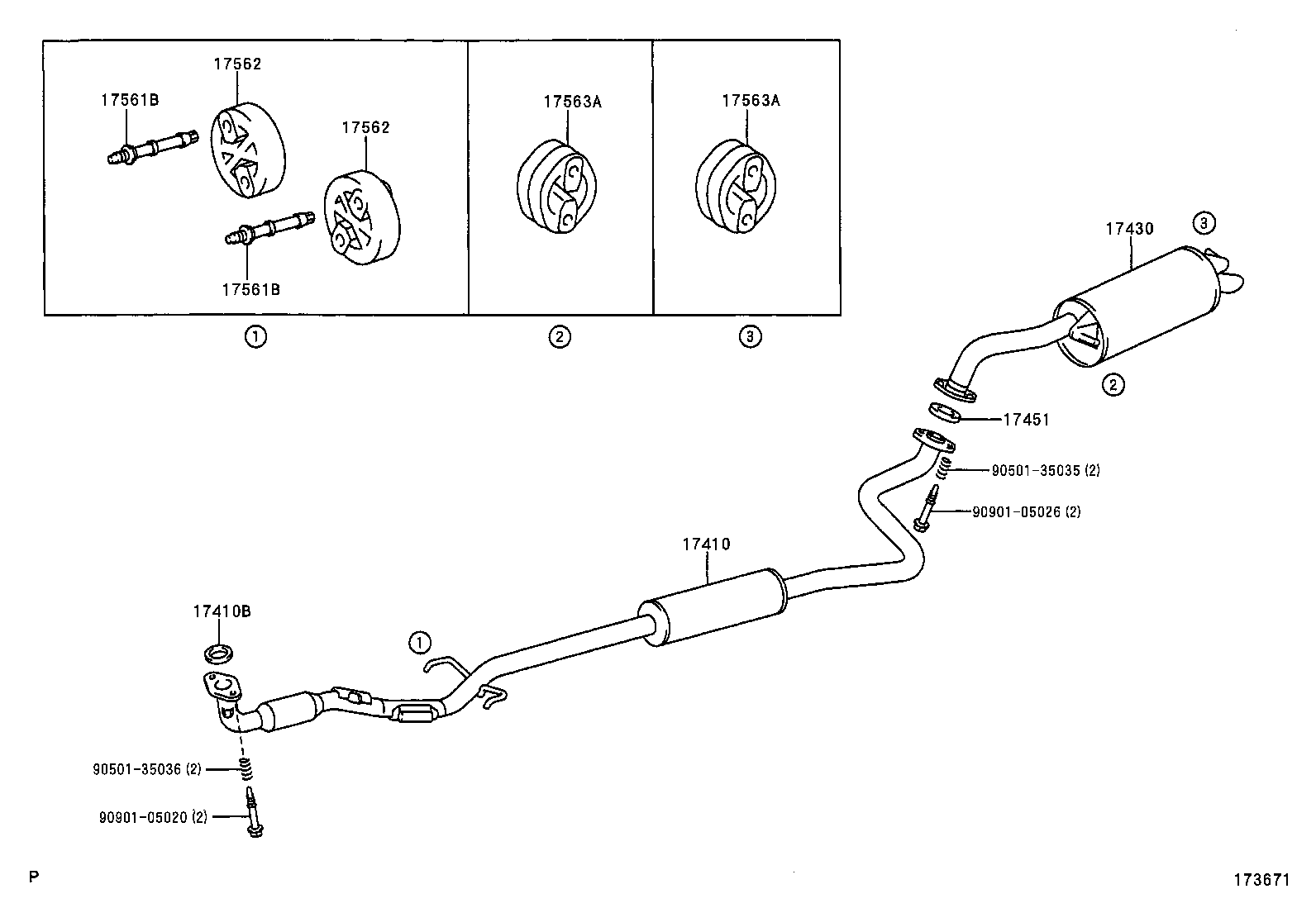

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17561B 17561B 17562 17562 17563A 17563A 9050135035 9050135036 9090105020 9090105026
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0J032

2SZFE..SCP12

 1
17410B - GASKET, EXHAUST PIPE
17451-0D010

2SZFE..SCP12

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0J020

2SZFE..SCP12

 1
17451 - GASKET, EXHAUST PIPE
17451-0J010

1SZFE,2SZFE..SCP1#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17584-23020

1SZFE,2SZFE..SCP1#

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17584-23020

1SZFE,2SZFE..SCP1#

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-0J010

1SZFE,2SZFE..SCP1#

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-0J010

1SZFE,2SZFE..SCP1#

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-21030

2SZFE..SCP12

(J)

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-21030

2SZFE..SCP12

(J)

 2
Common parts
90501-35035
90501-35036
90901-05020
90901-05026
