SCP12L-CGPGKW (2002)

Toyota Yaris (Frp)

Production May 2002 - Nov 2005
Engine 2SZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )SCP12..FRP..LHD

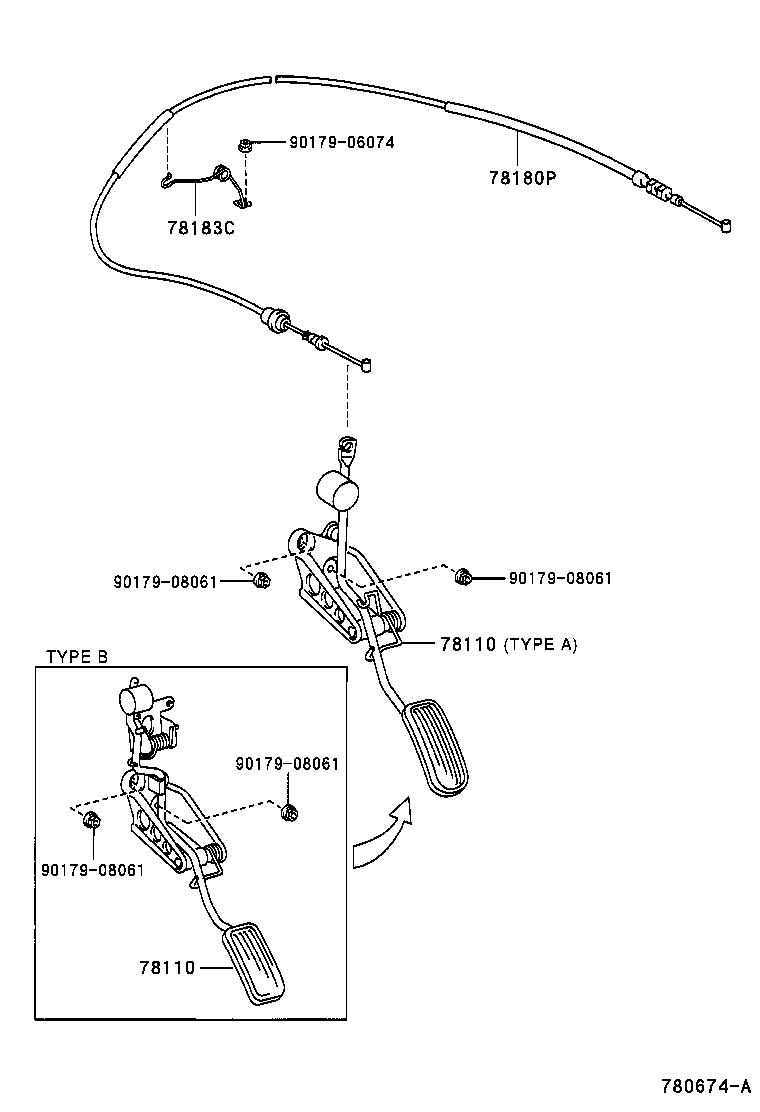

Click highlighted areas on diagram

diagram 78110 78110 78180P 78183C 9017906074 9017908061 9017908061 9017908061 9017908061
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-0D010

SCP12..LHD

TYPE A:REFER TO ILLUSTRATION

 1
78120-52030

SCP12..LHD..4FC

TYPE B:REFER TO ILLUSTRATION

 1
78120-0D010

SCP12..FRP..LHD

TYPE A:REFER TO ILLUSTRATION

 1
78120-52030

SCP12..FRP..LHD..4FC

TYPE B:REFER TO ILLUSTRATION

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-0D010

SCP12..LHD

TYPE A:REFER TO ILLUSTRATION

 1
78120-52030

SCP12..LHD..4FC

TYPE B:REFER TO ILLUSTRATION

 1
78120-0D010

SCP12..FRP..LHD

TYPE A:REFER TO ILLUSTRATION

 1
78120-52030

SCP12..FRP..LHD..4FC

TYPE B:REFER TO ILLUSTRATION

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-0D040

SCP12..LHD

 1
78180-0D040

SCP12..FRP..LHD

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-52180

SCP12..FRP..LHD

 1
78183-52180

SCP12..LHD

 1
Common parts
90179-06074
90179-08061
