SCP10R-CHMNKW (2001)
Toyota Yaris (Frp)
Production
Jan 2001
-
Feb 2003
Engine
1SZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

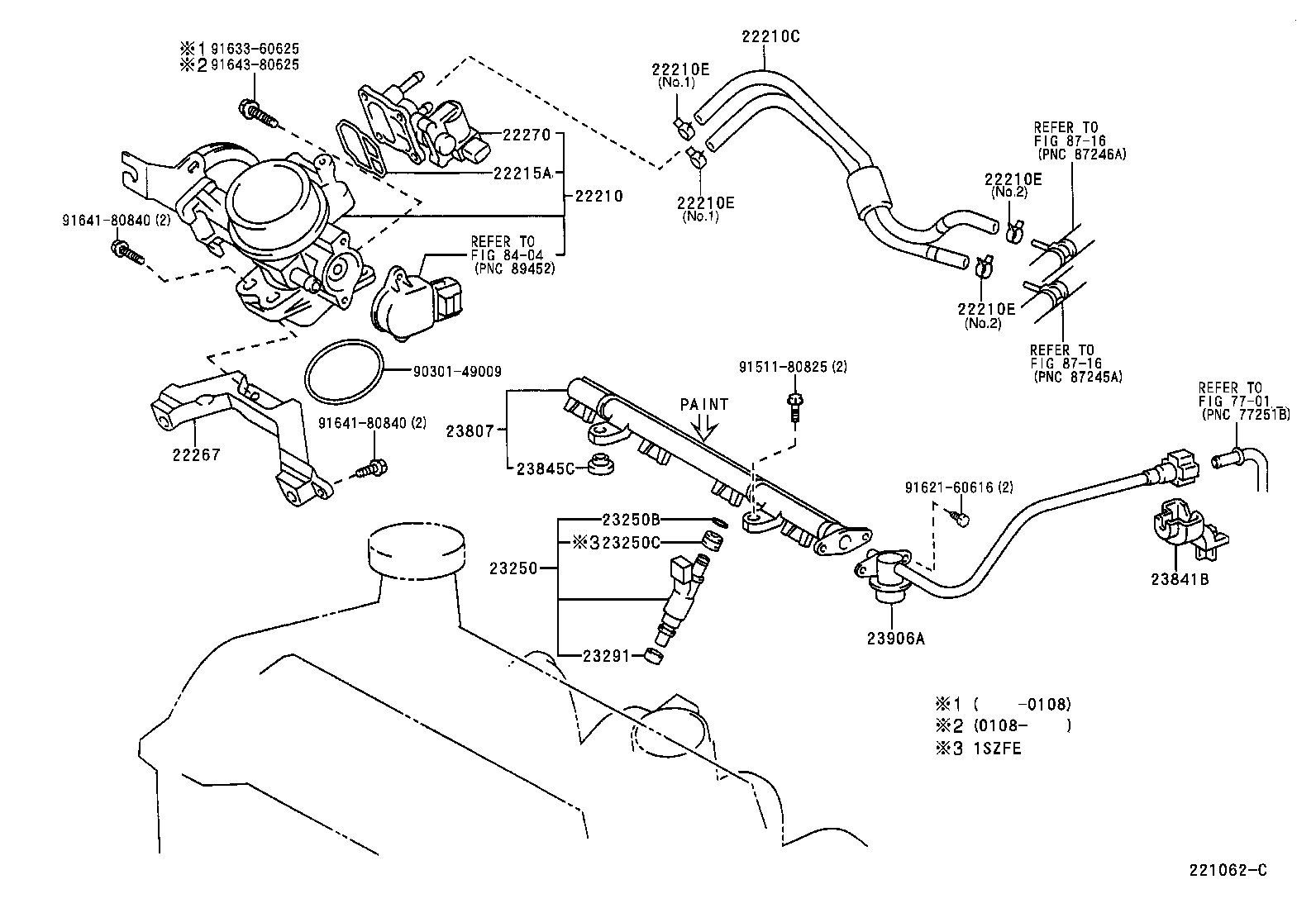

ILLUST NO. 1 OF 2(0101-0302)FRP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-0J010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16260-23010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90466-12001 |
1SZFE,2SZFE..SCP1# NO.2 |
2 | ||
| 96135-41100 |
1SZFE..SCP10 NO.1 |
2 | ||
| 96135-51100 |
1SZFE,2SZFE..SCP1# NO.1 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90466-12001 |
1SZFE,2SZFE..SCP1# NO.2 |
2 | ||
| 96135-41100 |
1SZFE..SCP10 NO.1 |
2 | ||
| 96135-51100 |
1SZFE,2SZFE..SCP1# NO.1 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90466-12001 |
1SZFE,2SZFE..SCP1# NO.2 |
2 | ||
| 96135-41100 |
1SZFE..SCP10 NO.1 |
2 | ||
| 96135-51100 |
1SZFE,2SZFE..SCP1# NO.1 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90466-12001 |
1SZFE,2SZFE..SCP1# NO.2 |
2 | ||
| 96135-41100 |
1SZFE..SCP10 NO.1 |
2 | ||
| 96135-51100 |
1SZFE,2SZFE..SCP1# NO.1 |
2 | ||
| 22215A - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22215-74400 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-23010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-23020 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-09010 |
1SZFE..SCP10 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07030 |
1SZFE..SCP10 |
4 | ||
| 90080-30100 |
1SZFE..SCP10 (L) |
4 | ||
| 90301-07030 |
1SZFE..SCP10 (J) |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90080-48058 |
1SZFE..SCP10 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-0J010 |
1SZFE..SCP10 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-23020 |
1SZFE..SCP10 |
1 | ||
| 23807-23020 |
2SZFE..SCP12;1SZFE..SCP10..RHD NO PAINT |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23845C - INSULATOR, FUEL PIPE | ||||
| 23845-23010 |
1SZFE,2SZFE..SCP1# |
2 | ||
| 23906A - HOSE SUB-ASSY, FUEL | ||||
| 23906-0J011 |
1SZFE..SCP10 |
1 | ||
| Common parts | ||||
| 90301-49009 | ||||
| 91511-80825 | ||||
| 91621-60616 | ||||
| 91633-60625 | ||||
| 91641-80840 | ||||
| 91643-80625 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8404 | ||||
| 8716 | ||||

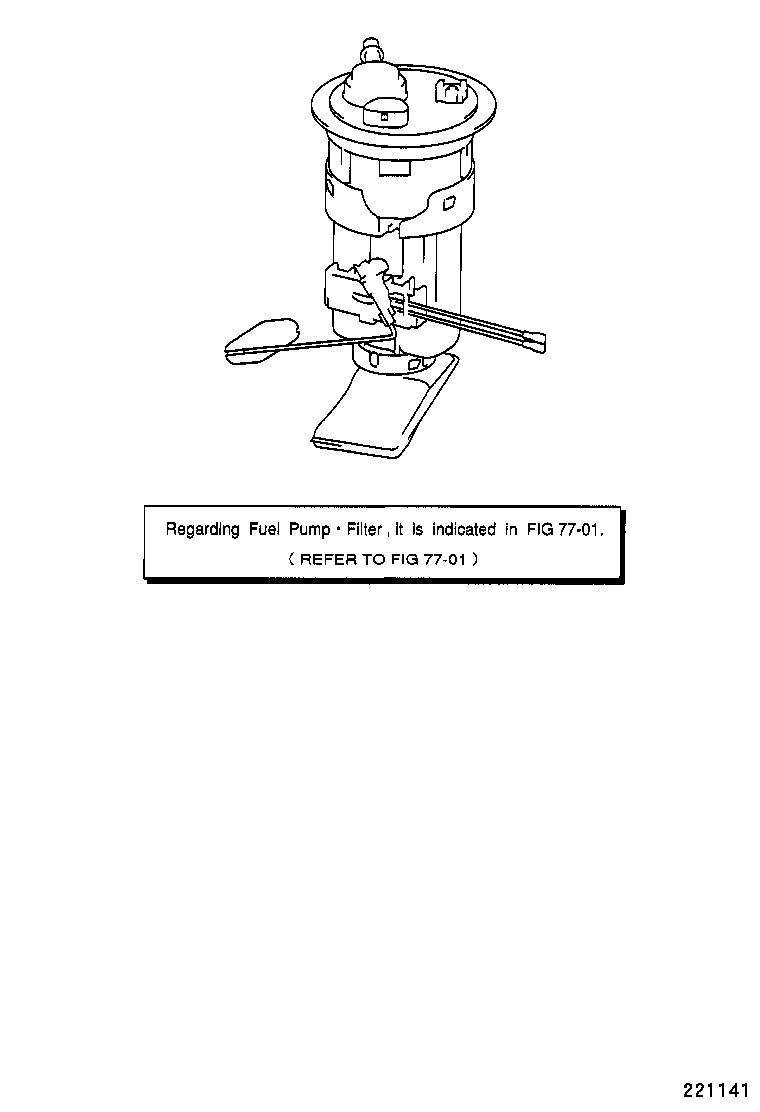

ILLUST NO. 2 OF 2(0101- )1SZFE,2SZFE..FRP
