SCP10R-CHMNKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Feb 2003
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

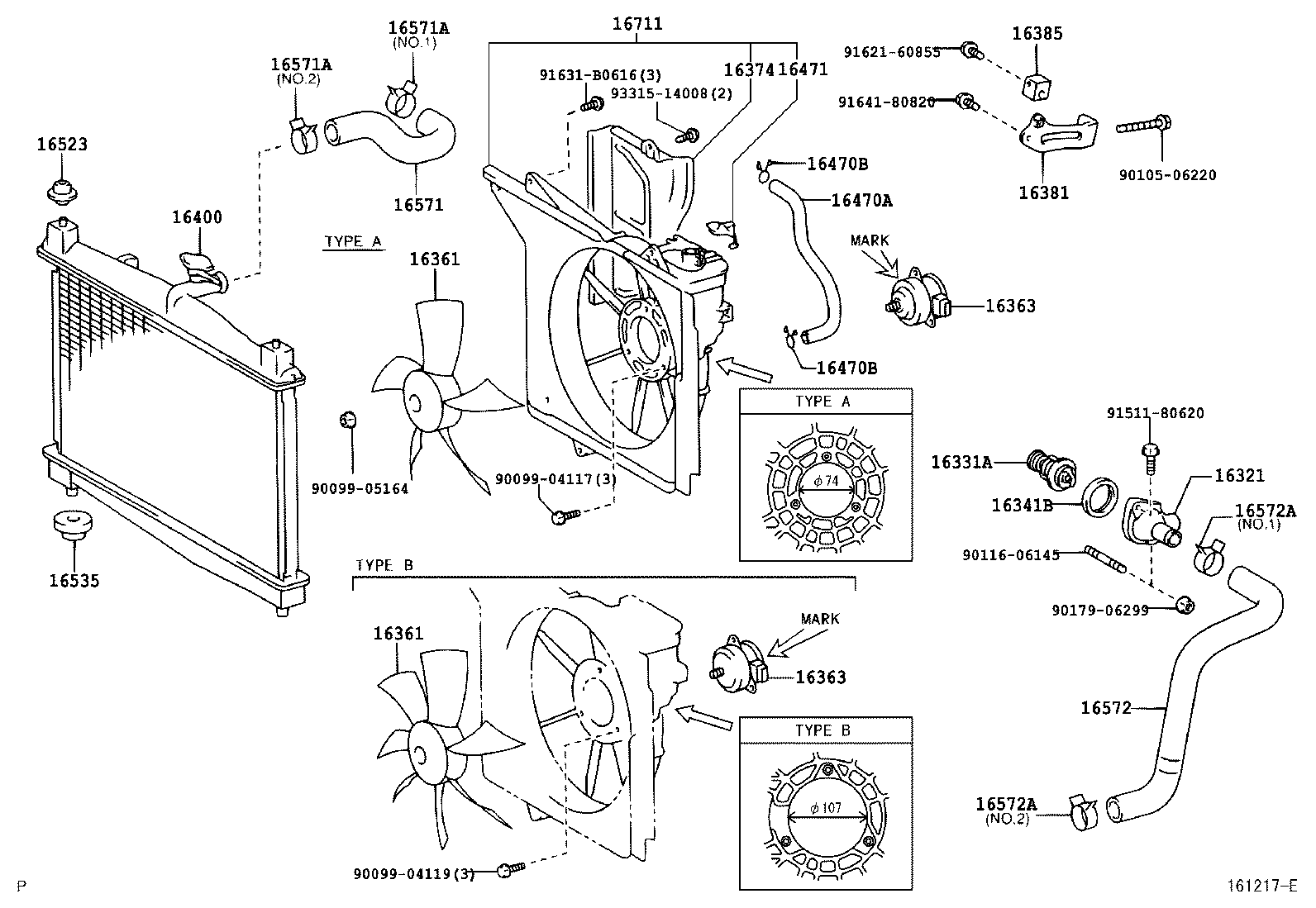

ILLUST NO. 1 OF 2(0101-0302)1SZFE..FRP

Click highlighted areas on diagram

diagram 16321 16331A 16341B 16361 16361 16363 16363 16374 16381 16385 16400 16470A 16470B 16470B 16471 16523 16535 16571 16571A 16571A 16572 16572A 16572A 16711 9009904117 9009904119 9009905164 9010506220 9011606145 9017906299 9151180620 9162160855 91631B0616 9164180820 9331514008
Part # Description Qty Price
16321 - INLET, WATER
16321-23010

1SZFE,2SZFE..SCP1#

 1
16331A - THERMOSTAT
90916-03122

1SZFE,2SZFE..SCP1#

*WAX 80-93

 1
16341B - GASKET, WATER INLET
16341-35010

1SZFE,2SZFE..SCP1#

 1
16361 - FAN
16361-0J010

1SZFE..SCP10

TYPE A:REFER TO ILLUSTRATION

 1
16361 - FAN
16361-0J010

1SZFE..SCP10

TYPE A:REFER TO ILLUSTRATION

 1
16363 - MOTOR, COOLING FAN
16363-0J010

1SZFE..SCP10

TYPE A:REFER TO ILLUSTRATION,MARK 16363-0J010

 1
16363 - MOTOR, COOLING FAN
16363-0J010

1SZFE..SCP10

TYPE A:REFER TO ILLUSTRATION,MARK 16363-0J010

 1
16374 - INSULATOR, COOLING FAN MOTOR
16366-0J010

1SZFE,2SZFE..SCP1#

 1
16366-23010

1SZFE..SCP10

 1
16381 - BAR, FAN BELT ADJUSTING
16381-0J010

1SZFE,2SZFE..SCP1#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-23010

1SZFE,2SZFE..SCP1#

 1
16400 - RADIATOR ASSY
16400-0J010

1SZFE,2SZFE..SCP1#..5F

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33370

1SZFE,2SZFE..SCP1#

L=420

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1SZFE,2SZFE..SCP1#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1SZFE,2SZFE..SCP1#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16471-0J010

1SZFE,2SZFE..SCP1#

 1
16523 - CUSHION, SUB-RADIATOR SUPPORT
16523-0J010

1SZFE,2SZFE..SCP1#

 2
16535 - SUPPORT, RADIATOR, LOWER
90080-48061

1SZFE,2SZFE..SCP1#

 2
16571 - HOSE, RADIATOR, INLET
16571-23040

1SZFE..SCP10

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003

1SZFE,2SZFE..SCP1#

NO.2

 1
90467-31003

1SZFE,2SZFE..SCP1#

NO.1

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003

1SZFE,2SZFE..SCP1#

NO.2

 1
90467-31003

1SZFE,2SZFE..SCP1#

NO.1

 1
16572 - HOSE, RADIATOR, OUTLET
16572-23030

1SZFE,2SZFE..SCP1#..5F

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-31003

1SZFE,2SZFE..SCP1#

NO.1

 1
90467-34003

1SZFE,2SZFE..SCP1#

NO.2

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-31003

1SZFE,2SZFE..SCP1#

NO.1

 1
90467-34003

1SZFE,2SZFE..SCP1#

NO.2

 1
16711 - SHROUD, FAN
16711-0J010

1SZFE..SCP10

TYPE A:REFER TO ILLUSTRATION

 1
Common parts
90099-04117
90099-04119
90099-05164
90105-06220
90116-06145
90179-06299
91511-80620
91621-60855
91631-B0616
91641-80820
93315-14008

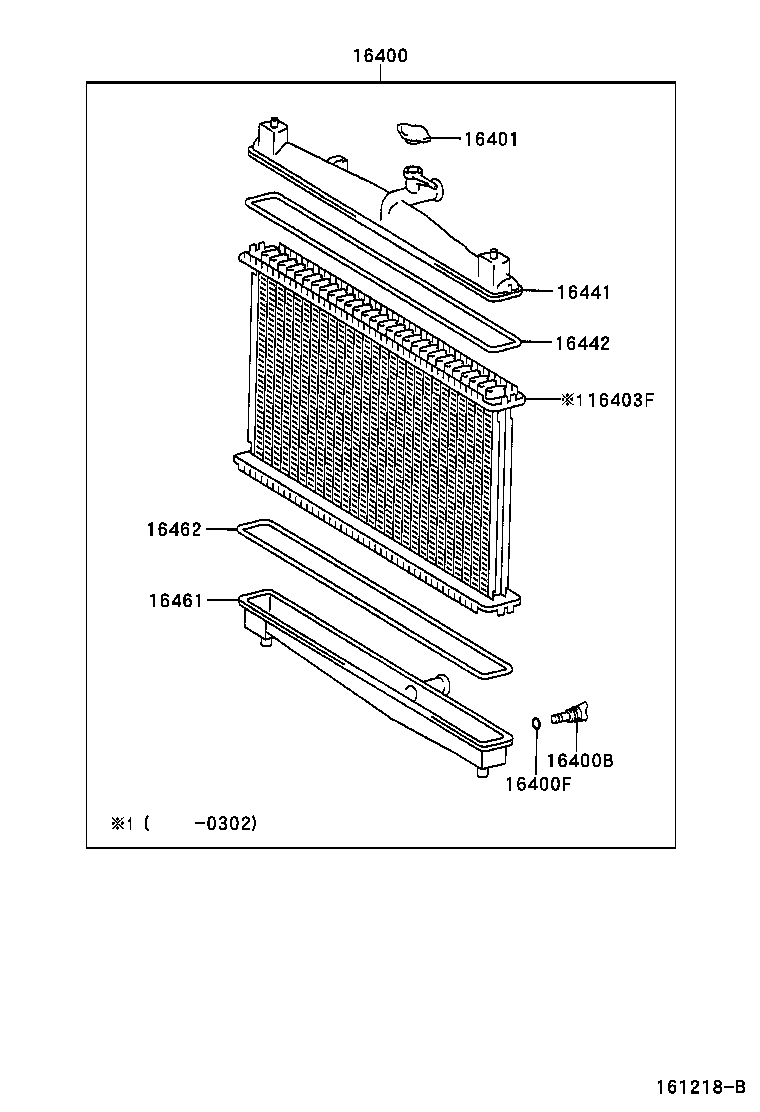

ILLUST NO. 2 OF 2(0101- )1SZFE,2SZFE..FRP..MTM

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16441 16442 16461 16462
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-0J010

1SZFE,2SZFE..SCP1#..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
90080-34010

1SZFE,2SZFE..SCP1#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1SZFE,2SZFE..SCP1#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-62100

1SZFE,2SZFE..SCP1#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-0J010

1SZFE,2SZFE..SCP1#..5F

 1
16441 - TANK, RADIATOR, UPPER
16441-0J010

1SZFE,2SZFE..SCP1#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-0J010

1SZFE,2SZFE..SCP1#

 1
16461 - TANK, RADIATOR, LOWER
16461-0J010

1SZFE,2SZFE..SCP1#..5F

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16442-0J010

1SZFE,2SZFE..SCP1#..5F

 1
