SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0101- )FRP

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(0101- )SCP1#..FRP..LHD

Click highlighted areas on diagram

DEALER OPTION

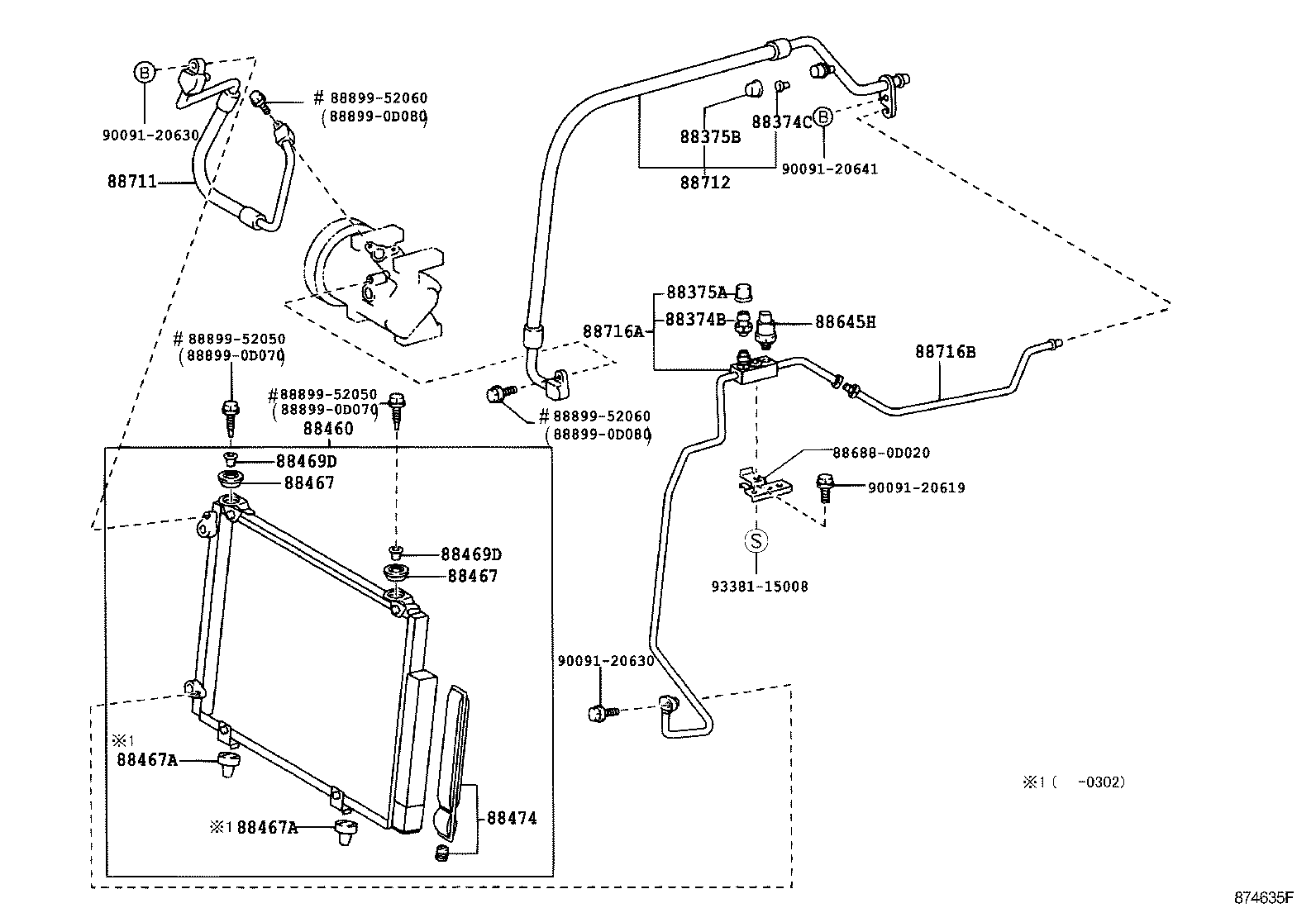

diagram 88374B 88374C 88375A 88375B 88460 88467 88467 88467A 88467A 88469D 88469D 88474 88645H 886880D020 88711 88712 88716A 88716B 888990D070 888990D070 888990D080 888990D080 8889952050 8889952050 8889952060 8889952060 9009120619 9009120630 9009120630 9009120641 9338115008
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

SCP1#

 1
88374-30010

SCP1#..FRP

 1
88374-30010

SCP1#..(SOL,TRSTD)..(4FC,5F)

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

SCP12;SCP10..RHD;SCP10..LHD..(SOL,TRSTD)..5F

 1
88374-30010

SCP1#..FRP

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

SCP1#..FRP..(SOL,TRSTD)

 1
88375-30280

SCP1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

SCP12;SCP10..RHD;SCP10..LHD..(SOL,TRSTD)..5F

 1
88375-30290

SCP1#..FRP

 1
88460 - CONDENSER ASSY, COOLER
88450-0D020

SCP1#..LHD

 1
88450-0D021

NLP10,SCP1#..FRP..LHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-52010

SCP1#

 2
88467-12180

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
88467-52010

SCP10..FRP..LHD..(SOL,TRSTD)

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-52010

SCP1#

 2
88467-12180

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
88467-52010

SCP10..FRP..LHD..(SOL,TRSTD)

DEALER OPTION

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

SCP1#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

SCP1#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
88469-52010

SCP1#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
88469-52010

SCP1#

 2
88474 - DRYER, COOLER
88474-17010

NLP10,SCP1#..FRP..(SOL,TRSTD)

 1
88474-47010

SCP1#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

SCP1#..FRP..(SOL,TRSTD)

 1
88645-60030

SCP1#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D011

SCP1#..FRP

 1
88711-0D010

SCP1#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D020

SCP10..LHD

DEALER OPTION

 1
88712-0D021

SCP10..FRP..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0D020

SCP1#..LHD

MAKER OPTION

 1
88706-0D021

SCP1#..FRP..LHD..(SOL,TRSTD)

MAKER OPTION

 1
88716-0D060

SCP1#..LHD

DEALER OPTION

 1
88706-0D150

SCP1#..FRP..LHD

DEALER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0D050

SCP1#..LHD

 1
88716-0D050

SCP1#..FRP..LHD

 1
Common parts
88688-0D020
88899-0D070
88899-0D080
88899-52050
88899-52060
90091-20619
90091-20630
90091-20641
93381-15008

ILLUST NO. 1 OF 2(0101- )SCP1#..FRP..LHD

Click highlighted areas on diagram

MAKER OPTION

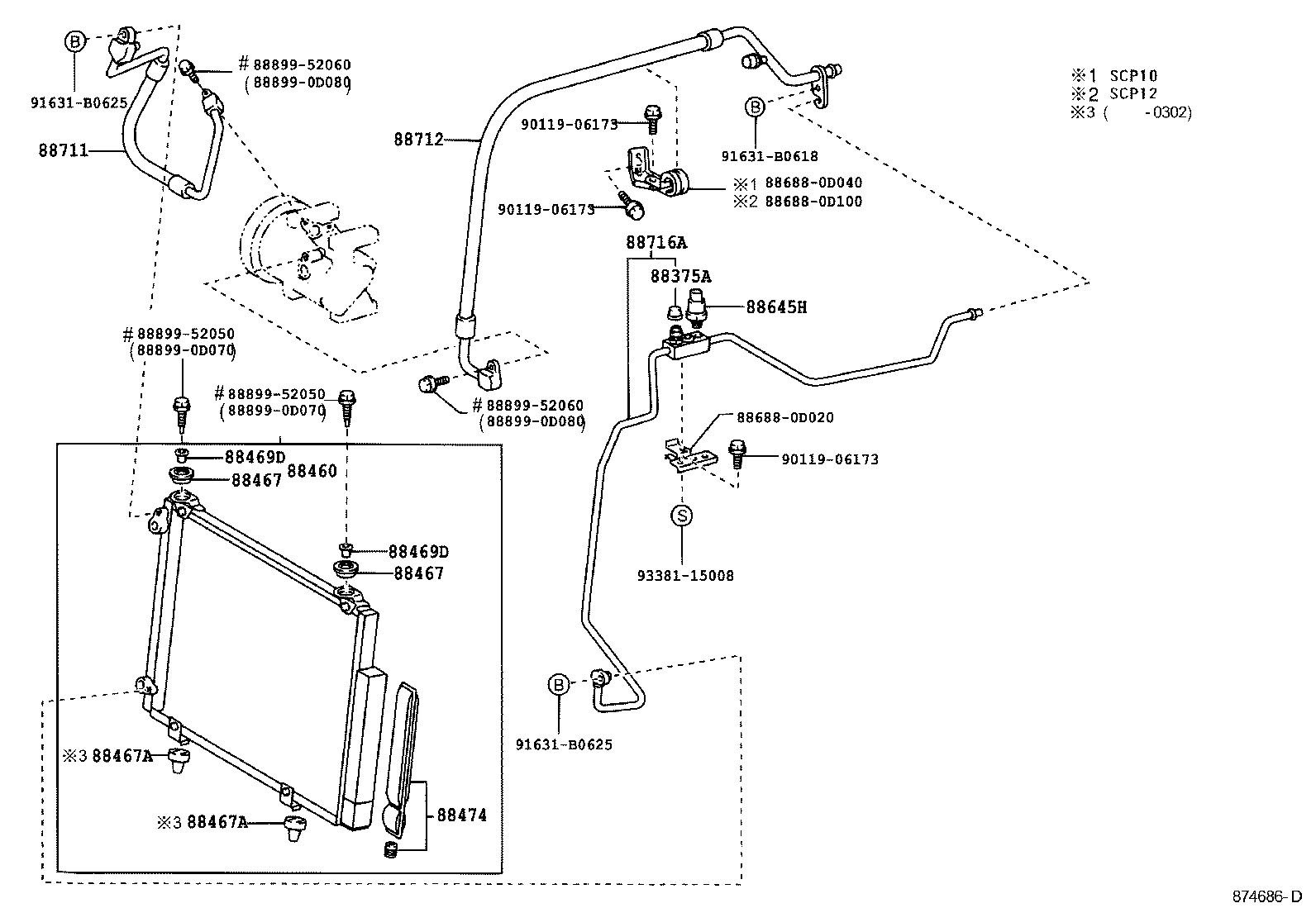

diagram 88375A 88460 88467 88467 88467A 88467A 88469D 88469D 88474 88645H 886880D020 886880D040 886880D100 88711 88712 88716A 888990D070 888990D070 888990D080 888990D080 8889952050 8889952050 8889952060 8889952060 9011906173 9011906173 9011906173 91631B0618 91631B0625 91631B0625 9338115008
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

SCP1#..FRP..(SOL,TRSTD)

 1
88375-30280

SCP1#

 1
88460 - CONDENSER ASSY, COOLER
88450-0D020

SCP1#..LHD

 1
88450-0D021

NLP10,SCP1#..FRP..LHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-52010

SCP1#

 2
88467-12180

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
88467-52010

SCP10..FRP..LHD..(SOL,TRSTD)

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-52010

SCP1#

 2
88467-12180

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
88467-52010

SCP10..FRP..LHD..(SOL,TRSTD)

DEALER OPTION

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

SCP1#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

SCP1#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
88469-52010

SCP1#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
88469-52010

SCP1#

 2
88474 - DRYER, COOLER
88474-17010

NLP10,SCP1#..FRP..(SOL,TRSTD)

 1
88474-47010

SCP1#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

SCP1#..FRP..(SOL,TRSTD)

 1
88645-60030

SCP1#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D011

SCP1#..FRP

 1
88711-0D010

SCP1#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D020

SCP10..LHD

DEALER OPTION

 1
88712-0D021

SCP10..FRP..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0D020

SCP1#..LHD

MAKER OPTION

 1
88706-0D021

SCP1#..FRP..LHD..(SOL,TRSTD)

MAKER OPTION

 1
88716-0D060

SCP1#..LHD

DEALER OPTION

 1
88706-0D150

SCP1#..FRP..LHD

DEALER OPTION

 1
Common parts
88688-0D020
88688-0D040
88688-0D100
88899-0D070
88899-0D080
88899-52050
88899-52060
90119-06173
91631-B0618
91631-B0625
93381-15008
