SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )SCP1#..FRP

Click highlighted areas on diagram

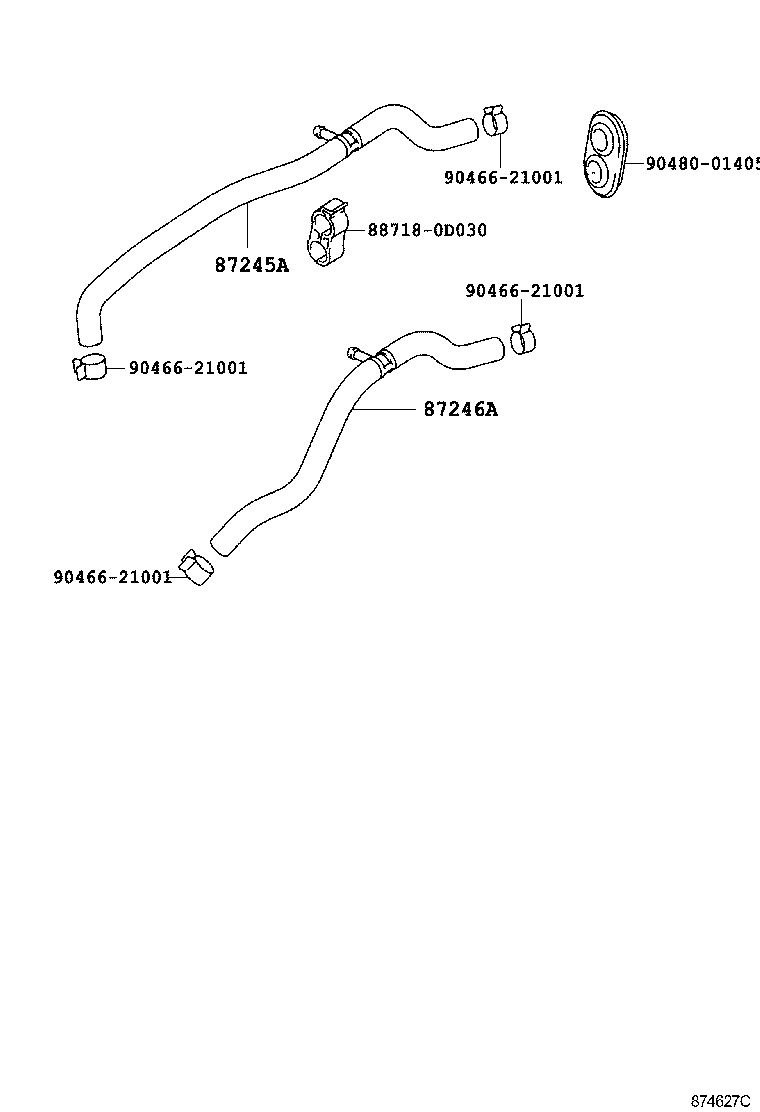

diagram 87245A 87246A 887180D030 9046621001 9046621001 9046621001 9046621001 9048001405
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87209-0D010

SCP1#

 1
87209-0D010

SCP1#..FRP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-0D030

SCP1#..LHD

W(BOOST VENTILATOR)

 1
87209-0D020

SCP1#

 1
87209-0D030

SCP1#..FRP..LHD..(SOL,TRSTD)

W(BOOST VENTILATOR)

 1
87209-0D020

SCP1#..FRP

 1
Common parts
88718-0D030
90466-21001
90480-01405
