SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)

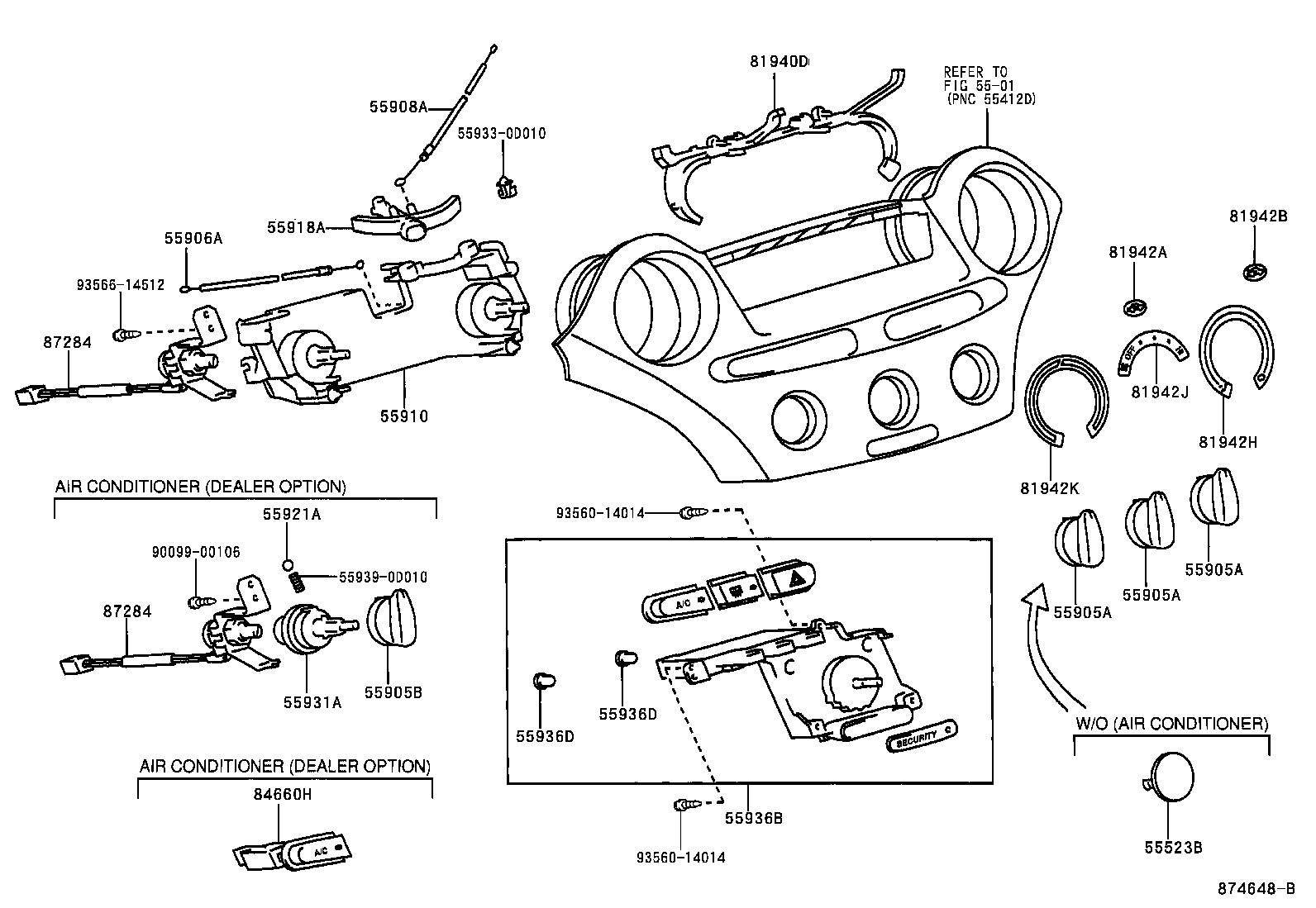

ILLUST NO. 1 OF 2(0101-0302)FRP..LHD
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-0D010 |
SCP1# W(AIR CONDITIONER) |
3 | ||
| 55905-0D070 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) SILVER PAINTED |
2 | ||
| 55905-0D070 |
NLP10,SCP1#..FRP W(AIR CONDITIONER),SILVER PAINTED |
3 | ||
| 55905-0D010 |
SCP1#..LHD |
2 | ||
| 55905-0D060 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(AIR CONDITIONER) |
3 | ||
| 55905-0D060 |
NLP10,SCP1#..FRP..LHD..TRSTD |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-0D010 |
SCP1# W(AIR CONDITIONER) |
3 | ||
| 55905-0D070 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) SILVER PAINTED |
2 | ||
| 55905-0D070 |
NLP10,SCP1#..FRP W(AIR CONDITIONER),SILVER PAINTED |
3 | ||
| 55905-0D010 |
SCP1#..LHD |
2 | ||
| 55905-0D060 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(AIR CONDITIONER) |
3 | ||
| 55905-0D060 |
NLP10,SCP1#..FRP..LHD..TRSTD |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-0D010 |
SCP1# W(AIR CONDITIONER) |
3 | ||
| 55905-0D070 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) SILVER PAINTED |
2 | ||
| 55905-0D070 |
NLP10,SCP1#..FRP W(AIR CONDITIONER),SILVER PAINTED |
3 | ||
| 55905-0D010 |
SCP1#..LHD |
2 | ||
| 55905-0D060 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(AIR CONDITIONER) |
3 | ||
| 55905-0D060 |
NLP10,SCP1#..FRP..LHD..TRSTD |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-0D010 |
SCP1#..LHD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55905-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55905-0D070 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) TYPE B:REFER TO ILLUSTRATION,SILVER PAINTED |
1 | ||
| 55905-0D060 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 55906-0D010 |
SCP1# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-0D010 |
SCP1#..LHD |
1 | ||
| 55908-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0D010 |
SCP1#..LHD |
1 | ||
| 55909-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0D010 |
SCP1#..LHD |
1 | ||
| 55909-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-0D010 |
SCP1#..LHD W(HEATER) |
1 | ||
| 55910-0D020 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F W(AIR CONDITIONER) |
1 | ||
| 55910-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 55910-0D060 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 55910-0D020 |
SCP1#..LHD W(AIR CONDITIONER) |
1 | ||
| 55910-0D010 |
NLP10,SCP1#..FRP..LHD W(HEATER) |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-0D010 |
SCP10 |
1 | ||
| 55918-0D020 |
SCP10..LHD COLD SPEC |
1 | ||
| 55918-0D090 |
NLP10,SCP1#..FRP |
1 | ||
| 55918-0D060 |
SCP1# |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-0D010 |
SCP1#..LHD |
1 | ||
| 55921-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 55931A - SHAFT, HEATER CONTROL LEVER | ||||
| 55931-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 55931-0D010 |
SCP1#..LHD |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 84010-0D080 |
NLP10,SCP1#..FRP |
1 | ||
| 84010-0D010 |
SCP1# |
1 | ||
| 84010-0D071 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(AIR CONDITIONER) |
1 | ||
| 84010-0D070 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(AIR CONDITIONER) |
1 | ||
| 84010-0D020 |
SCP1# W(AIR CONDITIONER) |
1 | ||
| 84010-0D081 |
NLP10,SCP1#..FRP |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-06010 |
NLP10,SCP1#..FRP 12V 1.8W |
2 | ||
| 84999-06010 |
NLP10,SCP1#..FRP 12V 1.8W |
2 | ||
| 84999-06010 |
SCP1# 12V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-06010 |
NLP10,SCP1#..FRP 12V 1.8W |
2 | ||
| 84999-06010 |
NLP10,SCP1#..FRP 12V 1.8W |
2 | ||
| 84999-06010 |
SCP1# 12V 1.8W |
2 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-0D150 |
NLP10,SCP1#..FRP |
1 | ||
| 81940-0D010 |
SCP1# |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-0D010B0 |
NLP10,SCP1#..FRP DK.GRAY,TRIM1# |
1 | ||
| 81942-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-0D020B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 81942-0D020B0 |
NLP10,SCP1#..FRP DK.GRAY,TRIM1# |
1 | ||
| 81942-0D020H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-0D070B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 81942-0D080B1 |
SCP1#..LHD W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-0D070H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-0D080H0 |
SCP1#..LHD W(HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-0D040B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 81942-0D040H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-0D060B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 81942-0D050H0 |
SCP1#..LHD W(HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-0D050B1 |
SCP1#..LHD W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-0D060H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88032-0D010 |
SCP1#..LHD |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 87290-0D010 |
SCP1#..LHD |
1 | ||
| Common parts | ||||
| 55933-0D010 | ||||
| 55939-0D010 | ||||
| 90099-00106 | ||||
| 90167-20002 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 5501 | ||||

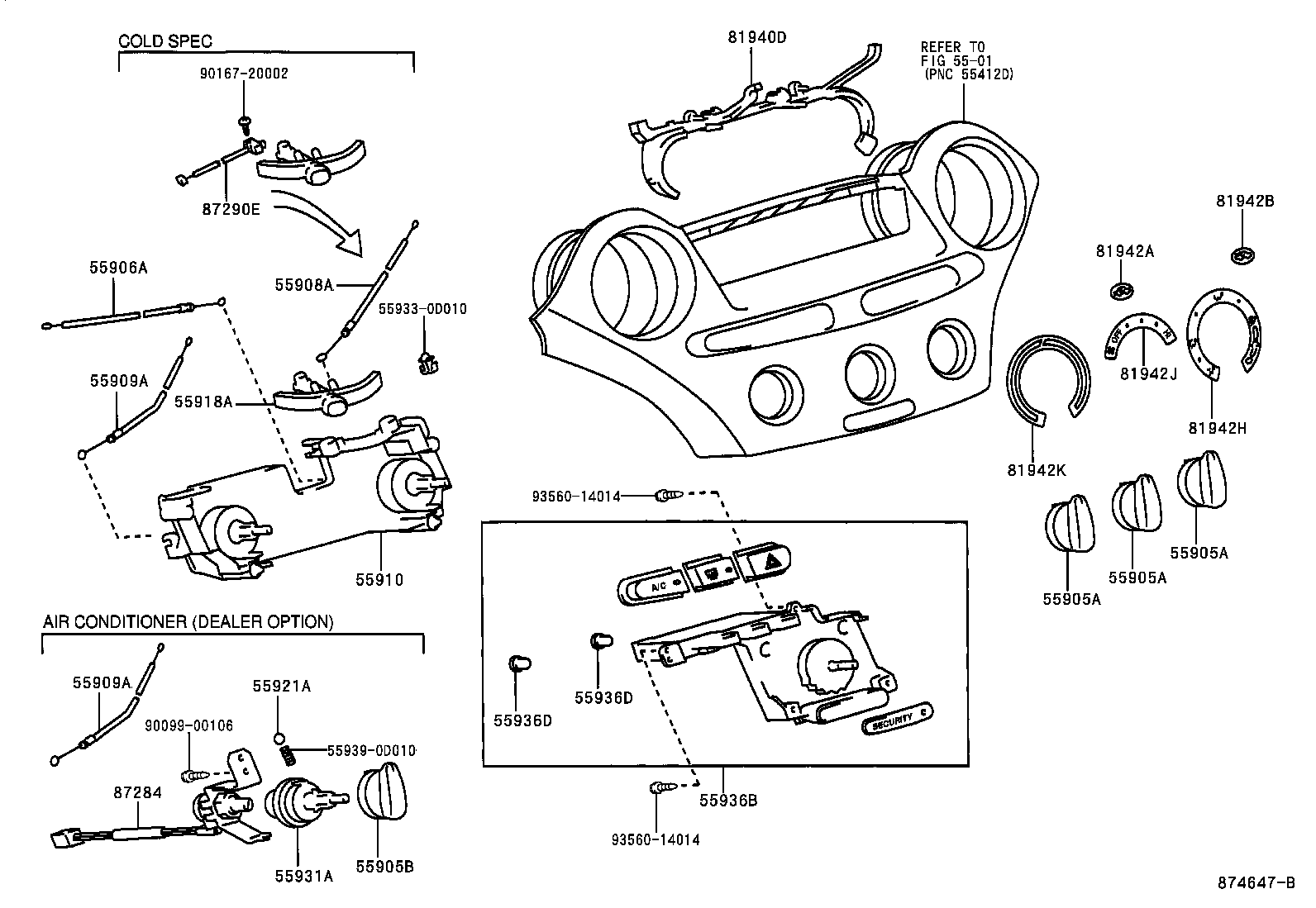

ILLUST NO. 1 OF 2(0101-0302)FRP..LHD
