SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)
ILLUST NO. 2 OF 2(0101- )FRP
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

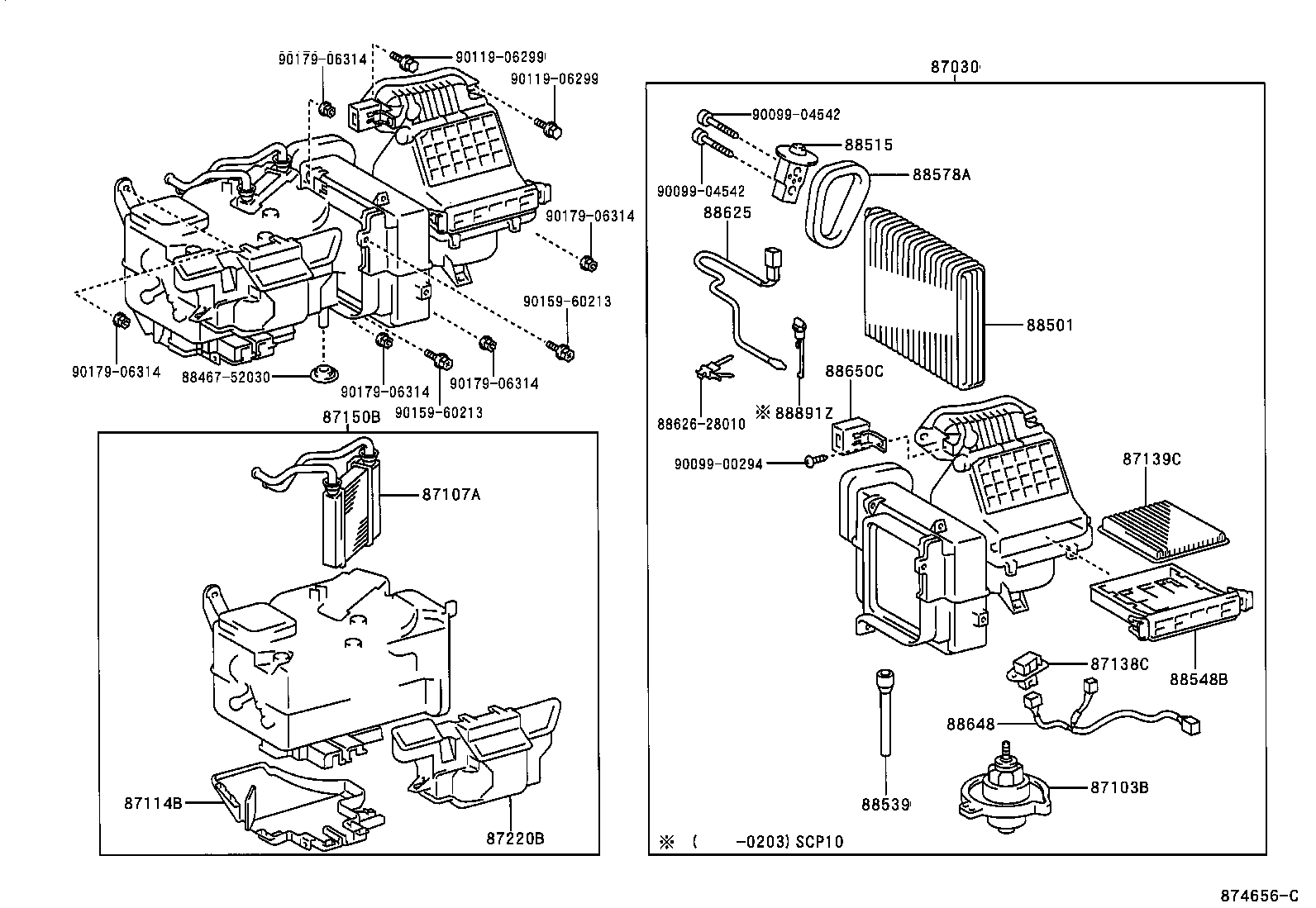

ILLUST NO. 1 OF 2(0101-0302)FRP..LHD
W(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-0D070 |
SCP10..LHD W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 87030-0D030 |
SCP10..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87030-0D050 |
SCP10..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-0D040 |
SCP1#..LHD |
1 | ||
| 87030-0D190 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B |
1 | ||
| 87030-0D160 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W/O(AIR CONDITIONER),TYPE C |
1 | ||
| 87030-0D150 |
NLP10,SCP1#..FRP..LHD W/O(AIR CONDITIONER),TYPE A |
1 | ||
| 87030-0D140 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER),TYPE B |
1 | ||
| 87030-0D230 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITI0NER),TYPE C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D020 |
SCP1#..LHD |
1 | ||
| 87103-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87103-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87103-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52040 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87107-0D020 |
SCP1#..LHD |
1 | ||
| 87107-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D020 |
SCP1#..LHD |
1 | ||
| 87114-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87114-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87114-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
SCP1# |
1 | ||
| 87138-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
SCP1# |
1 | ||
| 87139-47010 |
NLP10,SCP1#..FRP |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D020 |
SCP1#..LHD |
1 | ||
| 87150-0D030 |
SCP10..LHD COLD SPEC |
1 | ||
| 87150-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87150-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87150-0D050 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87150-0D060 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F COLD SPEC |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-0D020 |
SCP1#..LHD |
1 | ||
| 87220-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D020 |
SCP1#..LHD |
1 | ||
| 88501-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
SCP1# |
1 | ||
| 88515-52040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88515-52020 |
SCP1#..FRP..(SOL,TRSTD) DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D010 |
SCP1# |
1 | ||
| 88539-52010 |
NLP10,SCP10..FRP;SCP12..FRP..TRSTD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D010 |
SCP1# |
1 | ||
| 88548-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-52020 |
SCP10..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D010 |
SCP1# |
1 | ||
| 88625-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648-0D010 |
SCP1# |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 88650-0D050 |
SCP1# |
1 | ||
| 88650-0D050 |
SCP1#..FRP |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
SCP10 |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88626-28010 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||

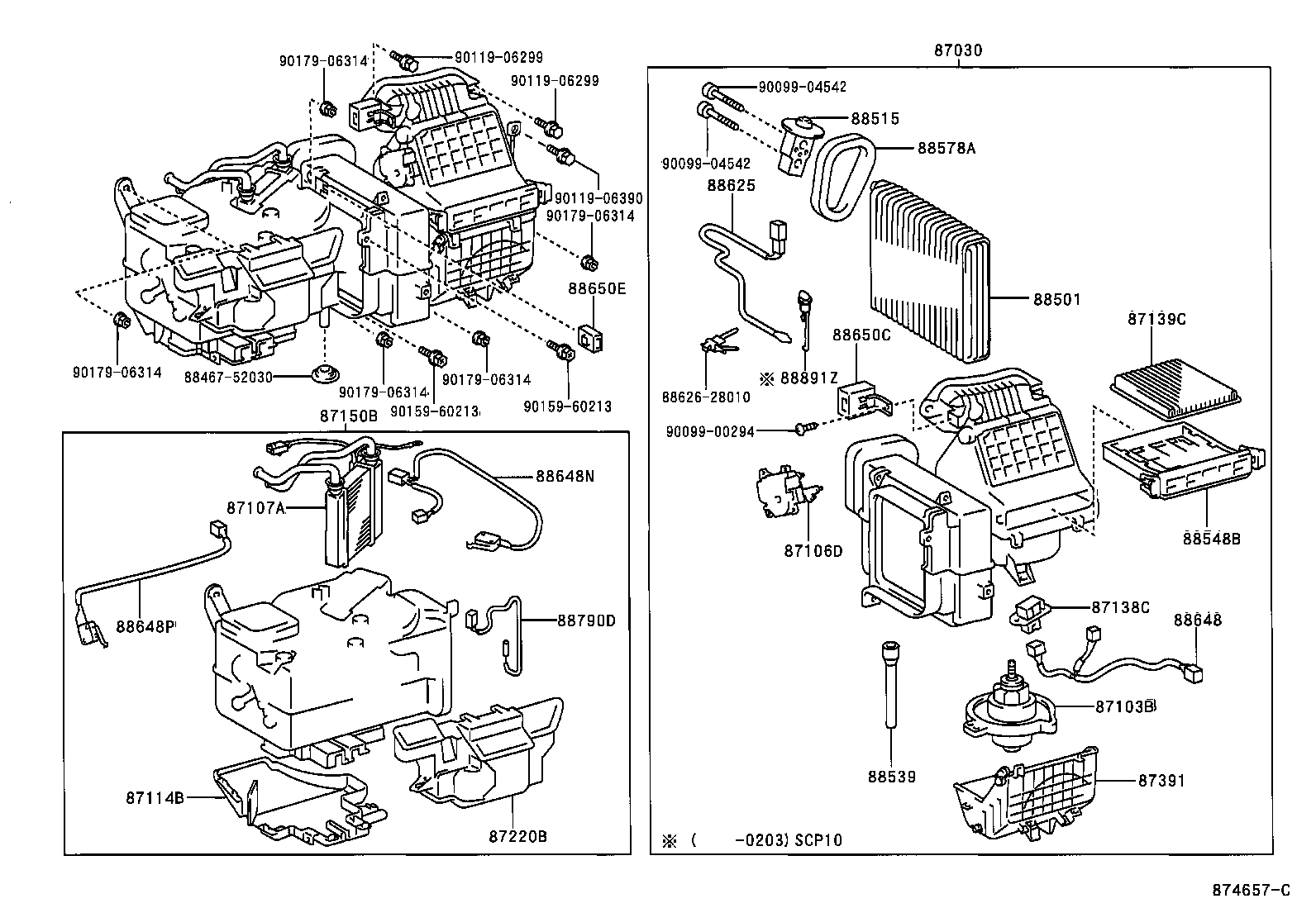

ILLUST NO. 1 OF 2(0101-0302)FRP..LHD
W(HEATER)---COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-0D070 |
SCP10..LHD W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 87030-0D030 |
SCP10..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87030-0D050 |
SCP10..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-0D040 |
SCP1#..LHD |
1 | ||
| 87030-0D190 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B |
1 | ||
| 87030-0D160 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W/O(AIR CONDITIONER),TYPE C |
1 | ||
| 87030-0D150 |
NLP10,SCP1#..FRP..LHD W/O(AIR CONDITIONER),TYPE A |
1 | ||
| 87030-0D140 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER),TYPE B |
1 | ||
| 87030-0D230 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITI0NER),TYPE C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D020 |
SCP1#..LHD |
1 | ||
| 87103-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87103-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87103-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-0D010 |
SCP1#..LHD |
1 | ||
| 87106-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52040 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87107-0D020 |
SCP1#..LHD |
1 | ||
| 87107-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D020 |
SCP1#..LHD |
1 | ||
| 87114-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87114-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87114-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
SCP1# |
1 | ||
| 87138-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
SCP1# |
1 | ||
| 87139-47010 |
NLP10,SCP1#..FRP |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D020 |
SCP1#..LHD |
1 | ||
| 87150-0D030 |
SCP10..LHD COLD SPEC |
1 | ||
| 87150-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87150-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87150-0D050 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87150-0D060 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F COLD SPEC |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-0D020 |
SCP1#..LHD |
1 | ||
| 87220-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-0D010 |
SCP1#..LHD |
1 | ||
| 87391-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D020 |
SCP1#..LHD |
1 | ||
| 88501-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
SCP1# |
1 | ||
| 88515-52040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88515-52020 |
SCP1#..FRP..(SOL,TRSTD) DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D010 |
SCP1# |
1 | ||
| 88539-52010 |
NLP10,SCP10..FRP;SCP12..FRP..TRSTD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D010 |
SCP1# |
1 | ||
| 88548-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-52020 |
SCP10..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D010 |
SCP1# |
1 | ||
| 88625-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648-0D010 |
SCP1# |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-0D020 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88648-0D020 |
SCP1#..LHD |
1 | ||
| 88648P - WIRE,AIR CONDITIONER,NO.1 | ||||
| 88648-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88648-0D030 |
SCP1#..LHD |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 88650-0D050 |
SCP1# |
1 | ||
| 88650-0D050 |
SCP1#..FRP |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0D040 |
SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88650-0D030 |
SCP10..LHD W(PTC HEATER) |
1 | ||
| 88650-0D040 |
SCP1#..LHD |
1 | ||
| 88790D - THERMISTOR ASSY | ||||
| 88790-52010 |
SCP1#..LHD |
1 | ||
| 88790-52010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
SCP10 |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88626-28010 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90119-06390 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||

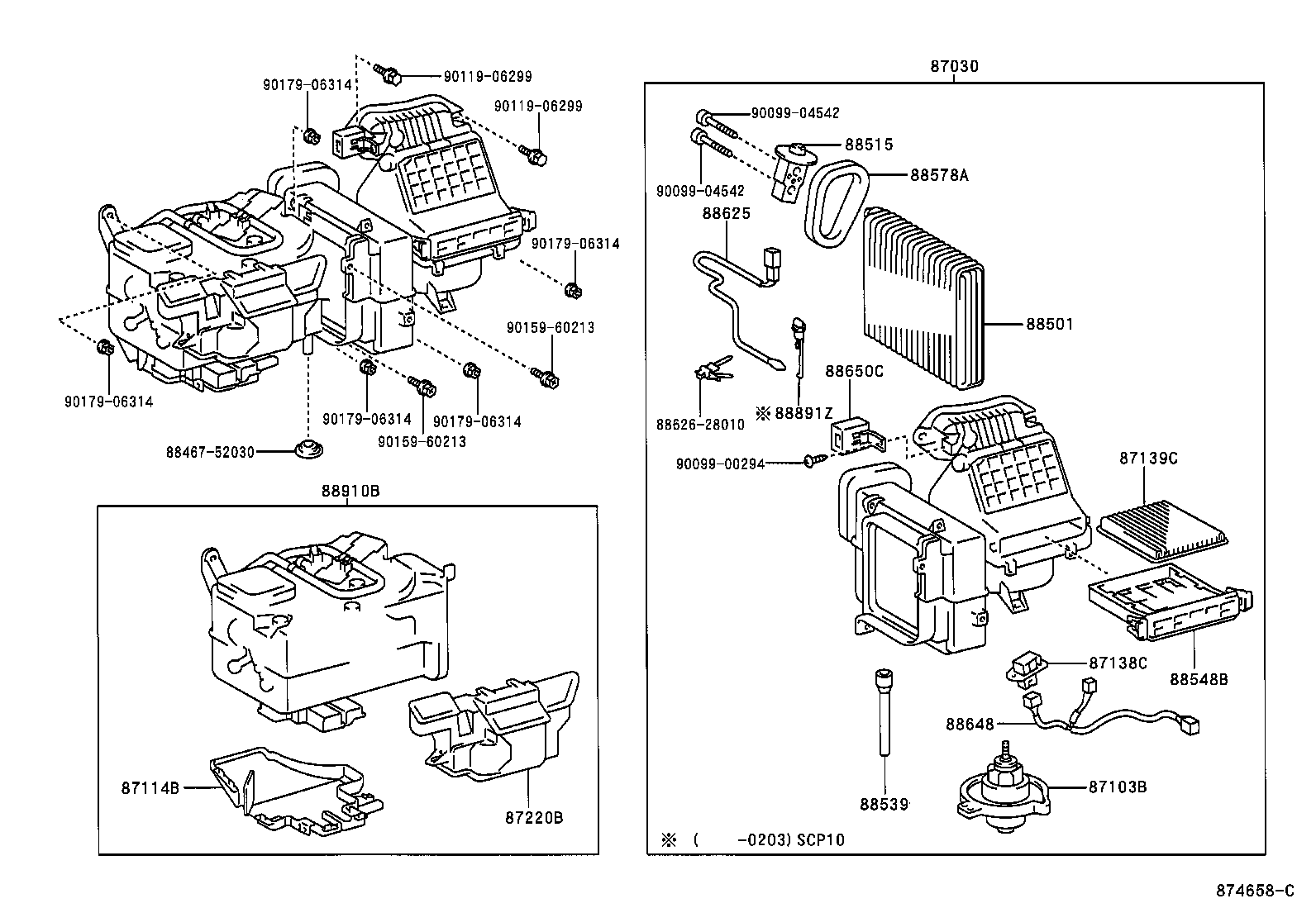

ILLUST NO. 1 OF 2(0101-0302)FRP..LHD
W(BOOST VENTILATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-0D070 |
SCP10..LHD W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 87030-0D030 |
SCP10..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87030-0D050 |
SCP10..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-0D040 |
SCP1#..LHD |
1 | ||
| 87030-0D190 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B |
1 | ||
| 87030-0D160 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W/O(AIR CONDITIONER),TYPE C |
1 | ||
| 87030-0D150 |
NLP10,SCP1#..FRP..LHD W/O(AIR CONDITIONER),TYPE A |
1 | ||
| 87030-0D140 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER),TYPE B |
1 | ||
| 87030-0D230 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITI0NER),TYPE C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D020 |
SCP1#..LHD |
1 | ||
| 87103-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87103-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87103-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D020 |
SCP1#..LHD |
1 | ||
| 87114-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87114-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87114-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
SCP1# |
1 | ||
| 87138-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
SCP1# |
1 | ||
| 87139-47010 |
NLP10,SCP1#..FRP |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-0D020 |
SCP1#..LHD |
1 | ||
| 87220-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D020 |
SCP1#..LHD |
1 | ||
| 88501-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
SCP1# |
1 | ||
| 88515-52040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88515-52020 |
SCP1#..FRP..(SOL,TRSTD) DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D010 |
SCP1# |
1 | ||
| 88539-52010 |
NLP10,SCP10..FRP;SCP12..FRP..TRSTD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D010 |
SCP1# |
1 | ||
| 88548-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-52020 |
SCP10..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D010 |
SCP1# |
1 | ||
| 88625-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648-0D010 |
SCP1# |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 88650-0D050 |
SCP1# |
1 | ||
| 88650-0D050 |
SCP1#..FRP |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
SCP10 |
1 | ||
| 88910B - VENTILATOR ASSY, BOOST | ||||
| 88910-0D010 |
SCP1#..LHD |
1 | ||
| 88910-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88626-28010 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
ILLUST NO. 1 OF 2(0302- )FRP..LHD
BLOWER TYPE A + BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-0D070 |
SCP10..LHD W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 87030-0D030 |
SCP10..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87030-0D050 |
SCP10..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-0D040 |
SCP1#..LHD |
1 | ||
| 87030-0D190 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B |
1 | ||
| 87030-0D160 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W/O(AIR CONDITIONER),TYPE C |
1 | ||
| 87030-0D150 |
NLP10,SCP1#..FRP..LHD W/O(AIR CONDITIONER),TYPE A |
1 | ||
| 87030-0D140 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER),TYPE B |
1 | ||
| 87030-0D230 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITI0NER),TYPE C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D020 |
SCP1#..LHD |
1 | ||
| 87103-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87103-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87103-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D020 |
SCP1#..LHD |
1 | ||
| 87114-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87114-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87114-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
SCP1# |
1 | ||
| 87138-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
SCP1# |
1 | ||
| 87139-47010 |
NLP10,SCP1#..FRP |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-0D020 |
SCP1#..LHD |
1 | ||
| 87220-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D010 |
SCP1# |
1 | ||
| 88539-52010 |
NLP10,SCP10..FRP;SCP12..FRP..TRSTD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D010 |
SCP1# |
1 | ||
| 88548-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
SCP1#..FRP |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648-0D010 |
SCP1# |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 88650-0D050 |
SCP1# |
1 | ||
| 88650-0D050 |
SCP1#..FRP |
1 | ||
| 88910B - VENTILATOR ASSY, BOOST | ||||
| 88910-0D010 |
SCP1#..LHD |
1 | ||
| 88910-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88899-0D180 | ||||
| 90099-00294 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
ILLUST NO. 1 OF 2(0302- )FRP..LHD
BLOWER TYPE A + HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-0D070 |
SCP10..LHD W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 87030-0D030 |
SCP10..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87030-0D050 |
SCP10..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-0D040 |
SCP1#..LHD |
1 | ||
| 87030-0D190 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B |
1 | ||
| 87030-0D160 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W/O(AIR CONDITIONER),TYPE C |
1 | ||
| 87030-0D150 |
NLP10,SCP1#..FRP..LHD W/O(AIR CONDITIONER),TYPE A |
1 | ||
| 87030-0D140 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER),TYPE B |
1 | ||
| 87030-0D230 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITI0NER),TYPE C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D020 |
SCP1#..LHD |
1 | ||
| 87103-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87103-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87103-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52040 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87107-0D020 |
SCP1#..LHD |
1 | ||
| 87107-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D020 |
SCP1#..LHD |
1 | ||
| 87114-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87114-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87114-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
SCP1# |
1 | ||
| 87138-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
SCP1# |
1 | ||
| 87139-47010 |
NLP10,SCP1#..FRP |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D020 |
SCP1#..LHD |
1 | ||
| 87150-0D030 |
SCP10..LHD COLD SPEC |
1 | ||
| 87150-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87150-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87150-0D050 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87150-0D060 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F COLD SPEC |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-0D020 |
SCP1#..LHD |
1 | ||
| 87220-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D010 |
SCP1# |
1 | ||
| 88539-52010 |
NLP10,SCP10..FRP;SCP12..FRP..TRSTD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D010 |
SCP1# |
1 | ||
| 88548-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
SCP1#..FRP |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648-0D010 |
SCP1# |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 88650-0D050 |
SCP1# |
1 | ||
| 88650-0D050 |
SCP1#..FRP |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88899-0D180 | ||||
| 90099-00294 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
ILLUST NO. 1 OF 2(0302- )FRP..LHD
BLOWER TYPE B + BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-0D070 |
SCP10..LHD W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 87030-0D030 |
SCP10..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87030-0D050 |
SCP10..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-0D040 |
SCP1#..LHD |
1 | ||
| 87030-0D190 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B |
1 | ||
| 87030-0D160 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W/O(AIR CONDITIONER),TYPE C |
1 | ||
| 87030-0D150 |
NLP10,SCP1#..FRP..LHD W/O(AIR CONDITIONER),TYPE A |
1 | ||
| 87030-0D140 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER),TYPE B |
1 | ||
| 87030-0D230 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITI0NER),TYPE C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D020 |
SCP1#..LHD |
1 | ||
| 87103-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87103-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87103-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D020 |
SCP1#..LHD |
1 | ||
| 87114-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87114-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87114-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
SCP1# |
1 | ||
| 87138-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
SCP1# |
1 | ||
| 87139-47010 |
NLP10,SCP1#..FRP |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-0D020 |
SCP1#..LHD |
1 | ||
| 87220-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D020 |
SCP1#..LHD |
1 | ||
| 88501-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
SCP1# |
1 | ||
| 88515-52040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88515-52020 |
SCP1#..FRP..(SOL,TRSTD) DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D010 |
SCP1# |
1 | ||
| 88539-52010 |
NLP10,SCP10..FRP;SCP12..FRP..TRSTD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D010 |
SCP1# |
1 | ||
| 88548-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-0D020 |
SCP1#..FRP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D010 |
SCP1# |
1 | ||
| 88625-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
SCP1#..FRP |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648-0D010 |
SCP1# |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 88650-0D050 |
SCP1# |
1 | ||
| 88650-0D050 |
SCP1#..FRP |
1 | ||
| 88910B - VENTILATOR ASSY, BOOST | ||||
| 88910-0D010 |
SCP1#..LHD |
1 | ||
| 88910-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88626-28010 | ||||
| 88899-0D180 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
ILLUST NO. 1 OF 2(0302- )FRP..LHD
BLOWER TYPE B + HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-0D070 |
SCP10..LHD W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 87030-0D030 |
SCP10..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87030-0D050 |
SCP10..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-0D040 |
SCP1#..LHD |
1 | ||
| 87030-0D190 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B |
1 | ||
| 87030-0D160 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W/O(AIR CONDITIONER),TYPE C |
1 | ||
| 87030-0D150 |
NLP10,SCP1#..FRP..LHD W/O(AIR CONDITIONER),TYPE A |
1 | ||
| 87030-0D140 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER),TYPE B |
1 | ||
| 87030-0D230 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITI0NER),TYPE C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D020 |
SCP1#..LHD |
1 | ||
| 87103-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87103-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87103-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52040 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87107-0D020 |
SCP1#..LHD |
1 | ||
| 87107-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D020 |
SCP1#..LHD |
1 | ||
| 87114-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87114-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87114-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
SCP1# |
1 | ||
| 87138-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
SCP1# |
1 | ||
| 87139-47010 |
NLP10,SCP1#..FRP |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D020 |
SCP1#..LHD |
1 | ||
| 87150-0D030 |
SCP10..LHD COLD SPEC |
1 | ||
| 87150-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87150-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87150-0D050 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87150-0D060 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F COLD SPEC |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-0D020 |
SCP1#..LHD |
1 | ||
| 87220-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D020 |
SCP1#..LHD |
1 | ||
| 88501-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
SCP1# |
1 | ||
| 88515-52040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88515-52020 |
SCP1#..FRP..(SOL,TRSTD) DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D010 |
SCP1# |
1 | ||
| 88539-52010 |
NLP10,SCP10..FRP;SCP12..FRP..TRSTD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D010 |
SCP1# |
1 | ||
| 88548-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-0D020 |
SCP1#..FRP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D010 |
SCP1# |
1 | ||
| 88625-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
SCP1#..FRP |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648-0D010 |
SCP1# |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 88650-0D050 |
SCP1# |
1 | ||
| 88650-0D050 |
SCP1#..FRP |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88626-28010 | ||||
| 88899-0D180 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
ILLUST NO. 1 OF 2(0302- )FRP..LHD
BLOWER TYPE C + PTC HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-0D070 |
SCP10..LHD W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 87030-0D030 |
SCP10..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87030-0D050 |
SCP10..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-0D040 |
SCP1#..LHD |
1 | ||
| 87030-0D190 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B |
1 | ||
| 87030-0D160 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W/O(AIR CONDITIONER),TYPE C |
1 | ||
| 87030-0D150 |
NLP10,SCP1#..FRP..LHD W/O(AIR CONDITIONER),TYPE A |
1 | ||
| 87030-0D140 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER),TYPE B |
1 | ||
| 87030-0D230 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITI0NER),TYPE C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D020 |
SCP1#..LHD |
1 | ||
| 87103-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87103-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87103-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-0D010 |
SCP1#..LHD |
1 | ||
| 87106-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52040 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87107-0D020 |
SCP1#..LHD |
1 | ||
| 87107-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D020 |
SCP1#..LHD |
1 | ||
| 87114-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87114-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87114-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
SCP1# |
1 | ||
| 87138-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-47010 |
SCP1# |
1 | ||
| 87139-47010 |
NLP10,SCP1#..FRP |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D020 |
SCP1#..LHD |
1 | ||
| 87150-0D030 |
SCP10..LHD COLD SPEC |
1 | ||
| 87150-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87150-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87150-0D050 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87150-0D060 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F COLD SPEC |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-0D020 |
SCP1#..LHD |
1 | ||
| 87220-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-0D010 |
SCP1#..LHD |
1 | ||
| 87391-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D010 |
SCP1# |
1 | ||
| 88539-52010 |
NLP10,SCP10..FRP;SCP12..FRP..TRSTD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D010 |
SCP1# |
1 | ||
| 88548-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
SCP1#..FRP |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648-0D010 |
SCP1# |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-0D020 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88648-0D020 |
SCP1#..LHD |
1 | ||
| 88648P - WIRE,AIR CONDITIONER,NO.1 | ||||
| 88648-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88648-0D030 |
SCP1#..LHD |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 88650-0D050 |
SCP1# |
1 | ||
| 88650-0D050 |
SCP1#..FRP |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0D040 |
SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88650-0D030 |
SCP10..LHD W(PTC HEATER) |
1 | ||
| 88650-0D040 |
SCP1#..LHD |
1 | ||
| 88790D - THERMISTOR ASSY | ||||
| 88790-52010 |
SCP1#..LHD |
1 | ||
| 88790-52010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88899-0D180 | ||||
| 90099-00294 | ||||
| 90119-06299 | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
ILLUST NO. 1 OF 2(0302- )FRP..LHD
BLOWER TYPE D + PTC HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-0D070 |
SCP10..LHD W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 87030-0D030 |
SCP10..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87030-0D050 |
SCP10..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-0D040 |
SCP1#..LHD |
1 | ||
| 87030-0D190 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER & BOOST VENTILATOR),TYPE B |
1 | ||
| 87030-0D160 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W/O(AIR CONDITIONER),TYPE C |
1 | ||
| 87030-0D150 |
NLP10,SCP1#..FRP..LHD W/O(AIR CONDITIONER),TYPE A |
1 | ||
| 87030-0D140 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITIONER),TYPE B |
1 | ||
| 87030-0D230 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(AIR CONDITI0NER),TYPE C |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D020 |
SCP1#..LHD |
1 | ||
| 87103-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87103-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87103-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-0D010 |
SCP1#..LHD |
1 | ||
| 87106-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52040 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87107-0D020 |
SCP1#..LHD |
1 | ||
| 87107-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0D020 |
SCP1#..LHD |
1 | ||
| 87114-0D030 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87114-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC |
1 | ||
| 87114-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
SCP1# |
1 | ||
| 87138-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D020 |
SCP1#..LHD |
1 | ||
| 87150-0D030 |
SCP10..LHD COLD SPEC |
1 | ||
| 87150-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87150-0D060 |
SCP1#..LHD COLD SPEC |
1 | ||
| 87150-0D050 |
SCP10..LHD COLD SPEC & W(PTC HEATER) |
1 | ||
| 87150-0D060 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F COLD SPEC |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-0D020 |
SCP1#..LHD |
1 | ||
| 87220-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-0D010 |
SCP1#..LHD |
1 | ||
| 87391-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D020 |
SCP1#..LHD |
1 | ||
| 88501-0D020 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
SCP1# |
1 | ||
| 88515-52040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88515-52020 |
SCP1#..FRP..(SOL,TRSTD) DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D010 |
SCP1# |
1 | ||
| 88539-52010 |
NLP10,SCP10..FRP;SCP12..FRP..TRSTD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D010 |
SCP1# |
1 | ||
| 88548-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-0D020 |
SCP1#..FRP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D010 |
SCP1# |
1 | ||
| 88625-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
SCP1#..FRP |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 88648-0D010 |
SCP1# |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-0D020 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88648-0D020 |
SCP1#..LHD |
1 | ||
| 88648P - WIRE,AIR CONDITIONER,NO.1 | ||||
| 88648-0D030 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88648-0D030 |
SCP1#..LHD |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-0D060 |
SCP1#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) W(BOOST VENTILATOR) |
1 | ||
| 88650-0D050 |
SCP1# |
1 | ||
| 88650-0D050 |
SCP1#..FRP |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0D040 |
SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 88650-0D030 |
SCP10..LHD W(PTC HEATER) |
1 | ||
| 88650-0D040 |
SCP1#..LHD |
1 | ||
| 88790D - THERMISTOR ASSY | ||||
| 88790-52010 |
SCP1#..LHD |
1 | ||
| 88790-52010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88626-28010 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
