SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

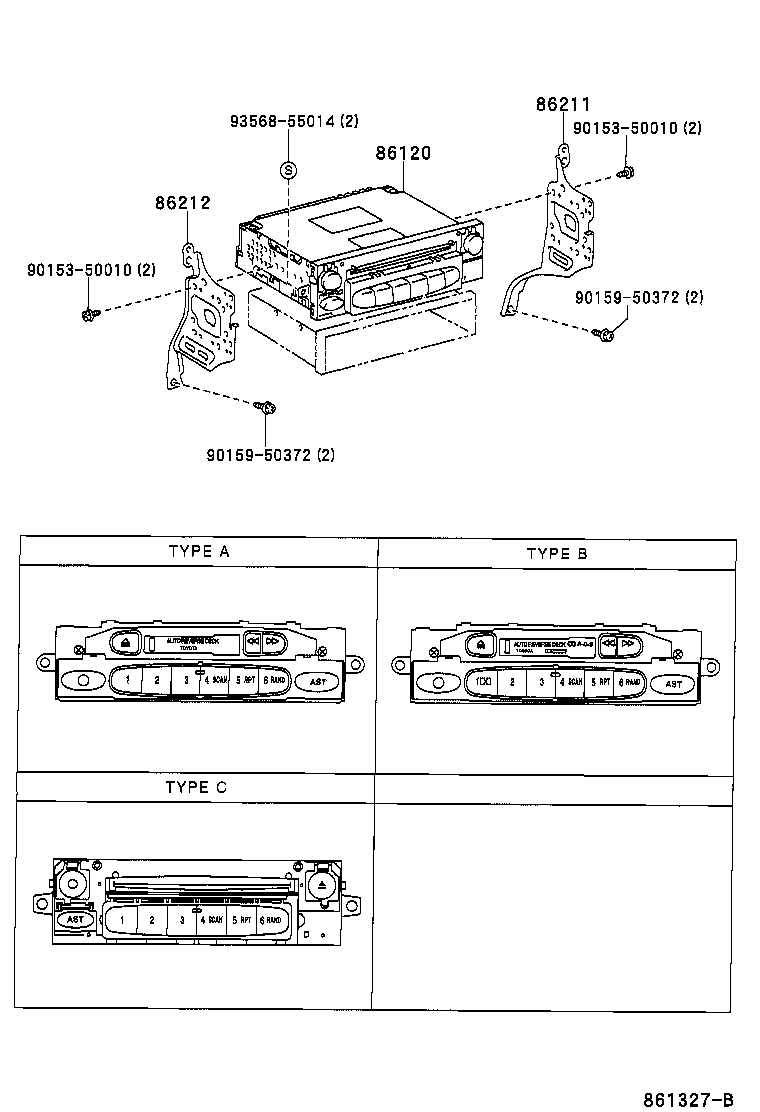

ILLUST NO. 1 OF 2(0101-0302)FRP

Click highlighted areas on diagram

W(RADIO)

diagram 86120 86211 86212 9015350010 9015350010 9015950372 9015950372 9356855014
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0D010

SCP10

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

 1
86120-0D011

SCP10

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

 1
86120-0D020

SCP10

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

 1
86120-0D030

SCP1#

MATSUSHITA,ID=W53805,TYPE C:REFER TO ILLUSTRATION

 1
86120-0D021

SCP10

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

 1
86120-0D130

NLP10,SCP1#..FRP..(SOL,TRSTD)

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

 1
86120-0D012

SCP1#

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

 1
86120-0D022

SCP1#

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

 1
86120-0D140

NLP10,SCP1#..FRP..(SOL,TRSTD)

MATSUSHITA,ID=W53806,TYPE C:REFER TO ILLUSTRATION

 1
86120-0D070

NLP10,SCP1#..FRP

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-52010

SCP1#

 1
86211-52140

NLP10,SCP1#..FRP

 1
86212 - BRACKET, RADIO, NO.2
86212-52010

SCP1#

 1
86212-52130

NLP10,SCP1#..FRP

 1
Common parts
90153-50010
90159-50372
93568-55014

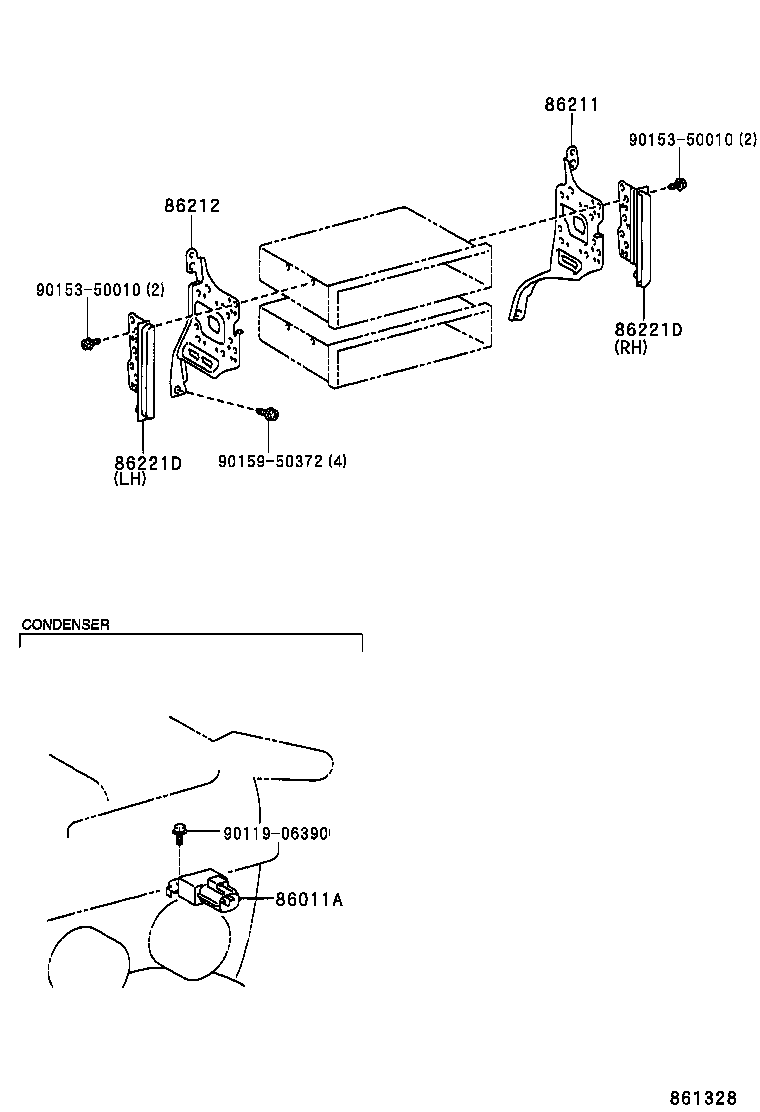

ILLUST NO. 1 OF 2(0101-0302)FRP

Click highlighted areas on diagram

W/O(RADIO)

diagram 86011A 86211 86212 86221D 86221D 9011906390 9015350010 9015350010 9015950372
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04140

SCP1#

 1
90980-04140

SCP1#..FRP

 1
86211 - BRACKET, RADIO, NO.1
86211-52010

SCP1#

 1
86211-52140

NLP10,SCP1#..FRP

 1
86212 - BRACKET, RADIO, NO.2
86212-52010

SCP1#

 1
86212-52130

NLP10,SCP1#..FRP

 1
86221D - PANEL, RADIO RECEIVER
86221-52060

SCP1#..LHD

RH

 1
86221-52050

SCP1#..LHD

LH

 1
86221-52050

NLP10,SCP12..TRSTD;NLP10,SCP12..LHD..SOL;SCP10..LHD..(SOL,TRSTD)

LH

 1
86221-52060

NLP10,SCP12..TRSTD;NLP10,SCP12..LHD..SOL;SCP10..LHD..(SOL,TRSTD)

RH

 1
86221-52060

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

RH

 1
86221-52050

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

LH

 1
86221D - PANEL, RADIO RECEIVER
86221-52060

SCP1#..LHD

RH

 1
86221-52050

SCP1#..LHD

LH

 1
86221-52050

NLP10,SCP12..TRSTD;NLP10,SCP12..LHD..SOL;SCP10..LHD..(SOL,TRSTD)

LH

 1
86221-52060

NLP10,SCP12..TRSTD;NLP10,SCP12..LHD..SOL;SCP10..LHD..(SOL,TRSTD)

RH

 1
86221-52060

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

RH

 1
86221-52050

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

LH

 1
Common parts
90119-06390
90153-50010
90159-50372

ILLUST NO. 2 OF 2(0101- )FRP

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011Q 9164380614 9164380614
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04140

SCP1#

 1
90980-04140

SCP1#..FRP

 1
86011Q - CONDENSER, RADIO SETTING
90980-04148

NLP10,SCP1#..FRP

 1
Common parts
91643-80614

ILLUST NO. 1 OF 2(0302- )FRP

Click highlighted areas on diagram

W(RADIO)

diagram 5501 5501 86120 86211 86212 86221D 86221D 9015350010 9015350010 9015950372 9356855014
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0D010

SCP10

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

 1
86120-0D011

SCP10

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

 1
86120-0D020

SCP10

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

 1
86120-0D030

SCP1#

MATSUSHITA,ID=W53805,TYPE C:REFER TO ILLUSTRATION

 1
86120-0D021

SCP10

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

 1
86120-0D130

NLP10,SCP1#..FRP..(SOL,TRSTD)

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

 1
86120-0D012

SCP1#

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

 1
86120-0D022

SCP1#

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

 1
86120-0D140

NLP10,SCP1#..FRP..(SOL,TRSTD)

MATSUSHITA,ID=W53806,TYPE C:REFER TO ILLUSTRATION

 1
86120-0D070

NLP10,SCP1#..FRP

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-52010

SCP1#

 1
86211-52140

NLP10,SCP1#..FRP

 1
86212 - BRACKET, RADIO, NO.2
86212-52010

SCP1#

 1
86212-52130

NLP10,SCP1#..FRP

 1
86221D - PANEL, RADIO RECEIVER
86221-52060

SCP1#..LHD

RH

 1
86221-52050

SCP1#..LHD

LH

 1
86221-52050

NLP10,SCP12..TRSTD;NLP10,SCP12..LHD..SOL;SCP10..LHD..(SOL,TRSTD)

LH

 1
86221-52060

NLP10,SCP12..TRSTD;NLP10,SCP12..LHD..SOL;SCP10..LHD..(SOL,TRSTD)

RH

 1
86221-52060

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

RH

 1
86221-52050

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

LH

 1
86221D - PANEL, RADIO RECEIVER
86221-52060

SCP1#..LHD

RH

 1
86221-52050

SCP1#..LHD

LH

 1
86221-52050

NLP10,SCP12..TRSTD;NLP10,SCP12..LHD..SOL;SCP10..LHD..(SOL,TRSTD)

LH

 1
86221-52060

NLP10,SCP12..TRSTD;NLP10,SCP12..LHD..SOL;SCP10..LHD..(SOL,TRSTD)

RH

 1
86221-52060

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

RH

 1
86221-52050

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

LH

 1
Common parts
90153-50010
90159-50372
93568-55014
Linked diagrams
5501
