SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP..5D

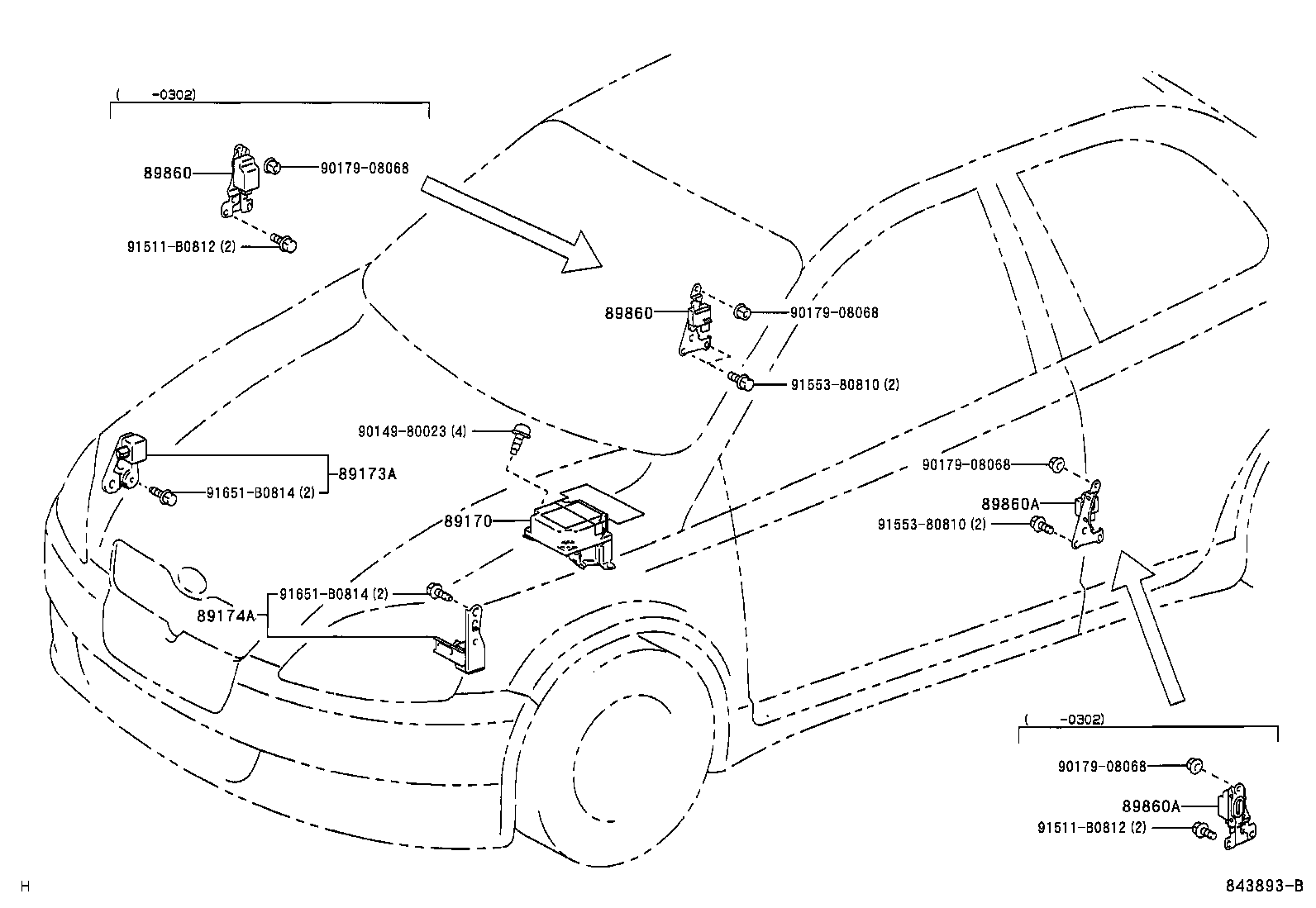

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89860 89860 89860A 89860A 9014980023 9017908068 9017908068 9017908068 9017908068 91511B0812 91511B0812 9155380810 9155380810 91651B0814 91651B0814
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-0D070

NLP10,SCP1#..FRP

 1
89170-0D030

SCP1#

 1
89170-0D040

SCP1#

*80,DRIVER SIDE & PASSENGER SIDE

 1
89170-0D080

NLP10,SCP1#..FRP

*80,DRIVER SIDE & PASSENGER SIDE

 1
89170-0D100

NLP10,SCP1#..FRP..5D

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

 1
89170-0D020

SCP1#..5D

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-59135

NLP10,SCP1#..FRP

 1
89173-59125

SCP1#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-59065

SCP1#

 1
89174-59075

NLP10,SCP1#..FRP

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-0D040

NLP10,SCP1#..FRP..5D

 1
89860-0D020

SCP1#..5D

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-0D040

NLP10,SCP1#..FRP..5D

 1
89860-0D020

SCP1#..5D

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-0D020

SCP1#..5D

 1
89830-0D040

NLP10,SCP1#..FRP..5D

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-0D020

SCP1#..5D

 1
89830-0D040

NLP10,SCP1#..FRP..5D

 1
Common parts
90149-80023
90179-08068
91511-B0812
91553-80810
91651-B0814
