SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)
ILLUST NO. 1 OF 6(0101-0302)SCP10..FRP

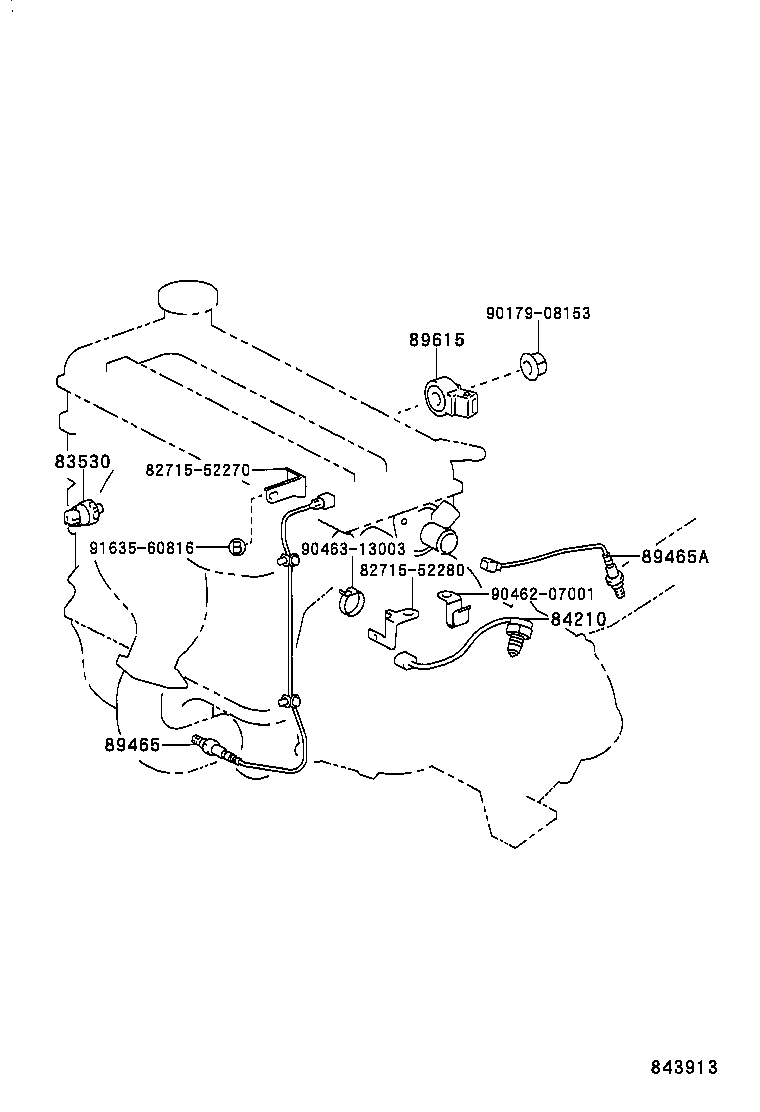

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-05010 |
NLP10,SCP1#..FRP JAEGER |
1 | ||
| 83530-28020 |
NLP10,SCP1#..FRP DENSO |
1 | ||
| 83530-60020 |
NLP10,SCP1#..FRP YAZAKI |
1 | ||
| 83530-28020 |
SCP1# DENSO |
1 | ||
| 83530-05010 |
SCP1# JAEGER |
1 | ||
| 83530-60020 |
SCP1# YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
SCP10 |
1 | ||
| 84210-60030 |
SCP10..FRP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0D010 |
SCP10 |
1 | ||
| 89465-0D050 |
SCP10..FRP..(SOL,TRSTD)..5F |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-0D020 |
SCP10 |
1 | ||
| 89465-0D060 |
SCP10..FRP..(SOL,TRSTD)..5F |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-05010 |
SCP10 |
1 | ||
| 89615-05010 |
SCP10..FRP..(SOL,TRSTD)..5F |
1 | ||
| Common parts | ||||
| 82715-52270 | ||||
| 82715-52280 | ||||
| 90179-08153 | ||||
| 90462-07001 | ||||
| 90463-13003 | ||||
| 91635-60816 | ||||
ILLUST NO. 2 OF 6(0101- )FRP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
SCP1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
SCP1# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
NLP10,SCP1#..FRP 10A,MINI FUSE,RED |
1 | ||
| 90080-82021 |
SCP1# 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
NLP10,SCP1#..FRP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82024 |
SCP1# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82020 |
SCP10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82033 |
NLP10,SCP1#..FRP 25A,MINI FUSE |
1 | ||
| 90080-82022 |
NLP10,SCP1#..FRP 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82023 |
NLP10,SCP1#..FRP 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
SCP1# 25A,MINI FUSE |
1 | ||
| 90080-82024 |
NLP10,SCP1#..FRP 30A,MINI FUSE,GREEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
SCP1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
SCP1# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
NLP10,SCP1#..FRP 10A,MINI FUSE,RED |
1 | ||
| 90080-82021 |
SCP1# 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
NLP10,SCP1#..FRP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82024 |
SCP1# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82020 |
SCP10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82033 |
NLP10,SCP1#..FRP 25A,MINI FUSE |
1 | ||
| 90080-82022 |
NLP10,SCP1#..FRP 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82023 |
NLP10,SCP1#..FRP 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
SCP1# 25A,MINI FUSE |
1 | ||
| 90080-82024 |
NLP10,SCP1#..FRP 30A,MINI FUSE,GREEN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
SCP1# |
1 | ||
| 82616-20010 |
NLP10,SCP1#..FRP |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-04006 |
SCP1#..LHD |
1 | ||
| 90987-04010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D020 |
SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| 82662-0D010 |
SCP1# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52050 |
SCP10..LHD |
1 | ||
| 82662-52051 |
SCP1#..LHD |
1 | ||
| 82662-52051 |
NLP10..FRP;SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D010 |
SCP1# |
1 | ||
| 82663-0D010 |
SCP1#..FRP |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D020 |
SCP1#..LHD COLD SPEC & W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82741-0D020 |
SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC & W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82741-0D010 |
SCP1# |
1 | ||
| 82741-0D010 |
SCP1#..FRP |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-52010 |
SCP1#..LHD |
1 | ||
| 82742-52010 |
SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-02010 |
NLP10,SCP1#..FRP |
1 | ||
| 83482-02010 |
SCP1# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 90987-02016 |
SCP1#..LHD |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87019 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F PART NUMBER LABEL=90080-87019 |
1 | ||
| 90080-87019 |
SCP1# PART NUMBER LABEL=90080-87019 |
1 | ||
| 90080-87013 |
SCP1# PART NUMBER LABEL=90080-87013 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87012 |
SCP1# |
1 | ||
| 90080-87012 |
NLP10,SCP1#..FRP |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52010 |
SCP1# |
1 | ||
| 85928-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87013 |
SCP1# PART NUMBER LABEL=90080-87013 |
1 | ||
| 90080-87019 |
NLP10,SCP1#..FRP PART NUMBER LABEL=90080-87019 |
1 | ||
| 90080-87019 |
SCP1# PART NUMBER LABEL=90080-87019 |
1 | ||
| 90080-87013 |
NLP10,SCP1#..FRP PART NUMBER LABEL=90080-87013 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02016 |
SCP10..LHD |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02016 |
SCP10..LHD |
1 | ||
| Common parts | ||||
| 82715-52010 | ||||
| 90179-06292 | ||||
| 91631-60622 | ||||
| 91631-J0612 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 3 OF 6(0101- )FRP..LHD..4FC,5F
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
SCP1# |
1 | ||
| 81980-05040 |
NLP10,SCP1#..FRP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
SCP1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
SCP1# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
NLP10,SCP1#..FRP 10A,MINI FUSE,RED |
1 | ||
| 90080-82021 |
SCP1# 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
NLP10,SCP1#..FRP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82024 |
SCP1# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82020 |
SCP10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82033 |
NLP10,SCP1#..FRP 25A,MINI FUSE |
1 | ||
| 90080-82022 |
NLP10,SCP1#..FRP 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82023 |
NLP10,SCP1#..FRP 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
SCP1# 25A,MINI FUSE |
1 | ||
| 90080-82024 |
NLP10,SCP1#..FRP 30A,MINI FUSE,GREEN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
SCP1#..FRP |
1 | ||
| 82610-20080 |
SCP1# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
SCP1#..LHD |
1 | ||
| 82660-20340 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) COLD SPEC & W(DAY TIME RUNNING LIGHT SYSTEM) |
4 | ||
| 82660-20340 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
3 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0D010 |
NLP10,SCP1#..FRP NO.1 |
1 | ||
| 82666-20270 |
NLP10,SCP1#..FRP..(SOL,TRSTD) NO.3 |
1 | ||
| 82666-0D010 |
SCP1# |
1 | ||
| 82666-0D030 |
NLP10,SCP1#..FRP NO.2 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0D010 |
NLP10,SCP1#..FRP NO.1 |
1 | ||
| 82666-20270 |
NLP10,SCP1#..FRP..(SOL,TRSTD) NO.3 |
1 | ||
| 82666-0D010 |
SCP1# |
1 | ||
| 82666-0D030 |
NLP10,SCP1#..FRP NO.2 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0D010 |
NLP10,SCP1#..FRP NO.1 |
1 | ||
| 82666-20270 |
NLP10,SCP1#..FRP..(SOL,TRSTD) NO.3 |
1 | ||
| 82666-0D010 |
SCP1# |
1 | ||
| 82666-0D030 |
NLP10,SCP1#..FRP NO.2 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 82674-0D010 |
SCP1# |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-0D070 |
NLP10,SCP1#..FRP |
1 | ||
| 82683-0D010 |
SCP1# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-52060 |
SCP1# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82732-52070 |
SCP1#..LHD TYPE B:REFER TO ILLUSTRATION & W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82732-0D010 |
SCP1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82732-0D010 |
NLP10,SCP1#..FRP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82732-0D020 |
SCP1#..LHD TYPE A:REFER TO ILLUSTRATION & W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82730-0D050 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) MARK C |
1 | ||
| 82730-0D040 |
NLP10,SCP1#..FRP..(SOL,TRSTD) MARK N |
1 | ||
| 82732-0D020 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) TYPE A:REFER TO ILLUSTRATION & W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82732-52060 |
NLP10,SCP1#..FRP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82732-52070 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) TYPE B:REFER TO ILLUSTRATION & W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-52020 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 82810-0D010 |
SCP1#..LHD |
1 | ||
| 82810-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 82810-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
SCP1#..FRP..(4FC,5F) |
1 | ||
| 84340-32050 |
SCP1# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NLP10,SCP1#..FRP |
1 | ||
| 84550-30080 |
SCP1# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04006 |
SCP1# |
1 | ||
| 90987-04010 |
NLP10,SCP1#..FRP |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90080-87013 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) PART NUMBER LABEL=90080-87013 |
1 | ||
| 90080-87019 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) PART NUMBER LABEL=90080-87019 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87019 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90080-87019 |
NLP10,SCP1#..FRP |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87013 |
SCP1#..LHD PART NUMBER LABEL=90080-87013 |
1 | ||
| 90080-87019 |
SCP1#..LHD PART NUMBER LABEL=90080-87019 |
1 | ||
| 90987-02012 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) PART NUMBER LABEL=90987-02012,(J) |
1 | ||
| 90987-02012 |
SCP1#..LHD |
1 | ||
| 90080-87019 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) PART NUMBER LABEL=90080-87019,(L) |
1 | ||
| 90080-87013 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) PART NUMBER LABEL=90080-87013,(L) |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90080-87013 |
NLP10,SCP1#..FRP..(SOL,TRSTD) PART NUMBER LABEL=90080-87013 |
1 | ||
| 90080-87019 |
NLP10,SCP1#..FRP..(SOL,TRSTD) PART NUMBER LABEL=90080-87019 |
1 | ||
| 90080-87013 |
SCP1# PART NUMBER LABEL=90080-87013 |
1 | ||
| 90080-87019 |
SCP1# PART NUMBER LABEL=90080-87019 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-0D020 |
SCP1# W(KEY LESS ENTRY) |
1 | ||
| 85980-0D050 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W(KEY LESS ENTRY) |
1 | ||
| 85980-0D010 |
SCP1# |
1 | ||
| 85980-0D040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D010 |
SCP10..LHD |
1 | ||
| 89650-0D030 |
SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 89650-0D011 |
SCP1#..LHD |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90159-60546 | ||||
| 90159-60547 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90170-10017 | ||||
| 90179-06274 | ||||
| 93313-15016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

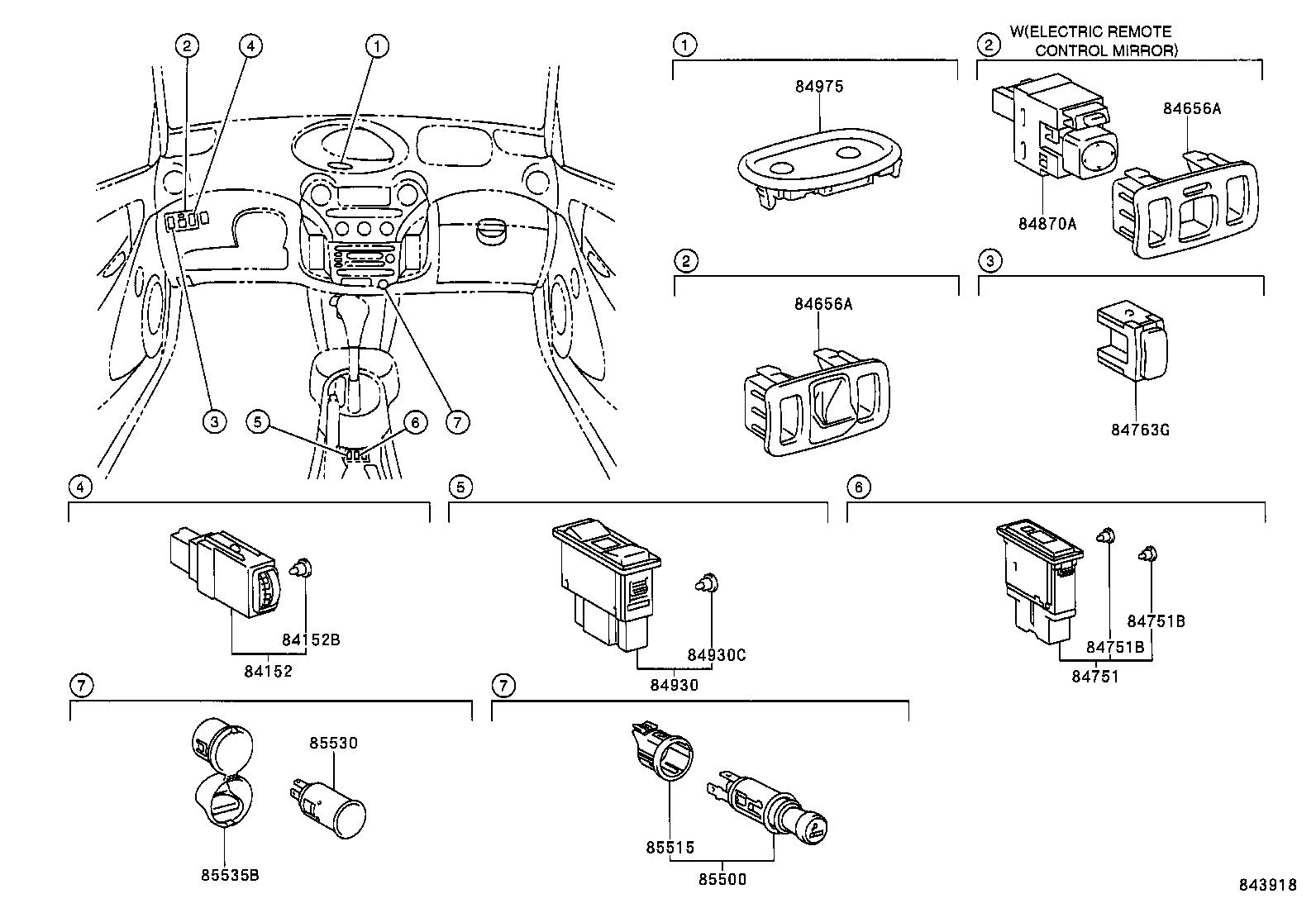

ILLUST NO. 4 OF 6(0101-0302)FRP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D021 |
NLP10,SCP1#..FRP |
1 | ||
| 84152-0D010 |
SCP1# |
1 | ||
| 84152-0D020 |
NLP10,SCP1#..FRP |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90011-11015 |
NLP10,SCP1#..FRP |
1 | ||
| 90011-11047 |
NLP10,SCP1#..FRP |
1 | ||
| 90011-11015 |
SCP1# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02030B4 |
NLP10,SCP1#..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 84656-02030B3 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM1# |
1 | ||
| 84656-02020B2 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD;NLP10,SCP12..FRP..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B3 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B4 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 84656-02030G0 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MIST GREEN,TRIM7# |
1 | ||
| 84656-02030B5 |
SCP12..FRP;NLP10,SCP10..FRP..SOL;NLP10,SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM11 |
1 | ||
| 84656-02030B4 |
SCP12..FRP..TRSTD;NLP10,SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B3 |
SCP10..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02030B4 |
NLP10,SCP1#..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 84656-02030B3 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM1# |
1 | ||
| 84656-02020B2 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD;NLP10,SCP12..FRP..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B3 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B4 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 84656-02030G0 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MIST GREEN,TRIM7# |
1 | ||
| 84656-02030B5 |
SCP12..FRP;NLP10,SCP10..FRP..SOL;NLP10,SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM11 |
1 | ||
| 84656-02030B4 |
SCP12..FRP..TRSTD;NLP10,SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B3 |
SCP10..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0D011 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 84751-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 84751-52010 |
SCP1#..LHD |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10310 |
SCP1#..LHD 14V 0.91W |
2 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10310 |
SCP1#..LHD 14V 0.91W |
2 | ||
| 84763G - COVER, HOLE NO.1 | ||||
| 84763-02020G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 84763-02020B3 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 84763-02020B2 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 84763-02020B4 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02030 |
NLP10,SCP1#..FRP..SOL;NLP10,SCP1#..FRP..LHD..TRSTD |
1 | ||
| 84870-02030 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0D010 |
SCP1#..LUNA,TRSTD |
1 | ||
| 84930-0D010 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 84930-0D011 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90011-11046 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 90011-11017 |
SCP1#..LUNA,TRSTD |
1 | ||
| 90011-11017 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 84975-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 84975-0D090 |
NLP10,SCP1#..FRP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09020 |
SCP1# |
1 | ||
| 85500-09020 |
NLP10,SCP1#..FRP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 85515-0D010 |
SCP1# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
NLP10,SCP1#..FRP |
1 | ||
| 85530-0D020 |
SCP1# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52040 |
SCP1# |
1 | ||
| 85535-52040 |
NLP10,SCP1#..FRP |
1 | ||
ILLUST NO. 6 OF 6(0101- )FRP
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D010 |
SCP1#..FRP |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D010 |
NLP10,SCP1#..FRP (L) |
2 | ||
| 84231-0D010 |
SCP1# (L) |
2 | ||
| 84231-60070 |
SCP1# (J) |
2 | ||
| 84231-60070 |
NLP10,SCP1#..FRP (J) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D010 |
NLP10,SCP1#..FRP (L) |
2 | ||
| 84231-0D010 |
SCP1# (L) |
2 | ||
| 84231-60070 |
SCP1# (J) |
2 | ||
| 84231-60070 |
NLP10,SCP1#..FRP (J) |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-05020 |
SCP1#..5D |
2 | ||
| 84231-05020 |
NLP10,SCP1#..FRP..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-05020 |
SCP1#..5D |
2 | ||
| 84231-05020 |
NLP10,SCP1#..FRP..5D |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
SCP1# |
1 | ||
| 84810-0D010 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
SCP1# |
1 | ||
| 84810-0D010 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B0 |
SCP1#..LHD..5D SHADOW GRAY,TRIM1# |
2 | ||
| 84810-52010B4 |
SCP10..FRP..LHD..5D..TRSTD..5F DK.GRAY,TRIM10,11,17 |
2 | ||
| 84810-52010H0 |
SCP1#..LHD..5D FRENCH TURQUOISE,TRIM7# |
2 | ||
| 84810-52010B4 |
SCP10..FRP..LHD..5D..TRSTD..5F DK.GRAY,TRIM10,11,17,18,19 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B0 |
SCP1#..LHD..5D SHADOW GRAY,TRIM1# |
2 | ||
| 84810-52010B4 |
SCP10..FRP..LHD..5D..TRSTD..5F DK.GRAY,TRIM10,11,17 |
2 | ||
| 84810-52010H0 |
SCP1#..LHD..5D FRENCH TURQUOISE,TRIM7# |
2 | ||
| 84810-52010B4 |
SCP10..FRP..LHD..5D..TRSTD..5F DK.GRAY,TRIM10,11,17,18,19 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 84820-60090 |
SCP1#..LHD..5D W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 84820-0D050 |
NLP10,SCP1#..FRP..LHD..5D W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84820-10100 |
SCP10..LHD;SCP12..LHD..LUNA W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 84820-60090 |
SCP1#..LHD..5D W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 84820-0D050 |
NLP10,SCP1#..FRP..LHD..5D W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84820-10100 |
SCP10..LHD;SCP12..LHD..LUNA W(POWER WINDOW---FRONT ONLY) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-70003 | ||||
ILLUST NO. 5 OF 6(0101- )FRP..LHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-05020 |
NLP10,SCP1#..FRP |
1 | ||
| 84052-05020 |
SCP1# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D010 |
SCP1# |
1 | ||
| 84140-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 84140-0D070 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-0D010B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0D011 |
SCP1# |
1 | ||
| 84306-0D012 |
NLP10,SCP1#..FRP |
1 | ||
| 84306-0D050 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(STEERING AUDIO SWITCH) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 84450-0D010 |
SCP1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 84652-0D010 |
SCP1# |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
ILLUST NO. 4 OF 6(0302- )FRP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D021 |
NLP10,SCP1#..FRP |
1 | ||
| 84152-0D010 |
SCP1# |
1 | ||
| 84152-0D020 |
NLP10,SCP1#..FRP |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90011-11015 |
NLP10,SCP1#..FRP |
1 | ||
| 90011-11047 |
NLP10,SCP1#..FRP |
1 | ||
| 90011-11015 |
SCP1# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02030B4 |
NLP10,SCP1#..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 84656-02030B3 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM1# |
1 | ||
| 84656-02020B2 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD;NLP10,SCP12..FRP..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B3 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B4 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 84656-02030G0 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MIST GREEN,TRIM7# |
1 | ||
| 84656-02030B5 |
SCP12..FRP;NLP10,SCP10..FRP..SOL;NLP10,SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM11 |
1 | ||
| 84656-02030B4 |
SCP12..FRP..TRSTD;NLP10,SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B3 |
SCP10..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02030B4 |
NLP10,SCP1#..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 84656-02030B3 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM1# |
1 | ||
| 84656-02020B2 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD;NLP10,SCP12..FRP..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B3 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B4 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 84656-02030G0 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MIST GREEN,TRIM7# |
1 | ||
| 84656-02030B5 |
SCP12..FRP;NLP10,SCP10..FRP..SOL;NLP10,SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),MD.GRAY,TRIM11 |
1 | ||
| 84656-02030B4 |
SCP12..FRP..TRSTD;NLP10,SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B3 |
SCP10..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0D011 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 84751-0D010 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 84751-52010 |
SCP1#..LHD |
1 | ||
| 84763G - COVER, HOLE NO.1 | ||||
| 84763-02020G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 84763-02020B3 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 84763-02020B2 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 84763-02020B4 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02030 |
NLP10,SCP1#..FRP..SOL;NLP10,SCP1#..FRP..LHD..TRSTD |
1 | ||
| 84870-02030 |
SCP1#..LUNA,SOL;SCP10..LHD..TRSTD |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0D010 |
SCP1#..LUNA,TRSTD |
1 | ||
| 84930-0D010 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 84930-0D011 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90011-11046 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 90011-11017 |
SCP1#..LUNA,TRSTD |
1 | ||
| 90011-11017 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 84975-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 84975-0D090 |
NLP10,SCP1#..FRP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09020 |
SCP1# |
1 | ||
| 85500-09020 |
NLP10,SCP1#..FRP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 85515-0D010 |
SCP1# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
NLP10,SCP1#..FRP |
1 | ||
| 85530-0D020 |
SCP1# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52040 |
SCP1# |
1 | ||
| 85535-52040 |
NLP10,SCP1#..FRP |
1 | ||
ILLUST NO. 1 OF 6(0302- )SCP10..FRP..SOL,TRSTD..5F
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-05010 |
NLP10,SCP1#..FRP JAEGER |
1 | ||
| 83530-28020 |
NLP10,SCP1#..FRP DENSO |
1 | ||
| 83530-60020 |
NLP10,SCP1#..FRP YAZAKI |
1 | ||
| 83530-28020 |
SCP1# DENSO |
1 | ||
| 83530-05010 |
SCP1# JAEGER |
1 | ||
| 83530-60020 |
SCP1# YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
SCP10 |
1 | ||
| 84210-60030 |
SCP10..FRP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0D010 |
SCP10 |
1 | ||
| 89465-0D050 |
SCP10..FRP..(SOL,TRSTD)..5F |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-0D020 |
SCP10 |
1 | ||
| 89465-0D060 |
SCP10..FRP..(SOL,TRSTD)..5F |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-05010 |
SCP10 |
1 | ||
| 89615-05010 |
SCP10..FRP..(SOL,TRSTD)..5F |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 82715-52280 | ||||
| 82715-52550 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 90462-08056 | ||||
| 90463-13003 | ||||
| 91635-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
