SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)

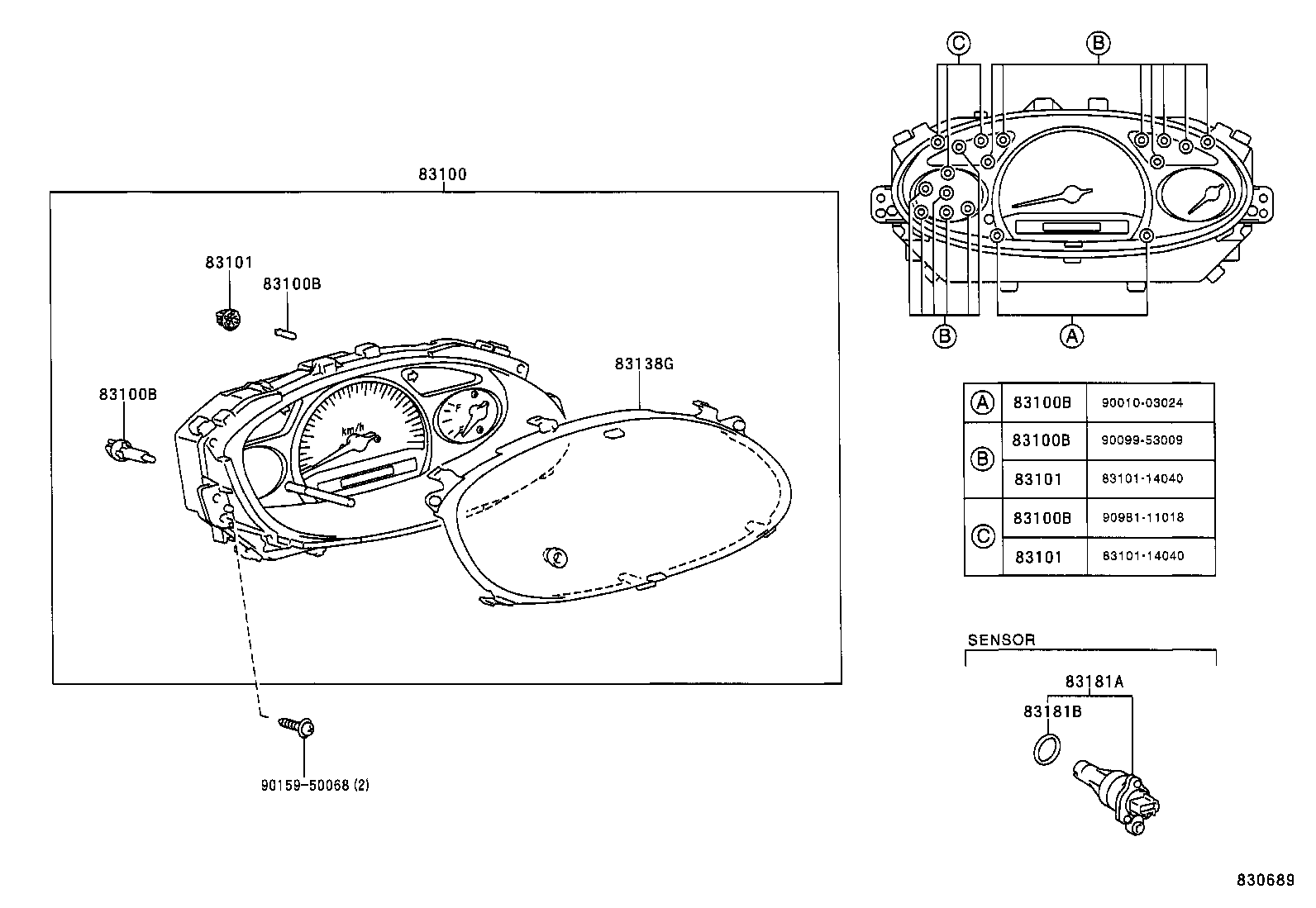

ILLUST NO. 1 OF 2(0101-0302)FRP
ANALOGUE METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-52540 |
SCP1#..5F ANALOGUE METER,KM/H OR W(POWER STERING) |
1 | ||
| 83800-0D010 |
SCP1#..LHD..(LUNA,TRSTD) DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D040 |
SCP1#..LHD..(LUNA,TRSTD) DIGITAL METER,KM/H |
1 | ||
| 83800-5C500 |
SCP1#..FRP..TRSTD..5F ANALOGUE METER,KM/H |
1 | ||
| 83800-0D360 |
SCP1#..FRP..LHD..TRSTD..5F DIGITAL METER,KM/H |
1 | ||
| 83800-52570 |
SCP1#..LHD..(LUNA,TRSTD) ANALOGUE METER |
1 | ||
| 83800-5C480 |
SCP1#..FRP..(SOL,TRSTD)..5F ANALOGUE METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-5C481 |
SCP1#..FRP..(SOL,TRSTD)..5F ANALOGUE METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D390 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D361 |
SCP1#..FRP..LHD..TRSTD..5F DIGITAL METER,KM/H |
1 | ||
| 83800-0D391 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-5C501 |
SCP1#..FRP..TRSTD..5F ANALOGUE METER,KM/H |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SCP1#..5F |
1 | ||
| 83101-14040 |
NLP10,SCP1#..FRP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SCP1#..5F |
1 | ||
| 83101-14040 |
NLP10,SCP1#..FRP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SCP1#..5F |
1 | ||
| 83101-14040 |
NLP10,SCP1#..FRP |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52040 |
SCP1#..5F ANALOGUE METER |
1 | ||
| 83852-52040 |
SCP1#..FRP..(SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83852-0D010 |
SCP1# DIGITAL METER |
1 | ||
| 83852-0D010 |
NLP10..FRP;SCP1#..FRP..RHD;SCP10..FRP..LHD..SOL..5FS;SCP1#..FRP..LHD..(TRSTD,TSGS) DIGITAL METER |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
SCP1# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
SCP1# |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
ILLUST NO. 1 OF 2(0101- )FRP..LHD
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-52540 |
SCP1#..5F ANALOGUE METER,KM/H OR W(POWER STERING) |
1 | ||
| 83800-0D010 |
SCP1#..LHD..(LUNA,TRSTD) DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D040 |
SCP1#..LHD..(LUNA,TRSTD) DIGITAL METER,KM/H |
1 | ||
| 83800-5C500 |
SCP1#..FRP..TRSTD..5F ANALOGUE METER,KM/H |
1 | ||
| 83800-0D360 |
SCP1#..FRP..LHD..TRSTD..5F DIGITAL METER,KM/H |
1 | ||
| 83800-52570 |
SCP1#..LHD..(LUNA,TRSTD) ANALOGUE METER |
1 | ||
| 83800-5C480 |
SCP1#..FRP..(SOL,TRSTD)..5F ANALOGUE METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-5C481 |
SCP1#..FRP..(SOL,TRSTD)..5F ANALOGUE METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D390 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D361 |
SCP1#..FRP..LHD..TRSTD..5F DIGITAL METER,KM/H |
1 | ||
| 83800-0D391 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-5C501 |
SCP1#..FRP..TRSTD..5F ANALOGUE METER,KM/H |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-0D020 |
NLP10..FRP;SCP1#..FRP..RHD;SCP10..FRP..LHD..SOL..5FS;SCP1#..FRP..LHD..(TRSTD,TSGS) |
1 | ||
| 83852-0D020 |
SCP1# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52040 |
SCP1#..5F ANALOGUE METER |
1 | ||
| 83852-52040 |
SCP1#..FRP..(SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83852-0D010 |
SCP1# DIGITAL METER |
1 | ||
| 83852-0D010 |
NLP10..FRP;SCP1#..FRP..RHD;SCP10..FRP..LHD..SOL..5FS;SCP1#..FRP..LHD..(TRSTD,TSGS) DIGITAL METER |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
SCP1# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
SCP1# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-0D010 |
SCP1#..LHD |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
ILLUST NO. 2 OF 2(0101- )FRP..LHD
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
SCP1#..LHD |
1 | ||
| 83910-20720 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 83911C - ORNAMENT, CLOCK | ||||
| 83911-52010B0 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 83911-52040B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17 |
1 | ||
| 83911-52010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| Common parts | ||||
| 93560-14014 | ||||
ILLUST NO. 1 OF 2(0302- )FRP
ANALOGUE METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-52540 |
SCP1#..5F ANALOGUE METER,KM/H OR W(POWER STERING) |
1 | ||
| 83800-0D010 |
SCP1#..LHD..(LUNA,TRSTD) DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D040 |
SCP1#..LHD..(LUNA,TRSTD) DIGITAL METER,KM/H |
1 | ||
| 83800-5C500 |
SCP1#..FRP..TRSTD..5F ANALOGUE METER,KM/H |
1 | ||
| 83800-0D360 |
SCP1#..FRP..LHD..TRSTD..5F DIGITAL METER,KM/H |
1 | ||
| 83800-52570 |
SCP1#..LHD..(LUNA,TRSTD) ANALOGUE METER |
1 | ||
| 83800-5C480 |
SCP1#..FRP..(SOL,TRSTD)..5F ANALOGUE METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-5C481 |
SCP1#..FRP..(SOL,TRSTD)..5F ANALOGUE METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D390 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-0D361 |
SCP1#..FRP..LHD..TRSTD..5F DIGITAL METER,KM/H |
1 | ||
| 83800-0D391 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) DIGITAL METER,KM/H & W(POWER STERING) |
1 | ||
| 83800-5C501 |
SCP1#..FRP..TRSTD..5F ANALOGUE METER,KM/H |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03024 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
SCP1#..5F 14V 1.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
SCP1#..FRP..(SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90011-03004 |
SCP1# 12V 1.12W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
SCP1#..5F 14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03031 |
SCP1#..FRP..(SOL,TRSTD)..5F 14V 2.0W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SCP1#..5F |
1 | ||
| 83101-14040 |
NLP10,SCP1#..FRP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SCP1#..5F |
1 | ||
| 83101-14040 |
NLP10,SCP1#..FRP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SCP1#..5F |
1 | ||
| 83101-14040 |
NLP10,SCP1#..FRP |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52040 |
SCP1#..5F ANALOGUE METER |
1 | ||
| 83852-52040 |
SCP1#..FRP..(SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83852-0D010 |
SCP1# DIGITAL METER |
1 | ||
| 83852-0D010 |
NLP10..FRP;SCP1#..FRP..RHD;SCP10..FRP..LHD..SOL..5FS;SCP1#..FRP..LHD..(TRSTD,TSGS) DIGITAL METER |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-5C040 |
SCP1#..FRP..(SOL,TRSTD)..5F |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-5C040 |
SCP1#..FRP..(SOL,TRSTD)..5F |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
