SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)
ILLUST NO. 1 OF 7(0101- )FRP..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0D040 |
SCP10..LHD W(ABS) |
1 | ||
| 82111-0D090 |
SCP10..LHD W(ABS & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-0D050 |
SCP10..LHD COLD SPEC & W(ABS) |
1 | ||
| 82111-0D060 |
SCP10..LHD COLD SPEC & W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0D070 |
SCP10..LHD COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT) |
1 | ||
| 82111-0D010 |
SCP1#..LHD..(LUNA,TRSTD) |
1 | ||
| 82111-0D080 |
SCP1#..LHD..5F W(MANUAL AIR CONDITIONER) |
1 | ||
| 82111-0D020 |
SCP10..LHD;SCP12..LHD..LUNA W(POWER STEERING) |
1 | ||
| 82111-0D071 |
SCP1#..LHD..5F COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT) |
1 | ||
| 82111-0D061 |
SCP1#..LHD..5F COLD SPEC & W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0D041 |
SCP1#..LHD..5F W(ABS) |
1 | ||
| 82111-0D091 |
SCP1#..LHD..5F W(ABS & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-0D410 |
SCP1#..FRP..LHD..TRSTD..5F PART NUMBER LABEL=82111-0D410 |
1 | ||
| 82111-0D480 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82111-0D480 |
1 | ||
| 82111-0D450 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82111-0D450 |
1 | ||
| 82111-0D430 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82111-0D430 |
1 | ||
| 82111-0D481 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82111-0D481 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
SCP1# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08274 |
SCP10..LHD 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
SCP1# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08280 |
SCP10 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
SCP1# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
SCP1# 50A,TERM.:FEMALE,RED,TAIHEIYO |
1 | ||
| 90982-08282 |
SCP1# 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 90982-08202 |
NLP10,SCP1#..FRP 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08280 |
NLP10,SCP1#..FRP 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08283 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08246 |
SCP10..RHD;SCP10..LHD..(LUNA,TRSTD) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08274 |
NLP10,SCP1#..FRP 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08284 |
NLP10,SCP1#..FRP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 90982-08285 |
NLP10,SCP1#..FRP 50A,TERM.:FEMALE,RED,TAIHEIYO |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||

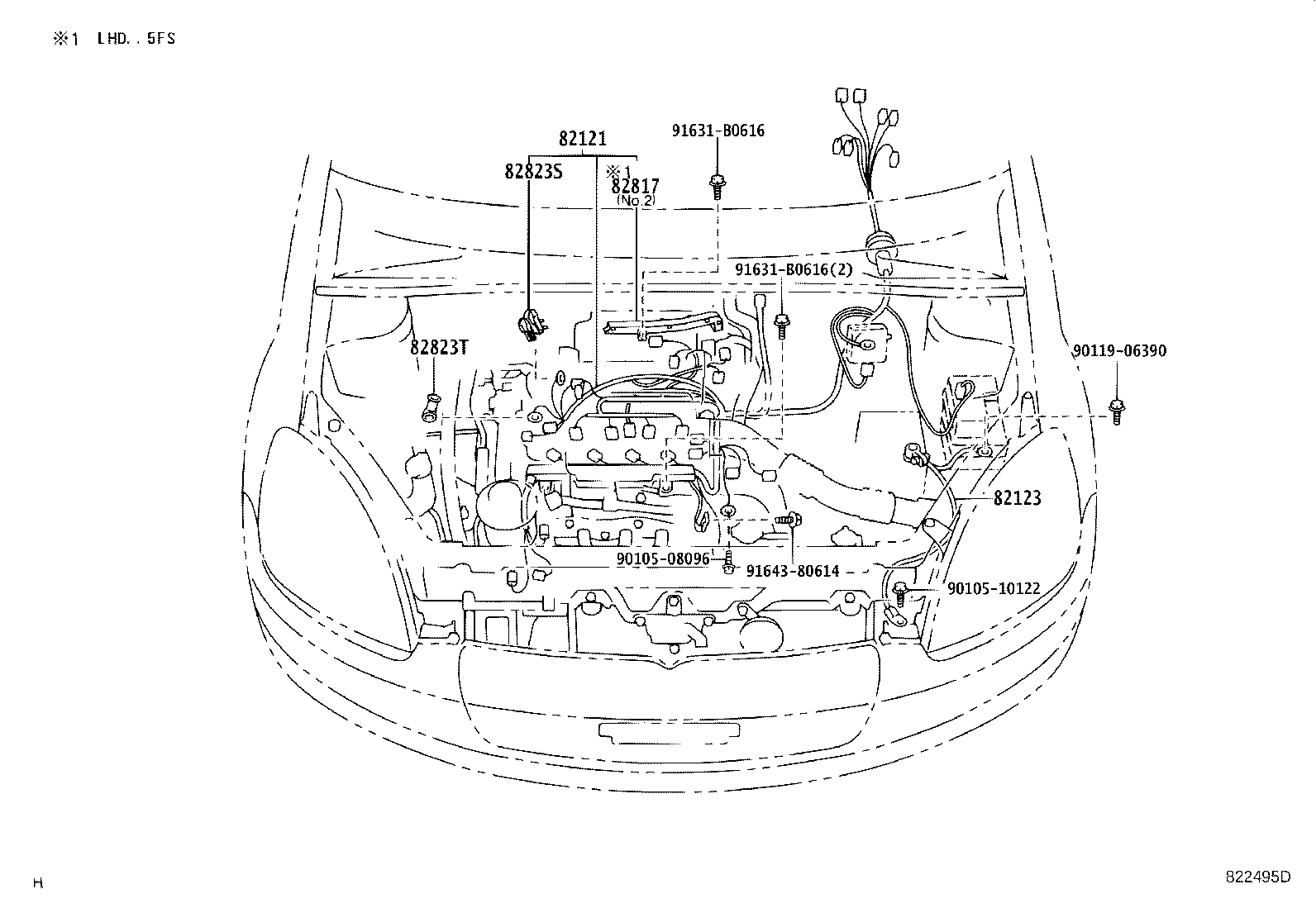

ILLUST NO. 2 OF 7(0101- )SCP1#..FRP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0D010 |
SCP10..LHD |
1 | ||
| 82121-0D030 |
SCP10..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 82121-0D031 |
SCP10..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 82121-0D011 |
SCP10..LHD |
1 | ||
| 82121-0D250 |
SCP10..FRP..LHD..(SOL,TRSTD)..5F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0D010 |
SCP1#..5F |
1 | ||
| 82123-0D090 |
SCP1#..FRP..MTM..(SOL,TRSTD) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16100 |
SCP1# |
1 | ||
| 82817-16100 |
SCP10..RHD;NLP10,SCP12;SCP10..LHD..5F |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
SCP1#..FRP |
1 | ||
| 82823-20080 |
SCP1# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NLP10,SCP1#..FRP |
1 | ||
| 82823-22050 |
SCP1# |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 91631-B0616 | ||||
| 91643-80614 | ||||
ILLUST NO. 3 OF 7(0101- )FRP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0D010 |
SCP10..LHD..(LUNA,TRSTD) W(ANALOGUE SPEEDOMETER) & W/O(POWER DOOR LOCK) |
1 | ||
| 82141-0D050 |
SCP10..LHD W(DIGITAL SPEED METER & POWER DOOR LOCK) |
1 | ||
| 82141-0D020 |
SCP10..LHD W(ANALOGUE SPEED METER & POWER DOOR LOCK) |
1 | ||
| 82141-0D070 |
SCP10..LHD W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-0D060 |
SCP10..LHD W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-0D040 |
SCP10..LHD..(LUNA,TRSTD) W(DIGITAL SPEEDOMETER) & W/O(POWER DOOR LOCK) |
1 | ||
| 82141-0D051 |
SCP1#..LHD W(DIGITAL SPEED METER & POWER DOOR LOCK) |
1 | ||
| 82141-0D041 |
SCP1#..LHD..(LUNA,TRSTD) W(DIGITAL SPEEDOMETER) & W/O(POWER DOOR LOCK) |
1 | ||
| 82141-0D470 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82141-0D470 |
1 | ||
| 82141-0D440 |
SCP1#..FRP..LHD..TRSTD..5F PART NUMBER LABEL=82141-0D440 |
1 | ||
| 82141-0D480 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) PART NUMBER LABEL=82141-0D480 |
1 | ||
| 82141-0D071 |
SCP1#..LHD W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-0D450 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) PART NUMBER LABEL=82141-0D450 |
1 | ||
| 82141-0D430 |
SCP10..FRP..LHD..TRSTD..5F PART NUMBER LABEL=82141-0D430 |
1 | ||
| 82141-0D030 |
SCP10..LHD..(LUNA,TRSTD) W(DIGITAL SPEEDOMETER) |
1 | ||
| 82141-0D011 |
SCP1#..LHD..(LUNA,TRSTD) W(ANALOGUE SPEEDOMETER) & W/O(POWER DOOR LOCK) |
1 | ||
| 82141-0D021 |
SCP1#..LHD..5F W(ANALOGUE SPEED METER & POWER DOOR LOCK) |
1 | ||
| 82141-0D061 |
SCP1#..LHD..5F W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-0D472 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82141-0D472 |
1 | ||
| 82141-0D481 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) PART NUMBER LABEL=82141-0D481 |
1 | ||
| 82141-0D482 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) PART NUMBER LABEL=82141-0D482 |
1 | ||
| 82141-0D431 |
SCP10..FRP..LHD..TRSTD..5F PART NUMBER LABEL=82141-0D431 |
1 | ||
| 82141-0D451 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) PART NUMBER LABEL=82141-0D451 |
1 | ||
| 82141-0D471 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82141-0D471 |
1 | ||
| 82141-0D420 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82141-0D420 |
1 | ||
| 82141-0D410 |
SCP1#..FRP..LHD..TRSTD..5F PART NUMBER LABEL=82141-0D410 |
1 | ||
| 82141-0DD30 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82141-0DD30 |
1 | ||
| 82141-0D432 |
SCP10..FRP..LHD..TRSTD..5F PART NUMBER LABEL=82141-0D432 |
1 | ||
| 82141-0DD40 |
SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F) PART NUMBER LABEL=82141-0DD40 |
1 | ||
| 82141-0D441 |
SCP1#..FRP..LHD..TRSTD..5F PART NUMBER LABEL=82141-0D441 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
SCP1# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08274 |
SCP10..LHD 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
SCP1# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08280 |
SCP10 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
SCP1# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
SCP1# 50A,TERM.:FEMALE,RED,TAIHEIYO |
1 | ||
| 90982-08282 |
SCP1# 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 90982-08202 |
NLP10,SCP1#..FRP 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08280 |
NLP10,SCP1#..FRP 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08283 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08246 |
SCP10..RHD;SCP10..LHD..(LUNA,TRSTD) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08274 |
NLP10,SCP1#..FRP 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08284 |
NLP10,SCP1#..FRP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
NLP10,SCP1#..FRP..(SOL,TRSTD) 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 90982-08285 |
NLP10,SCP1#..FRP 50A,TERM.:FEMALE,RED,TAIHEIYO |
1 | ||
| 82342 - WIRE, CLOCK | ||||
| 82342-52040 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 82342-52010 |
SCP1#..LHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0D020 |
SCP1# |
2 | ||
| 82666-0D020 |
NLP10,SCP1#..FRP |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0D020 |
SCP1# |
2 | ||
| 82666-0D020 |
NLP10,SCP1#..FRP |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-0D020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 7(0101- )FRP..LHD
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0D050 |
SCP1#..LHD..5D..(LUNA,TRSTD) W(ABS) OR W(POWER DOOR LOCK = DRIVER & PASSENGER) OR W(SEAT HEATER) |
1 | ||
| 82161-0D040 |
SCP1#..LHD..5D..(LUNA,TRSTD) |
1 | ||
| 82161-0D070 |
SCP1#..LHD..5D W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 82161-0D140 |
SCP1#..LHD..5D W(POWER WINDOW---FRONT & REAR & *80,DRIVER SIDE & PASSENGER SIDE & SIDE) |
1 | ||
| 82161-0D060 |
SCP10..LHD..5D W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82161-0D360 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD PART NUMBER LABEL=82161-0D360 |
1 | ||
| 82161-0D380 |
NLP10,SCP1#..FRP..LHD..5D PART NUMBER LABEL=82161-0D380 |
1 | ||
| 82161-0D390 |
NLP10,SCP1#..FRP..LHD..5D PART NUMBER LABEL=82161-0D390 |
1 | ||
| 82161-0D370 |
NLP10,SCP1#..FRP..LHD..5D PART NUMBER LABEL=82161-0D370 |
1 | ||
| 82161-0D400 |
NLP10,SCP1#..FRP..LHD..5D PART NUMBER LABEL=82161-0D400 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16100 |
SCP1# |
1 | ||
| 82817-16100 |
SCP10..RHD;NLP10,SCP12;SCP10..LHD..5F |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52020 |
SCP1# |
2 | ||
| 82817-52020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52020 |
SCP1# |
2 | ||
| 82817-52020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||

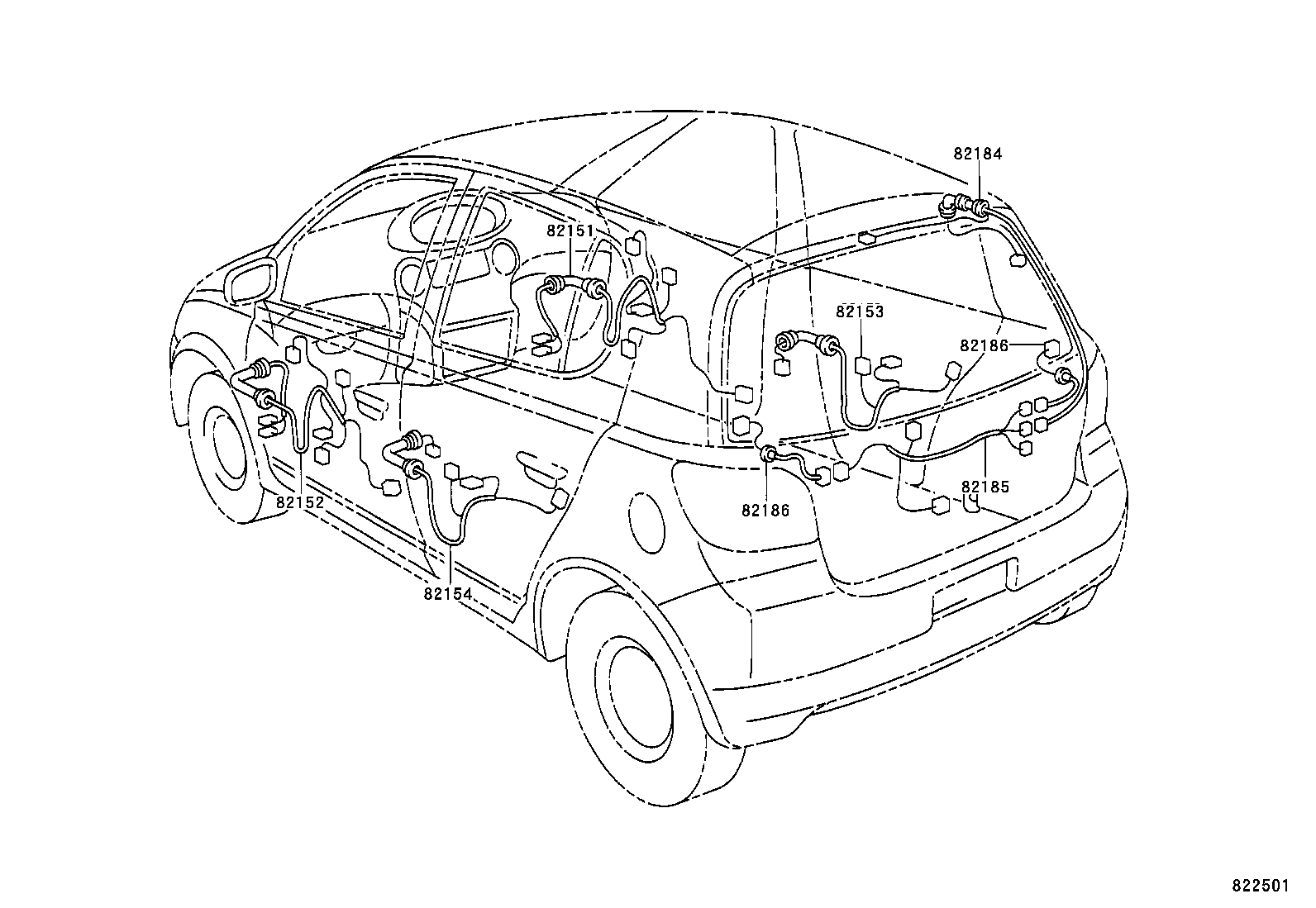

ILLUST NO. 5 OF 7(0101- )FRP..5D
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0D010 |
SCP1#..LUNA,TRSTD |
1 | ||
| 82151-0D130 |
SCP1#..5D..(LUNA,TRSTD) W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82151-0D180 |
SCP1#..LHD..5D W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82151-0D010 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 82151-0D180 |
NLP10..FRP..LHD..5D..TRSTD;SCP1#..FRP..LHD..5D..(4FC,5F);SCP10..FRP..LHD..5D..TRSTD..5FS W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82151-0D130 |
NLP10,SCP1#..FRP..5D..TRSTD W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0D010 |
SCP1#..LUNA,TRSTD |
1 | ||
| 82152-0D130 |
SCP1#..5D..(LUNA,TRSTD) W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82152-0D010 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 82152-0D180 |
SCP1#..LHD..5D W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 82152-0D130 |
NLP10,SCP1#..FRP..5D..TRSTD W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82152-0D170 |
SCP1#..LHD..5D W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82152-0D180 |
SCP10..FRP..LHD..5D..5F;SCP12..FRP..LHD..5D..SOL W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 82152-0D170 |
SCP10..FRP..LHD..5D..5F;SCP12..FRP..LHD..5D..SOL W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0D010 |
SCP1#..5D W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82153-0D030 |
SCP10..FRP..LHD..5D..5F;SCP12..FRP..LHD..5D..SOL W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 82153-0D030 |
SCP1#..LHD..5D W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 82153-0D010 |
SCP10..FRP..5D..5F;SCP12..FRP..5D..SOL W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0D010 |
SCP1#..5D W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82154-0D030 |
SCP10..FRP..LHD..5D..5F;SCP12..FRP..LHD..5D..SOL W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 82154-0D010 |
SCP10..FRP..5D..5F;SCP12..FRP..5D..SOL W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82154-0D030 |
SCP1#..LHD..5D W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0D010 |
SCP1#..LUNA,TRSTD |
1 | ||
| 82184-0D020 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(POWER DOOR LOCK) |
1 | ||
| 82184-0D020 |
SCP1# W(POWER DOOR LOCK) |
1 | ||
| 82184-0D030 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-0D010 |
SCP1#..LHD..(LUNA,TRSTD) |
1 | ||
| 82185-0D020 |
SCP1#..LHD W(POWER DOOR LOCK) |
1 | ||
| 82185-0D050 |
NLP10,SCP1#..FRP..LHD..(TRSTD,TSGS) |
1 | ||
| 82185-0D020 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F W(POWER DOOR LOCK) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-0D010 |
NLP10,SCP1#..FRP |
2 | ||
| 82186-0D010 |
SCP1# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-0D010 |
NLP10,SCP1#..FRP |
2 | ||
| 82186-0D010 |
SCP1# |
2 | ||
ILLUST NO. 6 OF 7(0101- )FRP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20870 | ||||
| 82711-2A530 | ||||
| 82711-2A720 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 82715-33140 | ||||
| 82715-52050 | ||||
| 82715-52090 | ||||
| 82715-52130 | ||||
| 82715-52180 | ||||
| 82715-52200 | ||||
| 82715-52210 | ||||
| 82715-52220 | ||||
| 82715-52230 | ||||
| 82715-52240 | ||||
| 82715-52370 | ||||
| 82715-52380 | ||||
| 82715-52390 | ||||
| 82715-52400 | ||||
| 82715-52410 | ||||
| 82715-52570 | ||||
| 82715-52580 | ||||
| 82715-52590 | ||||
| 82715-52600 | ||||
| 82715-52620 | ||||
| 82715-52780 | ||||
| 82715-52800 | ||||
| 90119-08589 | ||||
| 91511-80610 | ||||
| 91611-B0816 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91641-80610 | ||||
| 91641-C0614 | ||||
| 91651-60612 | ||||
| 91651-B0814 | ||||
ILLUST NO. 6 OF 7(0101- )FRP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0D040 |
SCP10..LHD W(ABS) |
1 | ||
| 82111-0D090 |
SCP10..LHD W(ABS & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-0D050 |
SCP10..LHD COLD SPEC & W(ABS) |
1 | ||
| 82111-0D060 |
SCP10..LHD COLD SPEC & W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0D070 |
SCP10..LHD COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT) |
1 | ||
| 82111-0D010 |
SCP1#..LHD..(LUNA,TRSTD) |
1 | ||
| 82111-0D080 |
SCP1#..LHD..5F W(MANUAL AIR CONDITIONER) |
1 | ||
| 82111-0D020 |
SCP10..LHD;SCP12..LHD..LUNA W(POWER STEERING) |
1 | ||
| 82111-0D071 |
SCP1#..LHD..5F COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT) |
1 | ||
| 82111-0D061 |
SCP1#..LHD..5F COLD SPEC & W(DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0D041 |
SCP1#..LHD..5F W(ABS) |
1 | ||
| 82111-0D091 |
SCP1#..LHD..5F W(ABS & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-0D410 |
SCP1#..FRP..LHD..TRSTD..5F PART NUMBER LABEL=82111-0D410 |
1 | ||
| 82111-0D480 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82111-0D480 |
1 | ||
| 82111-0D450 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82111-0D450 |
1 | ||
| 82111-0D430 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82111-0D430 |
1 | ||
| 82111-0D481 |
SCP1#..FRP..LHD..(SOL,TRSTD)..5F PART NUMBER LABEL=82111-0D481 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0D010 |
SCP1#..5F |
1 | ||
| 82123-0D090 |
SCP1#..FRP..MTM..(SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 82711-2A620 | ||||
| 82715-52060 | ||||
| 82715-52430 | ||||
| 82715-52440 | ||||
| 82715-52450 | ||||
| 82715-52470 | ||||
| 82715-52480 | ||||
| 82715-52670 | ||||
| 82715-52680 | ||||
| 82715-52690 | ||||
| 82715-52700 | ||||
| 82715-52710 | ||||
| 82715-52760 | ||||
| 82715-52770 | ||||
| 82715-52790 | ||||
| 82715-52850 | ||||
| 90469-12002 | ||||
| 91511-80610 | ||||
| 91611-B0816 | ||||
| 91621-60614 | ||||
| 91621-J0612 | ||||
| 91641-80610 | ||||
ILLUST NO. 7 OF 7(0101- )FRP
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52130 | ||||
| 90080-98001 | ||||
| 90080-98175 | ||||
| 90080-98298 | ||||
| 90980-10619 | ||||
| 90980-11096 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
