SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )SCP10..FRP..LHD..5F

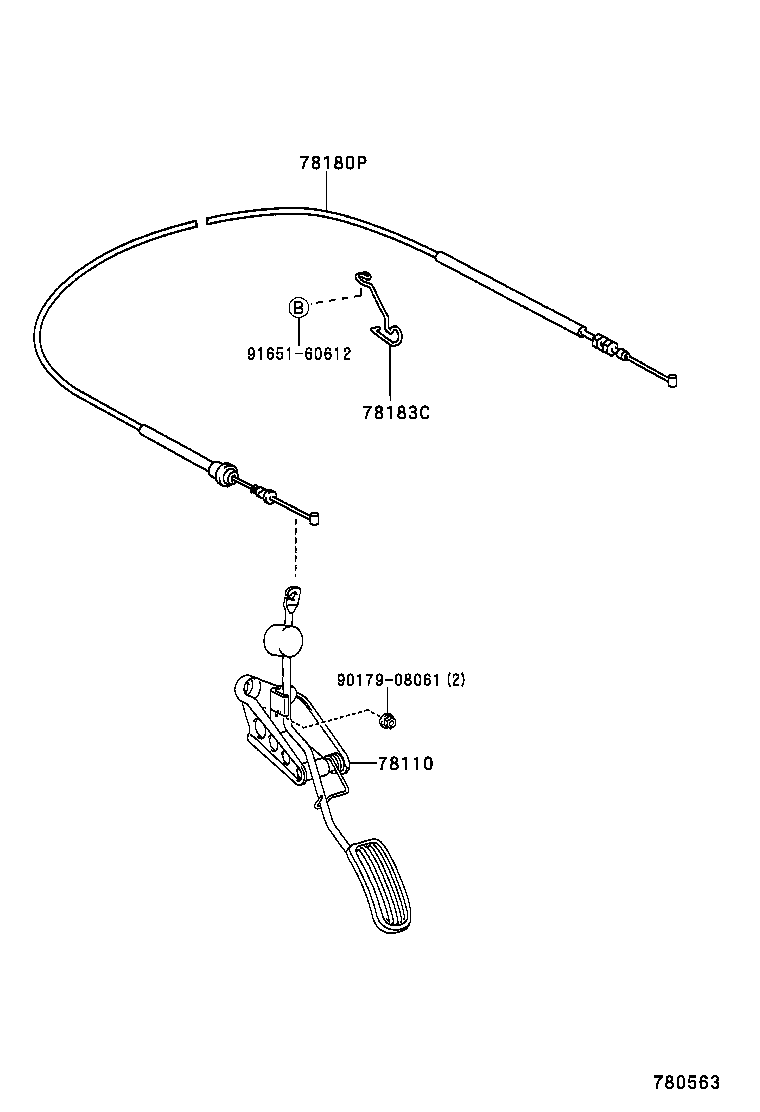

Click highlighted areas on diagram

diagram 78110 78180P 78183C 9017908061 9165160612
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-0D010

SCP10..LHD

 1
78120-0D010

SCP10..LHD..5F

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-0D010

SCP10..LHD

 1
78180-0D010

SCP10..LHD..5F

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-52090

SCP10..LHD

 1
78183-52090

SCP10..LHD..5F

 1
Common parts
90179-08061
91651-60612
