SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)

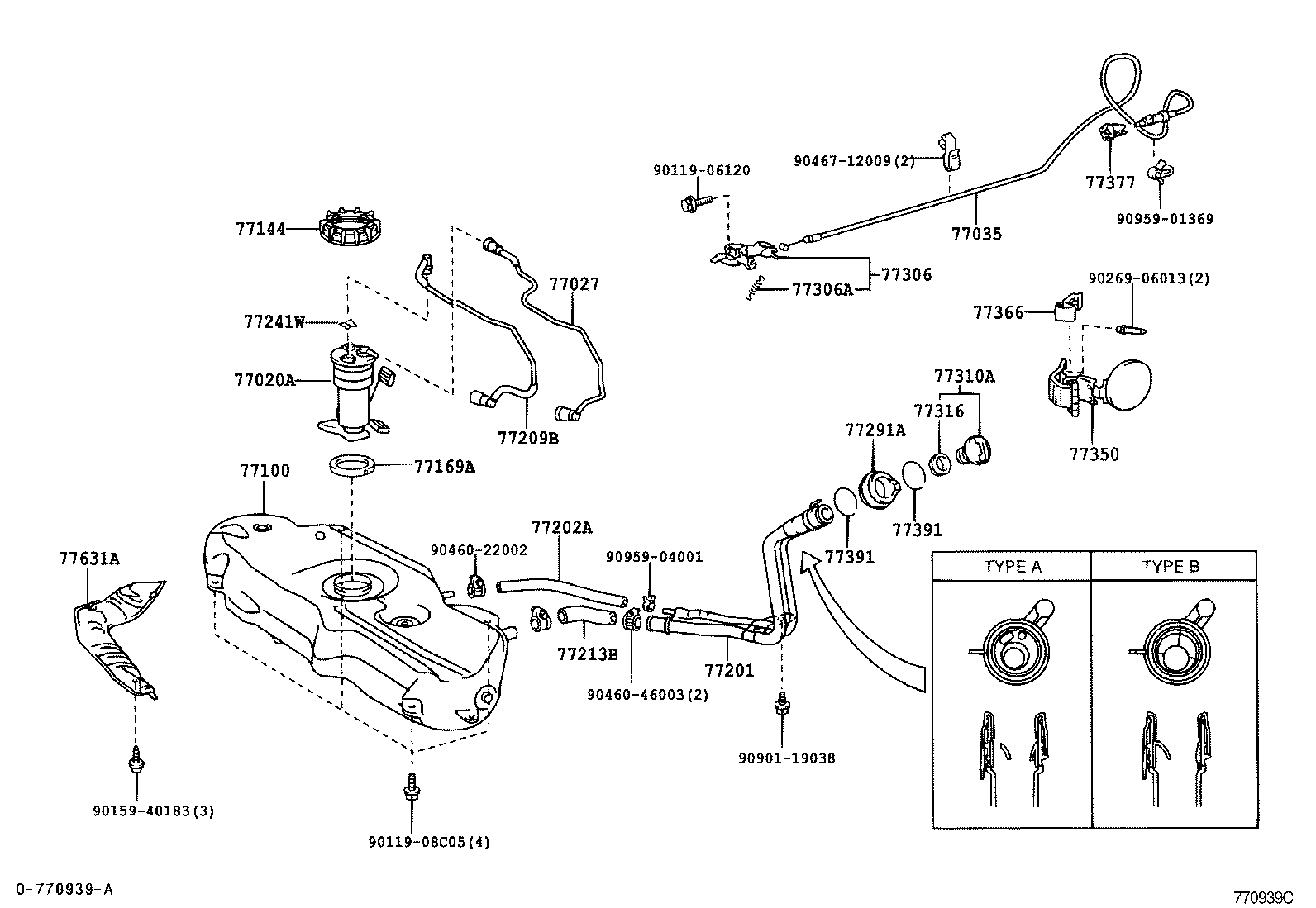

ILLUST NO. 1 OF 2(0101- )SCP1#..FRP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0D010 |
SCP1#..FRP PNC 77201 = TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77020-0D010 |
SCP1# PNC 77201 = TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77020-0D020 |
SCP1#..LHD INFERIOR GASOLINE SPEC = PNC 77201 = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77020-0D020 |
SCP1#..FRP..LHD..(SOL,TRSTD) INFERIOR GASOLINE SPEC = PNC 77201 = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-0D010 |
SCP1#..FRP |
1 | ||
| 77027-0D010 |
SCP1# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D010 |
SCP1#..LHD |
1 | ||
| 77035-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0D010 |
SCP1# |
1 | ||
| 77001-0D060 |
SCP1#..FRP..LHD..(SOL,TRSTD) INFERIOR GASOLINE SPEC |
1 | ||
| 77001-0D010 |
SCP1#..FRP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 77144-0D010 |
SCP1# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0D010 |
SCP1# |
1 | ||
| 77169-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0D010 |
SCP1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77201-0D020 |
SCP1#..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77201-0D010 |
SCP1#..FRP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77201-0D020 |
SCP1#..FRP..LHD..(SOL,TRSTD) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-0D010 |
SCP1# |
1 | ||
| 77259-0D010 |
SCP1#..FRP |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-0D010 |
SCP1# |
1 | ||
| 77209-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52050 |
SCP1#..FRP |
1 | ||
| 77213-52050 |
SCP1# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
SCP1#..FRP |
1 | ||
| 77241-32060 |
SCP1# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D010 |
SCP1# |
1 | ||
| 77291-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13030 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 77306-13030 |
SCP1#..LHD |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
SCP1# |
1 | ||
| 90506-09004 |
NLP10,SCP1#..FRP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
SCP1#..FRP |
1 | ||
| 77300-28010 |
SCP1# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
NLP10,SCP1#..FRP |
1 | ||
| 77316-16010 |
SCP1# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 77350-52010 |
SCP1# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 77366-52010 |
SCP1# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D010 |
SCP1# |
1 | ||
| 77377-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NLP10,SCP1#..FRP |
2 | ||
| 77391-12020 |
SCP1# |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NLP10,SCP1#..FRP |
2 | ||
| 77391-12020 |
SCP1# |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-0D010 |
SCP1# |
1 | ||
| 77631-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90119-08C05 | ||||
| 90159-40183 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-12009 | ||||
| 90901-19038 | ||||
| 90959-01369 | ||||
| 90959-04001 | ||||

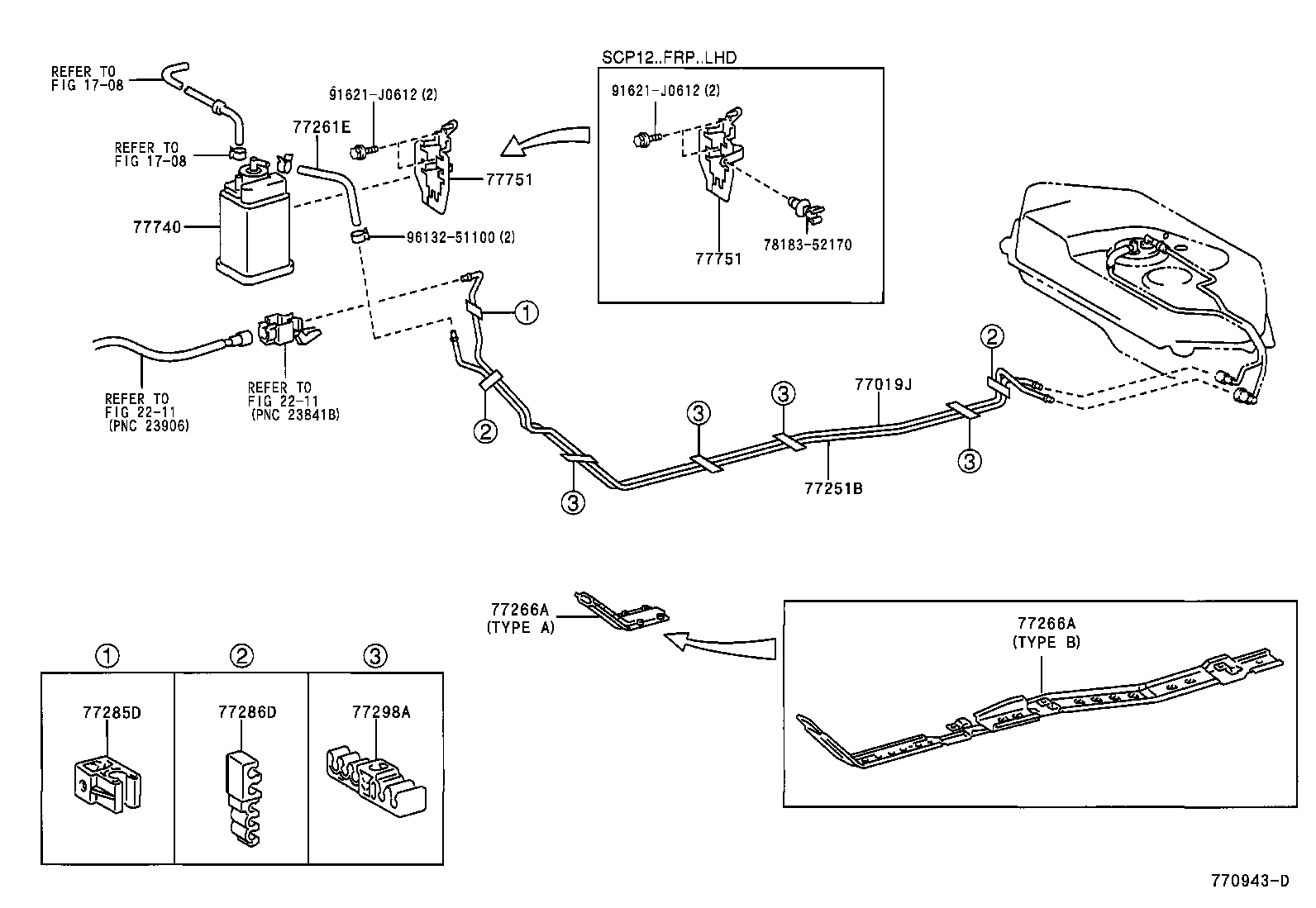

ILLUST NO. 2 OF 2(0101- )SCP1#..FRP
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77261-0D010 |
SCP1# |
1 | ||
| 77261-0D010 |
SCP1#..FRP |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0D010 |
SCP1#..FRP |
1 | ||
| 77251-0D010 |
SCP1# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
SCP1# *H,L=180 |
1 | ||
| 95333-06020 |
SCP1#..FRP *H,L=180 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52010 |
SCP1#..FRP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77266-52030 |
SCP1#..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77266-52030 |
SCP1#..FRP..LHD..(SOL,TRSTD) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77266-52010 |
SCP1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52010 |
SCP1#..FRP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77266-52030 |
SCP1#..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77266-52030 |
SCP1#..FRP..LHD..(SOL,TRSTD) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77266-52010 |
SCP1# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52010 |
SCP1# |
1 | ||
| 77285-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52010 |
SCP1# |
2 | ||
| 77286-52010 |
NLP10,SCP1#..FRP |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52010 |
NLP10,SCP1#..FRP |
4 | ||
| 77298-52010 |
SCP1# |
4 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0D011 |
SCP1#..FRP |
1 | ||
| 77740-0D012 |
SCP1#..FRP |
1 | ||
| 77740-0D010 |
SCP1# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-52040 |
SCP10;SCP12..RHD |
1 | ||
| 77751-52040 |
SCP10;SCP12..RHD |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-52040 |
SCP10;SCP12..RHD |
1 | ||
| 77751-52040 |
SCP10;SCP12..RHD |
1 | ||
| Common parts | ||||
| 78183-52170 | ||||
| 91621-J0612 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
