SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)
(0101-0302)FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

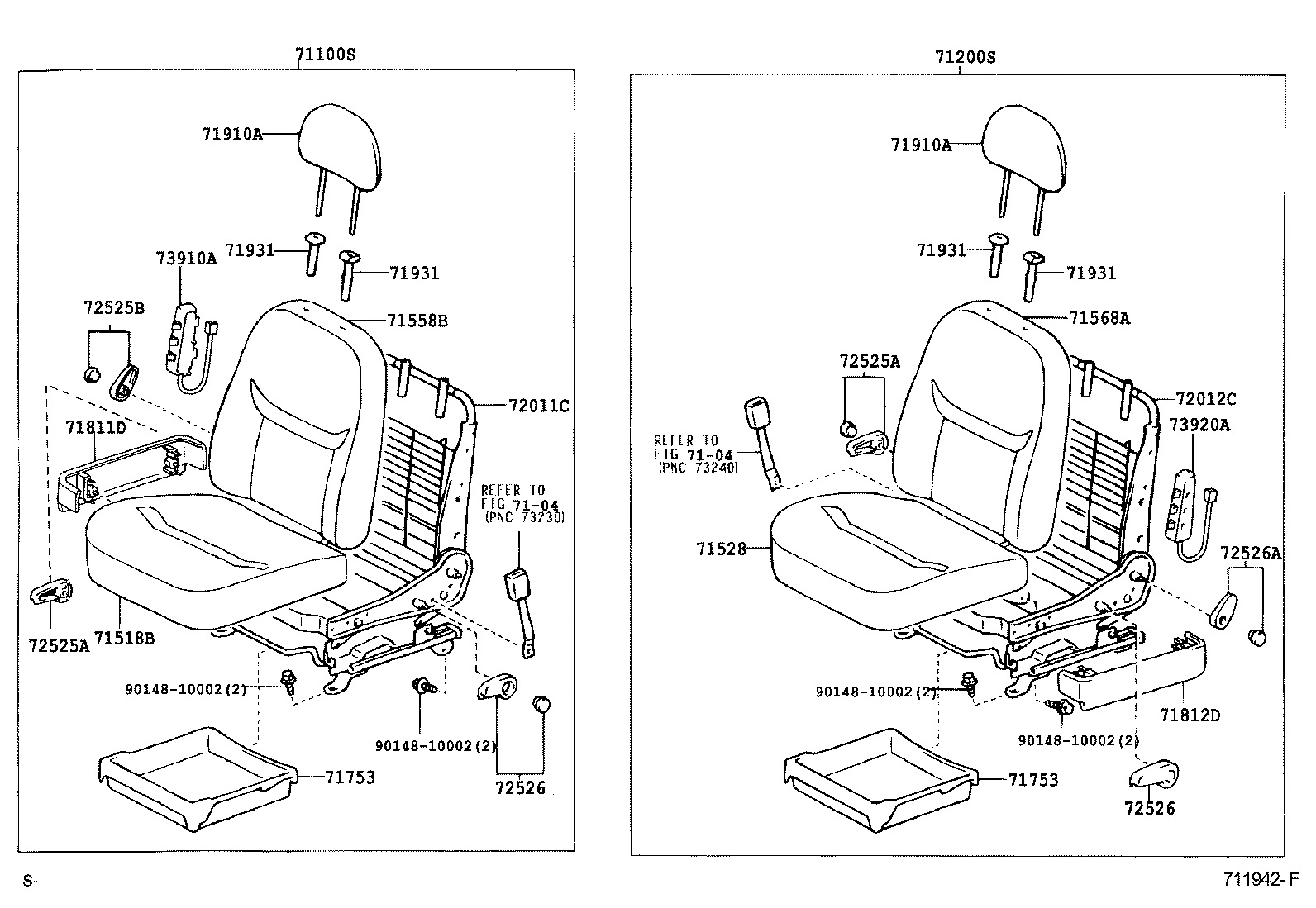

| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0D040B3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71100-0D140B3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71100-0D140H3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71100-0D040H3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71100-0D240B0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71100-0D210H0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71100-0D240H0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71100-0D210B0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0D010H3 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D010B3 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71200-0D020H3 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D020B3 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D130H3 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D130B3 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D140B3 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D140H3 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D290B0 |
SCP10..LHD..TRSTD SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D280B0 |
SCP10..LHD..TRSTD SEAT = TYPE D-*104 & W(SEAT HEATER),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D250H0 |
SCP10..LHD..TRSTD SEAT = TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D250B0 |
SCP10..LHD..TRSTD SEAT = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71200-0D320B0 |
SCP10..LHD..TRSTD SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D290H0 |
SCP10..LHD..TRSTD SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D320H0 |
SCP10..LHD..TRSTD SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D280H0 |
SCP10..LHD..TRSTD SEAT = TYPE D-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D020H3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D020B3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D010B3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 71200-0D010H3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D130B3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D140H3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D140B3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D130H3 |
SCP10..LHD..5D..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D280H0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D250H0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D250B0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 71200-0D320B0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D290H0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71200-0D290B0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D280B0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104 & W(SEAT HEATER),DARK GRAY,TRIM1# |
1 | ||
| 71200-0D320H0 |
SCP10..LHD..5D..TRSTD SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-0D011B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71518-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71518-0D011H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71518-0D060B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71518-0D010B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71518-0D080B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM10,11 |
1 | ||
| 71518-0D040J0 |
NLP10..FRP..LHD..TRSTD;SCP1#..FRP..5D..TRSTD..5F;SCP1#..FRP..LHD..3D..TRSTD..5F SEAT = TYPE C-*104,BLUE,TRIM18 |
1 | ||
| 71518-0D080J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM17 |
1 | ||
| 71518-0D040B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS SEAT = TYPE C-*104,DK. GRAY,TRIM19 |
1 | ||
| 71518-0D050J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F W(SEAT HEATER),BLUE,TRIM18 |
1 | ||
| 71518-0D050B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER),DK. GRAY,TRIM19 |
1 | ||
| 71518-0D060J0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM17 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-0D010B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71528-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71528-0D011B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71528-0D020H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71528-0D021H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71528-0D020B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71528-0D011H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71528-0D080B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71528-0D130J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),BLUE,TRIM18 |
1 | ||
| 71528-0D060J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104,BLUE,TRIM18 |
1 | ||
| 71528-0D100J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM17 |
1 | ||
| 71528-0D060B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS SEAT = TYPE C-*104,DK. GRAY,TRIM19 |
1 | ||
| 71528-0D021B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71528-0D080J0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM17 |
1 | ||
| 71528-0D100B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM10,11 |
1 | ||
| 71528-0D130B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM19 |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-0D010B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71558-0D020H0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71558-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71558-0D011H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71558-0D021H1 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71558-0D021B0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71558-0D020B0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71558-0D011B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71558-0D100B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM10,11 |
1 | ||
| 71558-0D100J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM17 |
1 | ||
| 71558-0D080B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71558-0D140J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM17 |
1 | ||
| 71558-0D140B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM10,11 |
1 | ||
| 71558-0D120B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SEAT HEATER),DK. GRAY,TRIM10,11 |
1 | ||
| 71558-0D120J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SEAT HEATER),DK. GRAY,TRIM17 |
1 | ||
| 71558-0D080J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104,DK. GRAY,TRIM17 |
1 | ||
| 71558-0D180J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F BLUE,TRIM10,11,17,18 |
1 | ||
| 71558-0D210J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F W(SRS AIR BAG),BLUE,TRIM18 |
1 | ||
| 71558-0D170B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM19 |
1 | ||
| 71558-0D170J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F W(SEAT HEATER & SRS SIDE AIR BAG),BLUE,TRIM18 |
1 | ||
| 71558-0D160J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F W(SEAT HEATER),BLUE,TRIM18 |
1 | ||
| 71558-0D160B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER),DK. GRAY,TRIM19 |
1 | ||
| 71558-0D180B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK. GRAY,TRIM19 |
1 | ||
| 71558-0D210B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SRS AIR BAG),DK. GRAY,TRIM19 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D040B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D010B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D040H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D020B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D030B0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D030H0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D020H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D011B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D021B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D031B0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D041H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D011H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D031H0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D021H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D041B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D130J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104,-,TRIM17 |
1 | ||
| 71568-0D130B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71568-0D150J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),-,TRIM17 |
1 | ||
| 71568-0D190J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),-,TRIM17 |
1 | ||
| 71568-0D170B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM10,11 |
1 | ||
| 71568-0D170J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),-,TRIM17 |
1 | ||
| 71568-0D190B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM10,11 |
1 | ||
| 71568-0D250J0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER & SRS SIDE AIR BAG),BLUE,TRIM18 |
1 | ||
| 71568-0D240J0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER),BLUE,TRIM18 |
1 | ||
| 71568-0D240B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER),DK. GRAY,TRIM19 |
1 | ||
| 71568-0D150B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM10,11 |
1 | ||
| 71568-0D250B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM19 |
1 | ||
| 71568-0D260B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK. GRAY,TRIM19 |
1 | ||
| 71568-0D260J0 |
NLP10,SCP1#..FRP..LHD..TRSTD BLUE,TRIM18 |
1 | ||
| 71568-0D270B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SRS SIDE AIR BAG),DK. GRAY,TRIM19 |
1 | ||
| 71568-0D270J0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SRS SIDE AIR BAG),BLUE,TRIM18 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D010 |
SCP1# |
1 | ||
| 71753-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D010 |
SCP1# |
1 | ||
| 71753-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D010B0 |
SCP10..LHD..SOL;SCP10..LUNA,TRSTD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-0D010H0 |
SCP10..LHD..SOL;SCP10..LUNA,TRSTD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71811-0D010B0 |
SCP1#..LHD..3D;SCP1#..LHD..5D..SOL;SCP1#..5D..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-0D010H0 |
SCP1#..LHD..3D;SCP1#..LHD..5D..SOL;SCP1#..5D..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71811-0D010B1 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 71811-0D010B1 |
NLP10,SCP1#..FRP..TRSTD..5F;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D010B0 |
SCP10..RHD;SCP10..LHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-0D010H0 |
SCP10..RHD;SCP10..LHD..3D..TRSTD;SCP10..LHD..5D..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-0D010B0 |
SCP10..RHD;SCP10..LHD..3D..TRSTD;SCP10..LHD..5D..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-0D010B1 |
NLP10,SCP1#..FRP..TRSTD..5F;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17 |
1 | ||
| 71812-0D010B1 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 71812-0D010H0 |
SCP10..RHD;SCP10..LHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-0D010B0 |
SCP1#..RHD;SCP1#..LHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-0D010H0 |
SCP1#..RHD;SCP1#..LHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-0D020B1 |
NLP10,SCP1#..FRP..LHD..TRSTD W(VERTICAL ADJUSTER=DRIVER SIDE),DK.GRAY,TRIM18,19 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D040B0 |
SCP10..TRSTD SEAT = TYPE D-*104,SHADOW GREY,TRIM1# |
2 | ||
| 71910-0D170B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A OR TYPE C-*104,DK. GRAY,TRIM10,11,17 |
2 | ||
| 71910-0D010B2 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-0D040H0 |
SCP10..TRSTD SEAT = TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D150J0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD BLUE,TRIM18 |
2 | ||
| 71910-0D150B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK. GRAY,TRIM19 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D040B0 |
SCP10..TRSTD SEAT = TYPE D-*104,SHADOW GREY,TRIM1# |
2 | ||
| 71910-0D170B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A OR TYPE C-*104,DK. GRAY,TRIM10,11,17 |
2 | ||
| 71910-0D010B2 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-0D040H0 |
SCP10..TRSTD SEAT = TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D150J0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD BLUE,TRIM18 |
2 | ||
| 71910-0D150B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK. GRAY,TRIM19 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-0D080 |
SCP10..LHD..5D W(SRS SIDE AIR BAG) |
1 | ||
| 72010-0D040 |
SCP10..LHD..5D..(SOL,TRSTD) |
1 | ||
| 72010-0D041 |
SCP1#..LHD..5D |
1 | ||
| 72010-0D200 |
NLP10,SCP1#..FRP..LHD..5D W(SEAT HEATER) |
1 | ||
| 72010-0D081 |
SCP1#..LHD..5D W(SRS SIDE AIR BAG) |
1 | ||
| 72010-0D190 |
NLP10,SCP1#..FRP..LHD..5D |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-0D010 |
SCP10..LHD..TRSTD |
1 | ||
| 72020-0D050 |
SCP10..LHD..TRSTD W(SRS SIDE AIR BAG) |
1 | ||
| 72020-0D011 |
SCP1#..LHD..5D..(LUNA,TRSTD) |
1 | ||
| 72020-0D051 |
SCP10..LHD..3D..TRSTD;SCP10..LHD..5D..(LUNA,TRSTD) W(SRS SIDE AIR BAG) |
1 | ||
| 72020-0D210 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD |
1 | ||
| 72020-0D220 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD W(SRS SIDE AIR BAG) |
1 | ||
| 72020-0D051 |
SCP1#..LHD..5D..(LUNA,TRSTD) W(SRS SIDE AIR BAG) |
1 | ||
| 72020-0D230 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD ACM PACKAGE |
1 | ||
| 72020-0D240 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD ACM PACKAGE & W(SRS SIDE AIR BAG) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D010B0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010H0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D010B0 |
SCP12;SCP10..RHD;SCP10..LHD..5D..SOL;SCP10..LHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D010H0 |
SCP1#..RHD;SCP1#..LHD..5D..SOL;SCP1#..LHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D010B0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010H0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D010B0 |
SCP12;SCP10..RHD;SCP10..LHD..5D..SOL;SCP10..LHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D010H0 |
SCP1#..RHD;SCP1#..LHD..5D..SOL;SCP1#..LHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D020H0 |
SCP1#..5D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D020H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D020B0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020B0 |
SCP1#..5D SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020H0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D010B1 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM1# |
1 | ||
| 72525-0D020B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010B1 |
NLP10,SCP1#..FRP..5D..TRSTD..5F;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D010B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72526-0D010B1 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD W(HEIGHT CONTROL),DK.GRAY,TRIM1# |
1 | ||
| 72526-0D010H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526-0D010B0 |
SCP1#..5D;SCP1#..LHD..3D SHADOW GRAY,TRIM1# |
1 | ||
| 72526-0D010H0 |
SCP1#..5D;SCP1#..LHD..3D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D010B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72526-0D010B1 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD W(HEIGHT CONTROL),DK.GRAY,TRIM1# |
1 | ||
| 72526-0D010H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526-0D010B0 |
SCP1#..5D;SCP1#..LHD..3D SHADOW GRAY,TRIM1# |
1 | ||
| 72526-0D010H0 |
SCP1#..5D;SCP1#..LHD..3D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-0D020B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D020H0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D020B0 |
SCP1#..5D SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020B0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020H0 |
SCP1#..5D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526-0D010B1 |
NLP10,SCP1#..FRP..5D..TRSTD..5F;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM1# |
1 | ||
| 72526-0D010B1 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 73910-0D010 |
SCP1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0D010 |
SCP1# |
1 | ||
| 73920-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 90148-10002 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0302-0511)FRP..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-0D011B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71518-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71518-0D011H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71518-0D060B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71518-0D010B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71518-0D080B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM10,11 |
1 | ||
| 71518-0D040J0 |
NLP10..FRP..LHD..TRSTD;SCP1#..FRP..5D..TRSTD..5F;SCP1#..FRP..LHD..3D..TRSTD..5F SEAT = TYPE C-*104,BLUE,TRIM18 |
1 | ||
| 71518-0D080J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM17 |
1 | ||
| 71518-0D040B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS SEAT = TYPE C-*104,DK. GRAY,TRIM19 |
1 | ||
| 71518-0D050J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F W(SEAT HEATER),BLUE,TRIM18 |
1 | ||
| 71518-0D050B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER),DK. GRAY,TRIM19 |
1 | ||
| 71518-0D060J0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM17 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-0D010B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71528-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71528-0D011B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71528-0D020H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71528-0D021H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71528-0D020B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71528-0D011H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71528-0D080B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71528-0D130J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),BLUE,TRIM18 |
1 | ||
| 71528-0D060J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104,BLUE,TRIM18 |
1 | ||
| 71528-0D100J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM17 |
1 | ||
| 71528-0D060B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS SEAT = TYPE C-*104,DK. GRAY,TRIM19 |
1 | ||
| 71528-0D021B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71528-0D080J0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM17 |
1 | ||
| 71528-0D100B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM10,11 |
1 | ||
| 71528-0D130B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM19 |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-0D010B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71558-0D020H0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71558-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71558-0D011H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71558-0D021H1 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71558-0D021B0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71558-0D020B0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71558-0D011B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71558-0D100B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM10,11 |
1 | ||
| 71558-0D100J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM17 |
1 | ||
| 71558-0D080B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71558-0D140J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM17 |
1 | ||
| 71558-0D140B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM10,11 |
1 | ||
| 71558-0D120B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SEAT HEATER),DK. GRAY,TRIM10,11 |
1 | ||
| 71558-0D120J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104 & W(SEAT HEATER),DK. GRAY,TRIM17 |
1 | ||
| 71558-0D080J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE A-*104,DK. GRAY,TRIM17 |
1 | ||
| 71558-0D180J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F BLUE,TRIM10,11,17,18 |
1 | ||
| 71558-0D210J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F W(SRS AIR BAG),BLUE,TRIM18 |
1 | ||
| 71558-0D170B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM19 |
1 | ||
| 71558-0D170J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F W(SEAT HEATER & SRS SIDE AIR BAG),BLUE,TRIM18 |
1 | ||
| 71558-0D160J0 |
NLP10,SCP1#..FRP..LHD..TRSTD..5F W(SEAT HEATER),BLUE,TRIM18 |
1 | ||
| 71558-0D160B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER),DK. GRAY,TRIM19 |
1 | ||
| 71558-0D180B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK. GRAY,TRIM19 |
1 | ||
| 71558-0D210B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SRS AIR BAG),DK. GRAY,TRIM19 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D040B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D010B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D040H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D020B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D030B0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D030H0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D020H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D011B0 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D021B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D031B0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D041H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D011H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D031H0 |
SCP10..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D021H0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-0D041B0 |
SCP10..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71568-0D130J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104,-,TRIM17 |
1 | ||
| 71568-0D130B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71568-0D150J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),-,TRIM17 |
1 | ||
| 71568-0D190J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),-,TRIM17 |
1 | ||
| 71568-0D170B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),DK. GRAY,TRIM10,11 |
1 | ||
| 71568-0D170J0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER),-,TRIM17 |
1 | ||
| 71568-0D190B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM10,11 |
1 | ||
| 71568-0D250J0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER & SRS SIDE AIR BAG),BLUE,TRIM18 |
1 | ||
| 71568-0D240J0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER),BLUE,TRIM18 |
1 | ||
| 71568-0D240B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER),DK. GRAY,TRIM19 |
1 | ||
| 71568-0D150B0 |
NLP10,SCP1#..FRP..LHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM10,11 |
1 | ||
| 71568-0D250B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM19 |
1 | ||
| 71568-0D260B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK. GRAY,TRIM19 |
1 | ||
| 71568-0D260J0 |
NLP10,SCP1#..FRP..LHD..TRSTD BLUE,TRIM18 |
1 | ||
| 71568-0D270B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SRS SIDE AIR BAG),DK. GRAY,TRIM19 |
1 | ||
| 71568-0D270J0 |
NLP10,SCP1#..FRP..LHD..TRSTD W(SRS SIDE AIR BAG),BLUE,TRIM18 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D010 |
SCP1# |
1 | ||
| 71753-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D010 |
SCP1# |
1 | ||
| 71753-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D010B0 |
SCP10..LHD..SOL;SCP10..LUNA,TRSTD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-0D010H0 |
SCP10..LHD..SOL;SCP10..LUNA,TRSTD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71811-0D010B0 |
SCP1#..LHD..3D;SCP1#..LHD..5D..SOL;SCP1#..5D..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-0D010H0 |
SCP1#..LHD..3D;SCP1#..LHD..5D..SOL;SCP1#..5D..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71811-0D010B1 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 71811-0D010B1 |
NLP10,SCP1#..FRP..TRSTD..5F;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D010B0 |
SCP10..RHD;SCP10..LHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-0D010H0 |
SCP10..RHD;SCP10..LHD..3D..TRSTD;SCP10..LHD..5D..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-0D010B0 |
SCP10..RHD;SCP10..LHD..3D..TRSTD;SCP10..LHD..5D..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-0D010B1 |
NLP10,SCP1#..FRP..TRSTD..5F;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17 |
1 | ||
| 71812-0D010B1 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 71812-0D010H0 |
SCP10..RHD;SCP10..LHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-0D010B0 |
SCP1#..RHD;SCP1#..LHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-0D010H0 |
SCP1#..RHD;SCP1#..LHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-0D020B1 |
NLP10,SCP1#..FRP..LHD..TRSTD W(VERTICAL ADJUSTER=DRIVER SIDE),DK.GRAY,TRIM18,19 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D040B0 |
SCP10..TRSTD SEAT = TYPE D-*104,SHADOW GREY,TRIM1# |
2 | ||
| 71910-0D170B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A OR TYPE C-*104,DK. GRAY,TRIM10,11,17 |
2 | ||
| 71910-0D010B2 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-0D040H0 |
SCP10..TRSTD SEAT = TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D150J0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD BLUE,TRIM18 |
2 | ||
| 71910-0D150B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK. GRAY,TRIM19 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D010H0 |
SCP10..TRSTD SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D040B0 |
SCP10..TRSTD SEAT = TYPE D-*104,SHADOW GREY,TRIM1# |
2 | ||
| 71910-0D170B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A OR TYPE C-*104,DK. GRAY,TRIM10,11,17 |
2 | ||
| 71910-0D010B2 |
SCP10..TRSTD SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-0D040H0 |
SCP10..TRSTD SEAT = TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-0D150J0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD BLUE,TRIM18 |
2 | ||
| 71910-0D150B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK. GRAY,TRIM19 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0D010B0 |
SCP1# W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-0D010H0 |
SCP1# W/O(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B0 |
SCP1# W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
SCP10..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010H0 |
SCP1# W(LOCK),FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-0D080 |
SCP10..LHD..5D W(SRS SIDE AIR BAG) |
1 | ||
| 72010-0D040 |
SCP10..LHD..5D..(SOL,TRSTD) |
1 | ||
| 72010-0D041 |
SCP1#..LHD..5D |
1 | ||
| 72010-0D200 |
NLP10,SCP1#..FRP..LHD..5D W(SEAT HEATER) |
1 | ||
| 72010-0D081 |
SCP1#..LHD..5D W(SRS SIDE AIR BAG) |
1 | ||
| 72010-0D190 |
NLP10,SCP1#..FRP..LHD..5D |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-0D010 |
SCP10..LHD..TRSTD |
1 | ||
| 72020-0D050 |
SCP10..LHD..TRSTD W(SRS SIDE AIR BAG) |
1 | ||
| 72020-0D011 |
SCP1#..LHD..5D..(LUNA,TRSTD) |
1 | ||
| 72020-0D051 |
SCP10..LHD..3D..TRSTD;SCP10..LHD..5D..(LUNA,TRSTD) W(SRS SIDE AIR BAG) |
1 | ||
| 72020-0D210 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD |
1 | ||
| 72020-0D220 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD W(SRS SIDE AIR BAG) |
1 | ||
| 72020-0D051 |
SCP1#..LHD..5D..(LUNA,TRSTD) W(SRS SIDE AIR BAG) |
1 | ||
| 72020-0D230 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD ACM PACKAGE |
1 | ||
| 72020-0D240 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD ACM PACKAGE & W(SRS SIDE AIR BAG) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D010B0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010H0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D010B0 |
SCP12;SCP10..RHD;SCP10..LHD..5D..SOL;SCP10..LHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D010H0 |
SCP1#..RHD;SCP1#..LHD..5D..SOL;SCP1#..LHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D020H0 |
SCP1#..5D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D020H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D020B0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020B0 |
SCP1#..5D SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020H0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D010B1 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM1# |
1 | ||
| 72525-0D020B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D010B1 |
NLP10,SCP1#..FRP..5D..TRSTD..5F;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D010B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72526-0D010B1 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD W(HEIGHT CONTROL),DK.GRAY,TRIM1# |
1 | ||
| 72526-0D010H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526-0D010B0 |
SCP1#..5D;SCP1#..LHD..3D SHADOW GRAY,TRIM1# |
1 | ||
| 72526-0D010H0 |
SCP1#..5D;SCP1#..LHD..3D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-0D020B0 |
SCP10 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020H0 |
SCP10 FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D020H0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-0D020B0 |
SCP1#..5D SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020B0 |
SCP10..RHD;SCP10..LHD..5D;SCP10..LHD..3D..TRSTD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-0D020H0 |
SCP1#..5D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526-0D010B1 |
NLP10,SCP1#..FRP..5D..TRSTD..5F;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM1# |
1 | ||
| 72526-0D010B1 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 73910-0D010 |
SCP1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0D010 |
SCP1# |
1 | ||
| 73920-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 90148-10002 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
