SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP..5D

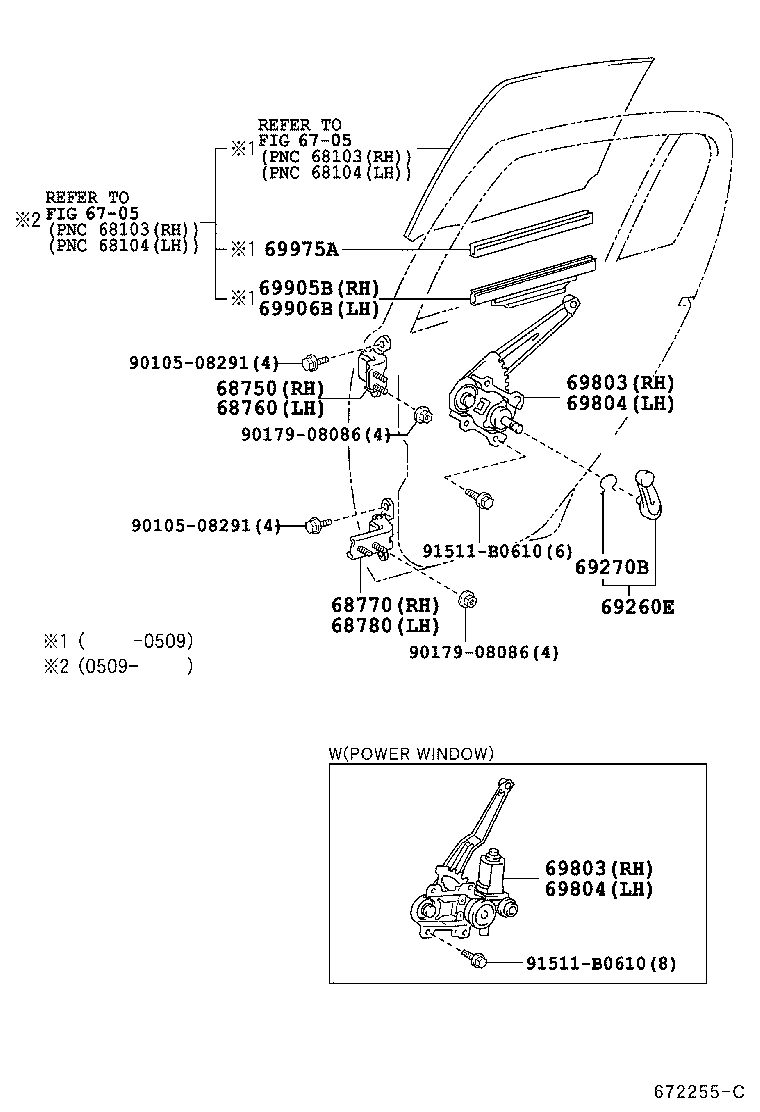

Click highlighted areas on diagram

diagram 6705 6705 68750 68760 68770 68780 69260E 69270B 69803 69803 69804 69804 69905B 69906B 69975A 9010508291 9010508291 9017908086 9017908086 91511B0610 91511B0610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-0D010

SCP1#..5D

 1
68750-0D010

NLP10,SCP1#..FRP..5D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-0D010

SCP1#..5D

 1
68760-0D010

NLP10,SCP1#..FRP..5D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-0D010

NLP10,SCP1#..FRP..5D

 1
68770-0D010

SCP1#..5D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-0D010

NLP10,SCP1#..FRP..5D

 1
68780-0D010

SCP1#..5D

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-0D010B3

NLP10,SCP1#..FRP..5D..TRSTD

DK.GRAY,TRIM10,17

 2
69260-0D010B2

SCP1#..5D

SHADOW GRAY,TRIM1#

 2
69260-0D010H0

SCP1#..5D

FRENCH TURQUOISE,TRIM7#

 2
69260-0D010B3

SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS

DK.GRAY,TRIM10,11,17,18,19

 2
69260-0D010B4

NLP10,SCP1#..FRP..5D..TRSTD

MD.GRAY,TRIM11

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90524-15005

SCP1#..5D

 2
90524-15005

NLP10,SCP1#..FRP..5D

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-0D020

SCP1#..5D

 1
69830-0D010

SCP1#..LHD..5D

W(POWER WINDOW)

 1
69830-0D020

NLP10,SCP1#..FRP..5D

 1
69830-0D010

NLP10,SCP1#..FRP..LHD..5D

W(POWER WINDOW)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-0D020

SCP1#..5D

 1
69830-0D010

SCP1#..LHD..5D

W(POWER WINDOW)

 1
69830-0D020

NLP10,SCP1#..FRP..5D

 1
69830-0D010

NLP10,SCP1#..FRP..LHD..5D

W(POWER WINDOW)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-0D010

SCP1#..5D

 1
69840-0D020

SCP1#..LHD..5D

W(POWER WINDOW)

 1
69840-0D010

NLP10,SCP1#..FRP..5D

 1
69840-0D020

NLP10,SCP1#..FRP..LHD..5D

W(POWER WINDOW)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-0D010

SCP1#..5D

 1
69840-0D020

SCP1#..LHD..5D

W(POWER WINDOW)

 1
69840-0D010

NLP10,SCP1#..FRP..5D

 1
69840-0D020

NLP10,SCP1#..FRP..LHD..5D

W(POWER WINDOW)

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-0D010

NLP10,SCP1#..FRP..5D

 1
69905-0D010

SCP1#..5D

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-0D010

NLP10,SCP1#..FRP..5D

 1
69906-0D010

SCP1#..5D

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

NLP10,SCP1#..FRP..5D

 2
69975-52010

SCP1#..5D

 2
Common parts
90105-08291
90179-08086
91511-B0610
Linked diagrams
6705
