SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)
(0101- )FRP..5D

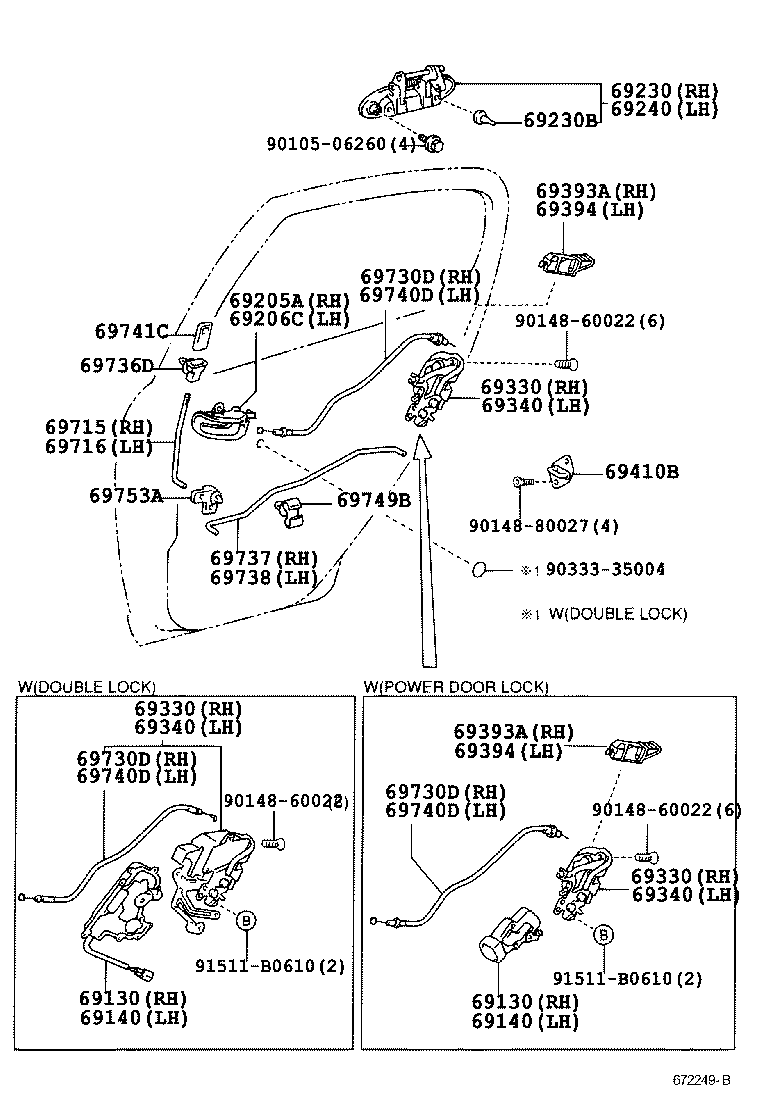

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-0D010 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69130-0D010 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69130-0D011 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-0D010 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69130-0D010 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69130-0D011 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-0D010 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69140-0D010 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69140-0D011 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-0D010 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69140-0D010 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69140-0D011 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-0D060B1 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 69205-0D010B1 |
SCP1#..5D SHADOW GRAY,TRIM1# |
1 | ||
| 69205-0D030B2 |
NLP10,SCP1#..FRP..5D..TRSTD SILVER PAINTED,SILVER,TRIM10,11,17 |
1 | ||
| 69205-0D010H0 |
SCP1#..5D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-0D030B2 |
NLP10,SCP1#..FRP..5D..TRSTD SILVER PAINTED,SILVER,TRIM10,11,17 |
1 | ||
| 69206-0D010B1 |
SCP1#..5D SHADOW GRAY,TRIM1# |
1 | ||
| 69206-0D010H0 |
SCP1#..5D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 69206-0D060B1 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-0D010 |
SCP10..5D..TRSTD NO PAINT REQ. |
1 | ||
| 69230-0D020C0 |
SCP1#..5D BLACK MC.,209 |
1 | ||
| 69230-0D020D1 |
SCP1#..5D RED M.M.,3P1 |
1 | ||
| 69230-0D020D0 |
SCP1#..5D SUPER RED 5,3P0 |
1 | ||
| 69230-0D020G1 |
SCP1#..5D DARK GREEN MC.,6R4 |
1 | ||
| 69230-0D020J1 |
SCP1#..5D DK.BLUE MC.,8P4 |
1 | ||
| 69230-0D010 |
NLP10,SCP1#..FRP..5D..TRSTD NO PAINT REQ. |
1 | ||
| 69230-0D020B0 |
SCP1#..5D SILVER ME.,199 |
1 | ||
| 69230-0D900 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69230-0D020F0 |
SCP1#..5D YELLOW M.M.,580 |
1 | ||
| 69230-0D020J0 |
SCP1#..5D STRONG BLUE M.,8B6 |
1 | ||
| 69230-0D020A0 |
SCP1#..5D WHITE,068 |
1 | ||
| 69230-0D020G0 |
SCP1#..5D LT.GREEN MC.,6Q2 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90080-54028 |
NLP10,SCP1#..FRP..5D |
4 | ||
| 90080-54028 |
SCP1#..5D |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-0D020A0 |
SCP1#..5D WHITE,068 |
1 | ||
| 69240-0D020B0 |
SCP1#..5D SILVER ME.,199 |
1 | ||
| 69240-0D010 |
SCP10..5D..TRSTD BLACK |
1 | ||
| 69240-0D020G1 |
SCP1#..5D DARK GREEN MC.,6R4 |
1 | ||
| 69240-0D020F0 |
SCP1#..5D YELLOW M.M.,580 |
1 | ||
| 69240-0D020D0 |
SCP1#..5D SUPER RED 5,3P0 |
1 | ||
| 69240-0D900 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69240-0D010 |
NLP10,SCP1#..FRP..5D..TRSTD BLACK |
1 | ||
| 69240-0D020D1 |
SCP1#..5D RED M.M.,3P1 |
1 | ||
| 69240-0D020J0 |
SCP1#..5D STRONG BLUE M.,8B6 |
1 | ||
| 69240-0D020C0 |
SCP1#..5D BLACK MC.,209 |
1 | ||
| 69240-0D020G0 |
SCP1#..5D LT.GREEN MC.,6Q2 |
1 | ||
| 69240-0D020J1 |
SCP1#..5D DK.BLUE MC.,8P4 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-0D011 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69330-0D020 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69330-0D021 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69330-0D010 |
SCP1#..5D..(LUNA,TRSTD) |
1 | ||
| 69330-0D010 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69330-0D020 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-0D011 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69330-0D020 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69330-0D021 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69330-0D010 |
SCP1#..5D..(LUNA,TRSTD) |
1 | ||
| 69330-0D010 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69330-0D020 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-0D011 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69330-0D020 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69330-0D021 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69330-0D010 |
SCP1#..5D..(LUNA,TRSTD) |
1 | ||
| 69330-0D010 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69330-0D020 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-0D010 |
SCP1#..5D..(LUNA,TRSTD) |
1 | ||
| 69340-0D020 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69340-0D011 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69340-0D020 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69340-0D010 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69340-0D021 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-0D010 |
SCP1#..5D..(LUNA,TRSTD) |
1 | ||
| 69340-0D020 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69340-0D011 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69340-0D020 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69340-0D010 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69340-0D021 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-0D010 |
SCP1#..5D..(LUNA,TRSTD) |
1 | ||
| 69340-0D020 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 69340-0D011 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69340-0D020 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69340-0D010 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 69340-0D021 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 69393A - COVER, REAR DOOR LOCK, OUTER RH | ||||
| 69393-0D010 |
SCP1#..5D |
1 | ||
| 69393-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69393A - COVER, REAR DOOR LOCK, OUTER RH | ||||
| 69393-0D010 |
SCP1#..5D |
1 | ||
| 69393-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69394 - COVER, REAR DOOR LOCK, OUTER LH | ||||
| 69394-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69394-0D010 |
SCP1#..5D |
1 | ||
| 69394 - COVER, REAR DOOR LOCK, OUTER LH | ||||
| 69394-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69394-0D010 |
SCP1#..5D |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-0D010 |
SCP1#..5D |
2 | ||
| 69410-0D010 |
NLP10,SCP1#..FRP..5D |
2 | ||
| 69715 - LINK, REAR DOOR LOCKING CONTROL, NO.2 RH | ||||
| 69715-0D010 |
SCP1#..5D |
1 | ||
| 69715-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69716 - LINK, REAR DOOR LOCKING CONTROL, NO.2 LH | ||||
| 69716-0D010 |
SCP1#..5D |
1 | ||
| 69716-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69730-0D010 |
SCP1#..5D |
1 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69730-0D010 |
SCP1#..5D |
1 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69730-0D010 |
SCP1#..5D |
1 | ||
| 69736D - GUIDE, REAR DOOR LOCKING LINK | ||||
| 69736-12130 |
SCP1#..5D |
2 | ||
| 69736-12130 |
NLP10,SCP1#..FRP..5D |
2 | ||
| 69737 - LINK, REAR DOOR INSIDE LOCKING, RH | ||||
| 69737-0D010 |
SCP1#..5D |
1 | ||
| 69737-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69738 - LINK, REAR DOOR INSIDE LOCKING, LH | ||||
| 69738-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69738-0D010 |
SCP1#..5D |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-0D010 |
SCP1#..5D |
1 | ||
| 69730-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-0D010 |
SCP1#..5D |
1 | ||
| 69730-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-0D010 |
SCP1#..5D |
1 | ||
| 69730-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-87003P0 |
SCP1#..5D SHADOW GRAY,TRIM1# |
2 | ||
| 69741-87003B8 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
2 | ||
| 69741-87003H0 |
SCP1#..5D FRENCH TURQUOISE,TRIM7# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32040 |
NLP10,SCP1#..FRP..5D |
2 | ||
| 69749-32040 |
SCP1#..5D |
2 | ||
| 69753A - BELLCRANK, DOOR LOCK CONTROL | ||||
| 69753-10010 |
SCP1#..5D |
2 | ||
| 69753-10010 |
NLP10,SCP1#..FRP..5D |
2 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90333-35004 | ||||
| 91511-B0610 | ||||
