SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)

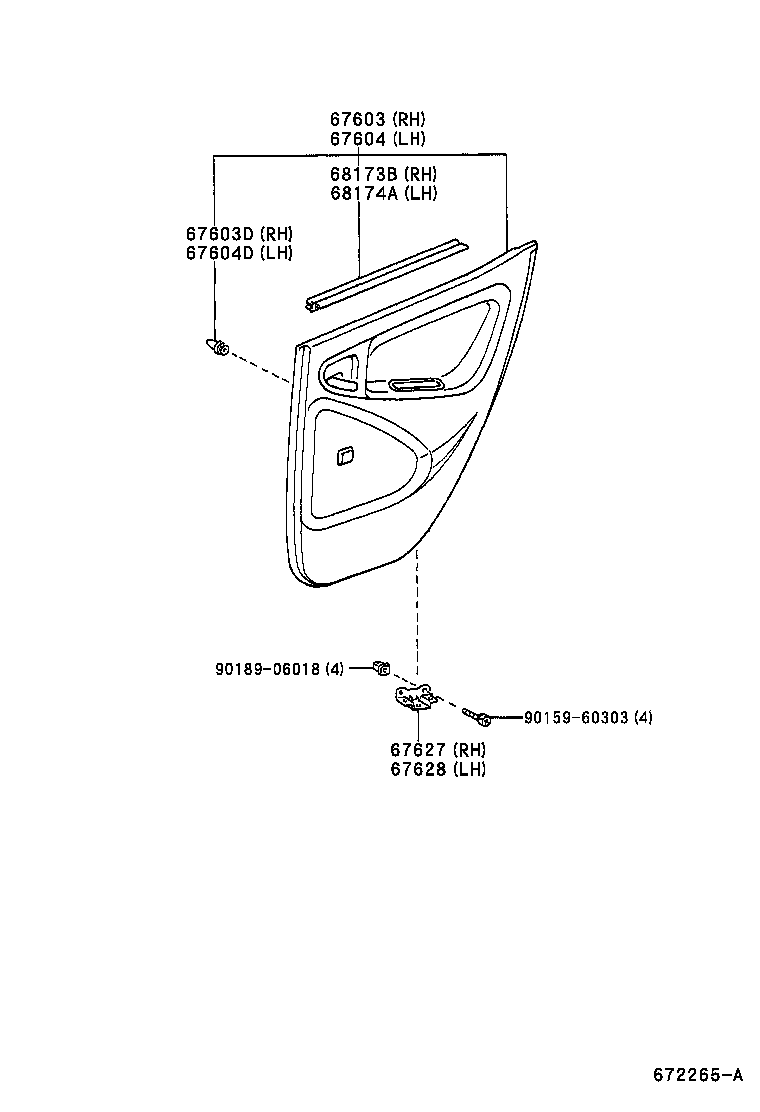

ILLUST NO. 1 OF 2(0101- )FRP..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0D040H0 |
SCP10..LHD..5D..TRSTD DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67630-0D010B1 |
SCP10..5D..TRSTD DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 67630-0D070B0 |
SCP10..5D..TRSTD DOOR TRIM=TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 67630-0D080H0 |
SCP10..LHD..5D..TRSTD DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67630-0D070H0 |
SCP10..5D..TRSTD DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67630-0D010H0 |
SCP10..5D..TRSTD DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67630-0D080B0 |
SCP10..LHD..5D..TRSTD DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),DARK GRAY,TRIM1# |
1 | ||
| 67630-0D230B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17,18 |
1 | ||
| 67630-0D040B1 |
SCP10..LHD..5D..TRSTD DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1# |
1 | ||
| 67630-0D320B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM18,19 |
1 | ||
| 67630-0D330B0 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD..5F DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM18,19 |
1 | ||
| 67630-0D240B0 |
SCP10..FRP..LHD..5D..TRSTD..5F DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,11,17 |
1 | ||
| 67630-0D330B2 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD DK.GRAY,TRIM19 |
1 | ||
| 67630-0D320B2 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM19 |
1 | ||
| 67630-0D230B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17 |
1 | ||
| 67630-0D330B0 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD DK.GRAY,TRIM18 |
1 | ||
| 67630-0D230B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17 |
1 | ||
| 67630-0D320B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM18 |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-35010 |
NLP10,SCP1#..FRP..5D |
7 | ||
| 67771-35010 |
SCP1#..5D |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0D040B1 |
SCP10..LHD..5D..TRSTD DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1# |
1 | ||
| 67640-0D040H0 |
SCP10..LHD..5D..TRSTD DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67640-0D070H0 |
SCP10..5D..TRSTD DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67640-0D070B0 |
SCP10..5D..TRSTD DOOR TRIM=TYPE D-*104,DARK GRAY,TRIM1# |
1 | ||
| 67640-0D010H0 |
SCP10..5D..TRSTD DOOR TRIM=TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67640-0D080H0 |
SCP10..LHD..5D..TRSTD DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67640-0D230B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17 |
1 | ||
| 67640-0D010B1 |
SCP10..5D..TRSTD DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 67640-0D080B0 |
SCP10..LHD..5D..TRSTD DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),DARK GRAY,TRIM1# |
1 | ||
| 67640-0D310B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM18,19 |
1 | ||
| 67640-0D310B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM18 |
1 | ||
| 67640-0D230B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17 |
1 | ||
| 67640-0D320B0 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD..5F DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM18,19 |
1 | ||
| 67640-0D230B0 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM10,11,17 |
1 | ||
| 67640-0D240B0 |
SCP10..FRP..LHD..5D..TRSTD..5F DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM10,11,17 |
1 | ||
| 67640-0D310B2 |
SCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM19 |
1 | ||
| 67640-0D320B2 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM19 |
1 | ||
| 67640-0D320B0 |
NLP10,SCP1#..FRP..LHD..5D..TRSTD DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM18 |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-35010 |
NLP10,SCP1#..FRP..5D |
7 | ||
| 67771-35010 |
SCP1#..5D |
7 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67625-52010 |
SCP1#..5D |
1 | ||
| 67625-52010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67625-52010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67625-52010 |
SCP1#..5D |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68173-0D010 |
SCP1#..5D |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68174-0D010 |
SCP1#..5D |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||

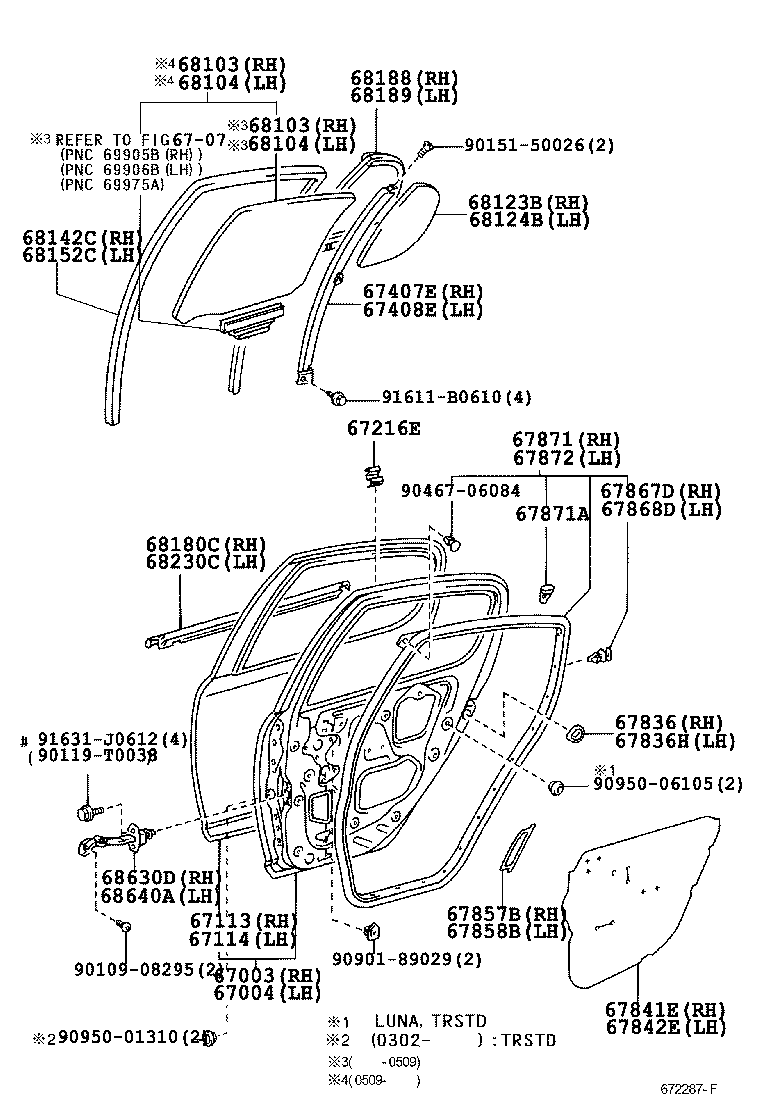

ILLUST NO. 2 OF 2(0101- )FRP..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0D020 |
SCP1#..5D..(LUNA,TRSTD) |
1 | ||
| 67003-0D010 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 67003-0D080 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 67003-0D090 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0D010 |
SCP1#..5D W(POWER DOOR LOCK) |
1 | ||
| 67004-0D090 |
NLP10,SCP1#..FRP..5D..TRSTD |
1 | ||
| 67004-0D080 |
NLP10,SCP1#..FRP..5D W(POWER DOOR LOCK) |
1 | ||
| 67004-0D020 |
SCP1#..5D..(LUNA,TRSTD) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67113-0D010 |
SCP1#..5D |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-0D010 |
SCP1#..5D |
1 | ||
| 67114-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67216E - STOPPER, REAR DOOR GLASS, UPPER NO.2 | ||||
| 67216-52010 |
NLP10,SCP1#..FRP..5D |
2 | ||
| 67216-52010 |
SCP1#..5D |
2 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-52010 |
SCP1#..5D |
1 | ||
| 67407-52010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-52010 |
SCP1#..5D |
1 | ||
| 67408-52010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-52010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67836-52010 |
SCP1#..5D |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67846-52010 |
SCP1#..5D |
1 | ||
| 67846-52010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-0D010 |
SCP1#..5D |
1 | ||
| 67841-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-0D010 |
SCP1#..5D |
1 | ||
| 67841-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-0D010 |
SCP1#..5D |
1 | ||
| 67857-52012 |
SCP10..5D |
1 | ||
| 67857-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-0D010 |
SCP1#..5D |
1 | ||
| 67858-52012 |
SCP10..5D |
1 | ||
| 67858-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NLP10,SCP1#..FRP..5D |
23 | ||
| 67867-12150 |
SCP1#..5D |
23 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NLP10,SCP1#..FRP..5D |
23 | ||
| 67867-12150 |
SCP1#..5D |
23 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 67871-0D010 |
SCP1#..5D |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-52010 |
SCP1#..5D RH |
10 | ||
| 67867-52010 |
NLP10,SCP1#..FRP..5D RH |
10 | ||
| 67867-52040 |
NLP10,SCP1#..FRP..5D LH |
10 | ||
| 67867-52040 |
SCP1#..5D LH |
10 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0D010 |
SCP1#..5D |
1 | ||
| 67872-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68113-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68113-0D010 |
SCP1#..5D *TEM,T=3.1,GREEN |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68113-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68113-0D010 |
SCP1#..5D *TEM,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68114-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68114-0D010 |
SCP1#..5D *TEM,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68114-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68114-0D010 |
SCP1#..5D *TEM,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68123-0D010 |
SCP1#..5D *TEM,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0D010 |
SCP1#..5D *TEM,T=3.1,GREEN |
1 | ||
| 68124-0D010 |
NLP10,SCP1#..FRP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0D010 |
SCP1#..5D |
1 | ||
| 68142-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68152-0D010 |
SCP1#..5D |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-0D010 |
SCP1#..5D |
1 | ||
| 68180-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0D010 |
SCP1#..5D |
1 | ||
| 68188-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0D010 |
SCP1#..5D |
1 | ||
| 68189-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68230-0D010 |
SCP1#..5D |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-0D010 |
SCP1#..5D |
1 | ||
| 68630-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-0D010 |
NLP10,SCP1#..FRP..5D |
1 | ||
| 68630-0D010 |
SCP1#..5D |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-T0038 | ||||
| 90151-50026 | ||||
| 90467-06084 | ||||
| 90901-89029 | ||||
| 90950-01310 | ||||
| 90950-06105 | ||||
| 91611-B0610 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 6707 | ||||
