SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)

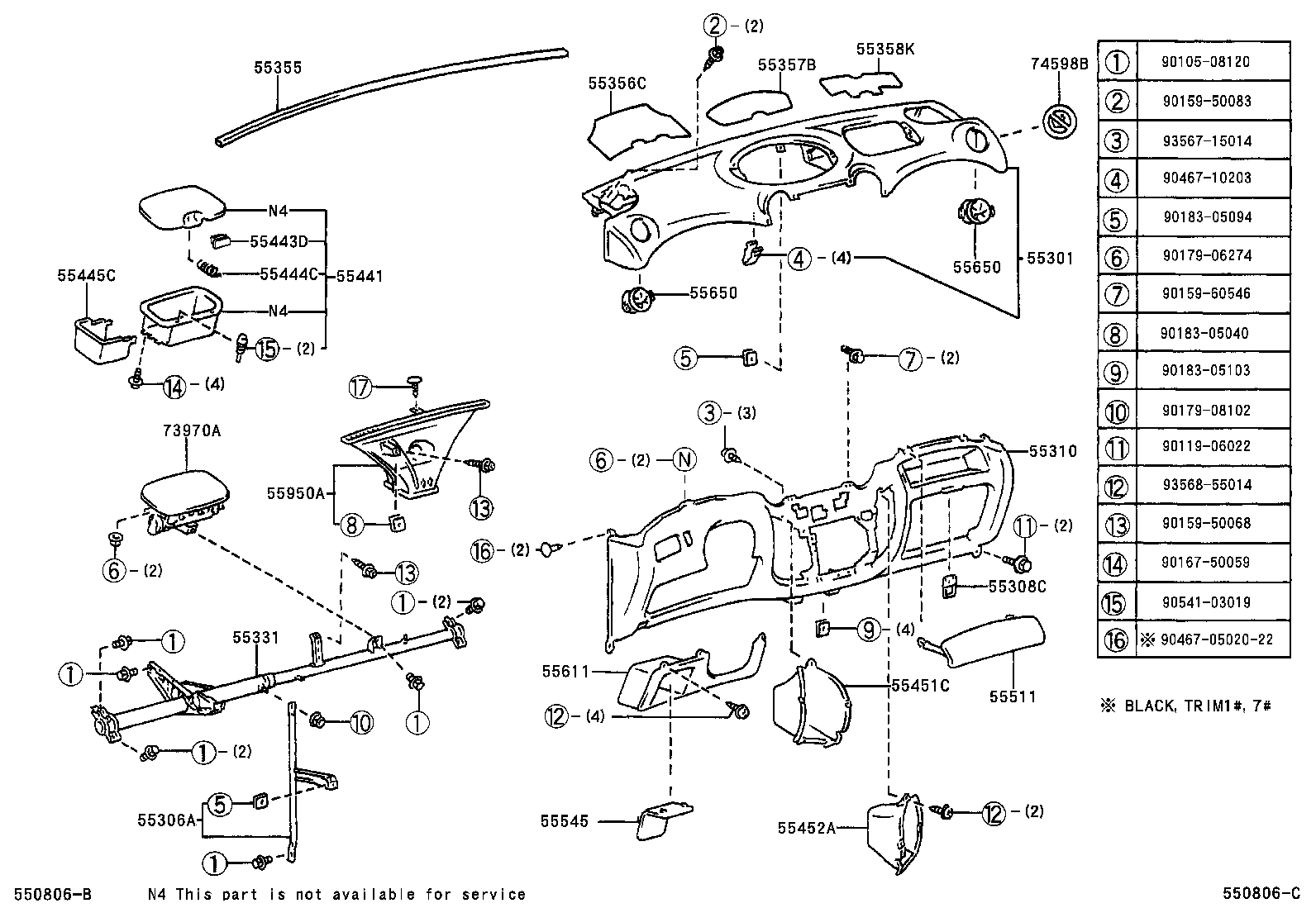

ILLUST NO. 1 OF 2(0101-0302)FRP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-0D060B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55301-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55301-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 55306-0D010 |
SCP1#..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-52010 |
SCP10 |
1 | ||
| 55308-52080 |
NLP10,SCP1#..FRP |
1 | ||
| 55308-52080 |
SCP1# |
1 | ||
| 55310 - PANEL ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D010B1 |
SCP1#..LHD MD.GRAY,TRIM1# |
1 | ||
| 55303-0D010B3 |
NLP10,SCP1#..FRP..LHD MD.GRAY,TRIM11 |
1 | ||
| 55303-0D010B2 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55303-0D010G0 |
SCP1#..LHD MIST GREEN,TRIM7# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D010 |
SCP10..LHD W(SRS AIR BAG,DRIVER SIDE) |
1 | ||
| 55330-0D020 |
SCP10..LHD W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE) |
1 | ||
| 55330-0D020 |
SCP1#..LHD |
1 | ||
| 55330-0D150 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D030 |
NLP10,SCP1#..FRP |
1 | ||
| 55355-52012 |
SCP10 |
1 | ||
| 55355-0D030 |
SCP1# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 55356-0D010 |
SCP1# |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-0D020 |
NLP10,SCP1#..FRP |
1 | ||
| 55357-0D010 |
SCP1# |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-0D010 |
SCP1# |
1 | ||
| 55358-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55440-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55443-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-0D010 |
SCP1#..LHD |
1 | ||
| 55445C - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55445-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55451-0D010B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55451-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55452-0D010B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55452-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55501-0D010G0 |
SCP1#..LHD MIST GREEN,TRIM7# |
1 | ||
| 55501-0D030B1 |
NLP10,SCP1#..FRP..LHD MD.GRAY,TRIM11 |
1 | ||
| 55501-0D010B1 |
SCP1#..LHD MD.GRAY,TRIM1# |
1 | ||
| 55501-0D030B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-0D010B2 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55545-0D010G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 55545-0D010B3 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 55545-0D010B1 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-0D010G0 |
SCP1#..LHD MIST GREEN,TRIM7# |
1 | ||
| 55611-0D010B1 |
SCP1#..LHD MD.GRAY,TRIM1# |
1 | ||
| 55611-0D010B3 |
NLP10,SCP1#..FRP..LHD MD.GRAY,TRIM11 |
1 | ||
| 55611-0D010B2 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55650-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-0D050B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55650-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-0D050B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0D010 |
SCP1#..LHD |
1 | ||
| 55950-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 73970-0D050B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 73970-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-0D020 |
SCP1# |
1 | ||
| 74598-20010 |
SCP10 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06022 | ||||
| 90159-50068 | ||||
| 90159-50083 | ||||
| 90159-60546 | ||||
| 90167-50059 | ||||
| 90179-06274 | ||||
| 90179-08102 | ||||
| 90183-05040 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-10203 | ||||
| 90541-03019 | ||||
| 93567-15014 | ||||
| 93568-55014 | ||||

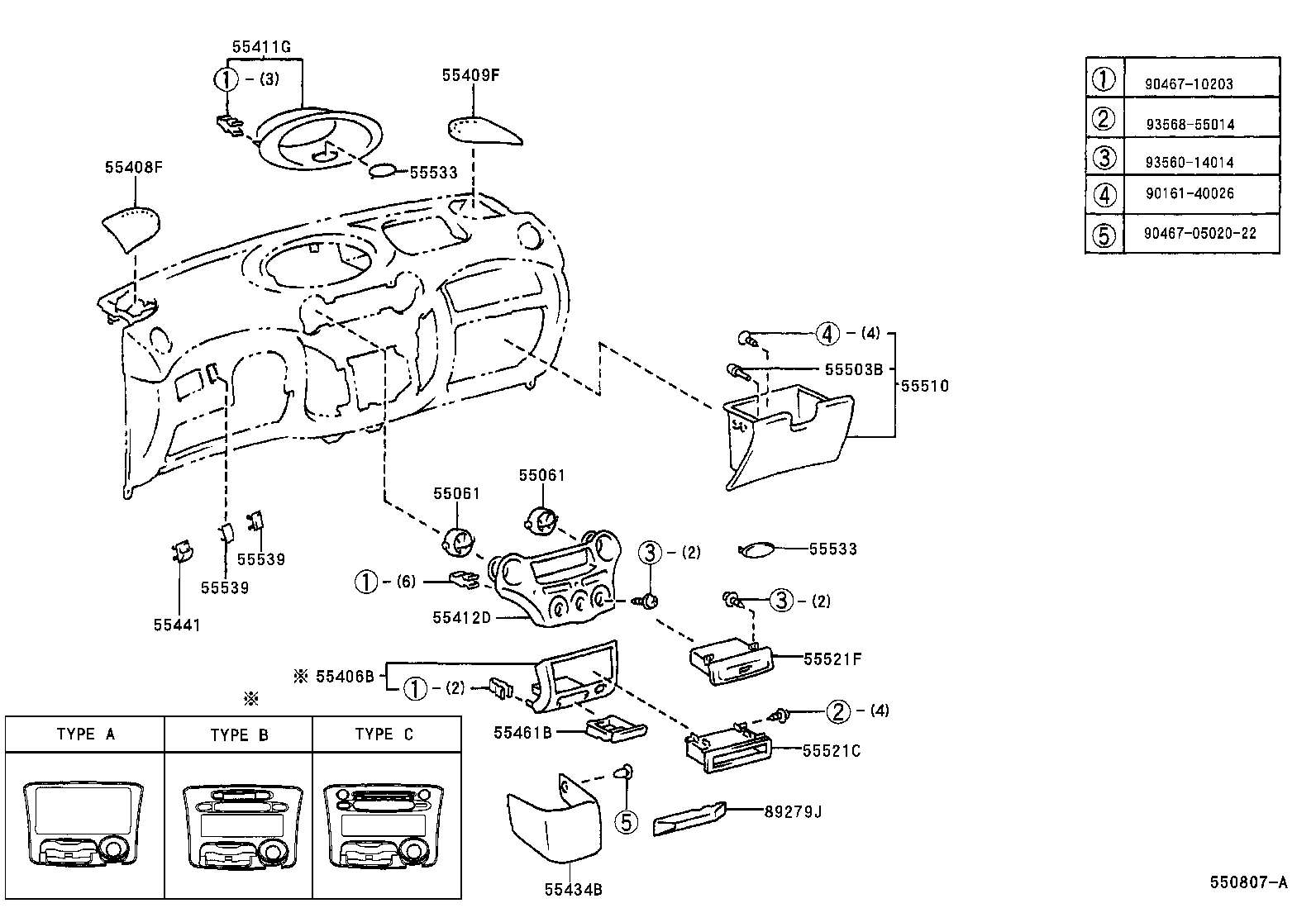

ILLUST NO. 2 OF 2(0101-0302)FRP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55061-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-0D050B0 |
SCP10..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,11,17 |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55061-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-0D050B0 |
SCP10..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,11,17 |
2 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0D010H0 |
SCP1# TYPE B:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55406-0D020H0 |
SCP1# TYPE C:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55406-0D020B1 |
SCP1# TYPE C:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 86220-52040B0 |
SCP10..FRP..(TRSTD,TSGS) TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM10,11,17 |
1 | ||
| 86220-52030B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55406-0D010B1 |
SCP1# TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 55406-0D030B1 |
SCP1#..LHD TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 55406-52050B0 |
NLP10,SCP1#..FRP..LHD..TRSTD TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM10,11,17 |
1 | ||
| 55406-0D030H0 |
SCP1#..LHD TYPE A:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55472-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55472-0D020B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55473-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55473-0D020B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55411-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55411-0D060B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55412-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0D010B2 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55434-0D010B1 |
SCP1#..LHD MD.GRAY,TRIM1# |
1 | ||
| 55434-0D010G0 |
SCP1#..LHD MIST GREEN,TRIM7# |
1 | ||
| 55434-0D010B3 |
NLP10,SCP1#..FRP..LHD MD.GRAY,TRIM11 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55440-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-52010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55461-52010B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55461-52010B2 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05080 |
NLP10,SCP1#..FRP |
2 | ||
| 90541-05080 |
SCP1# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D010G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 55550-0D010B3 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 55550-0D010B1 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 55550-0D010B2 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-0D010 |
SCP1# |
1 | ||
| 55521-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55520-52010B0 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55520-52060B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17 |
1 | ||
| 55520-52010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-52040B0 |
SCP1#..FRP..TRSTD..5F DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55533-52010B0 |
SCP1#..5F SHADOW GRAY,TRIM1# |
1 | ||
| 55533-52010H0 |
SCP1#..5F FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-52040B0 |
SCP1#..FRP..TRSTD..5F DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55533-52010B0 |
SCP1#..5F SHADOW GRAY,TRIM1# |
1 | ||
| 55533-52010H0 |
SCP1#..5F FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D020G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 55539-0D020B2 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55539-0D020B1 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 55539-0D020B3 |
NLP10,SCP1#..FRP..(SOL,TRSTD) MD.GRAY,TRIM11 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D020G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 55539-0D020B2 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55539-0D020B1 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 55539-0D020B3 |
NLP10,SCP1#..FRP..(SOL,TRSTD) MD.GRAY,TRIM11 |
1 | ||
| 89279J - COVER | ||||
| 89279-0D010 |
SCP1#..LHD |
1 | ||
| 89279-0D090 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| Common parts | ||||
| 90161-40026 | ||||
| 90467-0502022 | ||||
| 90467-10203 | ||||
| 93560-14014 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 2(0302- )FRP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-0D060B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55301-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55301-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 55306-0D010 |
SCP1#..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-52010 |
SCP10 |
1 | ||
| 55308-52080 |
NLP10,SCP1#..FRP |
1 | ||
| 55308-52080 |
SCP1# |
1 | ||
| 55310 - PANEL ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D010B1 |
SCP1#..LHD MD.GRAY,TRIM1# |
1 | ||
| 55303-0D010B3 |
NLP10,SCP1#..FRP..LHD MD.GRAY,TRIM11 |
1 | ||
| 55303-0D010B2 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55303-0D010G0 |
SCP1#..LHD MIST GREEN,TRIM7# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D010 |
SCP10..LHD W(SRS AIR BAG,DRIVER SIDE) |
1 | ||
| 55330-0D020 |
SCP10..LHD W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE) |
1 | ||
| 55330-0D020 |
SCP1#..LHD |
1 | ||
| 55330-0D150 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D030 |
NLP10,SCP1#..FRP |
1 | ||
| 55355-52012 |
SCP10 |
1 | ||
| 55355-0D030 |
SCP1# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 55356-0D010 |
SCP1# |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-0D020 |
NLP10,SCP1#..FRP |
1 | ||
| 55357-0D010 |
SCP1# |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-0D010 |
SCP1# |
1 | ||
| 55358-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 55423E - CUSHION, CENTER CLUSTER, NO.1 | ||||
| 55423-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-52050B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-0D110 |
NLP10,SCP1#..FRP |
2 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-0D110 |
NLP10,SCP1#..FRP |
2 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55451-0D010B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55451-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55452-0D010B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55452-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55501-0D010G0 |
SCP1#..LHD MIST GREEN,TRIM7# |
1 | ||
| 55501-0D030B1 |
NLP10,SCP1#..FRP..LHD MD.GRAY,TRIM11 |
1 | ||
| 55501-0D010B1 |
SCP1#..LHD MD.GRAY,TRIM1# |
1 | ||
| 55501-0D030B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-0D010B2 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55545-0D010G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 55545-0D010B3 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 55545-0D010B1 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-0D020B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
2 | ||
| 55573-0D020B1 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
2 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-0D020B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
2 | ||
| 55573-0D020B1 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
2 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-0D010G0 |
SCP1#..LHD MIST GREEN,TRIM7# |
1 | ||
| 55611-0D010B1 |
SCP1#..LHD MD.GRAY,TRIM1# |
1 | ||
| 55611-0D010B3 |
NLP10,SCP1#..FRP..LHD MD.GRAY,TRIM11 |
1 | ||
| 55611-0D010B2 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55650-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-0D050B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55650-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-0D050B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0D010 |
SCP1#..LHD |
1 | ||
| 55950-0D010 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 73970-0D050B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 73970-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06022 | ||||
| 90159-50068 | ||||
| 90159-50083 | ||||
| 90159-60546 | ||||
| 90167-50059 | ||||
| 90179-06115 | ||||
| 90179-08102 | ||||
| 90183-05040 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(0302- )FRP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55061-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-0D050B0 |
SCP10..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,11,17 |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
2 | ||
| 55061-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-0D050B0 |
SCP10..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,11,17 |
2 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D160B0 |
NLP10,SCP1#..FRP..LHD..(TRSTD,TSGS) TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM10,11,17 |
1 | ||
| 55405-0D110B0 |
NLP10,SCP1#..FRP..LHD..(TRSTD,TSGS) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM10,11 |
1 | ||
| 55405-0D190B0 |
NLP10,SCP1#..FRP..LHD..TRSTD W/O(HEATER);TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM10,11 |
1 | ||
| 55405-0D130B0 |
SCP10..FRP..LHD..TRSTD..5F TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM18,19 |
1 | ||
| 55405-0D180B0 |
NLP10,SCP1#..FRP..LHD..TRSTD TYPE B:REFER TO ILLUSTRATION;W/O(HEATER),DK.GRAY,TRIM10,11,17 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0D010H0 |
SCP1# TYPE B:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55406-0D020H0 |
SCP1# TYPE C:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55406-0D020B1 |
SCP1# TYPE C:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 86220-52040B0 |
SCP10..FRP..(TRSTD,TSGS) TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM10,11,17 |
1 | ||
| 86220-52030B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55406-0D010B1 |
SCP1# TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 55406-0D030B1 |
SCP1#..LHD TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 55406-52050B0 |
NLP10,SCP1#..FRP..LHD..TRSTD TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM10,11,17 |
1 | ||
| 55406-0D030H0 |
SCP1#..LHD TYPE A:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55472-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55472-0D020B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-0D010B1 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55473-0D010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55473-0D020B0 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D010B1 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55411-0D010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55411-0D060B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0D010B2 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55434-0D010B1 |
SCP1#..LHD MD.GRAY,TRIM1# |
1 | ||
| 55434-0D010G0 |
SCP1#..LHD MIST GREEN,TRIM7# |
1 | ||
| 55434-0D010B3 |
NLP10,SCP1#..FRP..LHD MD.GRAY,TRIM11 |
1 | ||
| 55445H - SPRING, STEREO OPENING COVER | ||||
| 55445-52050 |
NLP10,SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-52010H0 |
SCP1# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55461-52010B0 |
SCP1# SHADOW GRAY,TRIM1# |
1 | ||
| 55461-52010B2 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05080 |
NLP10,SCP1#..FRP |
2 | ||
| 90541-05080 |
SCP1# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D010G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 55550-0D010B3 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 55550-0D010B1 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 55550-0D010B2 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-0D010 |
SCP1# |
1 | ||
| 55521-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55520-52010B0 |
SCP1#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55520-52060B0 |
NLP10,SCP1#..FRP..LHD..TRSTD DK.GRAY,TRIM10,11,17 |
1 | ||
| 55520-52010H0 |
SCP1#..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-52040B0 |
SCP1#..FRP..TRSTD..5F DK.GRAY,TRIM10,11,17,18,19 |
1 | ||
| 55533-52010B0 |
SCP1#..5F SHADOW GRAY,TRIM1# |
1 | ||
| 55533-52010H0 |
SCP1#..5F FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D020G0 |
SCP1# MIST GREEN,TRIM7# |
1 | ||
| 55539-0D020B2 |
SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,17,18,19 |
1 | ||
| 55539-0D020B1 |
SCP1# MD.GRAY,TRIM1# |
1 | ||
| 55539-0D020B3 |
NLP10,SCP1#..FRP..(SOL,TRSTD) MD.GRAY,TRIM11 |
1 | ||
| 89279J - COVER | ||||
| 89279-0D010 |
SCP1#..LHD |
1 | ||
| 89279-0D090 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90161-40026 | ||||
| 90183-05094 | ||||
| 90467-0502022 | ||||
| 90467-10203 | ||||
| 93560-14014 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
