SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)
(0101-0302)FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961E - HOOK, FRONT | ||||
| 51960-0D050 |
NLP10,SCP1#..FRP |
1 | ||
| 51960-0D010 |
SCP1# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0D090 |
NLP10,SCP1#..FRP |
1 | ||
| 52119-0D901 |
SCP1# |
1 | ||
| 52119-0D900 |
SCP10 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-52011 |
SCP10..TRSTD |
1 | ||
| 52721-0D010 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) UNPAINTED |
1 | ||
| 52721-0D020B0 |
SCP10..FRP..TRSTD..5F GRAY ME.,1D2 |
1 | ||
| 52721-0D020J2 |
SCP10..FRP..TRSTD..5F LIGHT BLUE M.M.,8R0 |
1 | ||
| 52721-0D020G0 |
SCP10..FRP..TRSTD..5F DARK GREEN MC.,6R4 |
1 | ||
| 52721-0D020C0 |
SCP10..FRP..TRSTD..5F BLACK MC.,209 |
1 | ||
| 52721-0D020G1 |
SCP10..FRP..TRSTD..5F GREEN M.M.,6S4 |
1 | ||
| 52721-0D020B1 |
SCP10..FRP..TRSTD..5F SILVER M.M.,1E7 |
1 | ||
| 52721-0D020D0 |
SCP10..FRP..TRSTD..5F SUPER RED 5,3P0 |
1 | ||
| 52721-0D020A0 |
SCP10..FRP..TRSTD..5F WHITE,068 |
1 | ||
| 52721-0D020J1 |
SCP10..FRP..TRSTD..5F DK.BLUE M.M.,8P4 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-0D900 |
SCP1# |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52021-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52021-0D010 |
SCP1# |
1 | ||
| 52131-52070 |
NLP10,SCP1#..FRP |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0D010 |
SCP1# |
1 | ||
| 52535-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52536-0D010 |
SCP1# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0D010 |
SCP1# |
1 | ||
| 53112-0D020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90119-06451 | ||||
| 90159-50353 | ||||
| 90159-60498 | ||||
| 90176-08054 | ||||
| 90179-06127 | ||||
| 90189-05113 | ||||
| 90467-08185 | ||||
(0302- )FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961E - HOOK, FRONT | ||||
| 51960-0D050 |
NLP10,SCP1#..FRP |
1 | ||
| 51960-0D010 |
SCP1# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0D090 |
NLP10,SCP1#..FRP |
1 | ||
| 52119-0D901 |
SCP1# |
1 | ||
| 52119-0D900 |
SCP10 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-52011 |
SCP10..TRSTD |
1 | ||
| 52721-0D010 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) UNPAINTED |
1 | ||
| 52721-0D020B0 |
SCP10..FRP..TRSTD..5F GRAY ME.,1D2 |
1 | ||
| 52721-0D020J2 |
SCP10..FRP..TRSTD..5F LIGHT BLUE M.M.,8R0 |
1 | ||
| 52721-0D020G0 |
SCP10..FRP..TRSTD..5F DARK GREEN MC.,6R4 |
1 | ||
| 52721-0D020C0 |
SCP10..FRP..TRSTD..5F BLACK MC.,209 |
1 | ||
| 52721-0D020G1 |
SCP10..FRP..TRSTD..5F GREEN M.M.,6S4 |
1 | ||
| 52721-0D020B1 |
SCP10..FRP..TRSTD..5F SILVER M.M.,1E7 |
1 | ||
| 52721-0D020D0 |
SCP10..FRP..TRSTD..5F SUPER RED 5,3P0 |
1 | ||
| 52721-0D020A0 |
SCP10..FRP..TRSTD..5F WHITE,068 |
1 | ||
| 52721-0D020J1 |
SCP10..FRP..TRSTD..5F DK.BLUE M.M.,8P4 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0D050 |
NLP10,SCP1#..FRP |
1 | ||
| 52127-0D060 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(FOG LAMP) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0D050 |
NLP10,SCP1#..FRP |
1 | ||
| 52127-0D060 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(FOG LAMP) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52128-0D020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(FOG LAMP) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52128-0D020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(FOG LAMP) |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52021-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52021-0D010 |
SCP1# |
1 | ||
| 52131-52070 |
NLP10,SCP1#..FRP |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0D010 |
SCP1# |
1 | ||
| 52535-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52536-0D010 |
SCP1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-0D010 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) UNPAINTED |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0D010 |
SCP1# |
1 | ||
| 53112-0D020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90159-50353 | ||||
| 90159-60498 | ||||
| 90176-08054 | ||||
| 90179-06127 | ||||
| 90189-05165 | ||||
| 90467-08185 | ||||

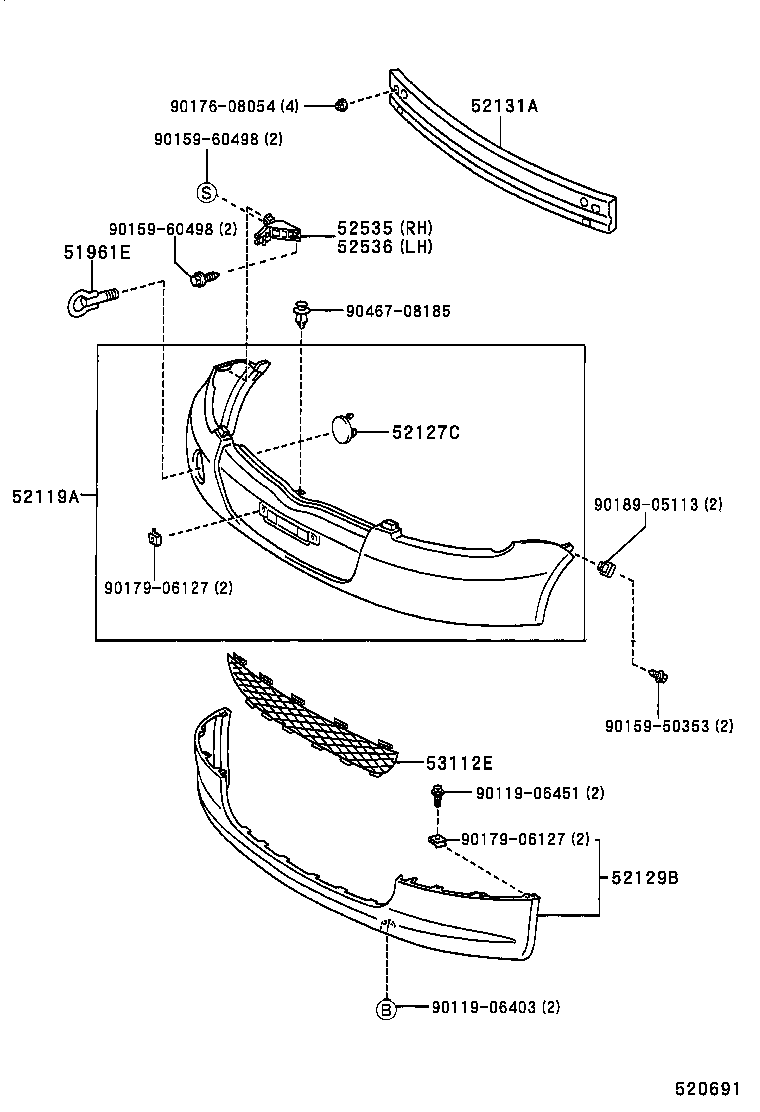

| Linked diagrams | ||||
| 8102 | ||||
