SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )SCP1#..FRP

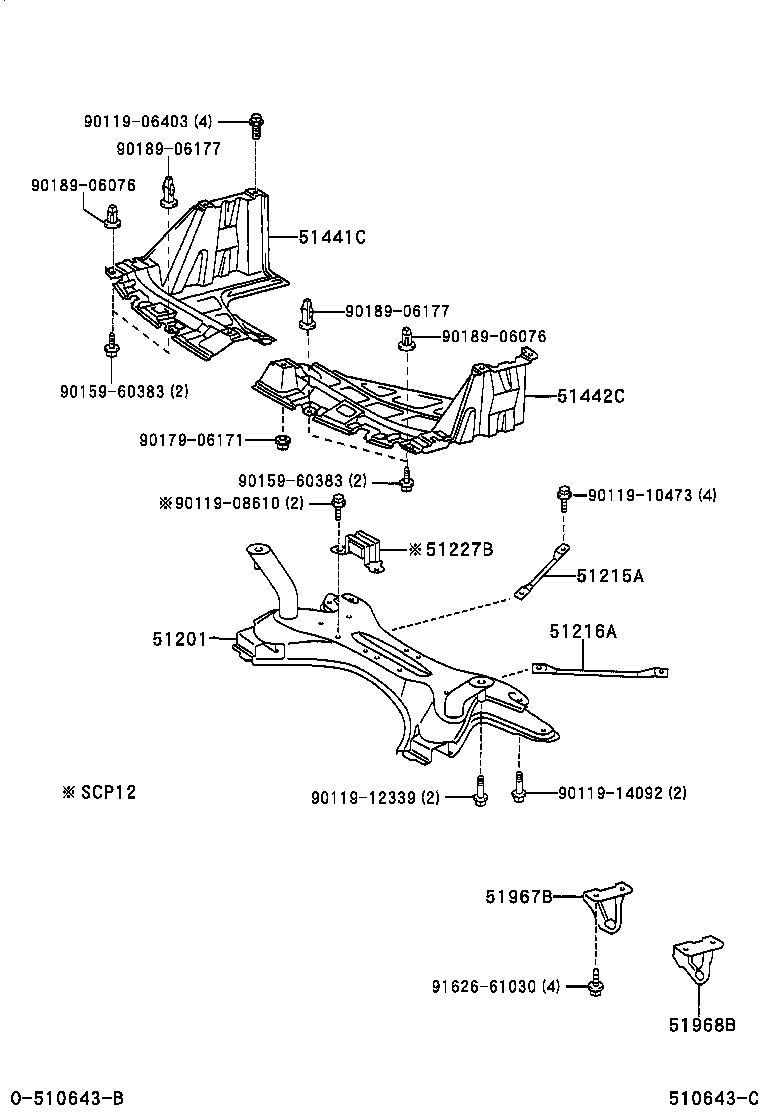

Click highlighted areas on diagram

diagram 51201 51215A 51216A 51227B 51441C 51442C 51967B 51968B 9011906403 9011908610 9011910473 9011912339 9011914092 9015960383 9015960383 9017906171 9018906076 9018906076 9018906177 9018906177 9162661030
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0D011

SCP1#

 1
51201-0D051

NLP10,SCP1#..FRP

 1
51201-0D010

SCP1#

 1
51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51215-52010

SCP1#

 1
51215-0D010

NLP10,SCP1#..FRP

 1
51216A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51215-52010

SCP1#

 1
51215-0D010

NLP10,SCP1#..FRP

 1
51441C - COVER, ENGINE UNDER, RH
51441-0D010

SCP1#..FRP

 1
51441-0D010

SCP1#

 1
51442C - COVER, ENGINE UNDER, LH
51442-0D010

SCP1#..FRP..MTM

 1
51442-0D010

SCP1#..5F

 1
51967B - HOOK, TRANSPORT, REAR RH
51967-0D040

NLP10,SCP1#..FRP

 1
51967-10100

SCP1#

 1
51968B - HOOK, TRANSPORT, REAR LH
51967-0D030

NLP10,SCP1#..FRP

 1
51967-10090

SCP1#

 1
Common parts
90119-06403
90119-08610
90119-10473
90119-12339
90119-14092
90159-60383
90179-06171
90189-06076
90189-06177
91626-61030
