SCP10L-CHMRKW (2001)
Toyota Yaris (Frp)
(0101- )SCP12..FRP..LHD..LUNA,SOL ; (0101-)SCP10..FRP..LHD..LUNA,SOL,TRSTD..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D041 |
SCP1#..LHD |
1 | ||
| 47311-0D030 |
SCP1#..LHD W(ABS) |
1 | ||
| 47311-0D140 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D041 |
SCP1#..LHD |
1 | ||
| 47311-0D030 |
SCP1#..LHD W(ABS) |
1 | ||
| 47311-0D140 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D020 |
SCP1#..LHD W(ABS) |
1 | ||
| 47312-0D110 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47312-0D031 |
SCP1#..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D020 |
SCP1#..LHD W(ABS) |
1 | ||
| 47312-0D110 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47312-0D031 |
SCP1#..LHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12082 |
SCP1# W(ABS) |
1 | ||
| 90413-10294 |
SCP1# |
1 | ||
| 90904-12082 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94204 |
NLP10,SCP1#..FRP RH |
1 | ||
| 90947-02A45 |
SCP1# RH |
1 | ||
| 90080-94203 |
NLP10,SCP1#..FRP LH |
1 | ||
| 90947-02A46 |
SCP1# LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94204 |
NLP10,SCP1#..FRP RH |
1 | ||
| 90947-02A45 |
SCP1# RH |
1 | ||
| 90080-94203 |
NLP10,SCP1#..FRP LH |
1 | ||
| 90947-02A46 |
SCP1# LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP10,SCP1#..FRP |
2 | ||
| 90401-10058 |
SCP1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP10,SCP1#..FRP |
2 | ||
| 90401-10058 |
SCP1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
SCP1# |
2 | ||
| 47389-50020 |
NLP10,SCP1#..FRP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
SCP1# |
2 | ||
| 47389-50020 |
NLP10,SCP1#..FRP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0D031 |
SCP1#..LHD |
1 | ||
| 47314-0D020 |
SCP1#..LHD W(ABS) |
1 | ||
| 47314-0D120 |
SCP1#..LHD W(ABS) |
1 | ||
| 47314-0D120 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0D031 |
SCP1#..LHD |
1 | ||
| 47314-0D020 |
SCP1#..LHD W(ABS) |
1 | ||
| 47314-0D120 |
SCP1#..LHD W(ABS) |
1 | ||
| 47314-0D120 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D010 |
SCP1# W(ABS) |
1 | ||
| 47315-0D010 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47315-0D031 |
SCP1#..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
SCP1# |
2 | ||
| 90401-10058 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
SCP1# |
2 | ||
| 47389-50020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP1# |
1 | ||
| 90947-02C81 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C81 |
SCP1# W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP1# |
1 | ||
| 90947-02C81 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C81 |
SCP1# W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP1# |
1 | ||
| 90947-02C82 |
SCP1# W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C82 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP1# |
1 | ||
| 90947-02C82 |
SCP1# W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C82 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D012 |
SCP1# W(ABS) |
1 | ||
| 47321-0D021 |
SCP1# |
1 | ||
| 47321-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D012 |
SCP1# W(ABS) |
1 | ||
| 47321-0D021 |
SCP1# |
1 | ||
| 47321-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D012 |
SCP1# W(ABS) |
1 | ||
| 47321-0D021 |
SCP1# |
1 | ||
| 47321-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47322-0D021 |
SCP1# |
1 | ||
| 47322-0D012 |
SCP1# W(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47322-0D021 |
SCP1# |
1 | ||
| 47322-0D012 |
SCP1# W(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47322-0D021 |
SCP1# |
1 | ||
| 47322-0D012 |
SCP1# W(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52042 |
SCP10 |
1 | ||
| 47323-0D060 |
NLP10,SCP1#..FRP |
1 | ||
| 47323-0D060 |
SCP1# |
1 | ||
| 47323-52050 |
SCP1# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D050 |
SCP1# |
1 | ||
| 47324-52050 |
SCP1# |
1 | ||
| 47324-0D050 |
NLP10,SCP1#..FRP |
1 | ||
| 47324-52042 |
SCP10 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0D012 |
SCP1# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-0D012 |
SCP1# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 47353-52010 |
SCP1# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 47354-52010 |
SCP1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
SCP1# |
1 | ||
| 47371-52010 |
SCP1#..LHD W(ABS) |
2 | ||
| 47371-52010 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F W(ABS) |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 47372-52010 |
SCP1# |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-0D020 |
SCP1# |
1 | ||
| 47900-0D010 |
SCP10 |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-52020 |
SCP1# |
1 | ||
| 47932 - BRACKET, LOAD SENSING VALVE, NO.2 | ||||
| 47932-52020 |
SCP1# |
1 | ||
| Common parts | ||||
| 90119-08373 | ||||
| 90119-08868 | ||||
| 90179-06074 | ||||
| 90179-08204 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91515-60645 | ||||
| 91611-61030 | ||||
| 91635-40620 | ||||
| 91643-80865 | ||||

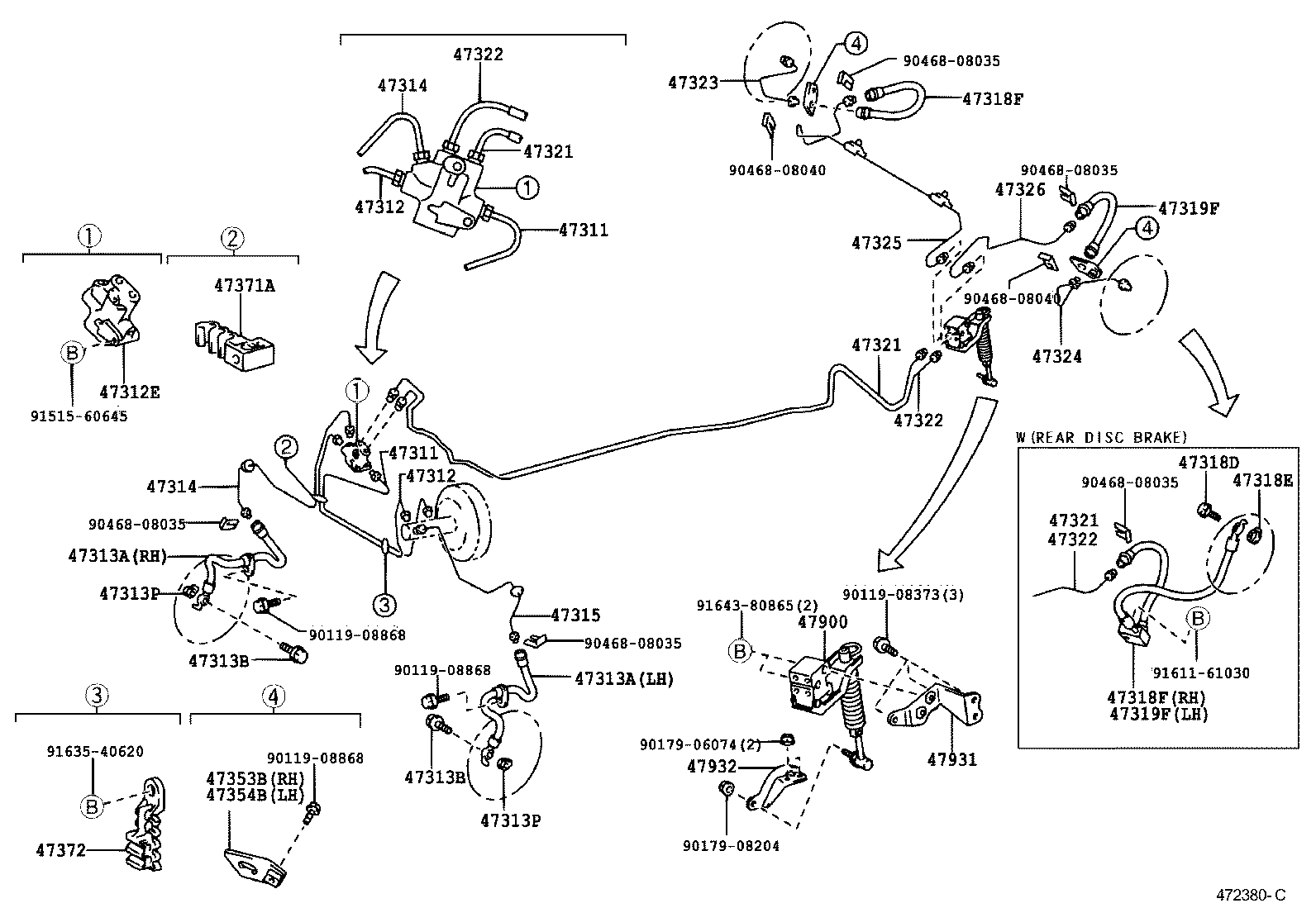

ILLUST NO. 1 OF 2(0101- )FRP..LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D041 |
SCP1#..LHD |
1 | ||
| 47311-0D030 |
SCP1#..LHD W(ABS) |
1 | ||
| 47311-0D140 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D041 |
SCP1#..LHD |
1 | ||
| 47311-0D030 |
SCP1#..LHD W(ABS) |
1 | ||
| 47311-0D140 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D020 |
SCP1#..LHD W(ABS) |
1 | ||
| 47312-0D110 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47312-0D031 |
SCP1#..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D020 |
SCP1#..LHD W(ABS) |
1 | ||
| 47312-0D110 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47312-0D031 |
SCP1#..LHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12082 |
SCP1# W(ABS) |
1 | ||
| 90413-10294 |
SCP1# |
1 | ||
| 90904-12082 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94204 |
NLP10,SCP1#..FRP RH |
1 | ||
| 90947-02A45 |
SCP1# RH |
1 | ||
| 90080-94203 |
NLP10,SCP1#..FRP LH |
1 | ||
| 90947-02A46 |
SCP1# LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94204 |
NLP10,SCP1#..FRP RH |
1 | ||
| 90947-02A45 |
SCP1# RH |
1 | ||
| 90080-94203 |
NLP10,SCP1#..FRP LH |
1 | ||
| 90947-02A46 |
SCP1# LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP10,SCP1#..FRP |
2 | ||
| 90401-10058 |
SCP1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP10,SCP1#..FRP |
2 | ||
| 90401-10058 |
SCP1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
SCP1# |
2 | ||
| 47389-50020 |
NLP10,SCP1#..FRP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
SCP1# |
2 | ||
| 47389-50020 |
NLP10,SCP1#..FRP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0D031 |
SCP1#..LHD |
1 | ||
| 47314-0D020 |
SCP1#..LHD W(ABS) |
1 | ||
| 47314-0D120 |
SCP1#..LHD W(ABS) |
1 | ||
| 47314-0D120 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0D031 |
SCP1#..LHD |
1 | ||
| 47314-0D020 |
SCP1#..LHD W(ABS) |
1 | ||
| 47314-0D120 |
SCP1#..LHD W(ABS) |
1 | ||
| 47314-0D120 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D010 |
SCP1# W(ABS) |
1 | ||
| 47315-0D010 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47315-0D031 |
SCP1#..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D010 |
SCP1# W(ABS) |
1 | ||
| 47315-0D010 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47315-0D031 |
SCP1#..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D060 |
SCP1#..LHD |
1 | ||
| 47316-0D060 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47316-0D020 |
SCP1#..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D060 |
SCP1#..LHD |
1 | ||
| 47316-0D060 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47316-0D020 |
SCP1#..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D020 |
SCP1#..LHD |
1 | ||
| 47317-0D060 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47317-0D060 |
SCP1#..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D020 |
SCP1#..LHD |
1 | ||
| 47317-0D060 |
NLP10,SCP1#..FRP..LHD |
1 | ||
| 47317-0D060 |
SCP1#..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
SCP1# |
2 | ||
| 90401-10058 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
SCP1# |
2 | ||
| 47389-50020 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP1# |
1 | ||
| 90947-02C81 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C81 |
SCP1# W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP1# |
1 | ||
| 90947-02C81 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C81 |
SCP1# W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP1# |
1 | ||
| 90947-02C82 |
SCP1# W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C82 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP1# |
1 | ||
| 90947-02C82 |
SCP1# W(REAR DISC BRAKE) |
1 | ||
| 90080-94205 |
NLP10,SCP1#..FRP |
1 | ||
| 90947-02C82 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D012 |
SCP1# W(ABS) |
1 | ||
| 47321-0D021 |
SCP1# |
1 | ||
| 47321-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D012 |
SCP1# W(ABS) |
1 | ||
| 47321-0D021 |
SCP1# |
1 | ||
| 47321-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47322-0D021 |
SCP1# |
1 | ||
| 47322-0D012 |
SCP1# W(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D012 |
SCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F W(ABS) |
1 | ||
| 47322-0D021 |
SCP1# |
1 | ||
| 47322-0D012 |
SCP1# W(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52042 |
SCP10 |
1 | ||
| 47323-0D060 |
NLP10,SCP1#..FRP |
1 | ||
| 47323-0D060 |
SCP1# |
1 | ||
| 47323-52050 |
SCP1# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D050 |
SCP1# |
1 | ||
| 47324-52050 |
SCP1# |
1 | ||
| 47324-0D050 |
NLP10,SCP1#..FRP |
1 | ||
| 47324-52042 |
SCP10 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 47353-52010 |
SCP1# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 47354-52010 |
SCP1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
SCP1# |
1 | ||
| 47371-52010 |
SCP1#..LHD W(ABS) |
2 | ||
| 47371-52010 |
SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F W(ABS) |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 47372-52010 |
SCP1# |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91515-60645 | ||||
| 91612-61030 | ||||
| 91635-40620 | ||||
ILLUST NO. 2 OF 2(0101- )FRP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0D011 |
SCP1# |
1 | ||
| 44050-0D012 |
NLP10,SCP1#..FRP |
1 | ||
| 44050-0D011 |
NLP10,SCP1#..FRP |
1 | ||
| 44050-0D010 |
SCP10 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
SCP1# |
3 | ||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
SCP1# |
3 | ||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
SCP1# |
3 | ||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44546-05020 |
NLP10,SCP1#..FRP |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-05020 |
SCP1# |
2 | ||
| 44578-05020 |
NLP10,SCP1#..FRP |
2 | ||
| 44578-05020 |
NLP10,SCP1#..FRP |
2 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-05020 |
SCP1# |
2 | ||
| 44578-05020 |
NLP10,SCP1#..FRP |
2 | ||
| 44578-05020 |
NLP10,SCP1#..FRP |
2 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52040 |
SCP1# |
1 | ||
| 44590-52040 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 90119-08589 | ||||
| 90179-08057 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
