SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )SCP1#..FRP..LHD

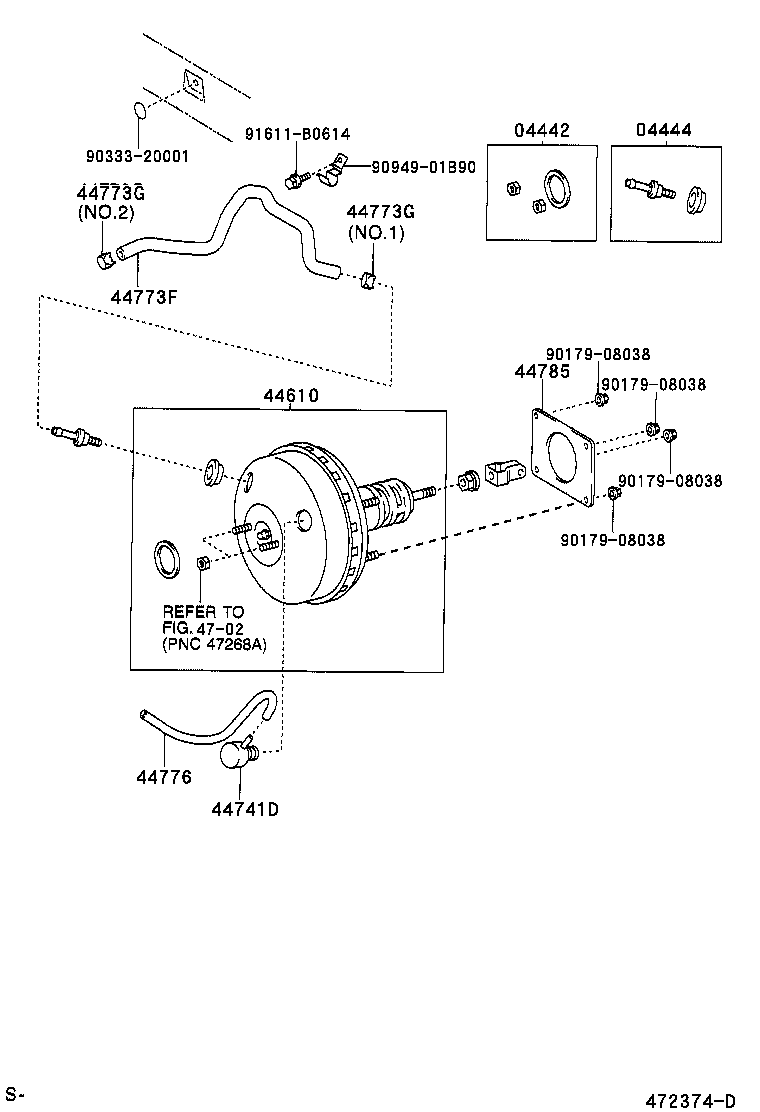

Click highlighted areas on diagram

diagram 04442 04444 44610 44741D 44773F 44773G 44773G 44776 44785 4702 9017908038 9017908038 9017908038 9017908038 9033320001 9094901B90 91611B0614
Part # Description Qty Price
04442 - FITTING KIT, BRAKE BOOSTER
04442-0D010

NLP10,SCP1#..FRP

 1
04442-0D010

SCP1#

 1
04444 - VALVE KIT, BOOSTER CONTROL
04444-0D010

SCP1#

 1
04444-0D010

NLP10,SCP1#..FRP

 1
44610 - BOOSTER ASSY, BRAKE
44610-09010

SCP1#..LHD

 1
44610-09030

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

W(REAR DISC BRAKE)

 1
44610-09010

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)

 1
44610-09030

SCP1#..LHD

W(REAR DISC BRAKE)

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-52130

SCP10..FRP..LHD

 1
44773-52090

SCP1#..LHD

 1
44773-52050

SCP10..LHD

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

SCP1#..FRP

 1
90467-16014

SCP1#..FRP

NO.1

 1
96134-51500

SCP1#

NO.2

 1
90467-16014

SCP1#

NO.1

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

SCP1#..FRP

 1
90467-16014

SCP1#..FRP

NO.1

 1
96134-51500

SCP1#

NO.2

 1
90467-16014

SCP1#

NO.1

 1
44785 - GASKET, BRAKE BOOSTER
44785-16020

NLP10,SCP1#..FRP

 1
44785-0D010

NLP10,SCP1#..FRP

 1
44785-16020

SCP1#

 1
Common parts
90179-08038
90333-20001
90949-01B90
91611-B0614
Linked diagrams
4702
