SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )SCP10..FRP..5F

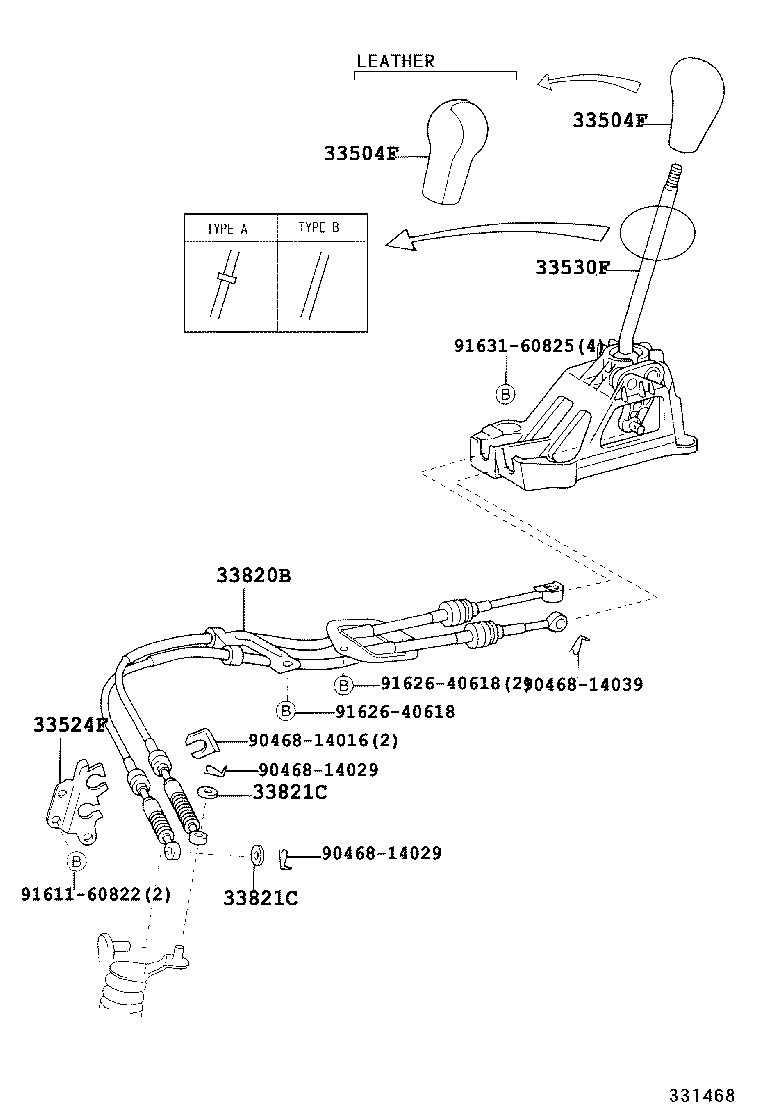

Click highlighted areas on diagram

diagram 33504F 33504F 33524F 33530F 33820B 33821C 33821C 9046814016 9046814029 9046814029 9046814039 9161160822 9162640618 9162640618 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-05010B3

SCP1#..(SOL,TRSTD)..5F

MD.GRAY,TRIM1#

 1
33504-02030B0

NLP10,SCP1#..FRP..(TRSTD,TSGS)..5F

DK.GRAY,TRIM10,11,17,(L)

 1
33504-05010G0

SCP1#..(SOL,TRSTD)..5F

MIST GREEN,TRIM7#

 1
33504-13010B0

NLP10,SCP1#..FRP..(TRSTD,TSGS)..5F

DK.GRAY,TRIM10,11,17,(J)

 1
33504-02090B0

SCP10..FRP..TRSTD..5F

DK.GRAY,TRIM18,19

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-05010B3

SCP1#..(SOL,TRSTD)..5F

MD.GRAY,TRIM1#

 1
33504-02030B0

NLP10,SCP1#..FRP..(TRSTD,TSGS)..5F

DK.GRAY,TRIM10,11,17,(L)

 1
33504-05010G0

SCP1#..(SOL,TRSTD)..5F

MIST GREEN,TRIM7#

 1
33504-13010B0

NLP10,SCP1#..FRP..(TRSTD,TSGS)..5F

DK.GRAY,TRIM10,11,17,(J)

 1
33504-02090B0

SCP10..FRP..TRSTD..5F

DK.GRAY,TRIM18,19

 1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-52030

SCP10..FRP..5F

 1
33524-52030

SCP10

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0D030

SCP10..FRP..TRSTD..5F

TYPE A:REFER ILLUST.

 1
33530-0D010

SCP1#..5F

 1
33530-0D010

NLP10,SCP1#..FRP..(TRSTD,TSGS)..5F

TYPE B:REFER ILLUST.

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0D010

SCP10..FRP..5F

 1
33820-0D010

SCP10

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267

SCP1#..5F

OD=28

 2
90201-08267

NLP10,SCP1#..FRP..5F

OD=28

 2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267

SCP1#..5F

OD=28

 2
90201-08267

NLP10,SCP1#..FRP..5F

OD=28

 2
Common parts
90468-14016
90468-14029
90468-14039
91611-60822
91626-40618
91631-60825
