SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0101- )FRP..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301B 31301B 31301C 31301C 31301F 31321 31324 31453A 31453B 55107A 9010508120 9017910088 9046816142 9413060800 9413061000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0D010

SCP1#..LHD..5F

 1
31301-0D010

SCP1#..FRP..LHD..(SOL,TRSTD)..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

NLP10,SCP1#..FRP..5F

 1
90507-14047

SCP1#..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)..5F

 2
90541-06036

SCP1#..LHD..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)..5F

 2
90541-06036

SCP1#..LHD..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)..5F

 2
90541-06036

SCP1#..LHD..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)..5F

 2
90541-06036

SCP1#..LHD..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NLP10,SCP1#..FRP..5F

 2
90386-13015

SCP1#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NLP10,SCP1#..FRP..5F

 2
90386-13015

SCP1#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

SCP1#..FRP..LHD..(SOL,TRSTD)..5F

 1
90101-08052

SCP1#..LHD..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

NLP10,SCP1#..FRP..5F

 1
31321-52010

SCP1#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10167

SCP1#..5F

 1
90109-10167

NLP10,SCP1#..FRP..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08294

NLP10,SCP1#..FRP..LHD..5F

L=48.5

 1
90249-08294

SCP1#..LHD..5F

L=48.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

SCP1#..5F

 1
90386-08002

NLP10,SCP1#..FRP..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0D010

SCP1#..LHD..5F

 1
55107-0D010

SCP1#..FRP..LHD..(SOL,TRSTD)..5F

 1
Common parts
90105-08120
90179-10088
90468-16142
94130-60800
94130-61000

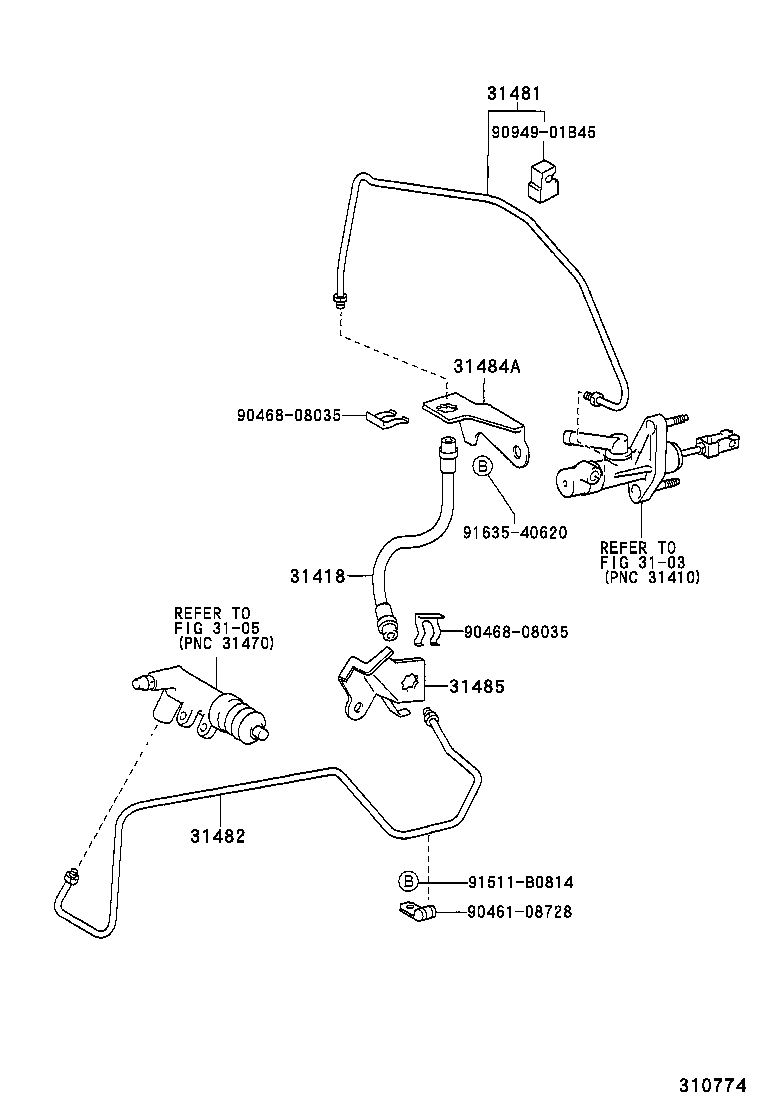

ILLUST NO. 2 OF 2(0101-0302)SCP10..FRP..LHD

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31484A 31485 9046108728 9046808035 9046808035 9094901B45 91511B0814 9163540620
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02C30

SCP10

 1
90947-02C30

SCP10..FRP..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D010

SCP1#..LHD..5F

 1
31481-0D010

SCP1#..LHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-52050

SCP10

 1
31482-0D040

SCP10..FRP..(SOL,TRSTD)..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52010

SCP1#..5F

 1
31484-52010

NLP10,SCP1#..FRP..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52030

SCP10..FRP..5F

 1
31484-52030

SCP10

 1
Common parts
90461-08728
90468-08035
90949-01B45
91511-B0814
91635-40620
Linked diagrams
3103
3105

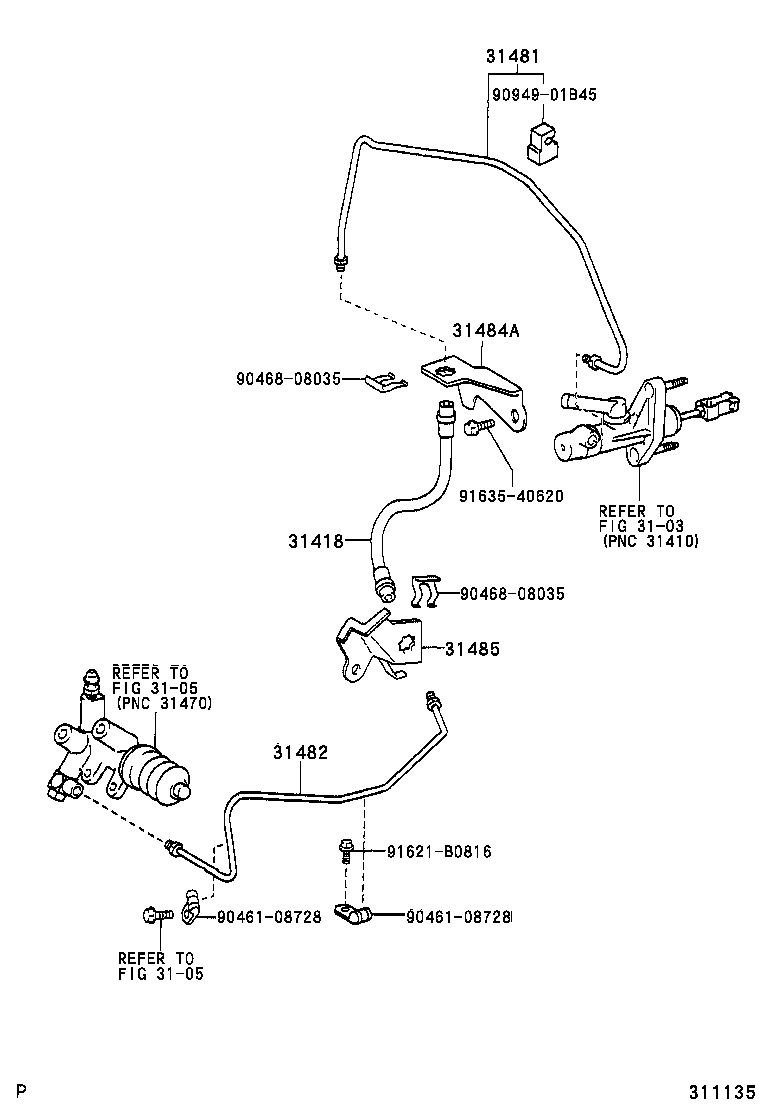

ILLUST NO. 2 OF 2(0302- )SCP10..FRP..LHD..SOL,TRSTD..5F

Click highlighted areas on diagram

diagram 3103 3105 3105 31418 31481 31482 31484A 31485 9046108728 9046108728 9046808035 9046808035 9094901B45 91621B0816 9163540620
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02C30

SCP10

 1
90947-02C30

SCP10..FRP..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D010

SCP1#..LHD..5F

 1
31481-0D010

SCP1#..LHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-52050

SCP10

 1
31482-0D040

SCP10..FRP..(SOL,TRSTD)..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52010

SCP1#..5F

 1
31484-52010

NLP10,SCP1#..FRP..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52030

SCP10..FRP..5F

 1
31484-52030

SCP10

 1
Common parts
90461-08728
90468-08035
90949-01B45
91621-B0816
91635-40620
Linked diagrams
3103
3105
