SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )1SZFE..FRP

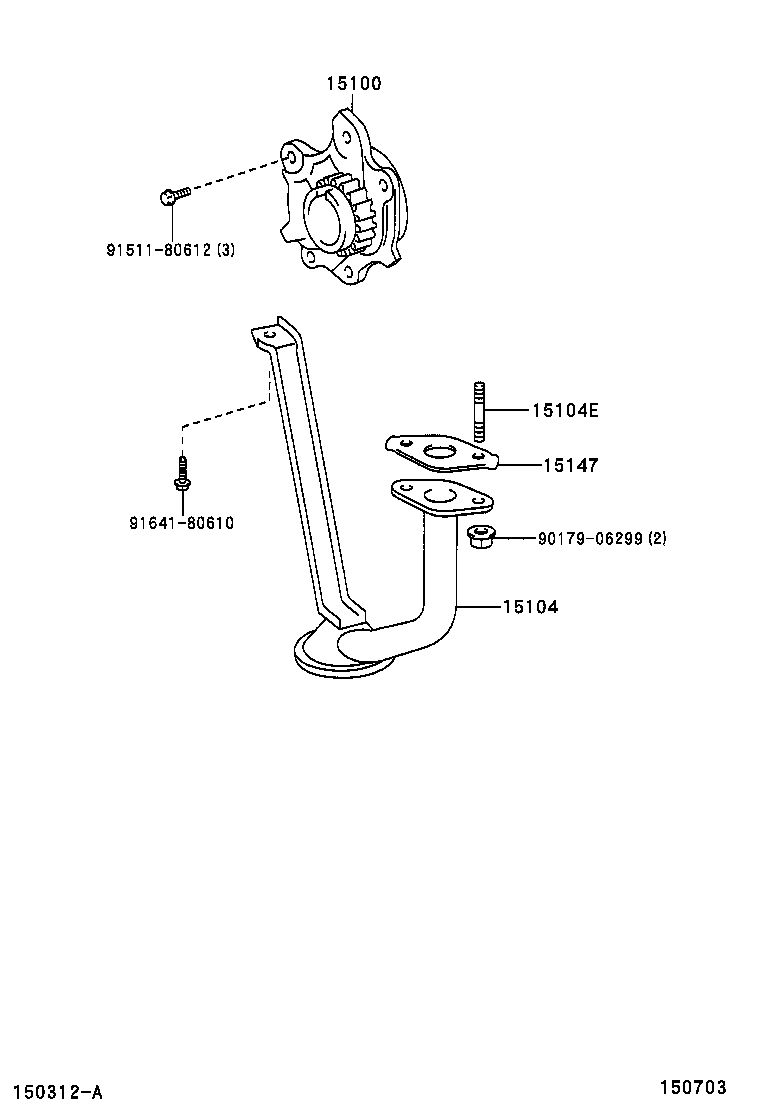

Click highlighted areas on diagram

diagram 15100 15104 15104E 15147 9017906299 9151180612 9164180610
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-23020

1SZFE,2SZFE..SCP1#

 1
15100-23020

1SZFE,2SZFE..SCP1#..FRP

 1
15104 - STRAINER SUB-ASSY, OIL
15104-23040

1SZFE..SCP10

 1
15104-23050

1SZFE,2SZFE..SCP1#..FRP

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
92122-60614

1SZFE,2SZFE..SCP1#

 2
92122-60614

1SZFE,2SZFE..SCP1#..FRP

 2
15147 - GASKET, OIL STRAINER
15147-0J010

1SZFE,2SZFE..SCP1#..FRP

 1
15147-23020

1SZFE,2SZFE..SCP1#..FRP

 1
15147-0J010

1SZFE,2SZFE..SCP1#

 1
Common parts
90179-06299
91511-80612
91641-80610
