SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )1SZFE,2SZFE..FRP

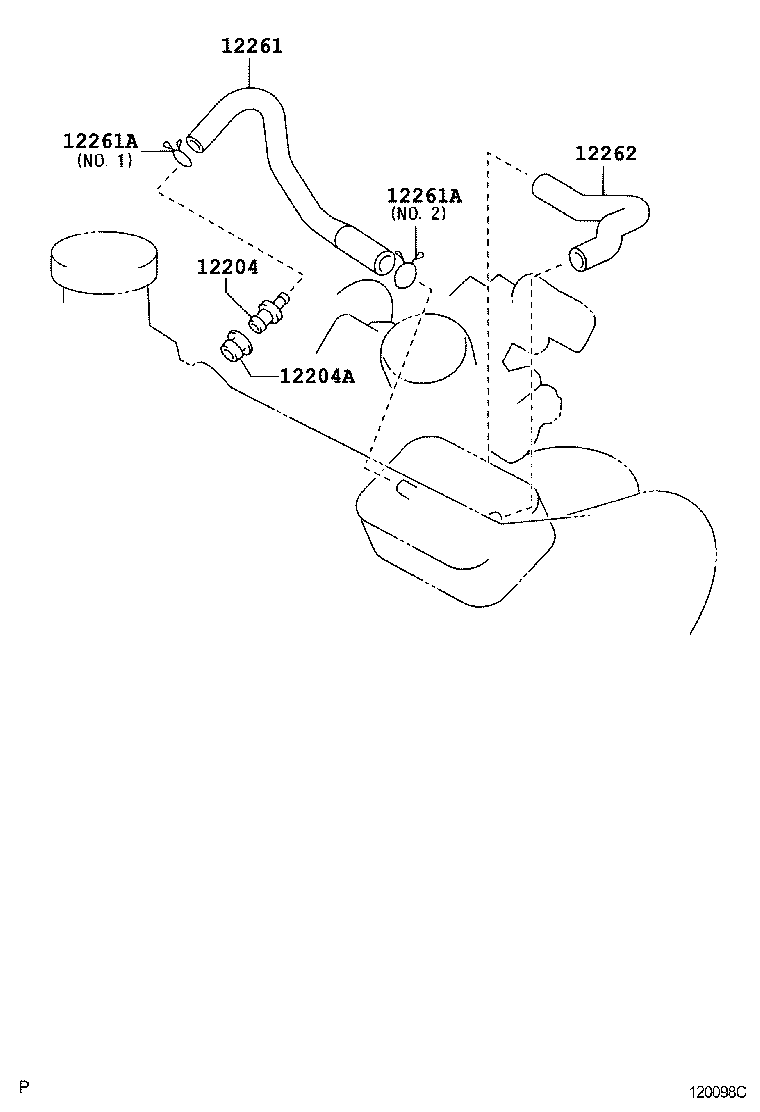

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-23011

1SZFE,2SZFE..SCP1#

 1
12204-23011

1SZFE,2SZFE..SCP1#..FRP

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1SZFE,2SZFE..SCP1#

 1
90480-18001

1SZFE,2SZFE..SCP1#..FRP

 1
12261 - HOSE, VENTILATION
12261-23020

1SZFE,2SZFE..SCP1#

 1
12261-23010

1SZFE..SCP10

 1
12261-23030

1SZFE..SCP10..FRP

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1SZFE,2SZFE..SCP1#

NO.1

 1
90467-14001

1SZFE,2SZFE..SCP1#..FRP

NO.1

 1
90467-18003

1SZFE,2SZFE..SCP1#

NO.2

 1
90467-18003

1SZFE,2SZFE..SCP1#..FRP

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1SZFE,2SZFE..SCP1#

NO.1

 1
90467-14001

1SZFE,2SZFE..SCP1#..FRP

NO.1

 1
90467-18003

1SZFE,2SZFE..SCP1#

NO.2

 1
90467-18003

1SZFE,2SZFE..SCP1#..FRP

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
90910-05224

1SZFE,2SZFE..SCP1#

 1
90910-05224

1SZFE,2SZFE..SCP1#..FRP

 1
