SCP10L-CHMRKW (2001)

Toyota Yaris (Frp)

Production Jan 2001 - Nov 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )1SZFE..FRP

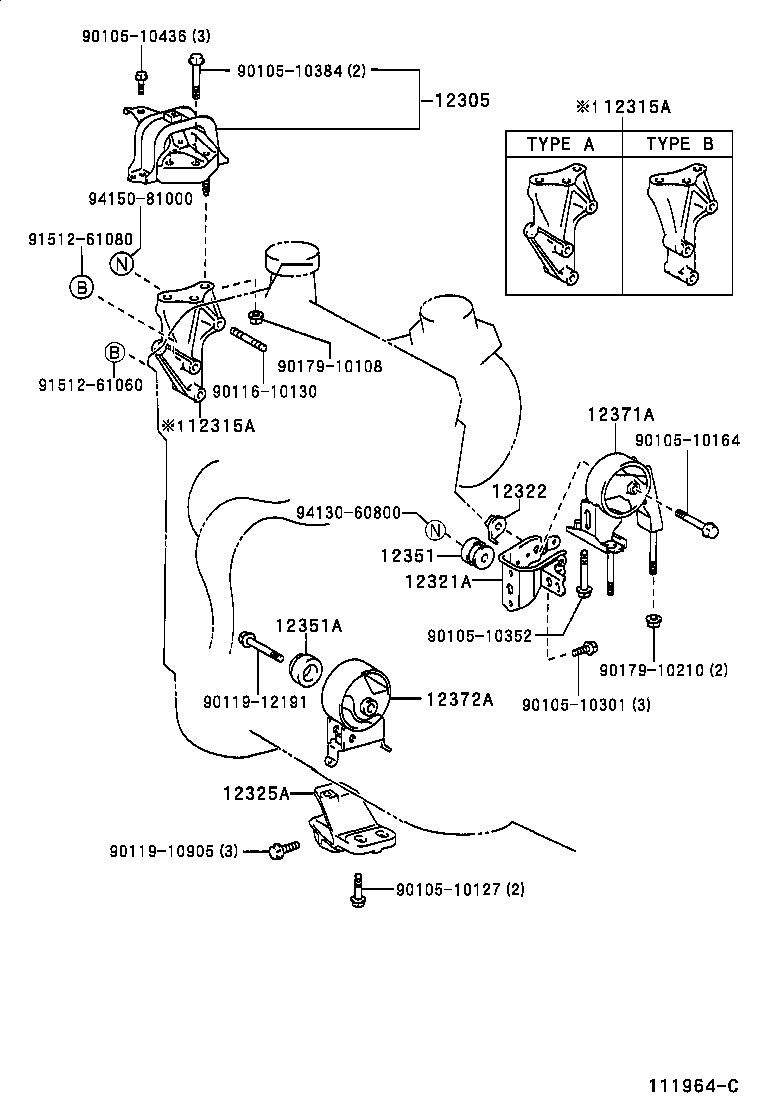

Click highlighted areas on diagram

diagram 12305 12315A 12315A 12321A 12322 12325A 12351 12351A 12371A 12372A 9010510127 9010510164 9010510301 9010510352 9010510384 9010510436 9011610130 9011910905 9011912191 9017910108 9017910210 9151261060 9151261080 9413060800 9415081000
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0J010

1SZFE..SCP10

 1
12305-0J010

1SZFE..SCP10..FRP

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-23021

1SZFE..SCP10

 1
12315-23021

1SZFE..SCP10..FRP

TYPE A:REFER TO ILLUSTRATION

 1
12315-0J010

1SZFE..SCP10..FRP

TYPE B:REFER TO ILLUSTRATION

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-23021

1SZFE..SCP10

 1
12315-23021

1SZFE..SCP10..FRP

TYPE A:REFER TO ILLUSTRATION

 1
12315-0J010

1SZFE..SCP10..FRP

TYPE B:REFER TO ILLUSTRATION

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0J010

1SZFE..SCP10

 1
12321-0J010

1SZFE..SCP10..FRP

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-23020

1SZFE,2SZFE..SCP1#

 1
12322-23020

1SZFE,2SZFE..SCP1#..FRP

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0J010

1SZFE..SCP10..FRP

 1
12325-23011

1SZFE..SCP10

 1
12351 - DAMPER, ENGINE MOUNTING
12351-23010

1SZFE,2SZFE..SCP1#

 1
12351-23010

1SZFE,2SZFE..SCP1#..FRP

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-0J010

1SZFE..SCP10..FRP

 1
12351-11030

1SZFE..SCP10

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0J010

1SZFE,2SZFE..SCP1#..5F

 1
12371-0J011

1SZFE,2SZFE..SCP1#..5F

 1
12371-0J011

1SZFE,2SZFE..SCP1#..FRP..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0J010

1SZFE..SCP10

 1
12372-0J010

1SZFE..SCP10..FRP

 1
Common parts
90105-10127
90105-10164
90105-10301
90105-10352
90105-10384
90105-10436
90116-10130
90119-10905
90119-12191
90179-10108
90179-10210
91512-61060
91512-61080
94130-60800
94150-81000
